Centering ball rotary,614-00,wlk.106 MK3 RÖHM

€952.61
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Jan 26 - Thu, Jan 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Röhm
Product code:
61704 / 4019208017303

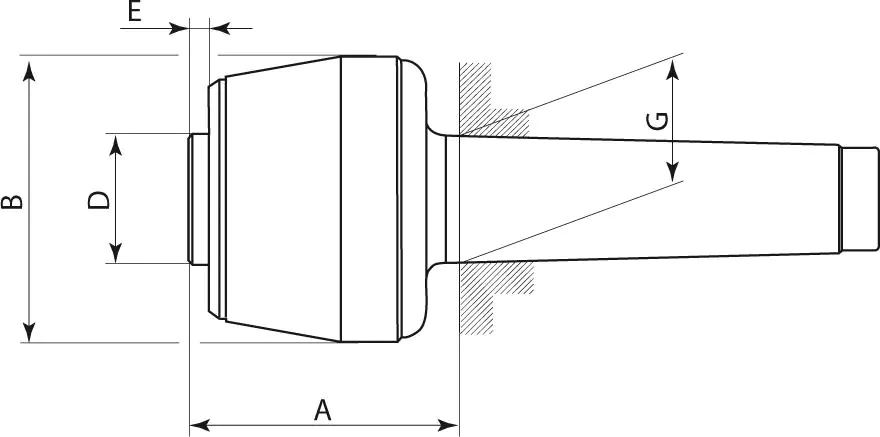

Specification

Dimension a:55 mm
Dimension b:58.5 mm
Dimension d:25 mm
Dimension e:5.5 mm
Max. radial runout tolerance:0.01 mm
Max. workpiece weight:150 kg
Mount:3 Morse cone
Size:106

Rotary lathe tusk with replaceable inserts – FLEX

Execution: fully hardened and grinded.
Application: versatile use thanks to simple and quick replacement of centering inserts using an ejector.

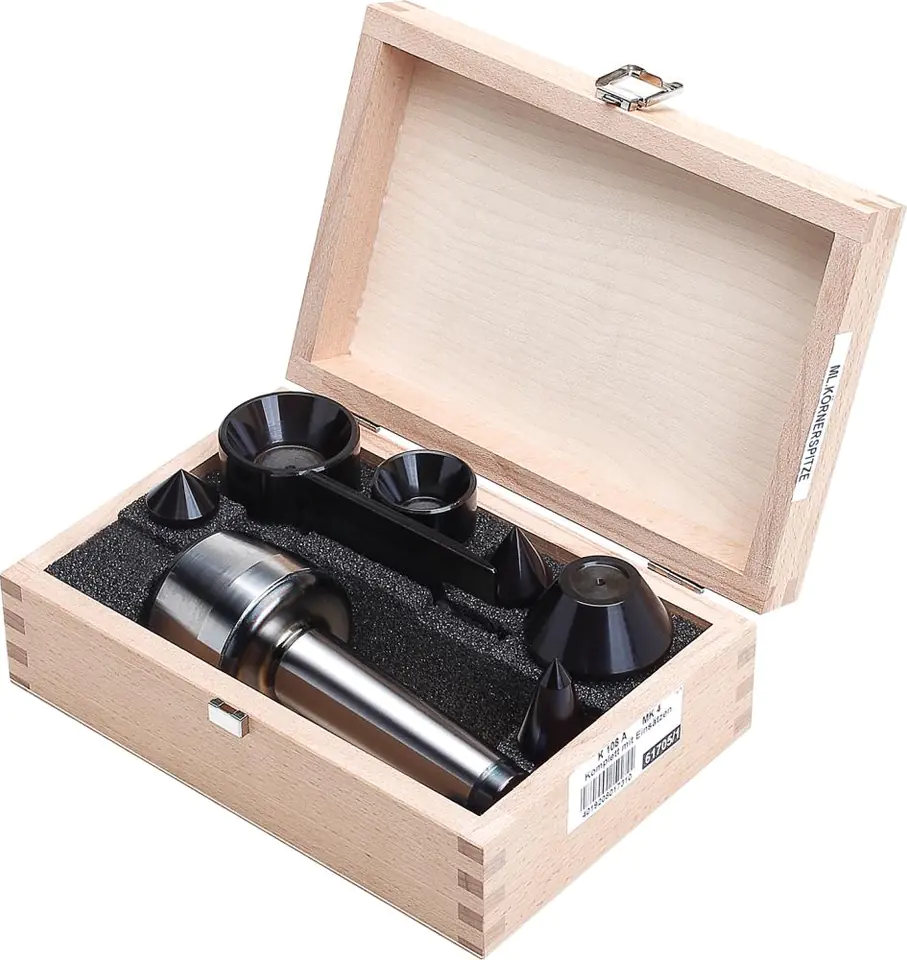

Scope of delivery: rotary lathe tusk with 3 inserts (60°, 90° and 60° extended), 1 insert for hollow elements 60°, 2 inserts for centerless parts (shape A and B) and 1 ejector.
Note: individual inserts and empty bodies on request.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
