Rotary centering tusk
Made of hardened and ground body, with an apical angle of 60°. Triple bearing for high axial and radial loads. Solid lubricant for the entire service life.

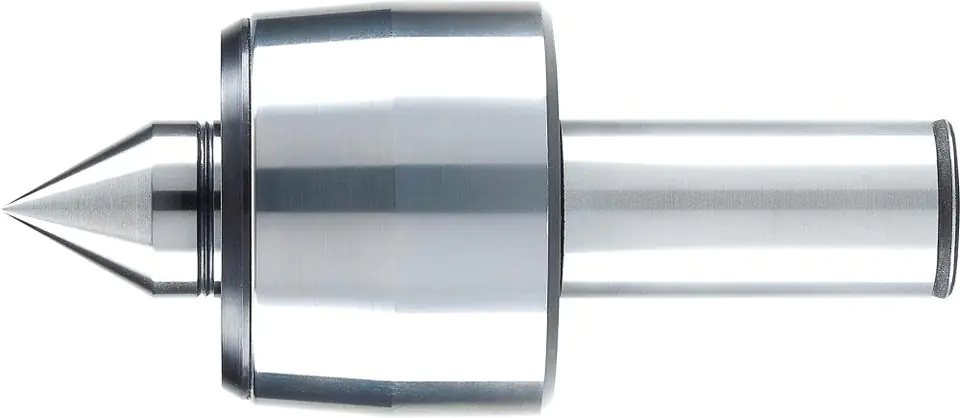

Centering ball rotary, K102HZA, grip cylinder. 20mm RÖHM
€378.78
Shipping from warehouse: B6
Estimated shipping: Wed, Jul 9 - Mon, Jul 14
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Röhm
- Product code:
- 1316054 / 4019208369020
Share this product:
Specification

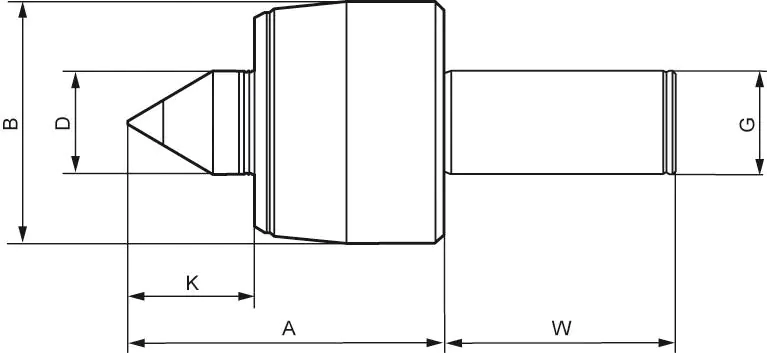

| Dimension a: | 58 mm |
|---|---|
| Dimension b: | 43 mm |
| Dimension d: | 20 mm |
| Dimension k: | 24 mm |
| Dimension w: | 50 mm |
| G-socket diameter: | 20 mm |
| Max. speed: | 7000 min-1 |
| Max. workpiece weight: | 130 kg |
| Radial runout tolerance: | 0.005 mm |
| Size: | 102 |
