Passive infrared sensor for ceiling mountingThe heart of the device is a passive infrared sensor with a motion detection angle of about 360 degreesMotion detection is carried out by measuring the change in ambient temperature in a given sector of the sensor's visibility, as a result of the movement of the person there.
CEILING PIR DETECTOR DG-467/PARADOME PARADOX
PLN 167.67
Shipping from warehouse: D4
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DG-467/PARADOME / 5902887016196
Share this product:
Specification
| Alarm outputs:: | NC |
|---|---|
| Colour:: | white |
| Country of origin:: | Canada |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |
| Detection angle:: | 360 ° |
| Dimensions:: | Ø 107 x 34 mm |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 29 mA |
| Maximum load on outputs:: | 28 VDC / 150 mA |
| Operating temperature:: | -20 °C ... 50 °C |
| Power:: | 9 V ... 16 VDC |
| Pyroelement:: | Double |

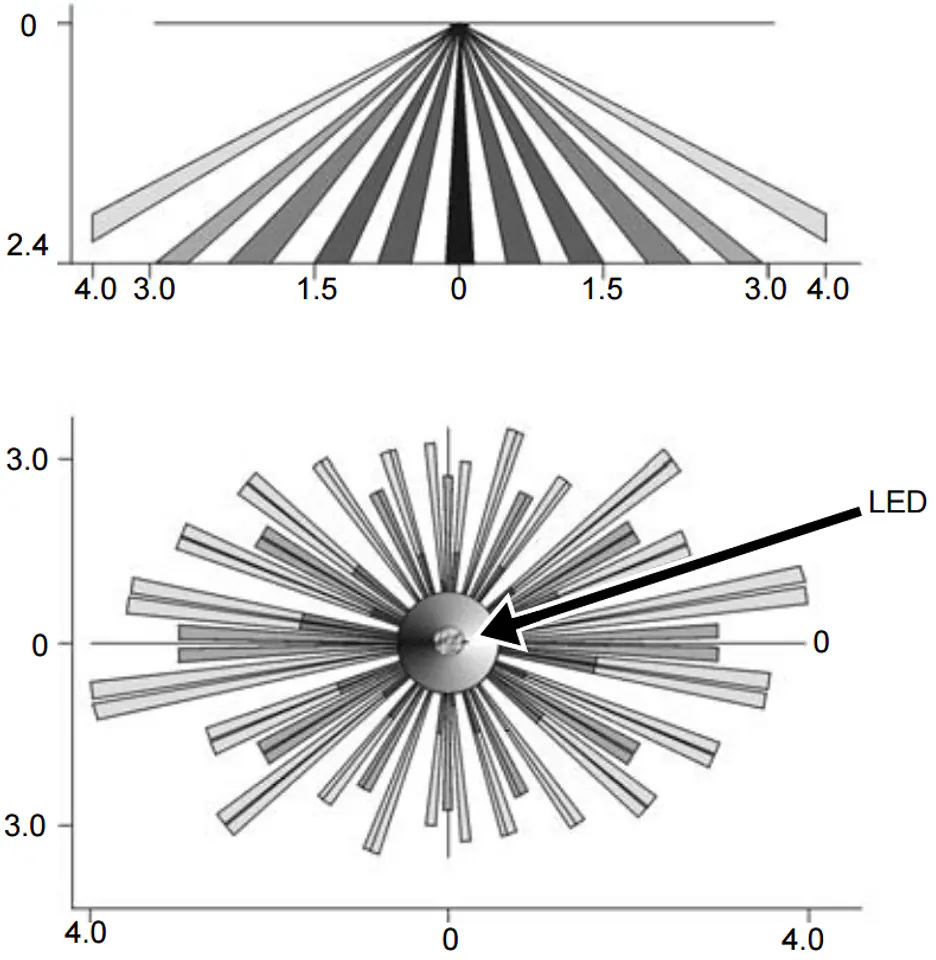

| Range:: | 7 x 6 from a height of 2.4 m, 11 x 6 m from a height of 3.7 m |
| Recommended mounting height:: | 2.2 m ... 4 m |
| Scales:: | 0.076 kg |
| Selected features:: | Dual Opposing Detection Element Patented Motion Analysis (Without Analog Signal Processing) 2 Operating Modes :- Dedicated Independent Digiplex & Digiplex EVO Addressable Detector Bus- Conventional Relay Detector Digital Shield Algorithm to Reduce False Alarms Tamper Protection Test Mode EN 50130-4 EN 55022 |
| Self-diagnostics:: | Basic |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Violation signaling time:: | 5 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
