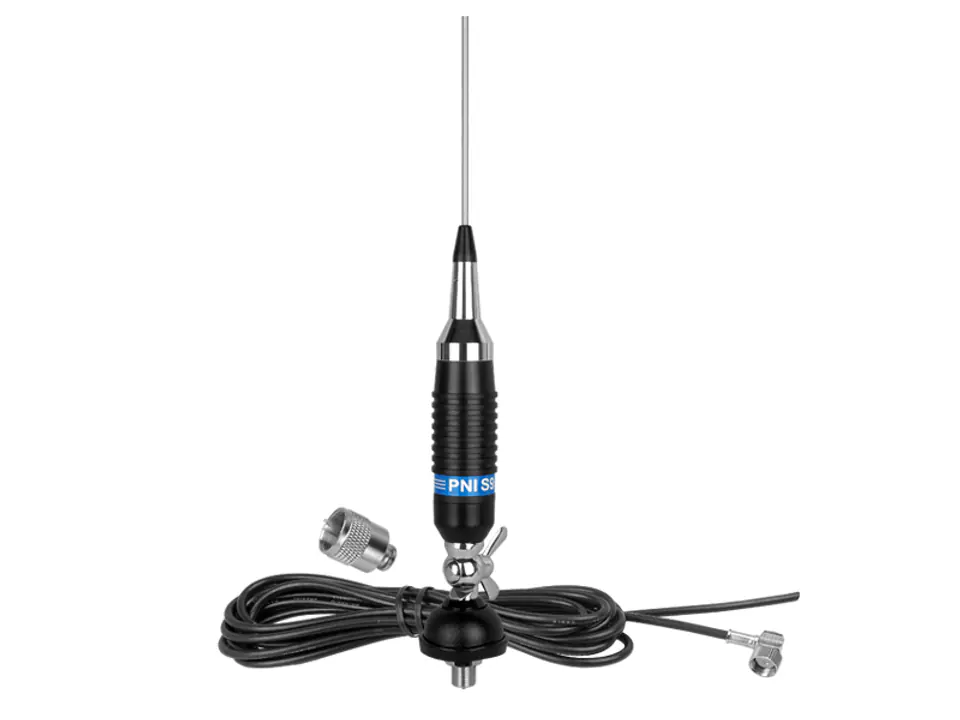

CB S9 antenna mounting with 4 m cable.
The efficiency of the antenna is closely related to its technical characteristics and the conditions of installation and use. With a maximum power of 600 W, an impedance of 50 Ohm and a minimum mid-band SWR of less than 1.2:1, the S9 is a great product to meet the needs of demanding users.
Communication distance is another decisive factor in the acquisition and use of a CB antenna. The S9 antenna under ideal operating conditions is able to achieve a communication distance of up to 12-14 km. Any obstacle such as hills, mountains, buildings, walls can reduce this distance.
The length of the antenna is another very important factor that can affect the communication distance in traffic. The longer the antenna, the greater the signal reception range. The antenna in this set has a length of 120 cm.
The S9 antenna can be tilted using the butterfly screw. Thanks to this, the antenna will not be a problem in garages or parking spaces with a low ceiling. It is not recommended to tilt more than 30 degrees, as this may affect the operation of the antenna.
| 26-28 MHz | Częstotliwość pracy |
|---|---|
| 90 | Liczba kanałów |
| 600 W | Moc maksymalna |
| Mniej niż 1,2:1 | Minimalna wartość SWR w środku pasma |
| 120 cm | Długość |
| 50 Ohm | Impedancja |
| Stal nierdzewna | Materiał wykonania |
| DV | Typ złącza |
| 12 km | Odległość robocza |
| 900 g | Waga |
| 1 x Antena CB1 x Wtyk PL2591 x Śruba motylkowa1 x Kabel 4 m | W zestawie |
