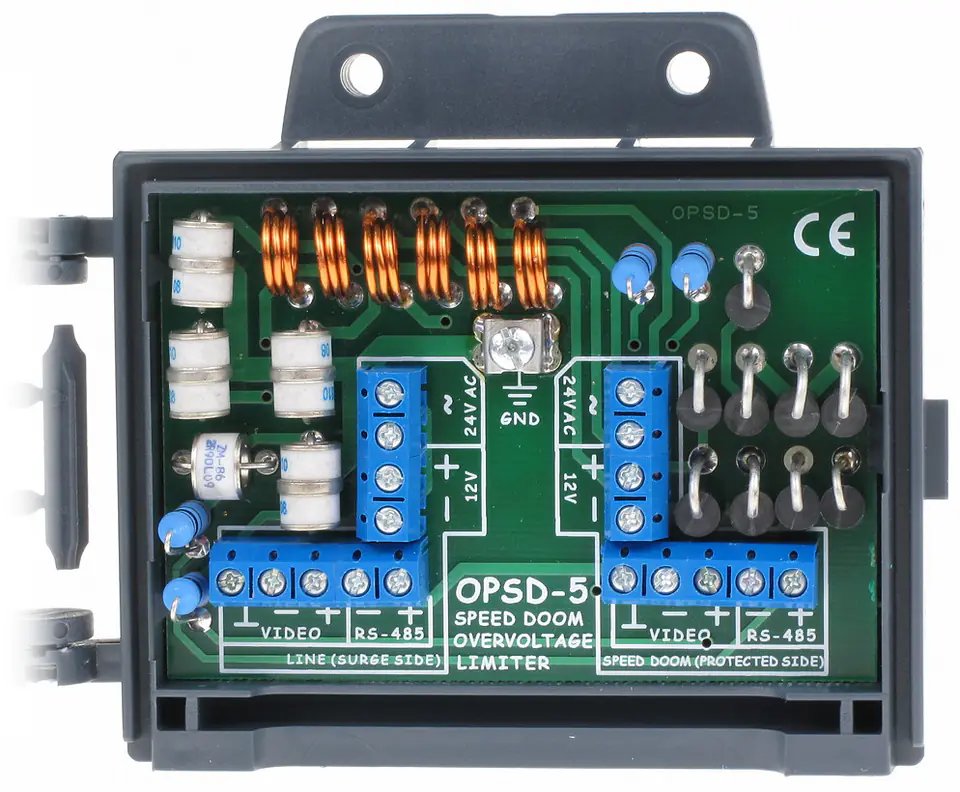

CAMERA PROTECTOR SPEED DOME OPSD-5

PLN 109.67
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Delta
Product code:
OPSD-5 / 5902887041914

Specification

Capacity::< 7 pF ( Wideo )
Dimensions::120 x 91 x 37 mm
Input connector type::terminal block
Manufacturer / brand::DELTA
Maximum discharge current::5 kA ( Video ) 5 kA ( Power supply 12V DC ) 5 kA ( Power supply 24V AC )
Maximum value of rs-485 current pulse (t=8.3ms)::30 A
Operating temperature::-50 °C ... 55 °C
Output connector type::terminal block
Permissible relative humidity::< 95 %
Protection voltage::> 2.4 V (wire/wire) ( Video )> 8.2 V (wire/wire) ( RS-485 ) > 15 V (wire/wire) ( Power supply 12V DC ) > 36 V (wire/wire) ( Power supply 24V AC )> 18.4 V (wire/wire) ( Video )> 19.4 V (wire/wire) ( RS-485 )> 47 V (wire/wire) ( Power supply 12V DC )> 47 V (wire/uziom) ( Power supply 24V AC )
Response time::15 ns ( Video ) 15 ns ( RS-485 )15 ns ( Power supply 12V DC )15 ns ( Power supply 24V AC )
Scales::0.11 kg
Serial impedance of the line::1 Ω ( Vein Video )
Standard::AHD - 5 Mpx HD-CVI - 8 Mpx 4K UHD HD-TVI - 5 Mpx CVBS - PAL / NTSC
The device protects::Video track (asymmetrical or balanced signal) RS-485 Power supply 12V DC Power supply 24V AC
Warranty::3 years

Our statistics collected for many years on the website indicate that about 25% of damage to electronic equipment was caused by overvoltagesThe surge is created by the electromagnetic field created by a close lightning strike or a short, violent power surge surge OPSD-5 limiter is designed for surge protection of Speed Dome cameras

REMARK! Before installation, please refer to the following recommendations: Connection work cannot be performed during a storm. OPSD-5 should be connected to a good grounding system. The stop should be placed as close as possible to the protected device

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
