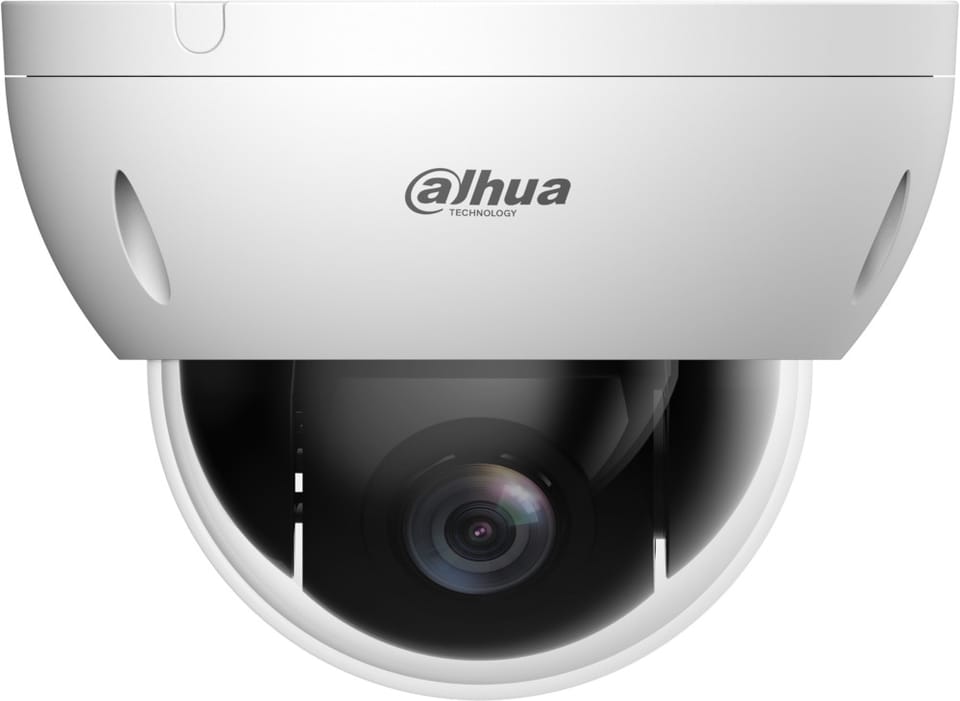

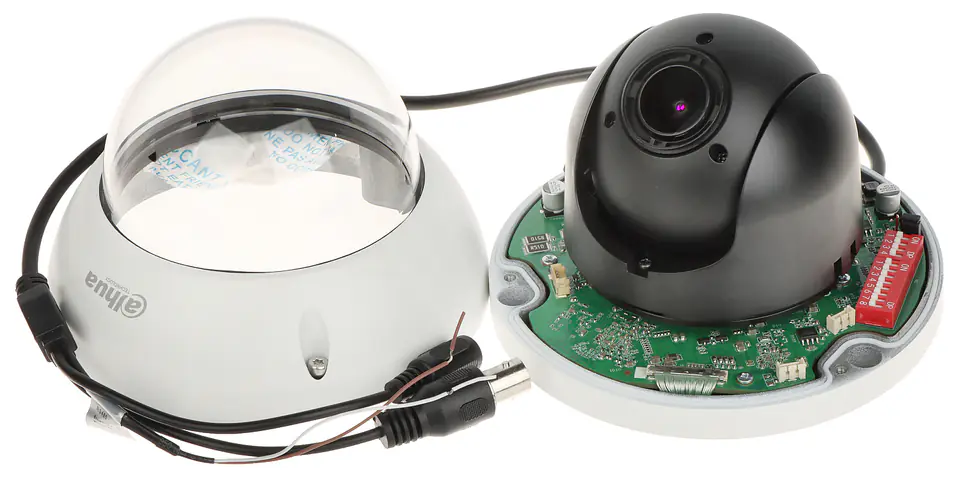

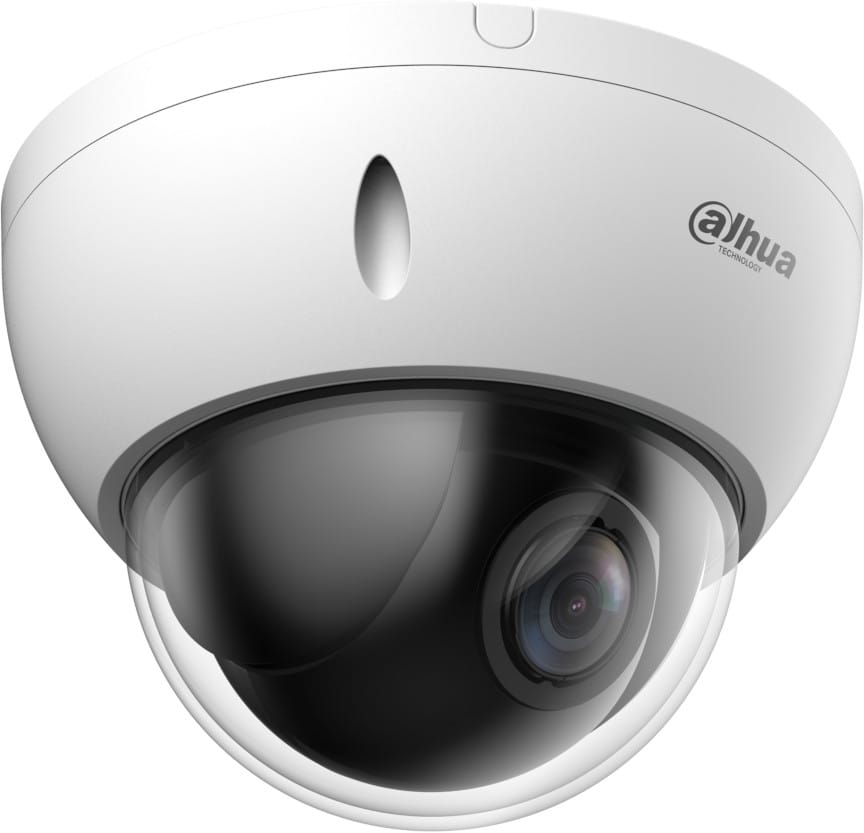

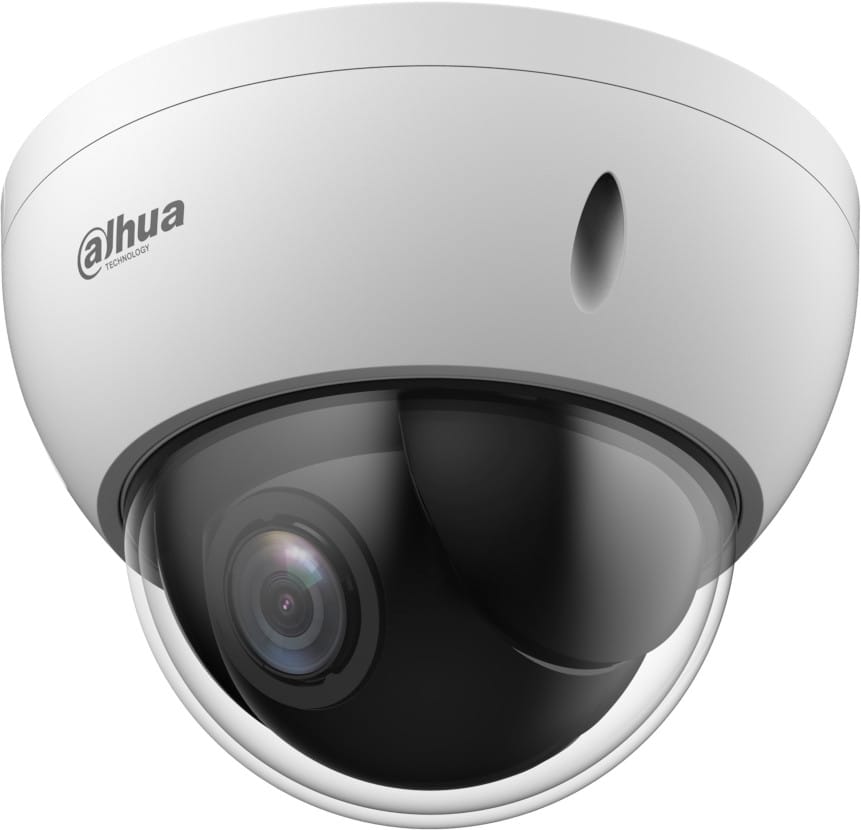

CAMERA HDCVI DAHUA SD22204DB-GC
PLN 748.03
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 22 - Thu, Dec 25
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- SD22204DB-GC / 6923172591319
Share this product:
Specification
| Back light compensation (blc): | Yes |
|---|---|
| Bit rate: | 448K - 8192Kbps, 5120K - 10240Kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Bnc output ports: | 1 |
| Built-in hdd: | No |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/1 - 1/30000 s |
| Camera shutter type: | Electronic |
| Camera tilt control: | Yes |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output current: | 1 A |
| Dc output voltage: | 12 |
| Dc-in jack: | Yes |
| Detect distance: | 151.7 m |
| Diameter: | 12.2 cm |
| Digital wide dynamic range (dwdr): | Yes |
| Digital zoom: | 16x |
| Ethernet lan: | No |
| Focal length range: | 2.7 - 11 mm |
| Focus: | Motorized/Manual |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 88.9 mm |
| Highlight compensation (hlc): | Yes |
| Identify distance: | 15.2 m |
| Ik code: | IK10 |
| Internal memory: | 256 MB |
| International protection (ip) code: | IP66 |
| Led type: | IR |
| Lens viewing angle, diagonal: | 117.7° |
| Lens viewing angle, horizontal: | 99.1° |
| Lens viewing angle, vertical: | 53.4° |
| Maximum resolution: | 1920 x 1080 pixels |
| Minimum illumination: | 0.0005 lx |
| Mounting type: | Ceiling |
| Night vision: | Yes |
| Noise reduction: | Yes |
| Noise reduction technology: | 2D noise reduction, 3D noise reduction |
| Number of cameras: | 1 |
| Number of effective pixels (h x v): | 1920 x 1080 pixels |
| Observe distance: | 59.9 m |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom: | 4x |
| Package type: | Box |
| Package weight: | 650 g |
| Pan preset speed: | 100 °/sec |
| Pan range: | 0 - 355° |
| Pan speed: | 100 °/sec |
| Placement supported: | Indoor & outdoor |
| Power consumption (max): | 9 W |
| Power consumption (typical): | 7 W |
| Power source type: | DC |
| Preset points: | Yes |
| Product colour: | White |
| Progressive scan: | Yes |
| Ptz control: | Yes |
| Ptz modes: | 8 Tour, Preset sequence |
| Ptz protocols: | Pelco-P/D |
| Recognize distance: | 30.3 m |
| Region of interest (roi) encoding: | Yes |
| Rom capacity: | 128 MB |
| Rs-485 ports: | 1 |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 50 dB |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 704 x 576, 352 x 288, 352 x 240, 704 x 480, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720) |
| Supported video modes: | 720p, 1080p |
| Tilt angle range: | 0 - 90° |
| Tilt speed: | 60 °/sec |
| Total megapixels: | 2 MP |
| Type: | CCTV security camera |
| Video compression formats: | H.265, M-JPEG, H.264B, H.264H, H.265+, H.264, H.264+ |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Weight: | 600 g |
| White balance: | Manual, Outdoor, Indoor, ATW, Auto |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
| Zoom capability: | Yes |
