The switch allows you to select one of the signal sources and connect it to the outputSelect can be made manually or automaticallyThe time after which the next switch will take place can be set for all cameras at the same time or for each camera separatelyIt is also possible to set the skip in the sequence of each of the inputs

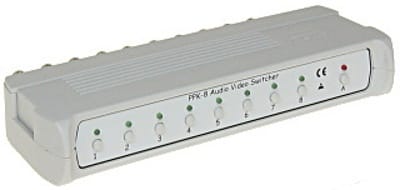

CAMERA AND AUDIO SWITCH PPK-8
€77.81
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- PPK-8 / 5902887016455
Share this product:
Specification
| Assembly:: | to the wall |
|---|---|
| Audio inputs:: | 8 pcs. CINCH |
| Audio outputs:: | 2 pcs. CINCH |
| Control:: | Controls |
| Dimensions:: | 216 x 100 x 36 mm |
| Input impedance:: | 75 Ω / 10 kΩ |
| Manufacturer / brand:: | DELTA |
| Output impedance:: | 75 Ω / 39 Ω |
| Power:: | 12V/100mA (no power supply included) |
| Scales:: | 0.25 kg |
| Standard:: | AHD - 4 Mpx, HD-CVI - 1080p, HD-TVI - 5 Mpx, CVBS - PAL, NTSC |
| Time adjustment range:: | 0.5 ... 125 sec |
| Video inputs:: | 8 pcs. BNC |
| Video outputs:: | 2 pcs. BNC |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
