| Auto iris connector: | DC |
|---|---|
| Case: | BOX, Metal |
| Colour: | White + Black |
| Cooperation with ir illuminator: | ICR - Mechanical IR filter |
| Dimensions: | 149 x 82 x 58 mm |
| Operating temperature: | -20 °C ... 60 °C |
| Power: | 12 V DC / 150 mA |
| Power consumption: | ≤ 1.8 watts |
| Producer / brand: | APTI |
| Resolution: | 3840 x 2160 - 8.3 Mpx, 4K UHD @ AHD / HD-CVI / HD-TVI @ 12.5 fps, 15 fps, 2592 x 1944 - 5 Mpx @ AHD / HD-CVI / HD-TVI, 20 fps, 2592 x 1944 - 5 Mpx @ AHD / HD-TVI @ 12.5 fps, 2560 x 1440 - 4 Mpx @ AHD / HD-CVI / HD-TVI @ 30 fps, 2560 x 1440 - 4 Mpx @ AHD @ 15 fps, 1920 x 1080 - 1080p @ AHD / HD-TVI / HD-CVI, 30 fps / 25 fps ,960 x 576 - 960H @ CVBS |
| Scales: | 0.54 kg |
| Selected features: | WDR - Wide dynamic range 3D-DNR - Digital image noise reduction ICR - Mechanical IR filter Auto white balance AGC - Automatic adjustment of image gain Sharpness - Sharpness of image contours |
| Sensitivity: | 0.001 Lux @ F1.2 |
| Sensor size: | 8.3 MP |
| Standard: | AHD, HD-CVI, HD-TVI, PAL |
| Supported languages: | English, Spanish, Portuguese |
| Transducer: | 1/2.8" SONY Starvis™ Back-illuminated CMOS |
| Video output: | 1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, PAL - selectable by buttons |
| Warranty: | 2 years |
Megapixel camera with 1/2.8" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL interface
The AHD / HD-CVI / HD-TVI interface allows transmission of analog video signal via coaxial cable at max. 8 Mpx (4K)There are no delays during transmission and the original, high image quality is maintained

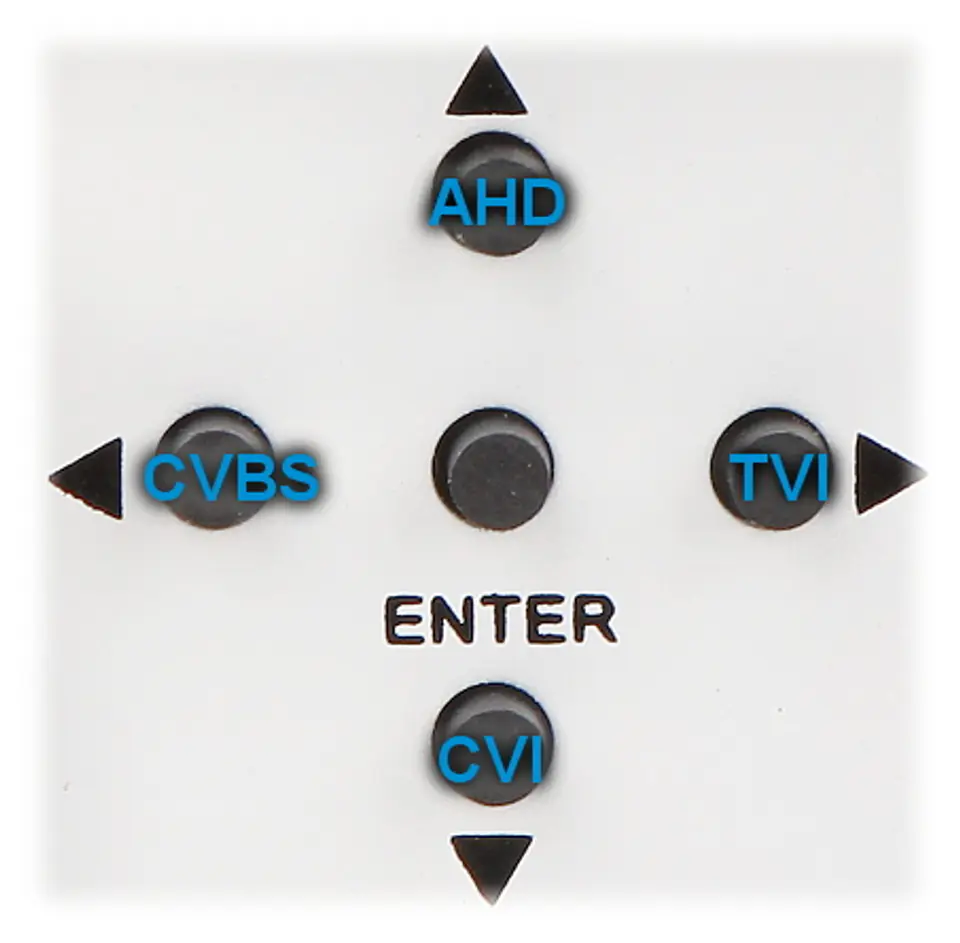

Setting the camera in PAL mode allows to obtain images in 960HZ resolutionAHD / HD-CVI / HD-TVI / PAL standard is done by holding the appropriate button for approx. 5 s, without entering the OSD menu
