CABLE PAIR FINDER TESTER
Key features
Location of the wires sought.
Verification and identification of wires and their condition.
Measurement and test of cable continuity.
Search and verification of shorted wires.
Destiny
High-quality network tester – cable pair finder It allows you to identify wires in cable bundles and indicate cables assigned to individual sockets. The correctness of the indication is indicated by a clear modulated sound signal.
Thanks to the sockets in the transmitter and the included cables, it is possible to identify both Ethernet (RJ45) and telephone (RJ11) cables.

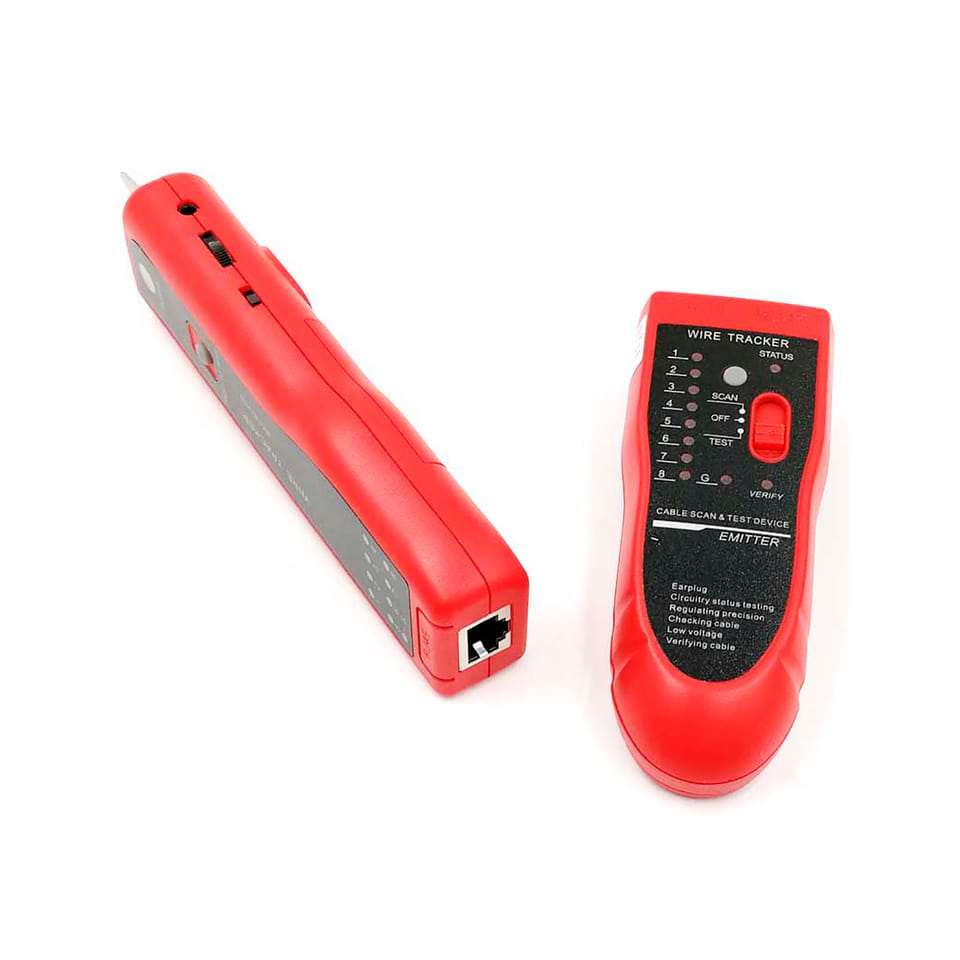

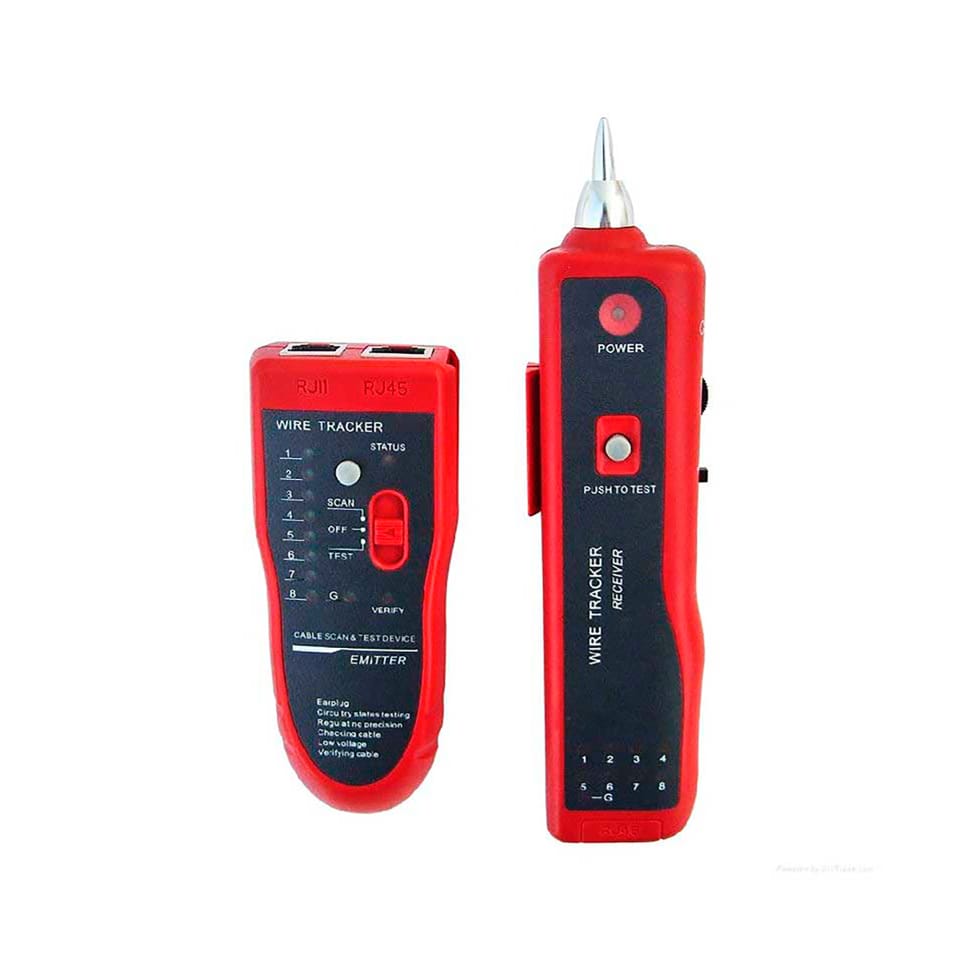

The tester consists of two parts:
transmitter-generator and receiver-detector allowing for convenient search and testing of the correctness of the implementation of computer network elements up to 300m long.

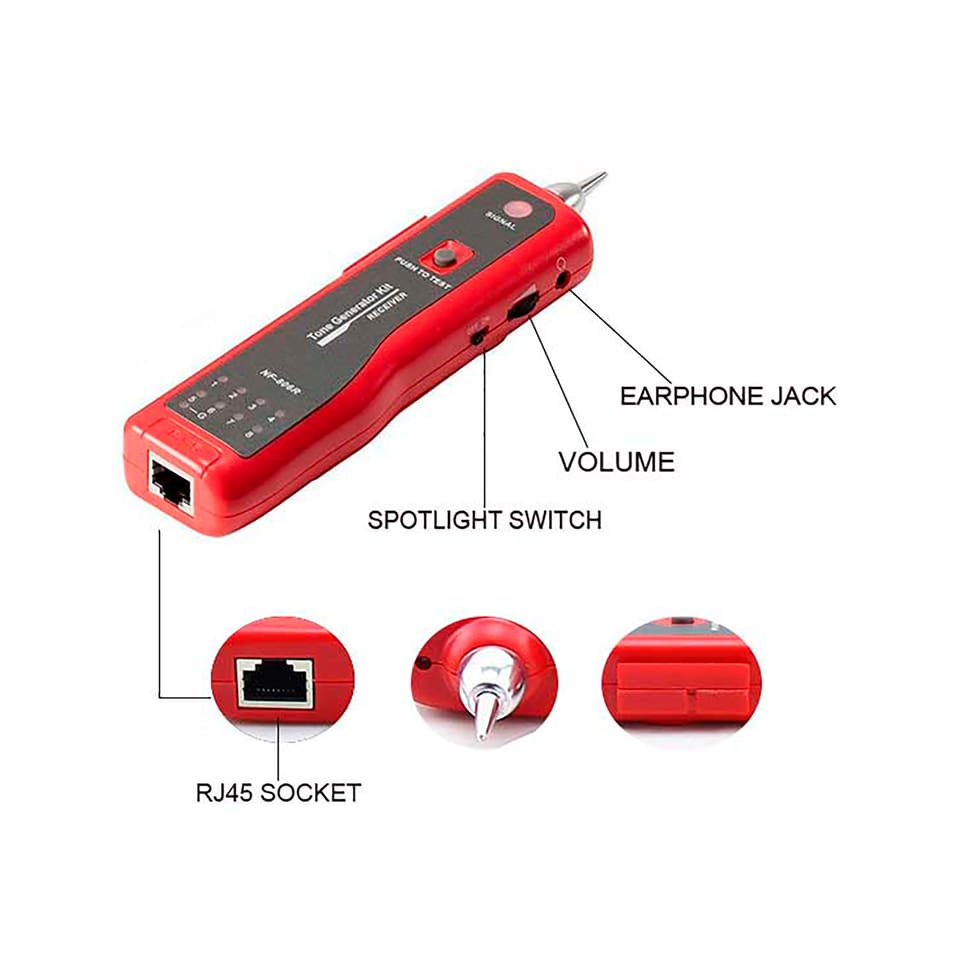

The receiver-detector is equipped with an LED lamp to help you work in dimly lit places. Headphones are included to make it easy to find cables in places with high noise levels.
Along with the tester (transmitter and receiver) are included accessories such as RJ-11 telephone cable, RJ-45 ethernet cable, cable with jaw terminals (crocodile type), headphones, battery.
Product Specifications

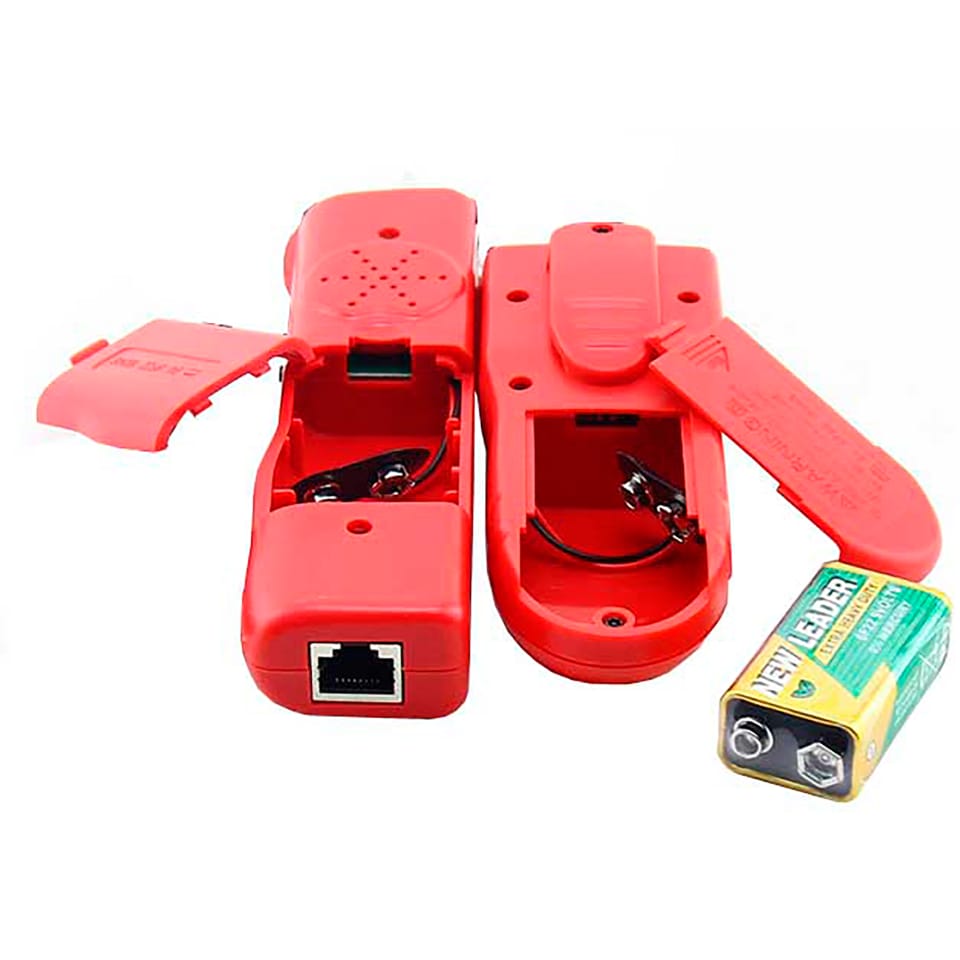

Supply voltage: 2x9V (batteries included)
Length of tested wires: Up to 300m
Transmitter-generator dimensions: 126mm/49mm/34mm
Transmitter-generator weight: approx. 60g
Receiver-detector dimensions: 175mm/42mm/27mm
Receiver-detector weight: Approx. 72g
Set includes: Transmitter
Receiver
9V battery (2 pcs.)
Set of measuring cables
Earphone
Quick Start Guide

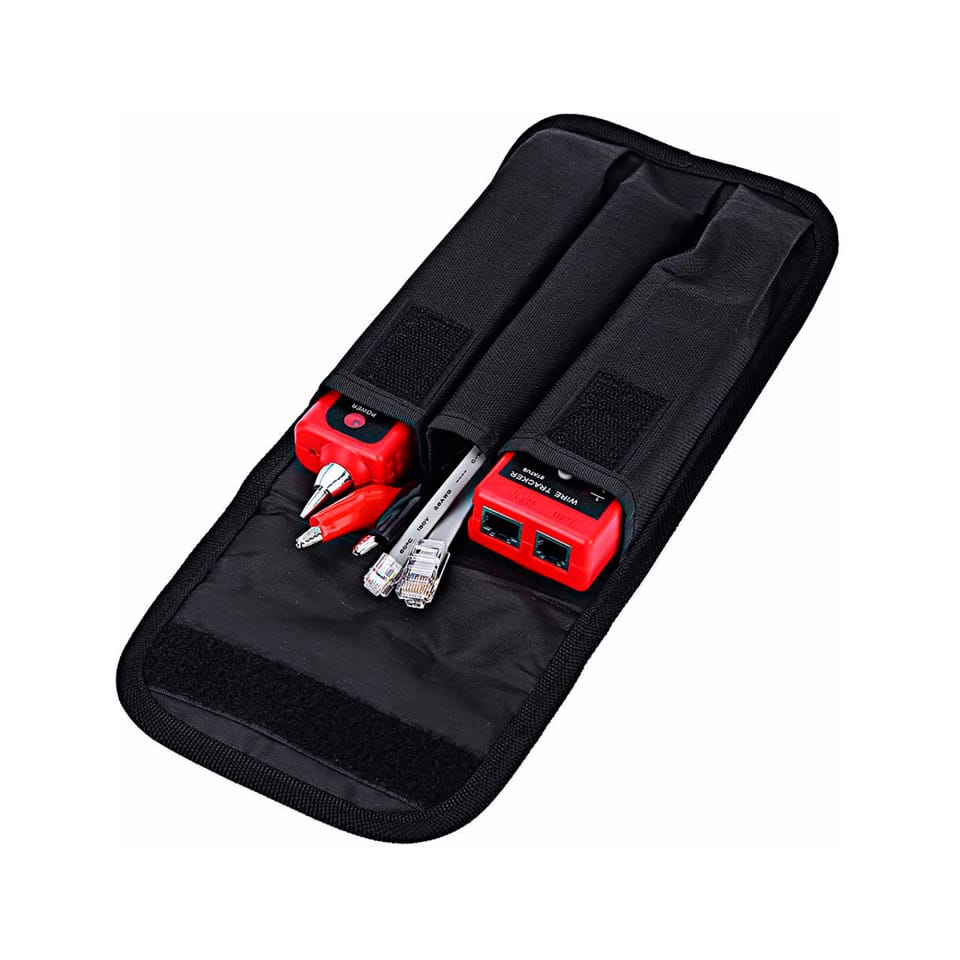

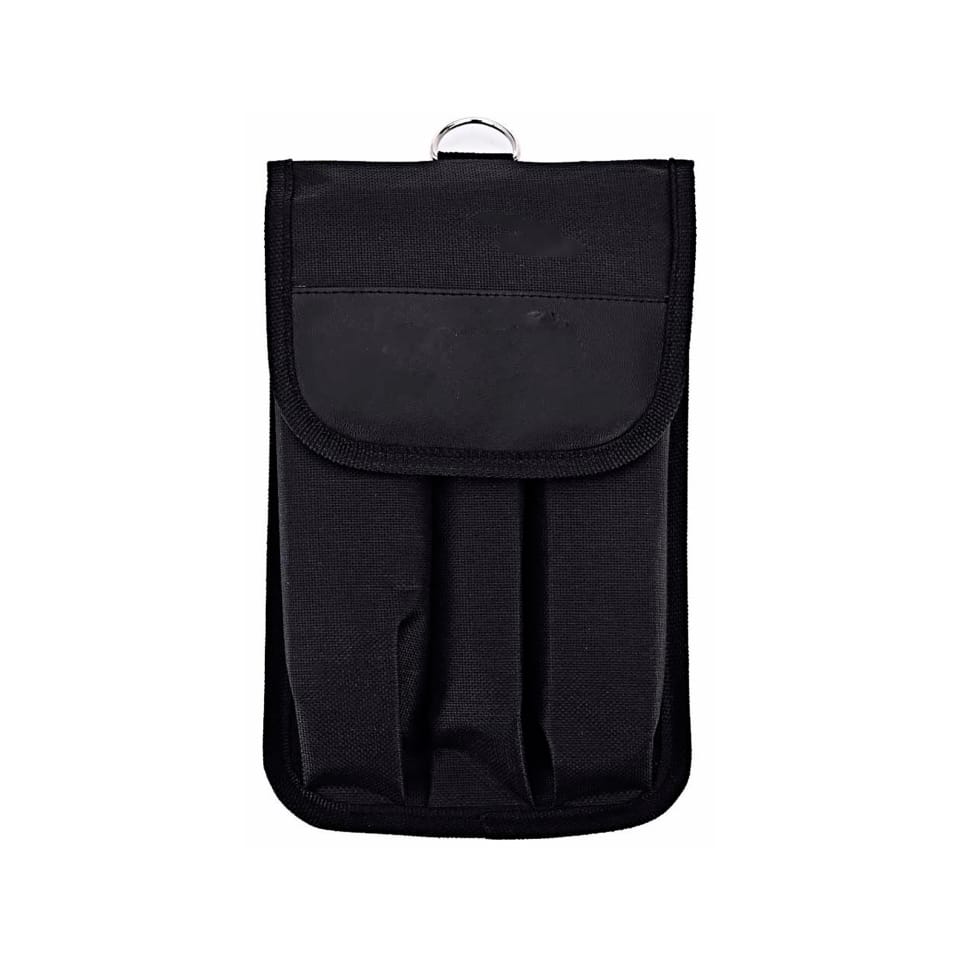

Case
