Metal housing with buffer switching power supply 13.8VDC/6A, and DIN mounting rail TS-35The product is dedicated to cooperation with DAHUA access controllers of the ASC21xxB, ASC12xxB series
BUFFER SWITCHING POWER SUPPLY AWZ-637 FOR DAHUA ASC PULSAR ACCESS CONTROLLERS
PLN 729.26
Shipping from warehouse: D4
Estimated shipping: Tue, May 21 - Fri, May 24
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- AWZ-637 / 5902135316443
Share this product:
Specification
| Anti-tamper contact:: | 50 VDC / 0.5 A |
|---|---|
| Battery charging current:: | 1 A / 2 A |
| Control of power supply operation:: | Signaling the presence of AC mains power Signaling the presence of DC output voltage Signaling battery failure EPS OUTPUT FLT output - signaling AC power failure PSU output signaling lack of DC voltage or power supply failure LoB output - Low battery voltage |
| Current efficiency (total):: | 7 A |
| Dimensions:: | 403 x 326 x 100 mm |
| Input voltage:: | 230 V AC / 50 Hz |
| Manufacturer / brand:: | PULSAR |
| Number of outputs:: | 4 |
| Operating temperature:: | -10 °C ... 40 °C |
| Output voltage:: | 11 V ... 13.8 V DC (buffer operation) |
| Power:: | 100 watts (Printing) |
| Scales:: | 3.26 kg |
| Security:: | Short-circuit Overload Surge Anti-Tamper Anti-Tamper Reverse Connection Before Over-Discharge |

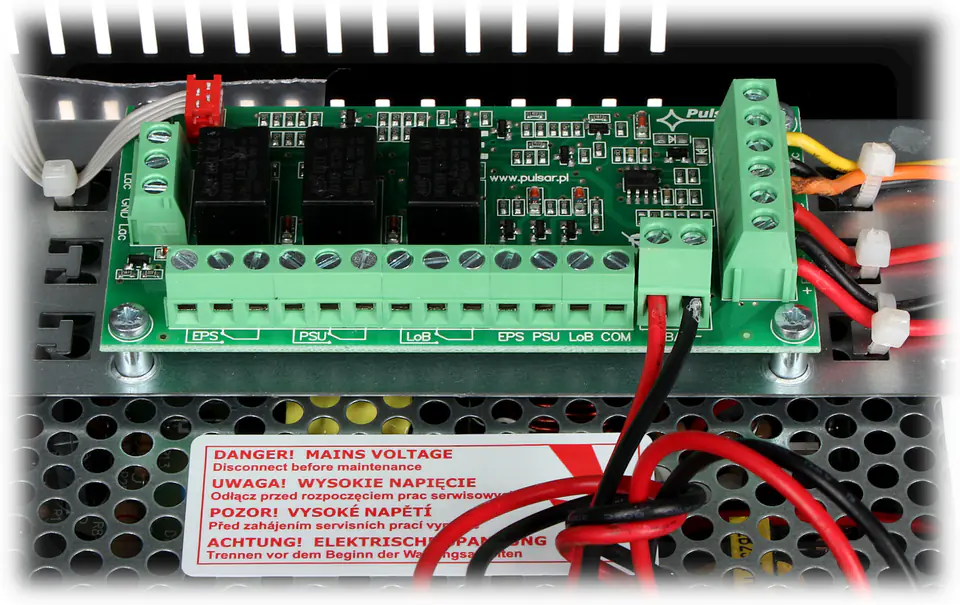

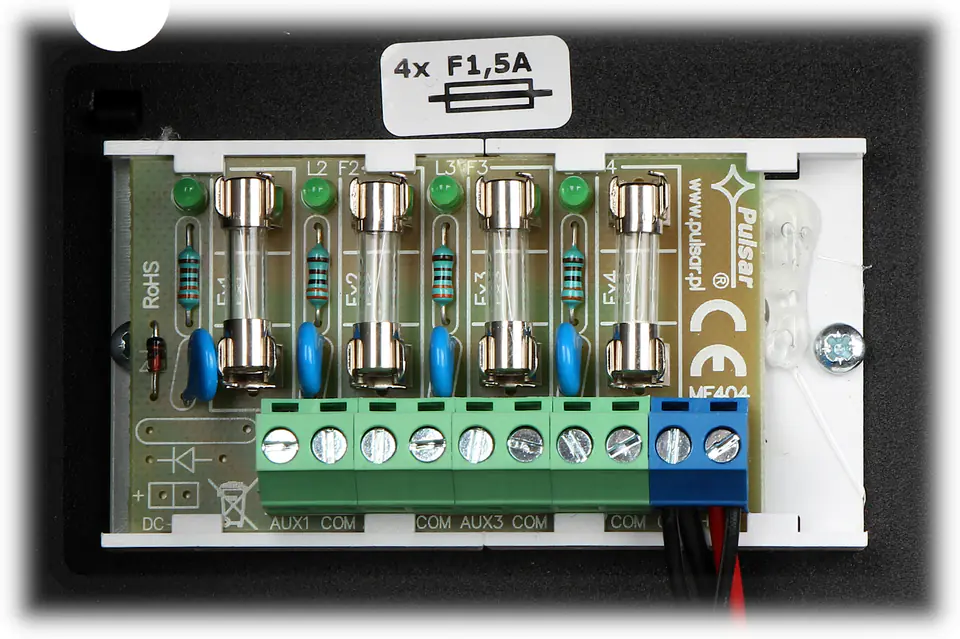

| Selected features:: | Built-in buffer power supply with battery and AC network monitoring Voltage distribution module, 4 circuits protected by a 1.5A fuse DIN rail TS-35, Length : 185 mm LED signaling Technical outputs of relay type and OC Battery space - 12 V / 17 Ah |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
