| Battery charging current: | 1 A / 2 A - Jumper for JP1 |
|---|---|
| Battery space: | 12 V / 7 ... 18 Ah |
| Current efficiency (total): | 6 A (continuous) |

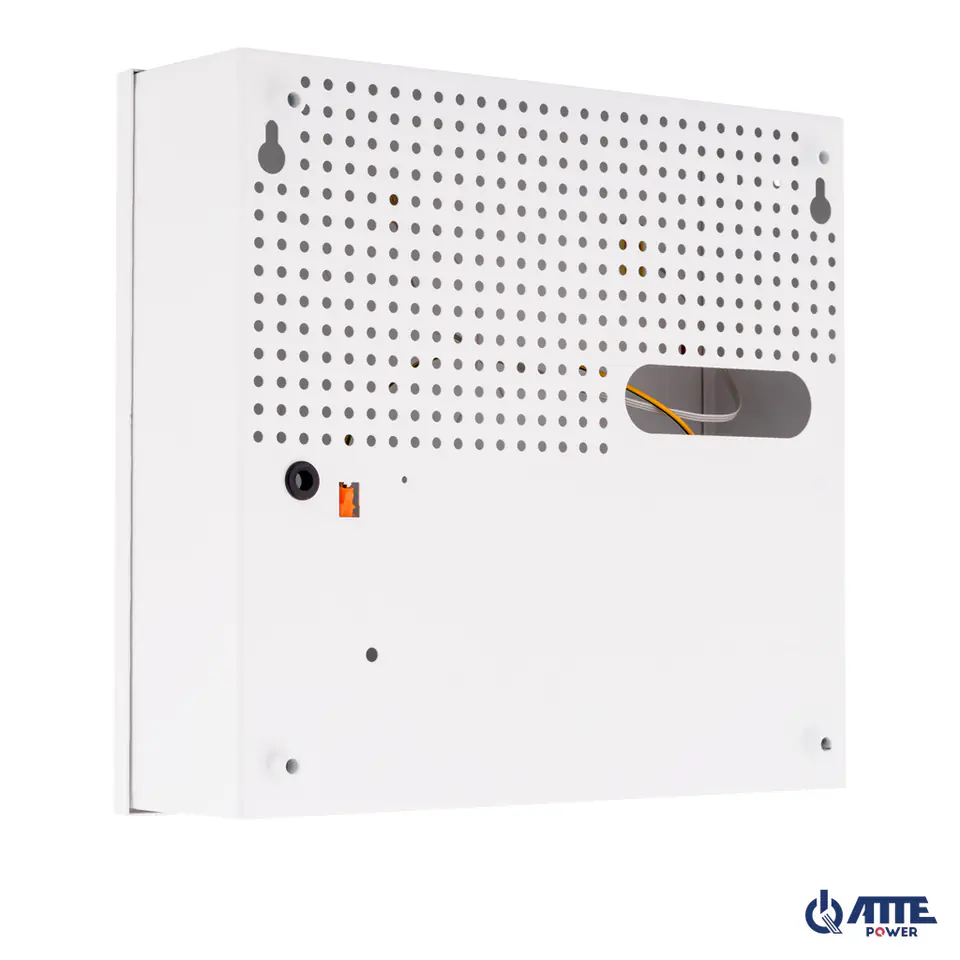

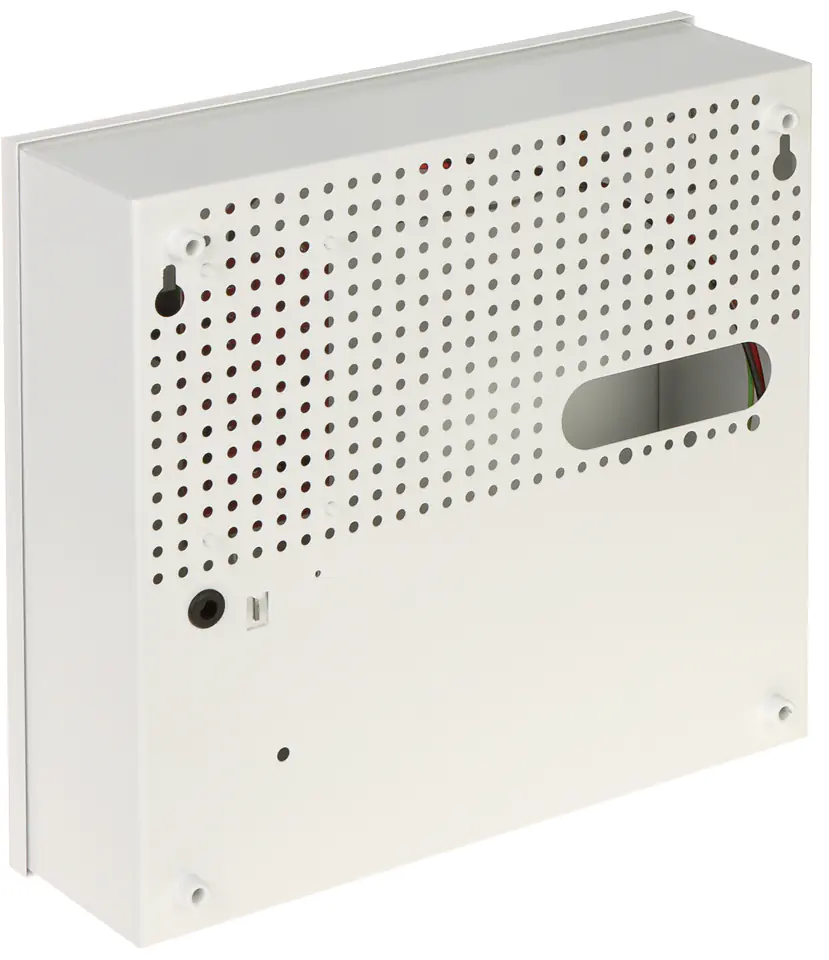

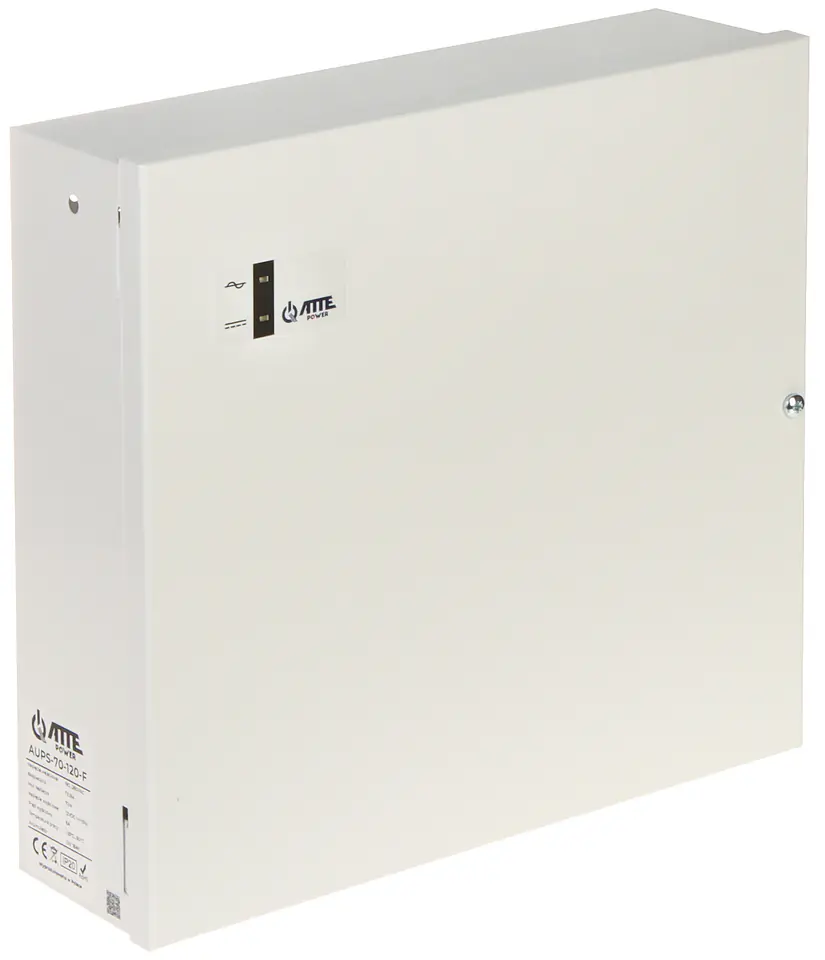

| Dimensions: | 325 x 305 x 88 mm |
| Input voltage: | 190 ... 260 VAC / 50 Hz |
| Max. battery dimensions: | 220 x 170 x 100 mm |
| Number of outputs: | 1 |
| Operating temperature: | -25 ... 50 °C |
| Output voltage: | 10.2 ... 13.8 V DC (buffer operation) |
| Power: | 72 W (continuous) |
| Power supply operation control: | AC power indication Indication of the presence of DC output voltage Battery charging indication (inside) |
| Producer / brand: | ATTE |
| Scales: | 2.3 kg |
| Security: | Short Circuit Overload Thermal Anti-tamper Reverse connection Before over-discharge Before overcharging |
| Selected features: | LED signaling Efficiency: 90 % @ 70 W OC type technical outputs signaling power supply output voltage loss (OUF) and 230V mains voltage loss (ACF) Main cable glands on the back of the housing Screen module mounting system (compatible with ATTE devices) - 10.8 mm raster Wall mounting For indoor use Protection class: IP20 |
| Type of power supply: | Transformer |
| Warranty: | 3 years |
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Particular attention should be paid to the proper cooling of the power supply during operation!
