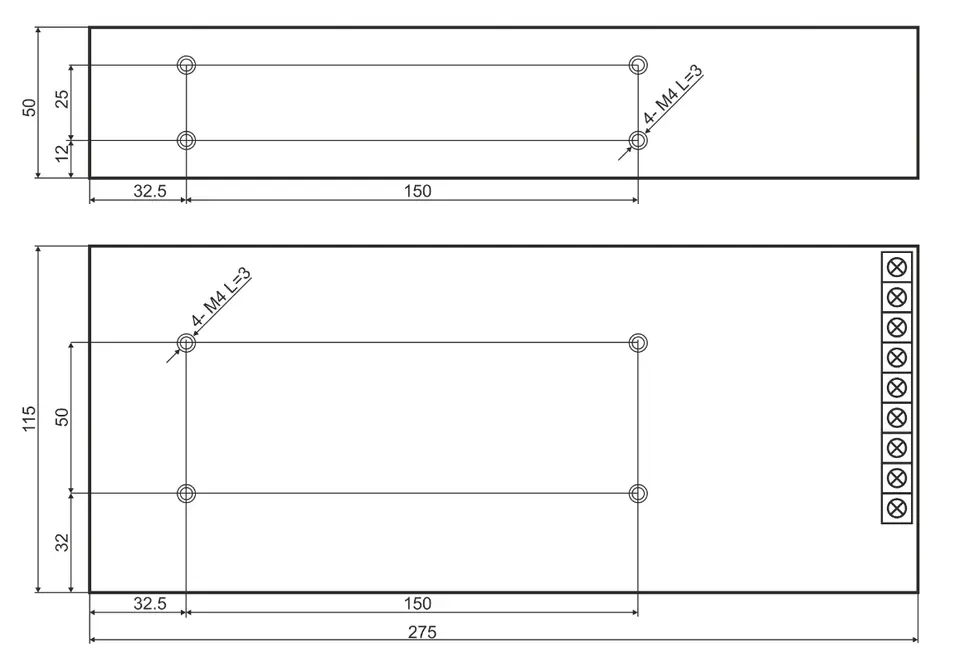

| Dimensions: | 275 x 115 x 50 mm |
|---|---|
| Efficiency: | 85 % |
| Number of outputs: | 2 pcs. |
| Operating temperature / relative humidity: | -10 °C ... 40 °C / 20 % ... 90 % |
| Output voltage: | 11.0 ... 13.8 V DC (buffer operation), 9.5 ... 13.8 V DC (battery operation) |
| Output voltage adjustment: | 12 ... 14 volts |
| Power supply: | 300 W (max) |
| Power supply current efficiency: | 18 A + 2 A (battery charging), 16 A + 4 A (battery charging), 12 A + 8 A (battery charging) |
| Producer / brand: | PULSAR |
| Scales: | 1.2 kg |
| Security: | Short-circuit overvoltage surge protection Thermal overload protection Battery output protection against short circuit and reverse connection Deep discharge battery protection |
| Selected features: | Built-in Power Factor Correction (PFC) Control battery charging and maintenance. Cooling fan LED indication |
| Supply voltage: | 176 V ... 264 VAC |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
The buffer power supply is designed for uninterrupted power supply of devices requiring 12V DC (+/-15%)
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum currentParticular attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
