| Battery charging current: | 1 A / 4 A |
|---|---|
| Battery space: | 12V/17Ah |
| Current efficiency (total): | 10 amps |

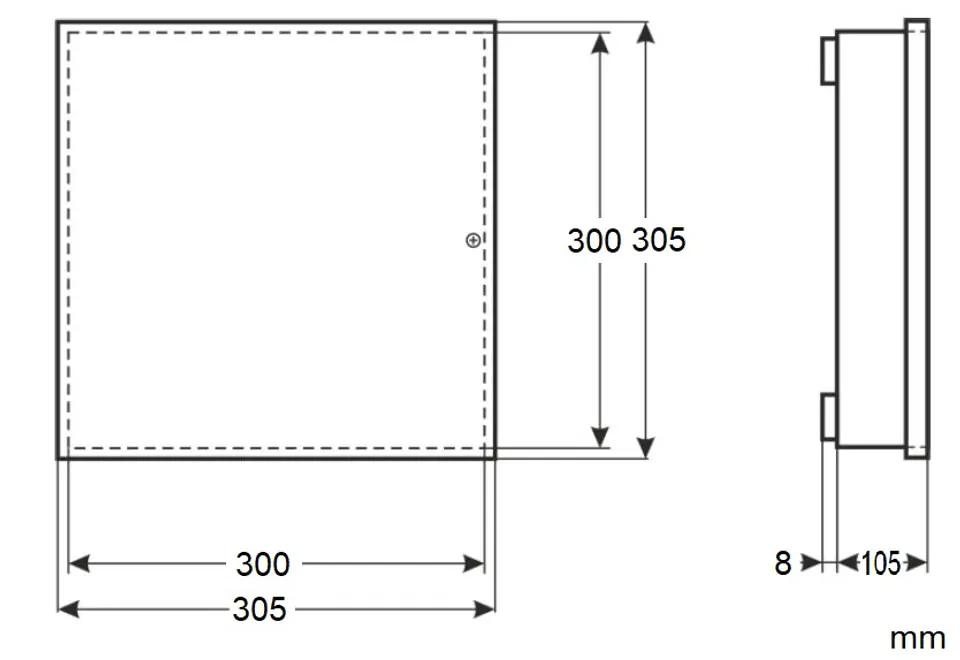

| Dimensions: | 305 x 305 x 113 mm |
| Input voltage: | 200 V ... 240 VAC |
| Max. battery dimensions: | 250 x 172 x 100 mm |
| Number of outputs: | 1 |
| Output voltage: | 11.0 volts ... 13.8 V (buffer operation) |
| Power: | 138 watts (Printing) |
| Power supply operation control: | AC power indication Indication DC output voltage indication Battery charging |
| Producer / brand: | PULSAR |
| Scales: | 2.52 kg |
| Security: | Short Circuit Overload Anti-Surge Anti-tampering Reverse Connection Before over-discharge |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm system
Particular attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
