The buffer power supply is designed to power alarm control panels, sensors, code locks, cameras, keypads, intercoms and other devices included in the alarm systemAPS-724 has a dedicated connector allowing cooperation with Satel devices

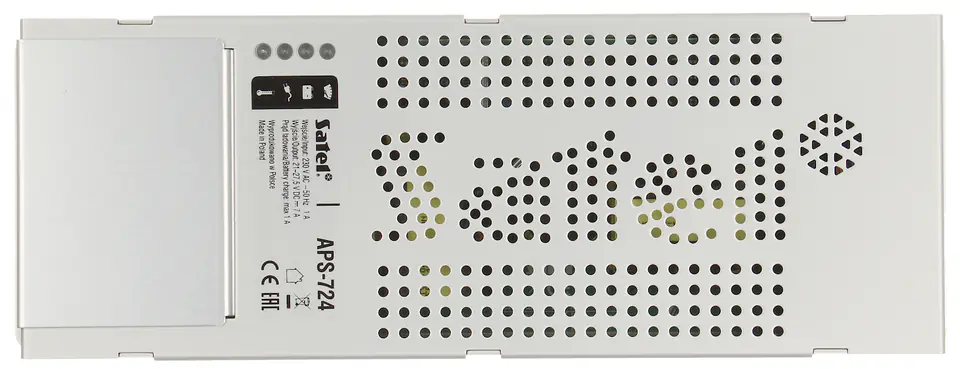

BUFFER POWER SUPPLY FOR SWITCHING MODE APS-724 SATEL
€260.52
Shipping from warehouse: D4
Estimated shipping: Wed, May 8 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- APS-724 / 5905033337022
Share this product:
Specification
| Battery charging current: | 1 A |
|---|---|
| Current efficiency (total): | 7 amps |
| Dimensions: | 290 x 100 x 68 mm |
| Enclosure type: | Aluminium |
| Input voltage: | 230 VAC |
| Output voltage: | 24 volts DC |
| Power: | 168 watts (Printing) |
| Power supply operation control: | Indication of the presence of output voltage Battery charging indication Indication of the presence of AC power WS output - signaling AC power failure WB output - Low battery voltage WP output Current overload indication WT output - Indication of too high temperature of the device |
| Producer / brand: | SATEL |
| Scales: | 1.17 kg |
| Security: | Short-circuit overload surge protection against excessive discharge |
| Type of power supply: | Pulse |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
