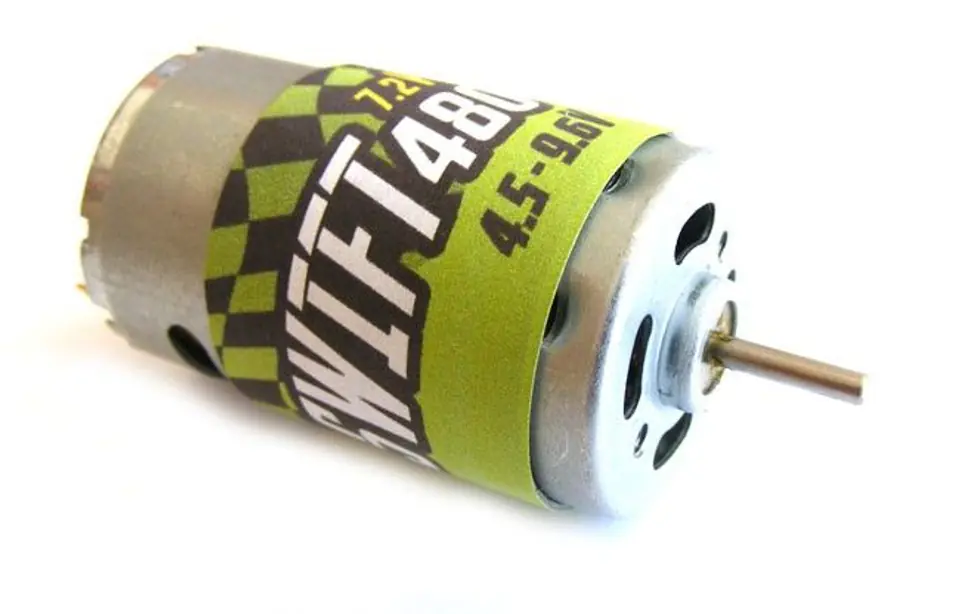

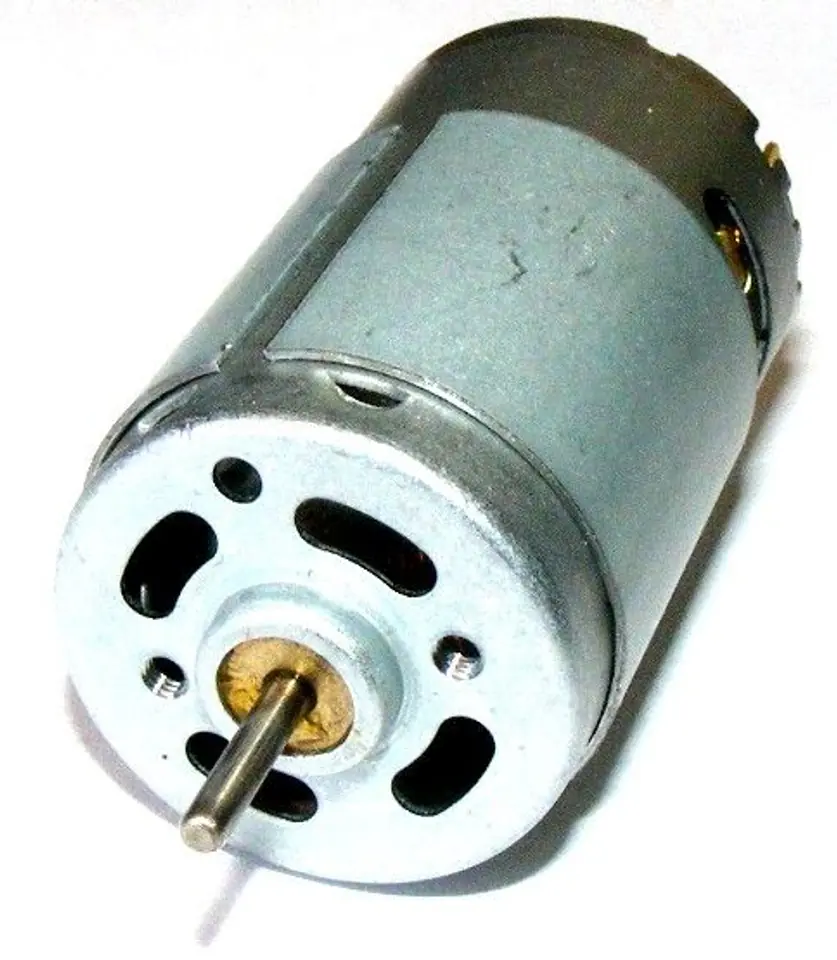

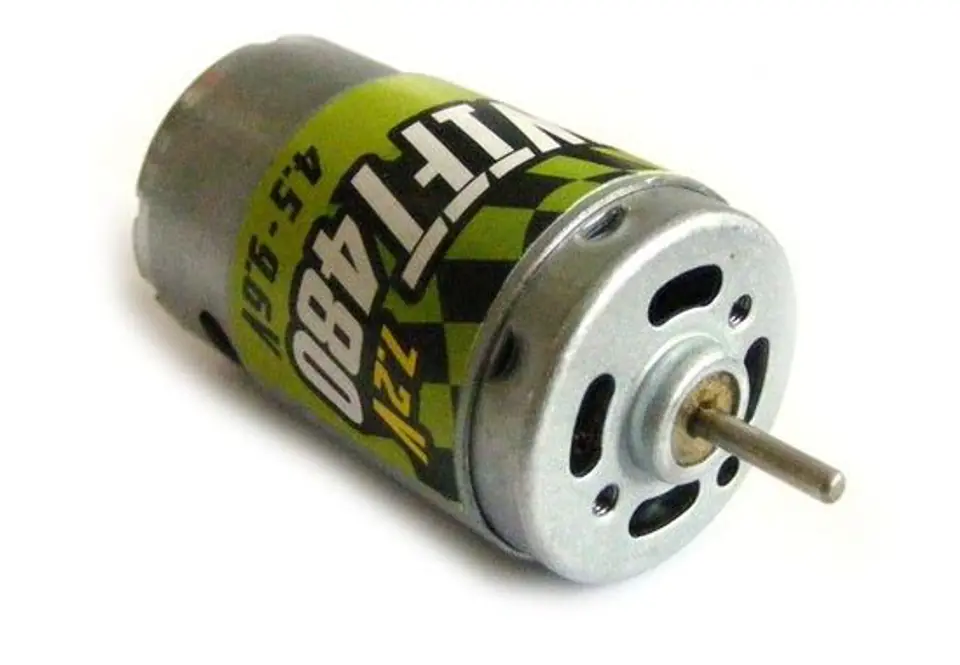

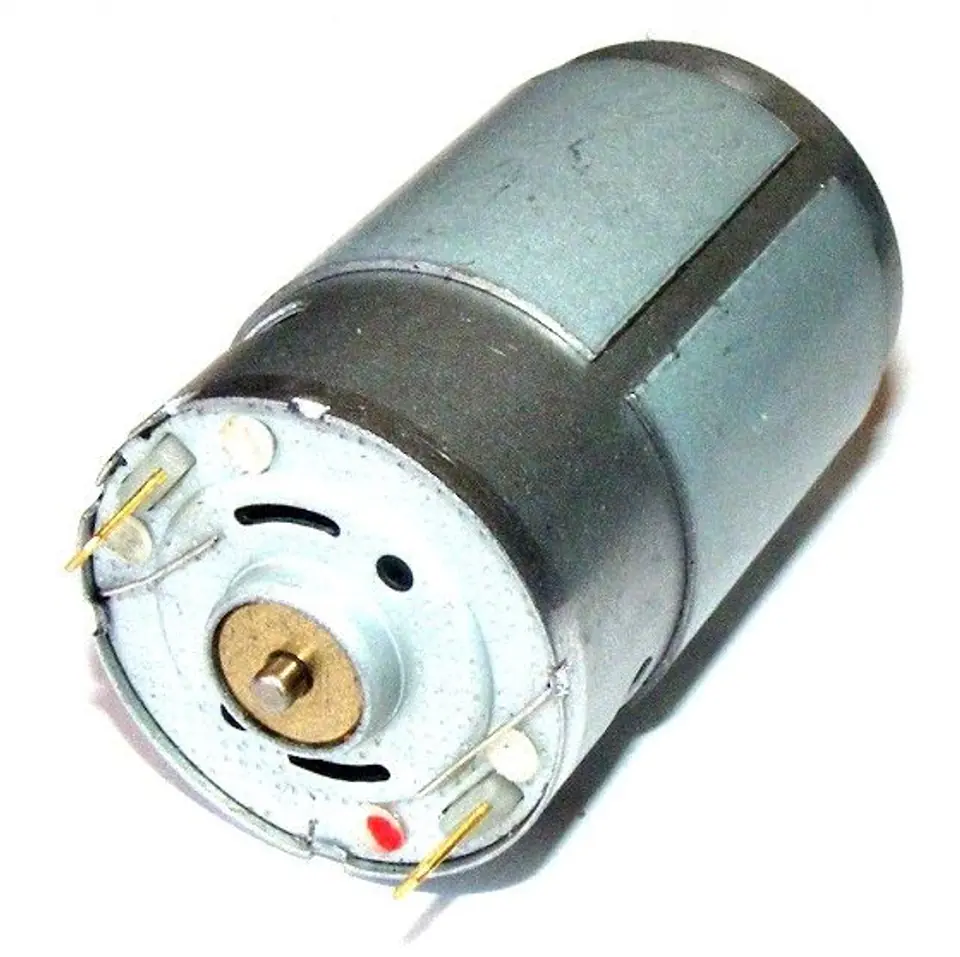

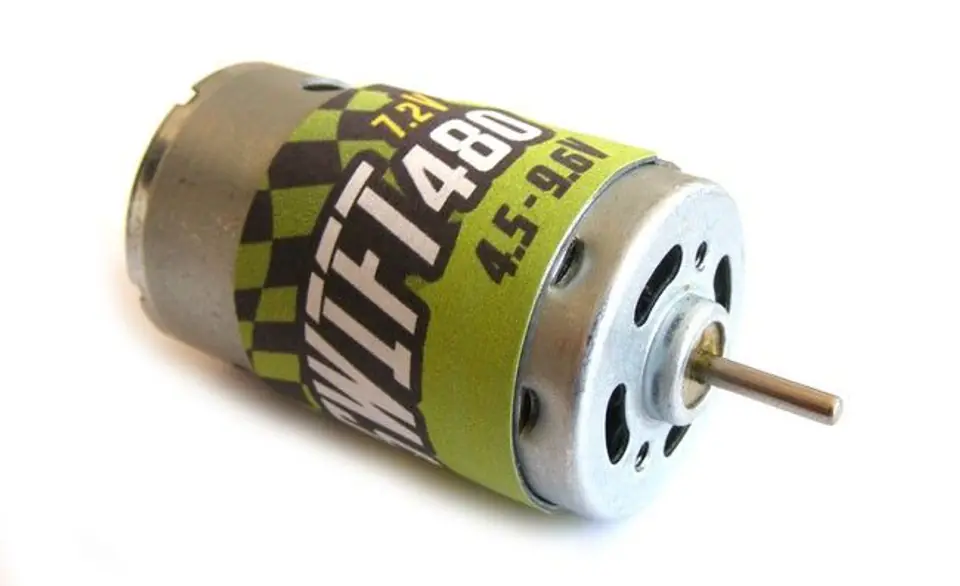

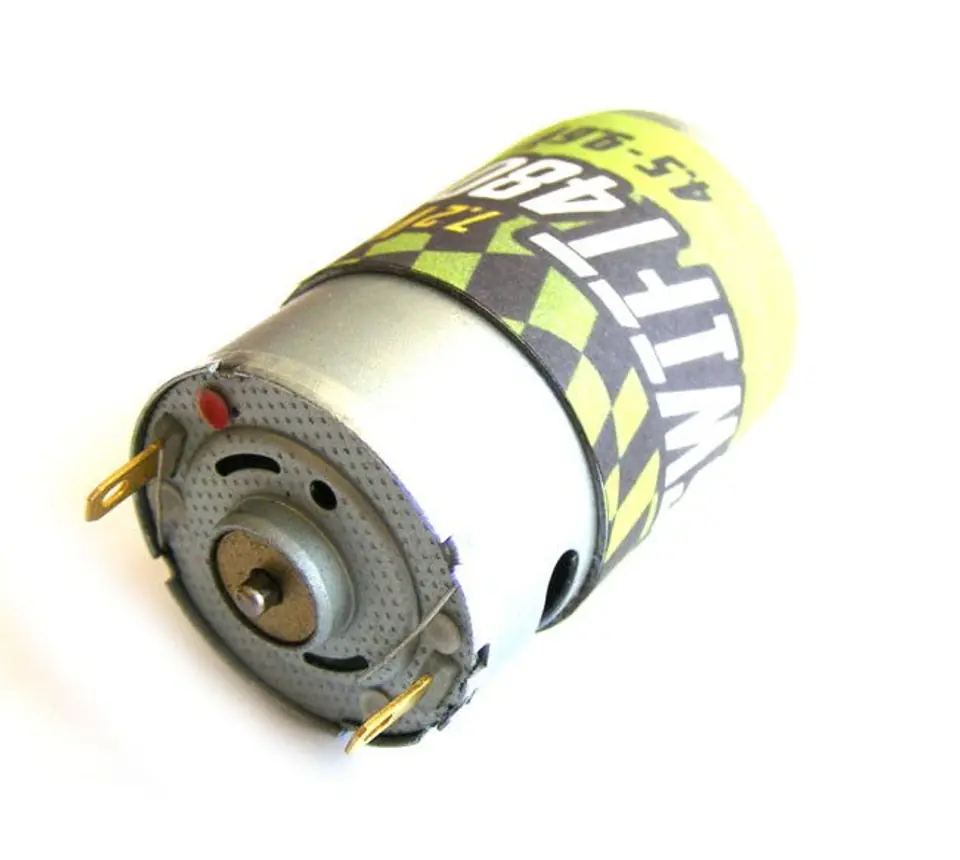

We present a new model of the SWIFT 480 brush motor from GPX Extreme.
The presented engine is equivalent to the SPEED 480 7.2V Engine by Graupner with cat. number 6304.
Specifications
- Nominal voltage: 7.2V
- Operating Range (without gear): 4.5-9.6V
- No-load rotation: 16900
- Rotation at max. Load: 15000
- No-load current consumption: 0.98A
- Current consumption at load: 4.8A
- Power: 18.65W
- Torque: 13 mN-m
- Efficiency: 67.5%A
- Shaft diameter: 2.3mm
- Shaft length: 11mm
- Body Diameter: 27.5mm
- Body Length: 46.5mm
- Overall length: 64,5mm
- Hole diameter: 17mm
- Weight: 102g
