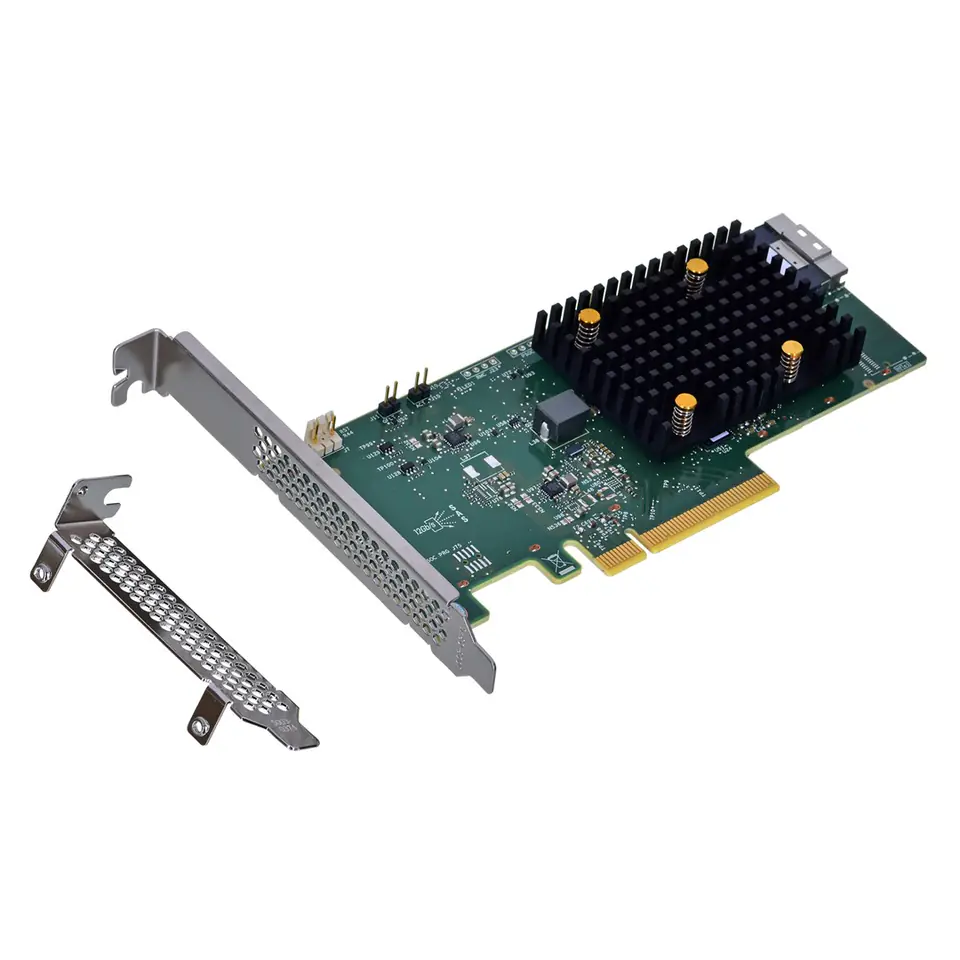

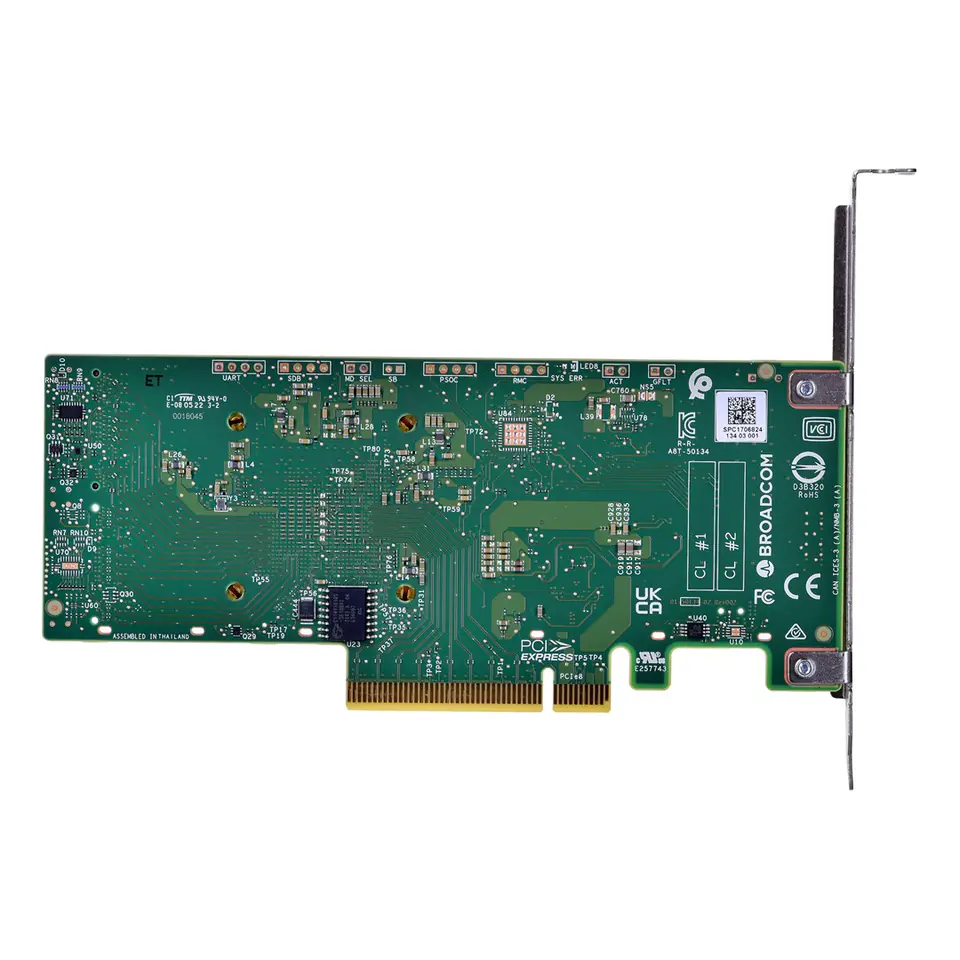

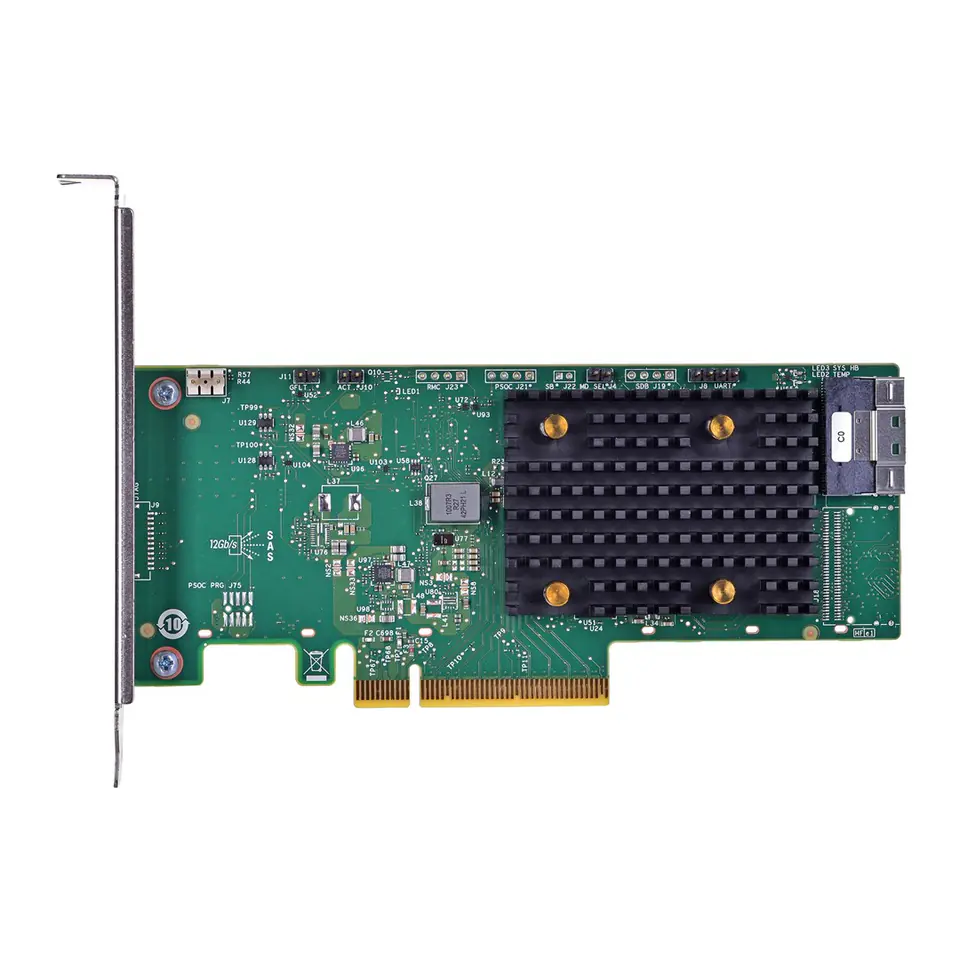

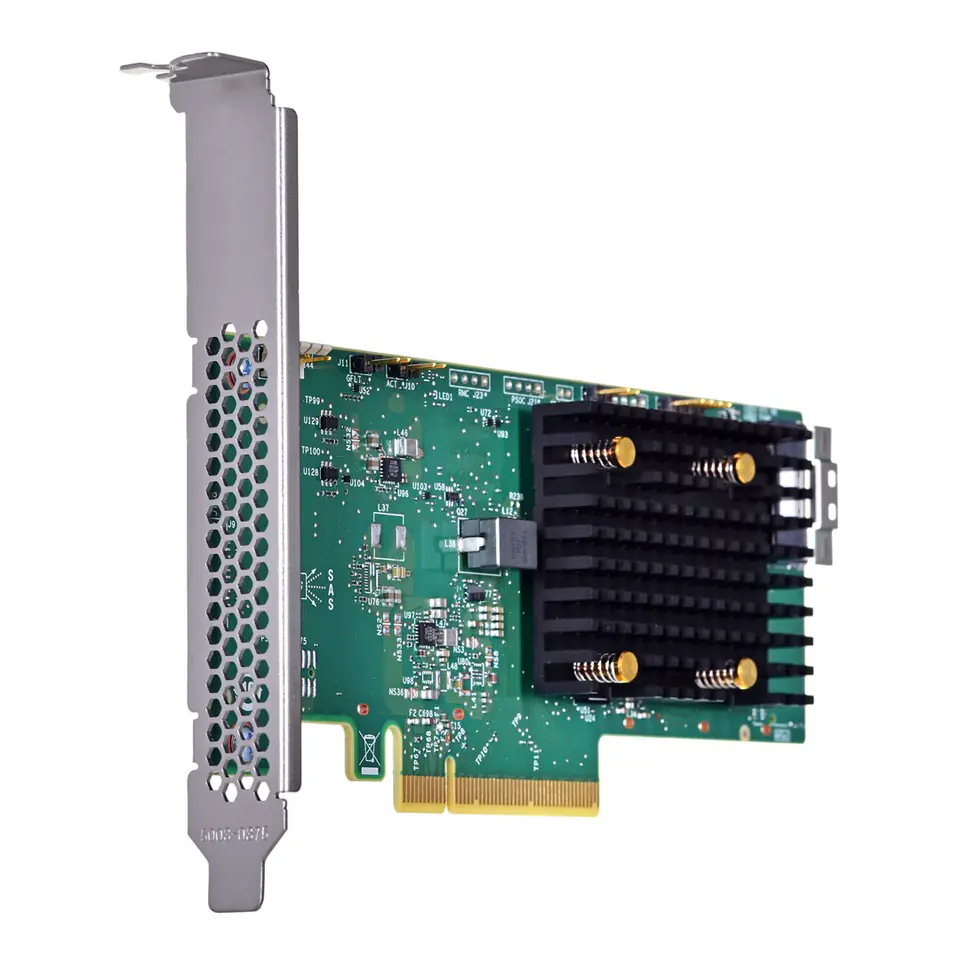

Broadcom 9540-8i RAID controller PCI Express x8 4.0 12 Gbit/s
€441.64
Shipping from warehouse: A3
Estimated shipping: Fri, Dec 12 - Mon, Dec 15
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- BROADCOM
- Product code:
- 05-50134-03 / 0830343007677
Share this product:
Specification
| Chipset: | SAS3808 |
|---|---|
| Data transfer rate: | 12 Gbit/s |
| Depth: | 155.7 mm |
| Height: | 68.9 mm |
| Host interface: | PCI Express x8 |
| Internal sas ports: | 8 |
| Mean time between failures (mtbf): | 3000000 h |
| Number of devices supported: | 32 |
| Operating relative humidity (h-h): | 5 - 90% |
| Operating temperature (t-t): | 0 - 55 °C |
| Pci express slots version: | 4.0 |
| Raid levels: | 1, 10, 0 |
| S.m.a.r.t. support: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -45 - 105 °C |
| Supported storage drive interfaces: | Serial ATA III, SAS, PCI Express 4.0 |
