| Ac input frequency: | 50-60 Hz |
|---|---|
| Ac input voltage: | 220-240 V |
| Appliance placement: | Built-in |
| Boost function: | Yes |
| Bosch technologies (cooking): | Home Connect |
| Built-in display: | Yes |
| Built-in hood: | No |
| Child lock: | Yes |
| Connected load (electric): | 7400 W |
| Control position: | Front / Top front |
| Control type: | Touch |
| Cooking zone 1 boost: | 3100 W |
| Cooking zone 1 diameter: | 180 mm |
| Cooking zone 1 position: | Left front |
| Cooking zone 1 power: | 2000 W |
| Cooking zone 1 power source: | Electric |
| Cooking zone 1 shape: | Round |
| Cooking zone 2 boost: | 3100 W |
| Cooking zone 2 diameter: | 180 mm |
| Cooking zone 2 position: | Left rear |
| Cooking zone 2 power: | 2000 W |
| Cooking zone 2 power source: | Electric |
| Cooking zone 2 shape: | Round |
| Cooking zone 3 boost: | 2200 W |
| Cooking zone 3 diameter: | 145 mm |
| Cooking zone 3 position: | Right rear |
| Cooking zone 3 power: | 1600 W |
| Cooking zone 3 power source: | Electric |
| Cooking zone 3 shape: | Round |
| Cooking zone 4 boost: | 3700 W |
| Cooking zone 4 diameter: | 210 mm |
| Cooking zone 4 position: | Right front |
| Cooking zone 4 power: | 2500 W |
| Cooking zone 4 power source: | Electric |
| Cooking zone 4 shape: | Round |
| Cord length: | 1 m |
| Depth: | 522 mm |
| Height: | 51 mm |
| Hob type: | Zone induction hob |
| Hob width size: | 60 cm |
| Installation compartment depth: | 50 cm |
| Installation compartment depth (max): | 50 cm |
| Installation compartment depth (min): | 49 cm |
| Installation compartment height: | 5.1 cm |
| Installation compartment width: | 56 cm |
| Number of cooking zones: | 4 zone(s) |
| Number of electric cooking zones: | 4 zone(s) |
| Number of power levels: | 17 |
| Package depth: | 608 mm |
| Package height: | 126 mm |
| Package weight: | 12.8 kg |
| Package width: | 753 mm |
| Product colour: | Black |
| Quick start: | Yes |
| Timer: | Yes |
| Timer type: | Digital |
| Top surface type: | Glass-ceramic |
| Weight: | 10.5 kg |
| Width: | 592 mm |

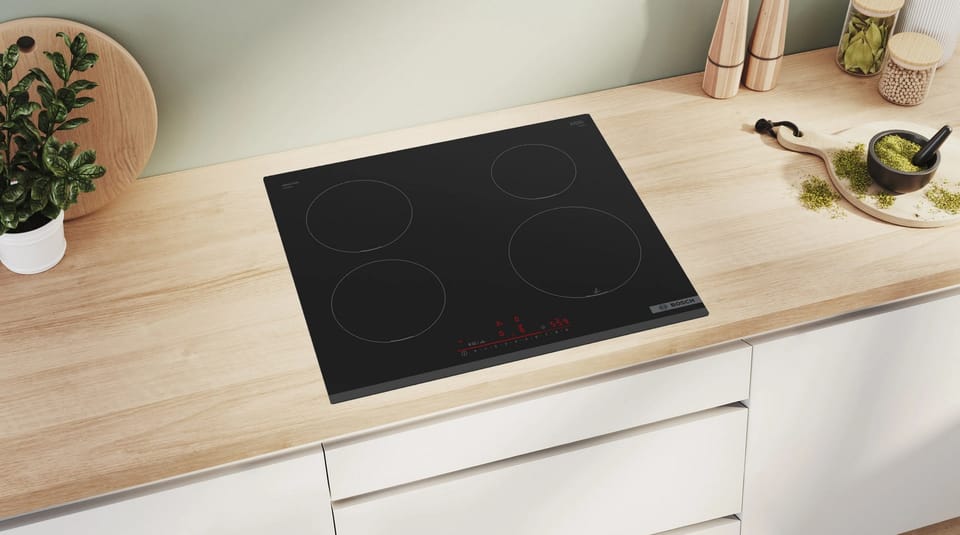

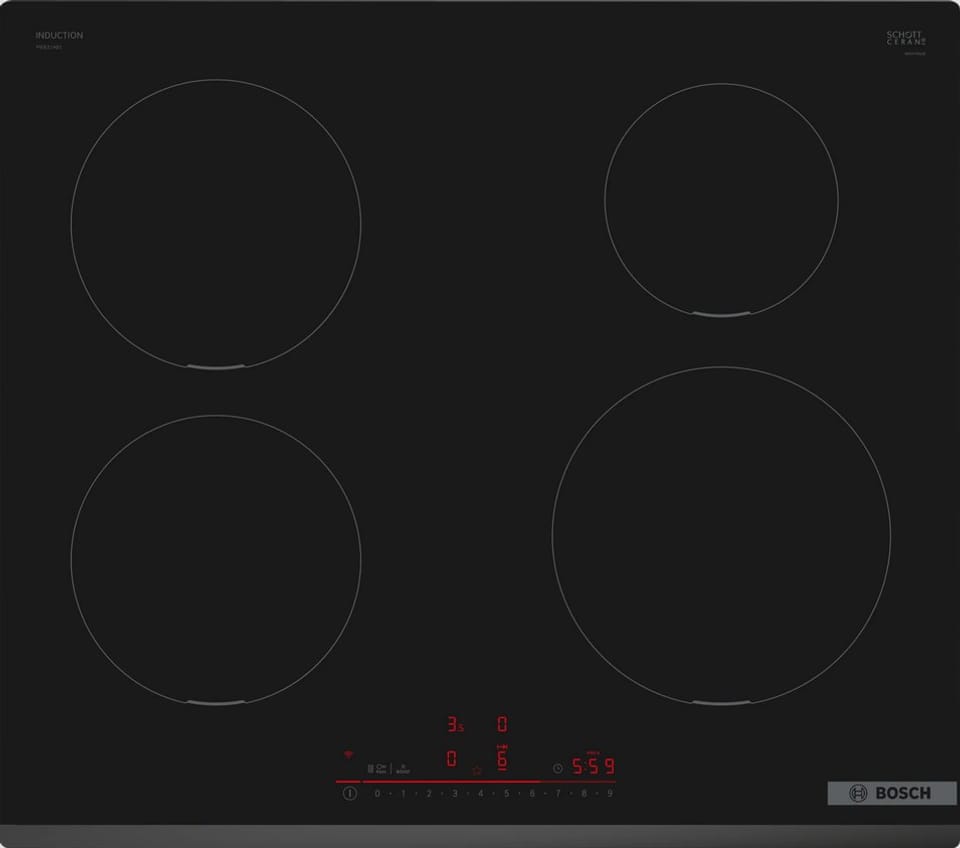

PIE631HB1E induction hob
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
