Blank of lathe knives HSSE,kszt. L 20x3x140mm Index WILKE

PLN 224.02
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, May 20 - Thu, May 23
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
WILKE
Product code:
05INDEX2003140 / 4030456118628

Specification

H x b:20 x 3 mm
No:05INDEX2003140
Overall length:140 mm

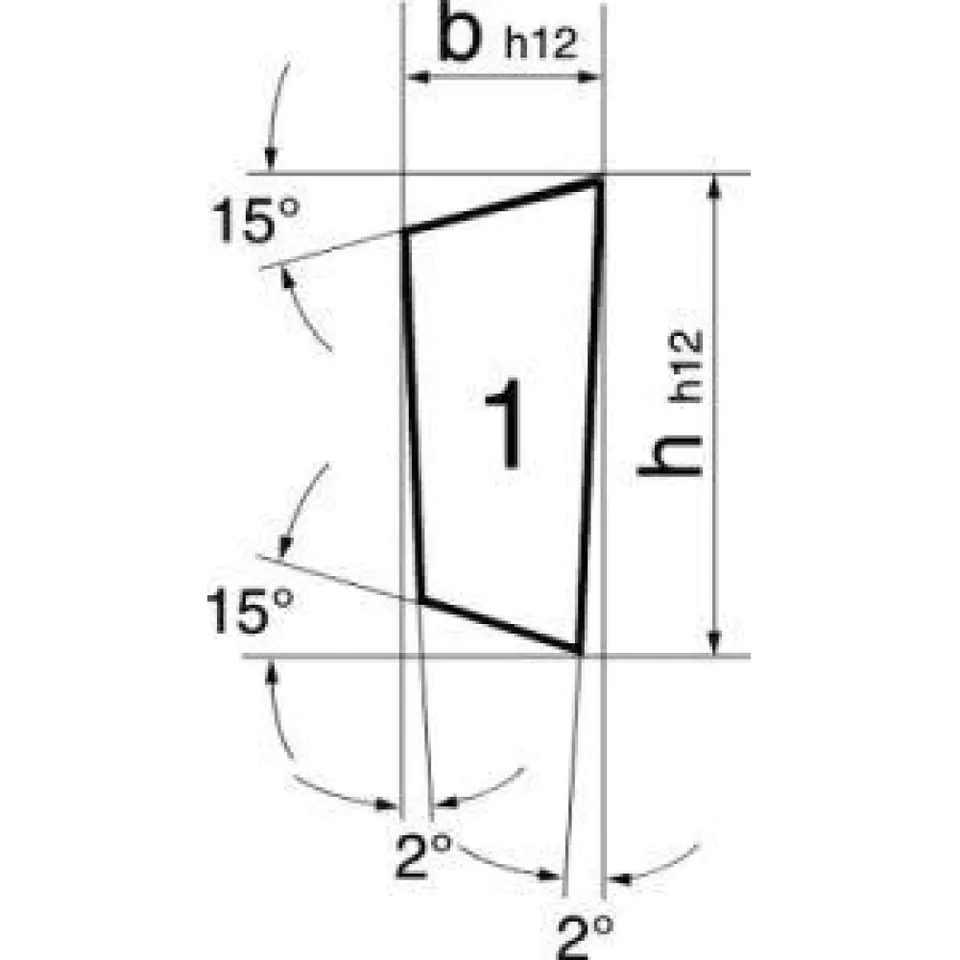

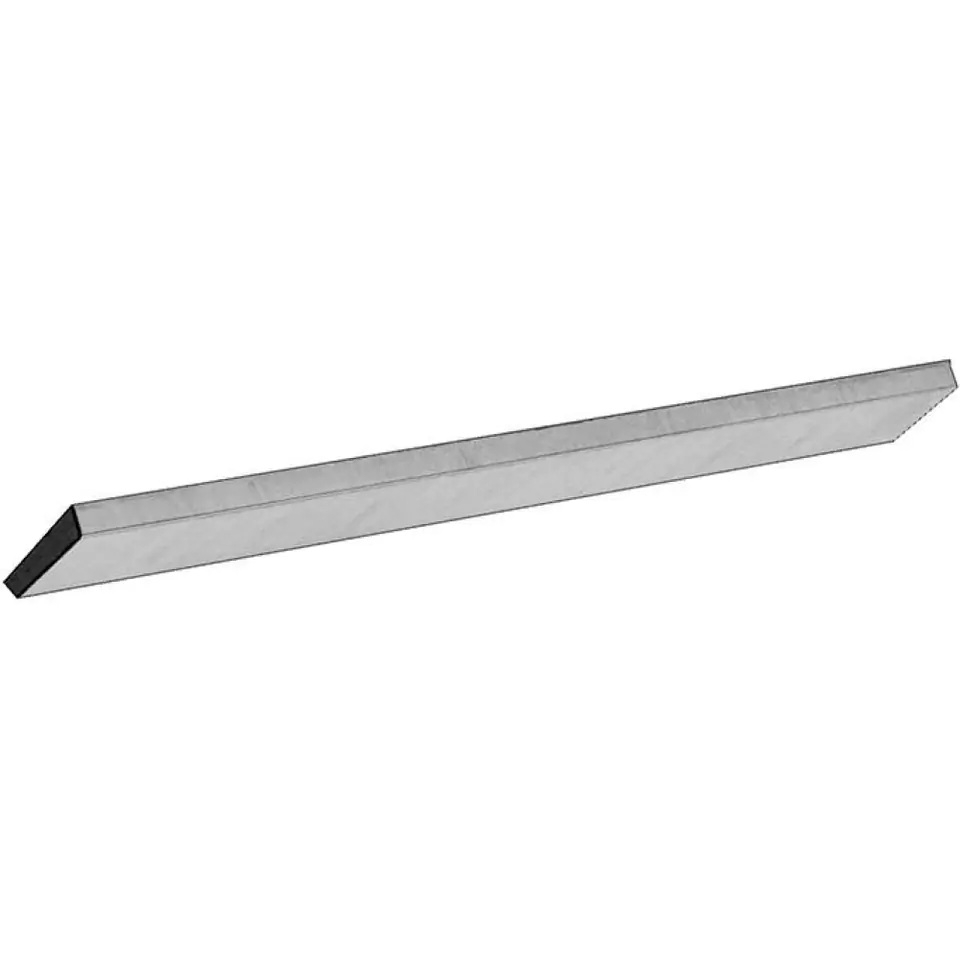

Lathe knife blank, L1 shape, double trapezoid

Execution: HSS Co10, according to the factory standard, hardened, tempered, dimensionally stable, ground ready. Straight and unprocessed endings.
Hardness approx. 63–68 HRC.
Tolerance for L1 shape: length: ±2 mm
Cross-Section: H12/H12

Application: thanks to proper grinding, it is suitable as a cutter bar for the production of tools and molds.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
