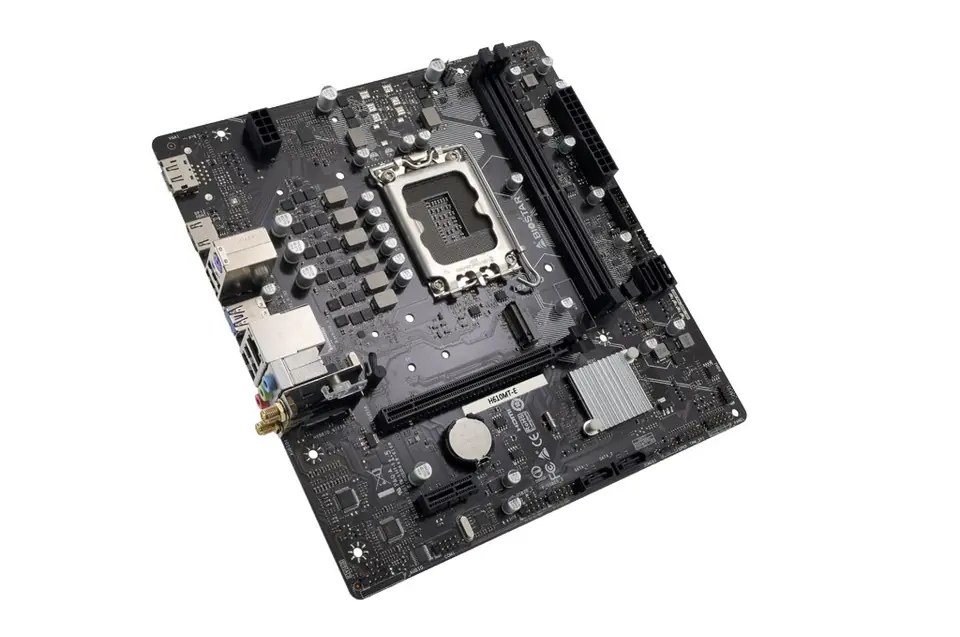

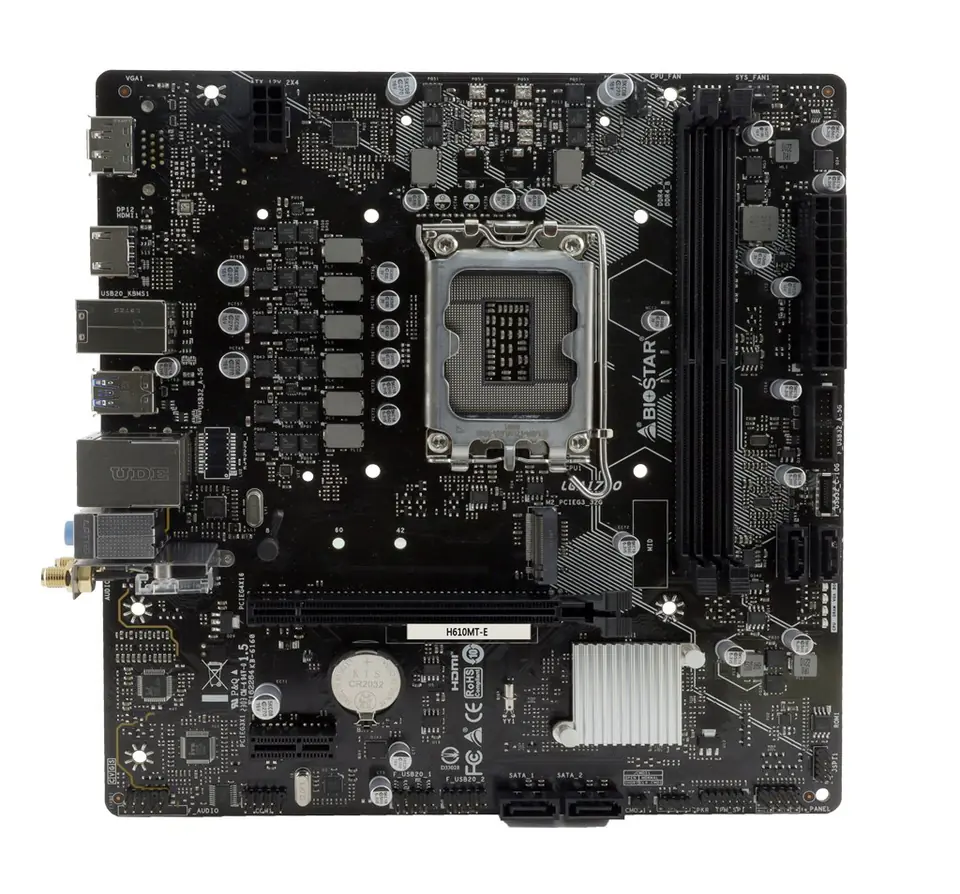

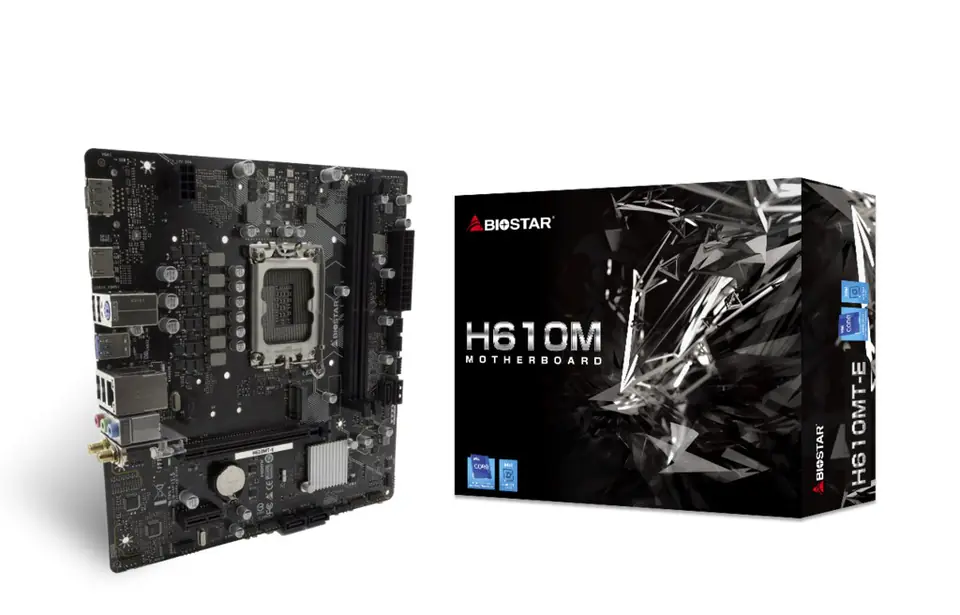

Biostar H610MT-E motherboard Intel H610 LGA 1700 micro ATX
€73.11
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Biostar
- Product code:
- H610MTE / 4712960687790
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | Intel Core i7 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i9 14th Gen, Intel Core i5 12th Gen, Intel Core i7 12th Gen, Intel® Pentium®, Intel Core i3 13th Gen, Intel Core i9 13th Gen |
| Cpu fan connector: | Yes |
| Depth: | 228 mm |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Lan controller: | Realtek RTL8111H |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 1 |
| Supported memory clock speeds: | 3200 MHz, 2666, 2933, 1866, 2400, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Wi-fi: | No |
| Width: | 216 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
