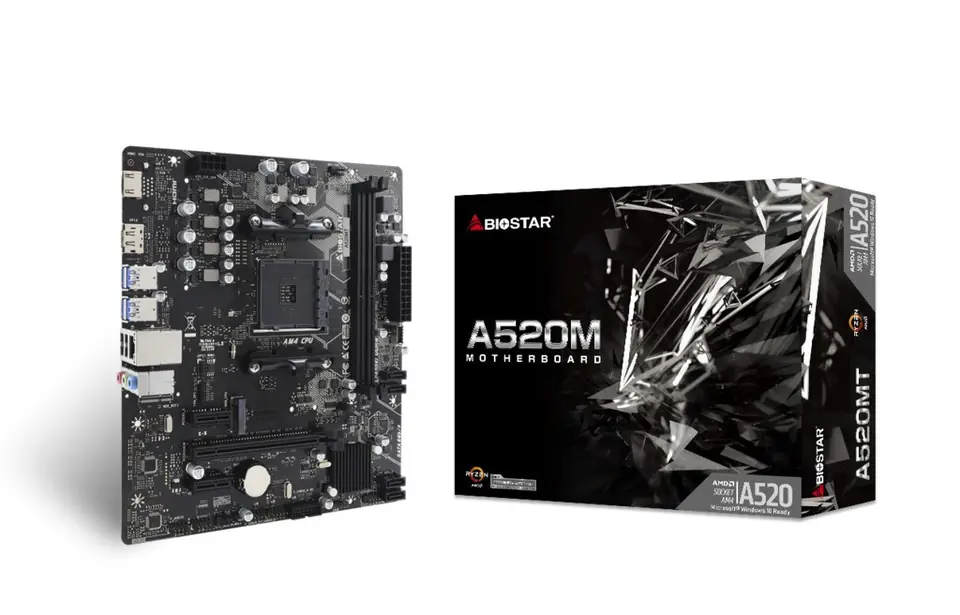

BIOSTAR A520MT motherboard
€59.99
Shipping from warehouse: A3
Estimated shipping: Tue, Jan 27 - Fri, Jan 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Biostar
- Product code:
- A520MT / 4712960687325
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Compatible processor series: | AMD Ryzen™ 3 |
| Cpu fan connector: | Yes |
| Depth: | 208 mm |
| Displayports quantity: | 1 |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 1 |
| Lan controller: | Realtek RTL8111H |
| Line-in: | Yes |
| Maximum internal memory: | 64 GB |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD A520 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of com connectors: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Processor manufacturer: | AMD |
| Raid levels: | 10, 0, 1 |
| Raid support: | Yes |
| Supported memory clock speeds: | 2667, 4400, 4000, 2133, 3200, 3800, 2400, 2933, 3600 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 (gen 2) ports: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Wi-fi: | No |
| Width: | 235 mm |
