be quiet! Straight Power 12 power supply unit 1200 W 20+4 pin ATX ATX Black
€278.75
Shipping from warehouse: A3
Estimated shipping: Fri, Nov 7 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Be quiet!
- Product code:
- BN339 / 4260052189443
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 110 - 240 V |
| Atx version: | 3.0 |
| Bearing technology: | FDB |
| Cable tie(s) included: | Yes |

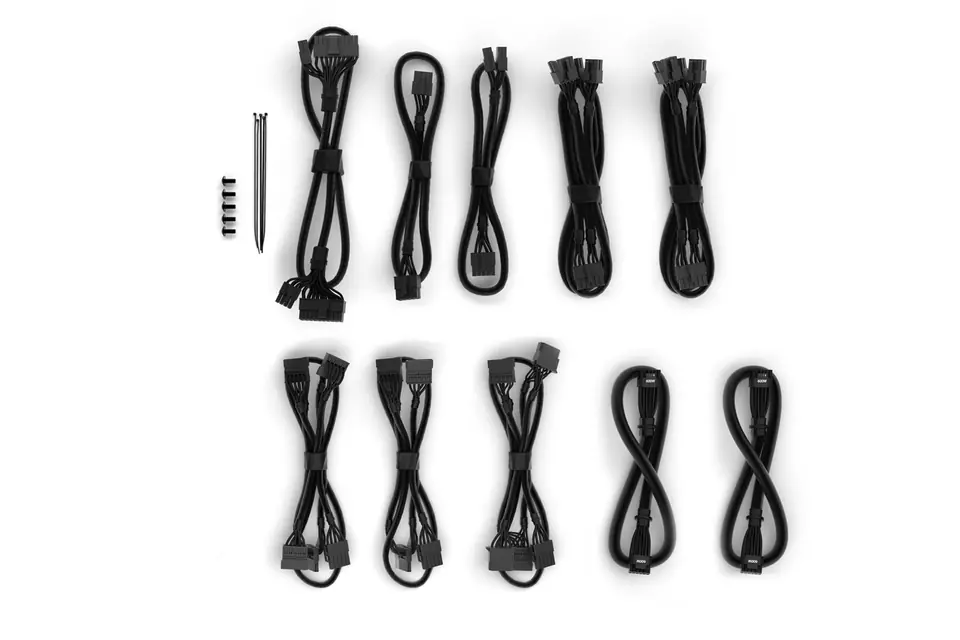

| Cables included: | CPU, SATA |
| Cabling type: | Fully-Modular |
| Combined power (+12v): | 1200 W |
| Combined power (+3.3v): | 150 W |
| Combined power (+5v): | 150 W |
| Cooling type: | Active |
| Cpu power cable length: | 70 cm |
| Depth: | 180 mm |
| Efficiency: | 92.4% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |
| Fan diameter: | 13.5 cm |
| Fan speed: | 0 - 2600 RPM |
| Height: | 86 mm |
| Hold time: | 23 ms |
| Input current: | 15/7.5 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v1): | 100 A |
| Max output current (+3.3v): | 25 A |
| Max output current (+5v): | 25 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 32.2 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 2 |
| Number of sata power connectors: | 9 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 40 °C |
| Package depth: | 328 mm |
| Package height: | 102 mm |
| Package type: | Box |
| Package weight: | 3.89 kg |
| Package width: | 248 mm |
| Pci express power cable length: | 60 cm |
| Pci express power connectors (16-pin): | 2 |
| Pci express power connectors (6+2 pin): | 4 |
| Peak power: | 1270 W |
| Peripheral (molex) power cable length: | 1000, 850 mm |
| Power factor: | 0.99 |
| Power protection features: | Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Products per shipping (inner) case: | 4 pc(s) |
| Purpose: | PC |
| Sata power cable length: | 550, 1000 mm, 850, 700 mm |
| Shipping (inner) case height: | 34.6 cm |
| Shipping (inner) case length: | 44.7 cm |
| Shipping (inner) case net weight: | 17 kg |
| Shipping (inner) case width: | 28.2 cm |
| Supported motherboard form factors: | ATX, micro ATX, Mini-ATX |
| Sustainability certificates: | UKCA, Federal Communications Commission (FCC), RoHS, CE, Triman, ENERGY STAR, ErP, WEEE |
| Sustainability compliance: | Yes |
| Total power: | 1200 W |
| Warranty period: | 10 year(s) |
| Weight: | 2.04 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
