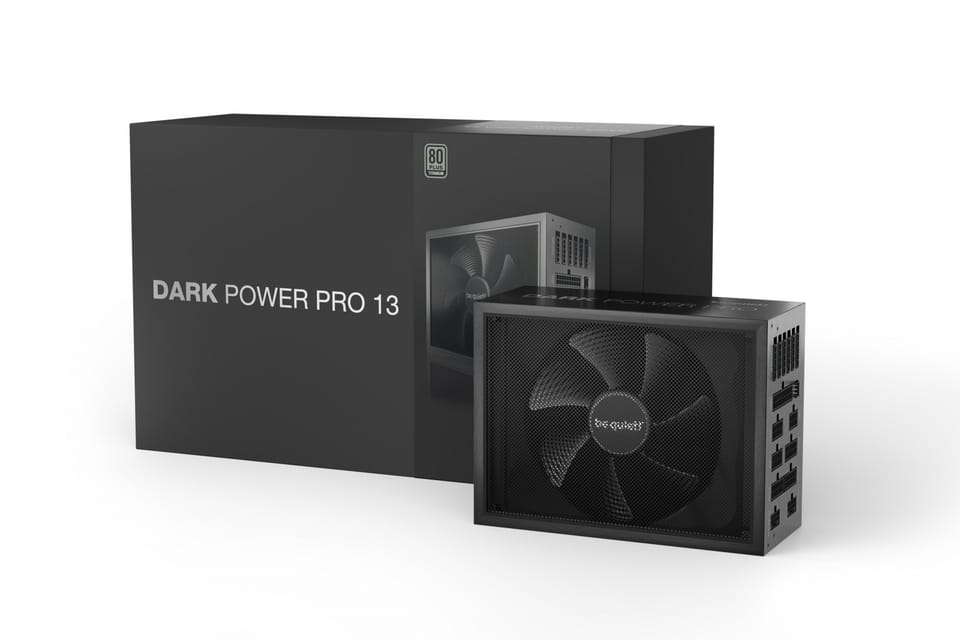

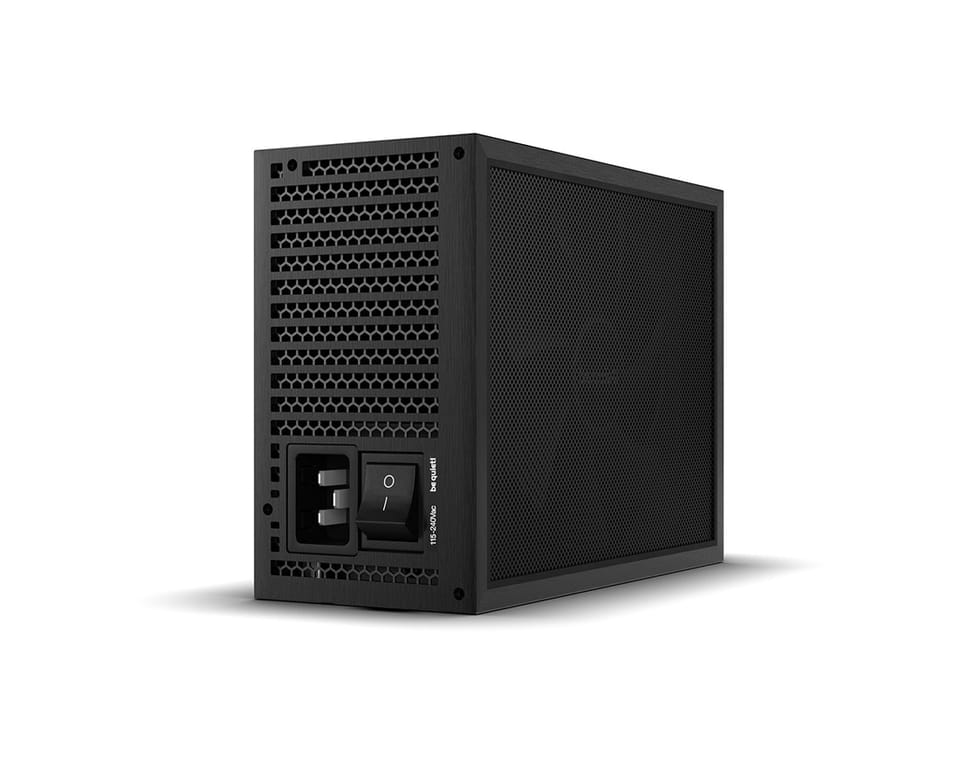

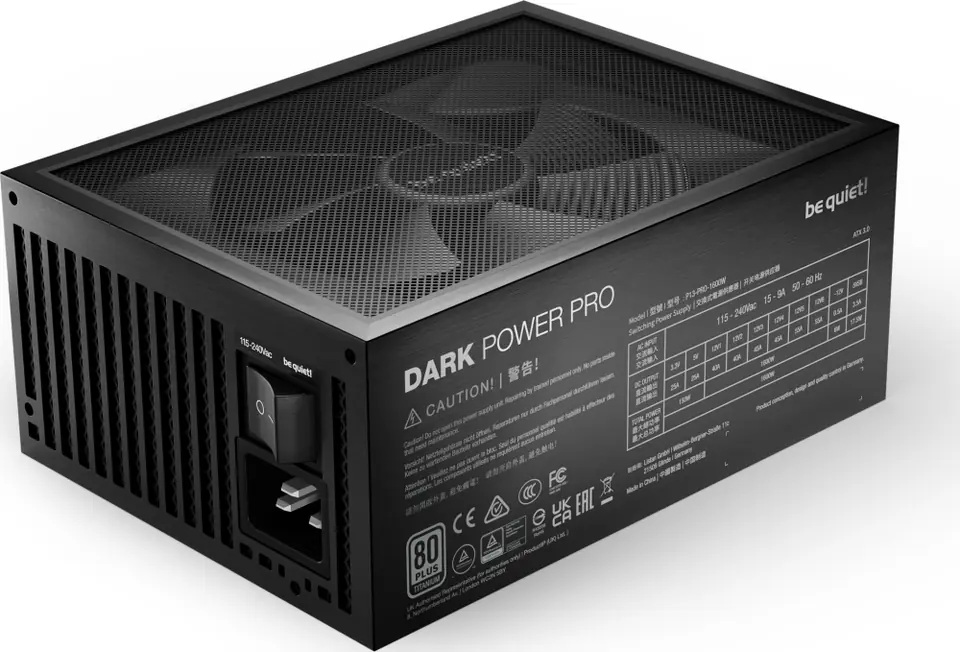

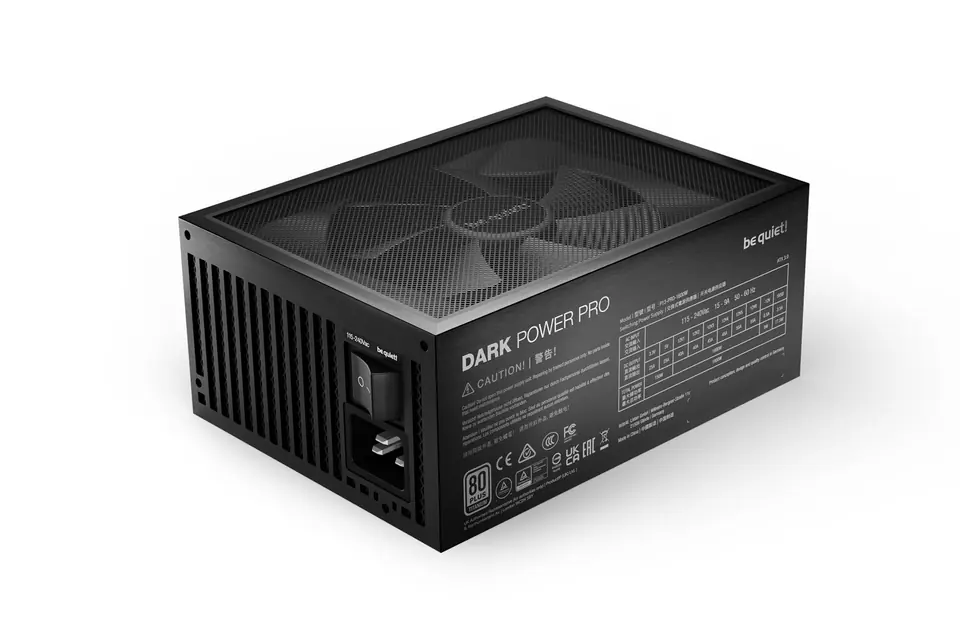

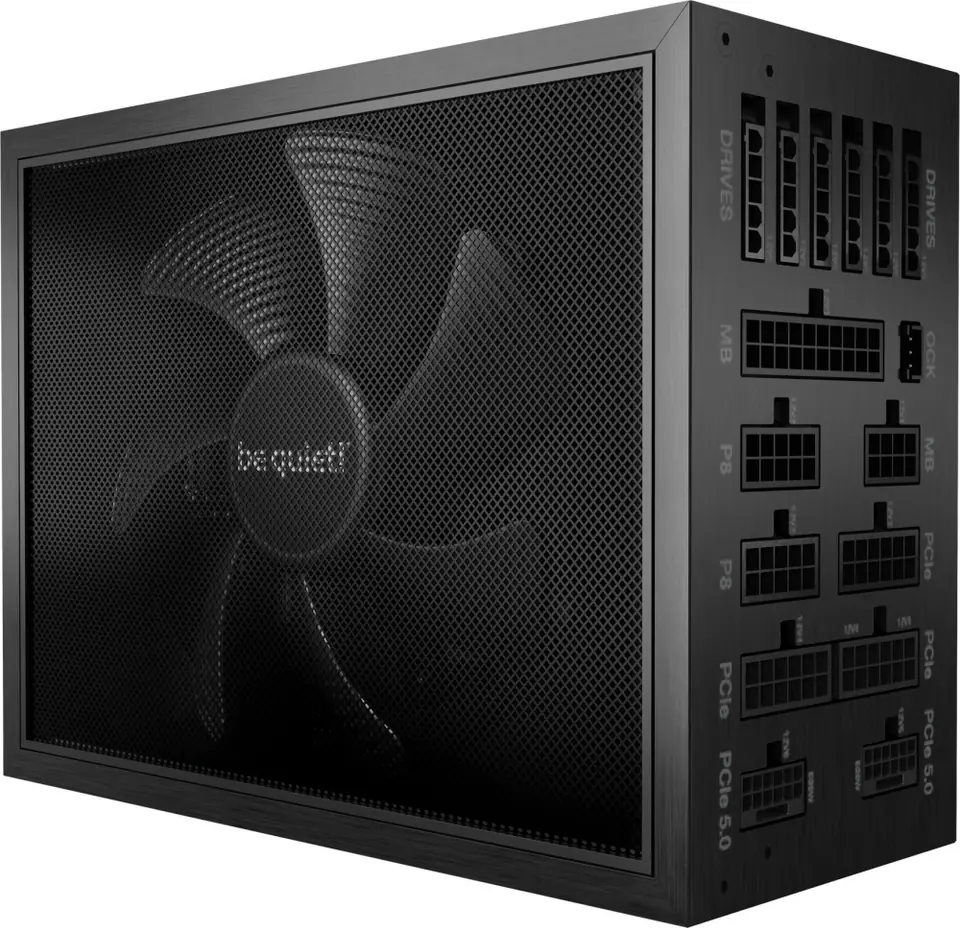

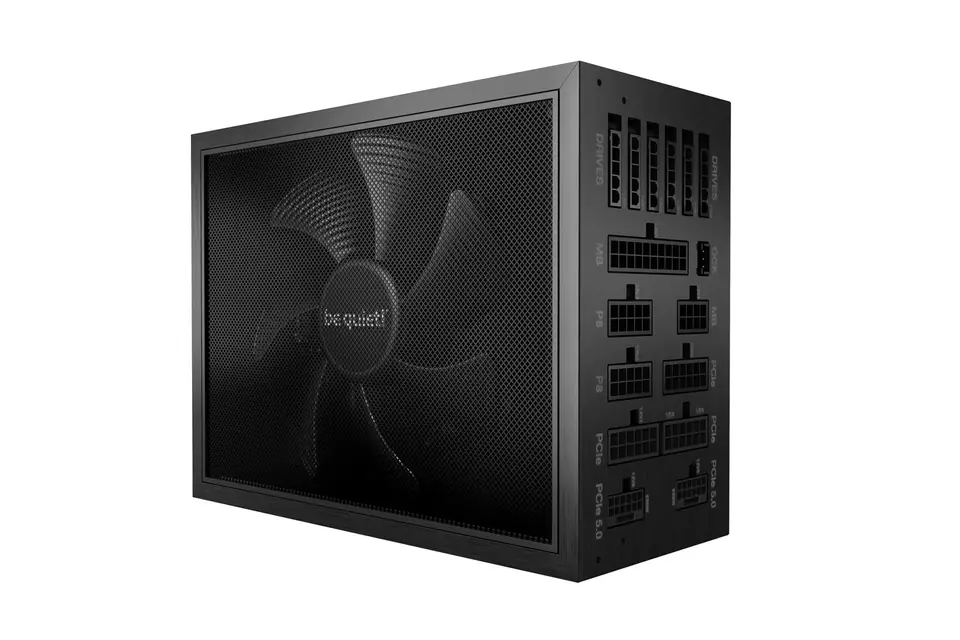

be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Be quiet!
- Product code:
- BN332 / 4260052189375
Share this product:
Specification
| 80 plus certification: | 80 PLUS Titanium |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 115 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Bearing technology: | FDB |
| Cable tie(s) included: | Yes |

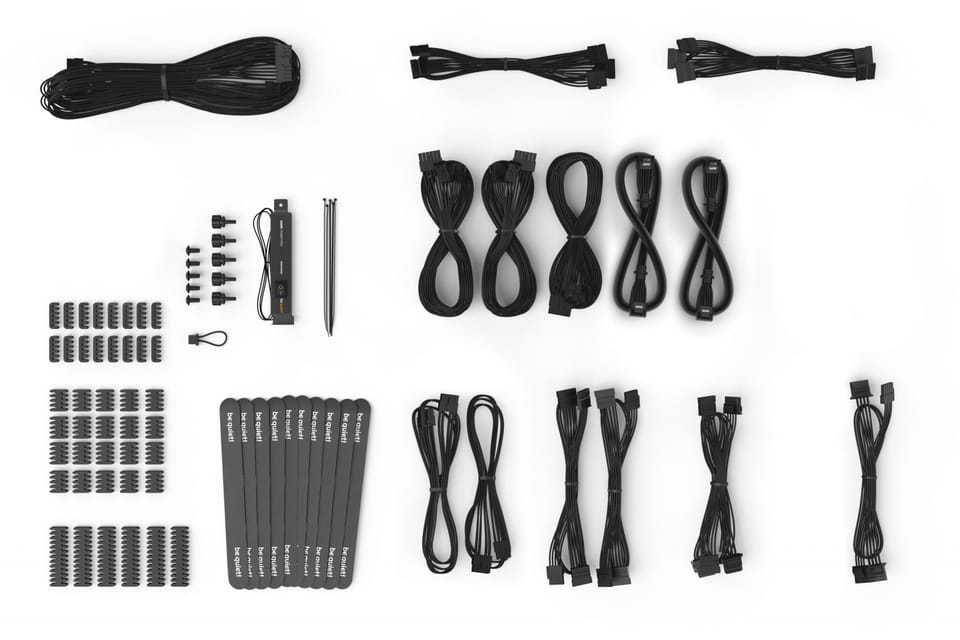

| Cables included: | CPU, PCIe, Peripheral (Molex), SATA |

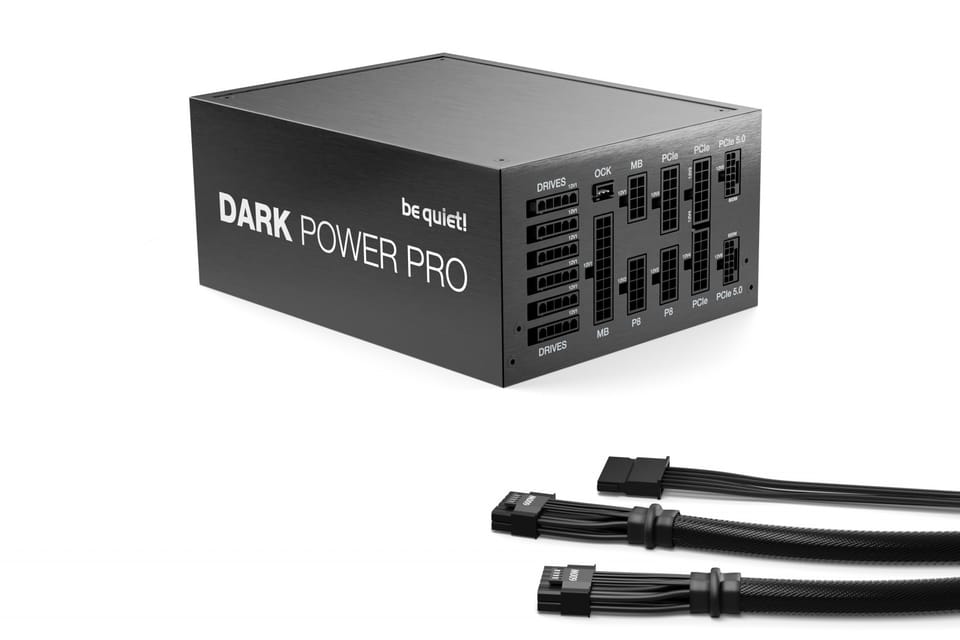

| Cabling type: | Fully-Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 1600 W |
| Combined power (+3.3v): | 150 W |
| Combined power (+5v): | 150 W |
| Combined power (+5vsb): | 17.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 70 cm |
| Depth: | 200 mm |
| Efficiency: | 94.5% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |

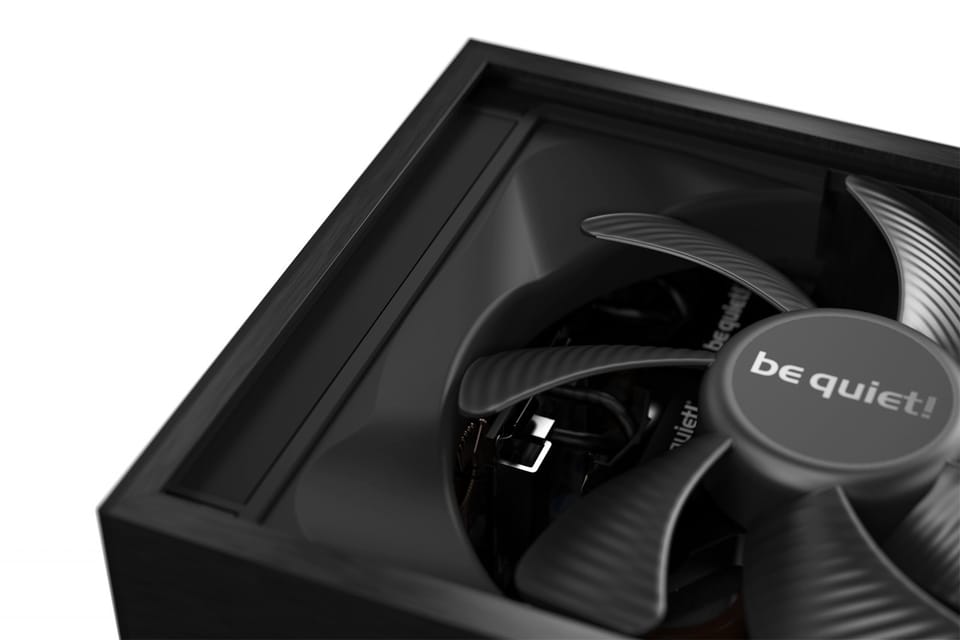

| Fan diameter: | 13.5 cm |
| Height: | 86 mm |
| Hold time: | 18 ms |
| Input current: | 15 - 9 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v1): | 40 A |
| Max output current (+12v2): | 40 A |
| Max output current (+12v3): | 45 A |
| Max output current (+12v4): | 45 A |
| Max output current (+3.3v): | 25 A |
| Max output current (+5v): | 25 A |
| Max output current (+5vsb): | 3.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 31.1 dB |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 5 |
| Number of sata power connectors: | 16 |
| Package depth: | 417 mm |
| Package height: | 152 mm |
| Package weight: | 6.9 kg |
| Package width: | 253 mm |
| Pci express connector: | Yes |
| Pci express power cable length: | 60 cm |
| Pci express power connectors (6+2 pin): | 6 |
| Peak power: | 1700 W |
| Peripheral (molex) power cable length: | 600 mm, 750 mm, 900 mm, 1050 mm |
| Power factor: | 0.99 |
| Power protection features: | Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Products per shipping (inner) case: | 2 pc(s) |
| Purpose: | PC |
| Sata power cable length: | 750 mm, 900 mm, 500, 1050 mm, 950 mm, 800, 600 mm |
| Shipping (inner) case height: | 28.3 cm |
| Shipping (inner) case length: | 44 cm |
| Shipping (inner) case net weight: | 14.6 kg |
| Shipping (inner) case width: | 32.5 cm |
| Sustainability certificates: | Triman, ENERGY STAR, ErP, WEEE, UKCA, RoHS, CE, CCC, Federal Communications Commission (FCC) |
| Sustainability compliance: | Yes |
| Total power: | 1600 W |
| Warranty period: | 10 year(s) |
| Weight: | 2.44 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
