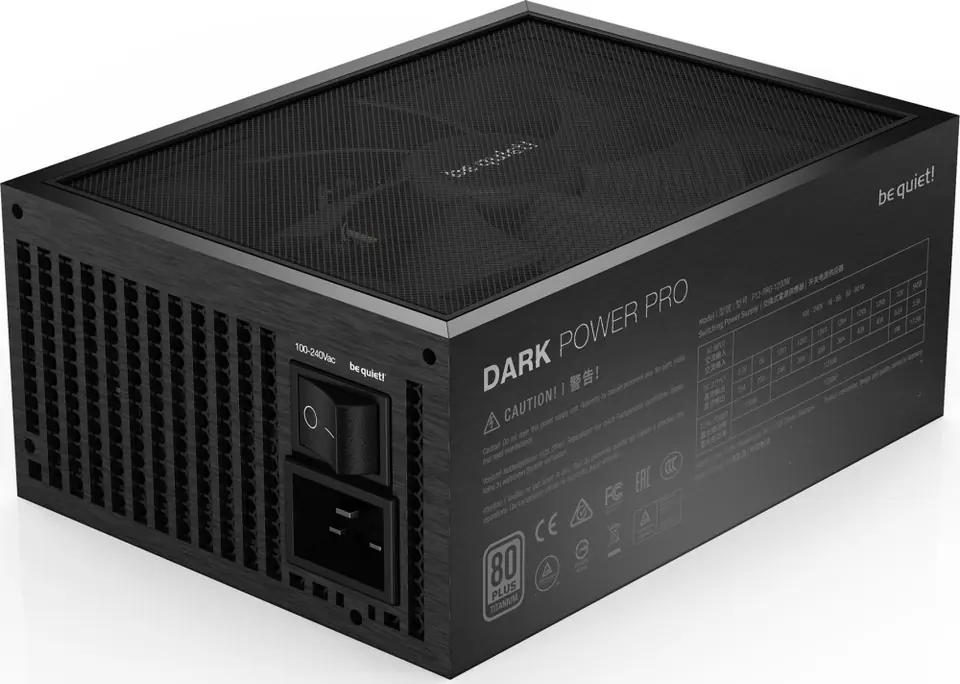

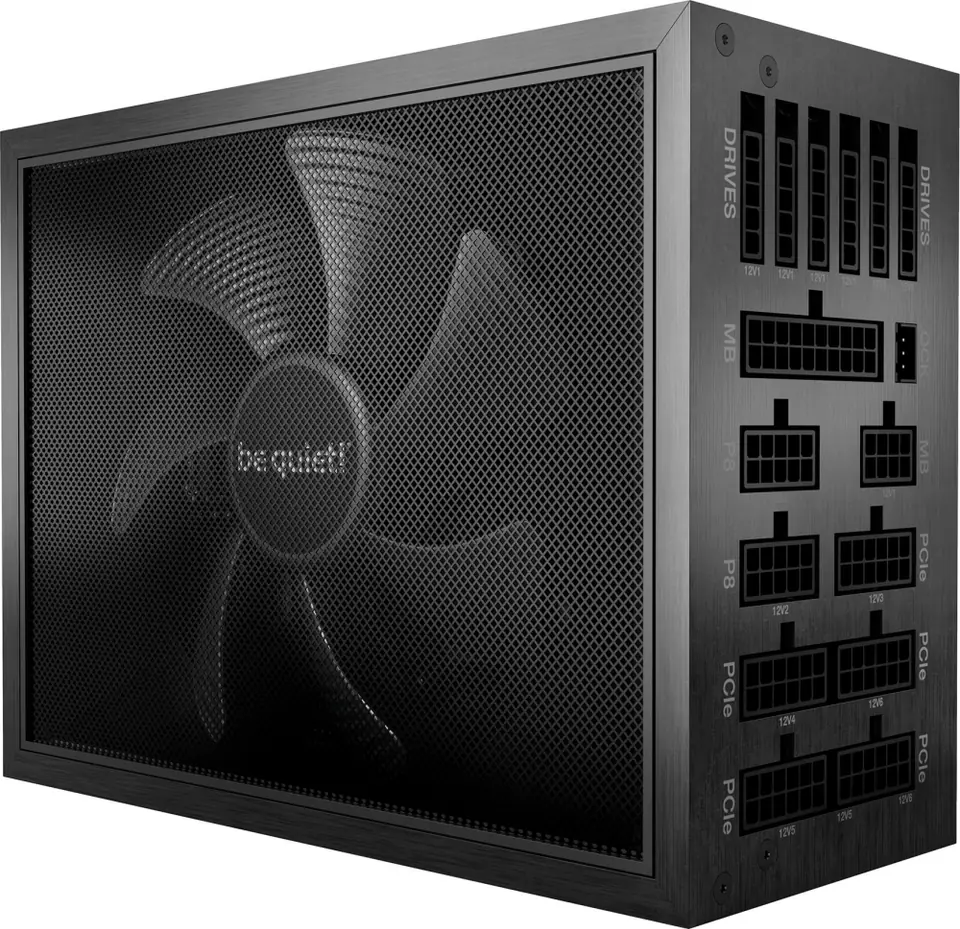

be quiet! Dark Power Pro 12 1200W power supply unit 20+4 pin ATX ATX Black
€494.94
Shipping from warehouse: M7
Estimated shipping: Mon, Aug 4 - Wed, Aug 6
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Be quiet!
- Product code:
- BN311 / 4260052187425
Share this product:
Specification
| 80 plus certification: | 80 PLUS Titanium |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.51 |
| Bearing technology: | FDB |
| Cables included: | AC, CPU, PCIe, SATA |
| Cabling type: | Modular |
| Combined power (-12v): | 6 W |
| Combined power (+12v): | 1200 W |
| Combined power (+3.3v): | 150 W |
| Combined power (+5v): | 150 W |
| Combined power (+5vsb): | 17.5 W |
| Cooling type: | Active |
| Depth: | 200 mm |
| Efficiency: | 94.7% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |
| Eps version: | 2.92 |
| Fan diameter: | 13.5 cm |
| Floppy disk drive cable length: | 120 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 2 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 18.67 ms |
| Input current: | 16 - 8 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 100 A |
| Max output current (+12v1): | 35 A |
| Max output current (+12v2): | 35 A |
| Max output current (+12v3): | 35 A |
| Max output current (+12v4): | 35 A |
| Max output current (+3.3v): | 25 A |
| Max output current (+5v): | 25 A |
| Max output current (+5vsb): | 3.5 A |
| Maximum input current (@110v): | 16 A |
| Maximum input current (@220v): | 8 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Noise level: | 25.8 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 16 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 417 mm |
| Package height: | 152 mm |
| Package type: | Box |
| Package weight: | 6.8 kg |
| Package width: | 253 mm |
| Pci express power cable length: | 60 cm |
| Pci express power connectors (6+2 pin): | 10 |
| Peak power: | 1300 W |
| Peripheral (molex) power cable length: | 600 mm, 750 mm, 900 mm |
| Peripheral (molex) power connectors (4-pin): | 8 |
| Power factor: | 0.99 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Over power, Over voltage, Under voltage, Over current, Short circuit, Overheating |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Products per shipping (inner) case: | 2 pc(s) |
| Purpose: | PC |
| Sata power cable length: | 550, 750 mm, 900 mm, 800, 600, 500, 650 |
| Shipping (inner) case gross weight: | 14.4 kg |
| Shipping (inner) case height: | 28.3 cm |
| Shipping (inner) case length: | 44 cm |
| Shipping (inner) case width: | 32.5 cm |
| Sustainability certificates: | RoHS, ENERGY STAR |
| Total power: | 1200 W |
| Weight: | 2.41 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
