Manufacturer Name: Hendi 231753

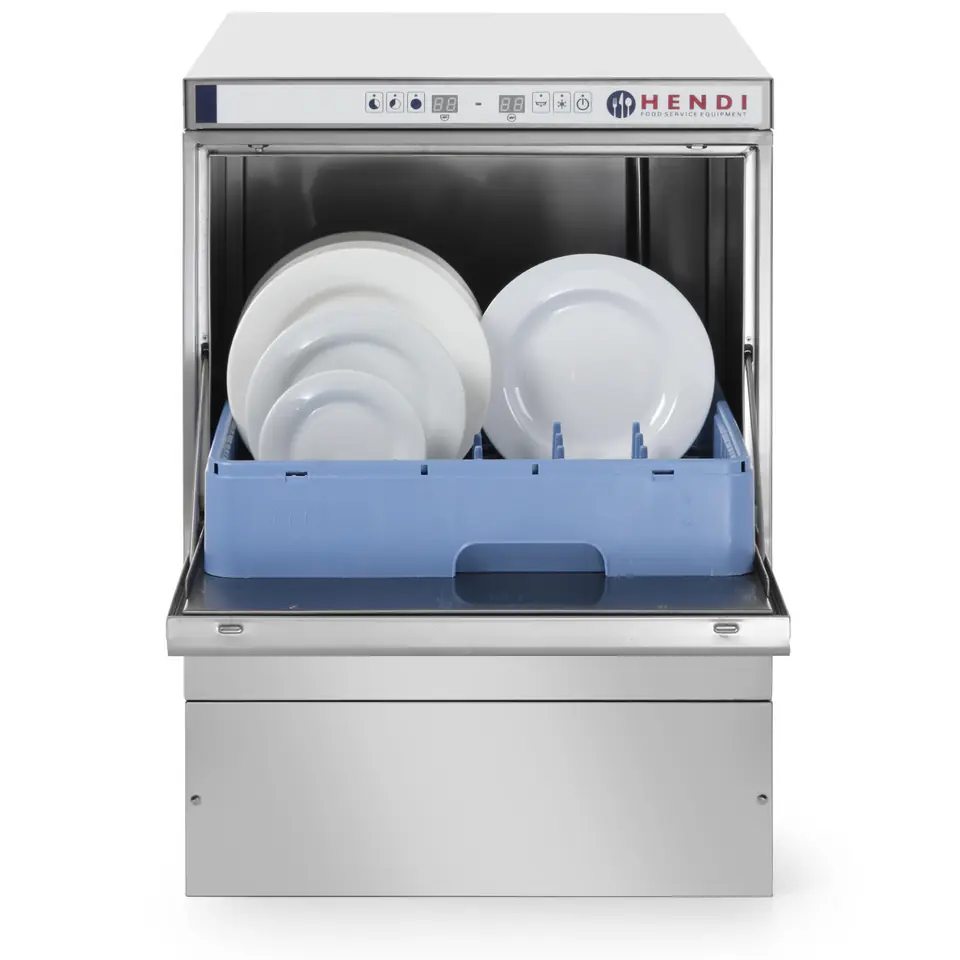

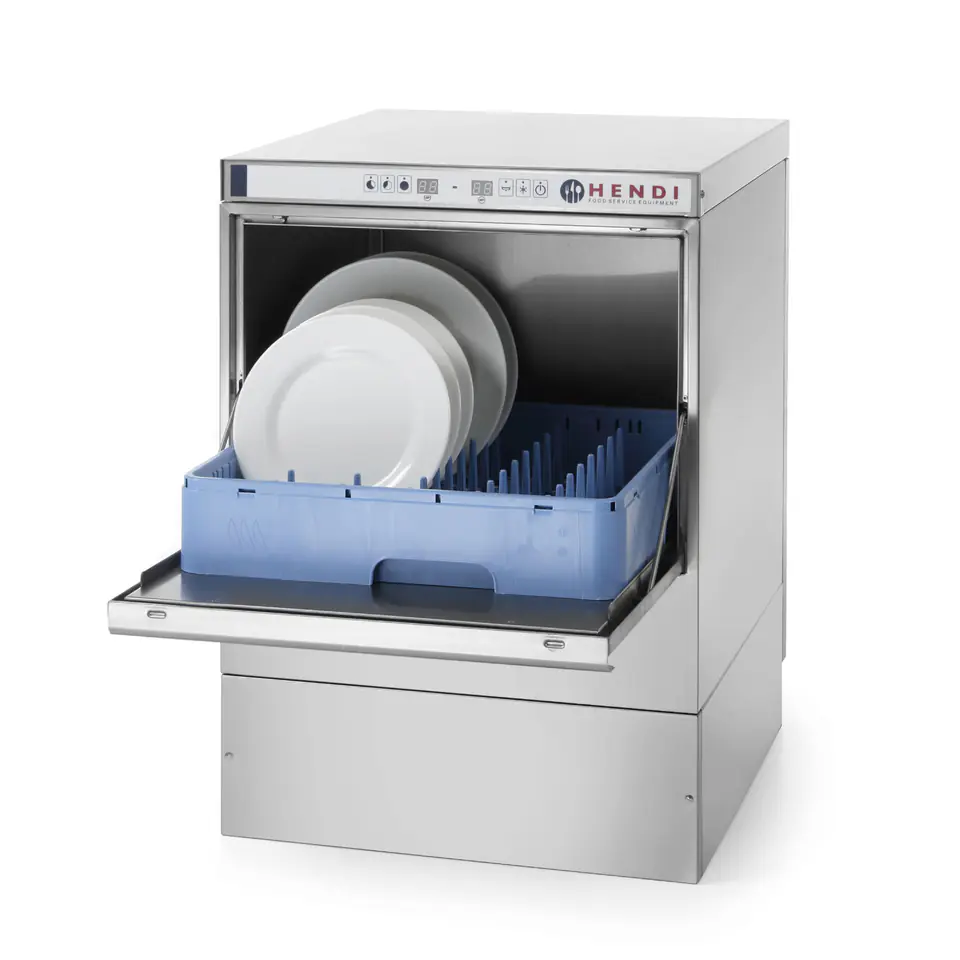

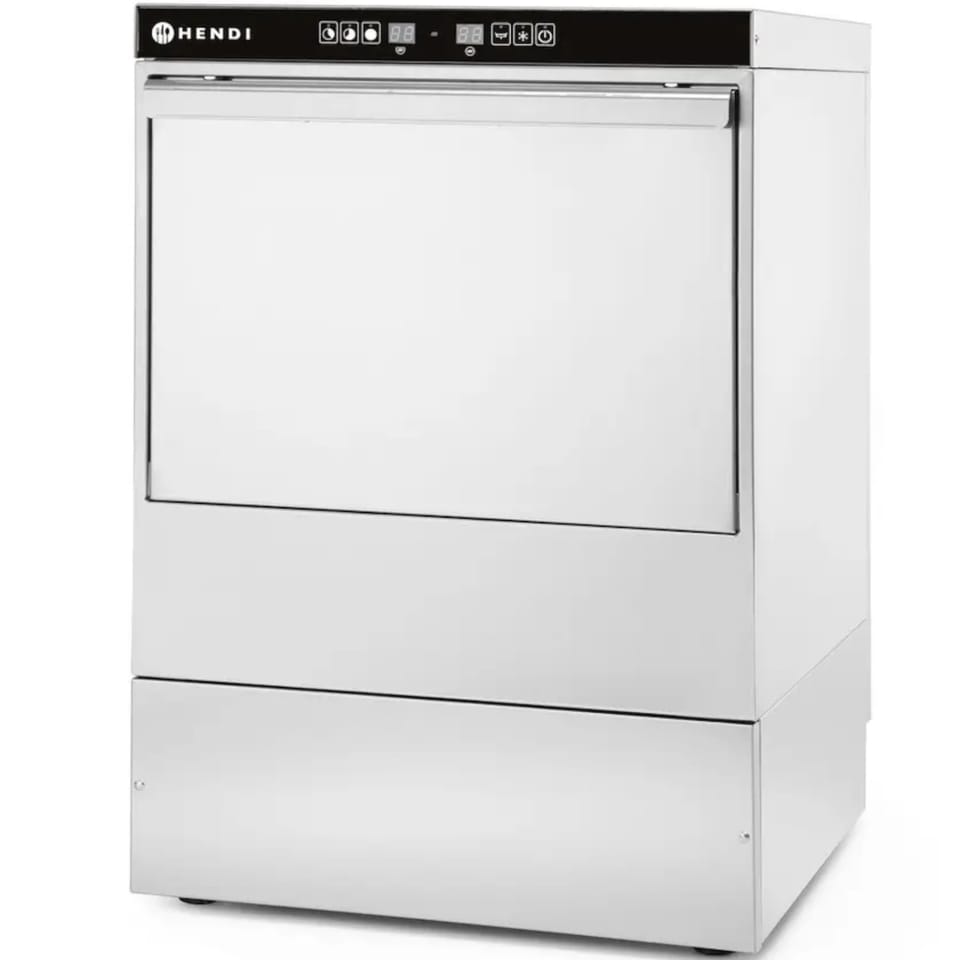

The fast and economical Hendi electronically controlled bar dishwasher is a device designed for cafes, restaurants, hotels and other professional establishments and catering establishments. It is perfect for washing cups, cups, cutlery or plates and is extremely easy to use, keep clean and service.
Features and functions:
- - control via touch, electronic panel,

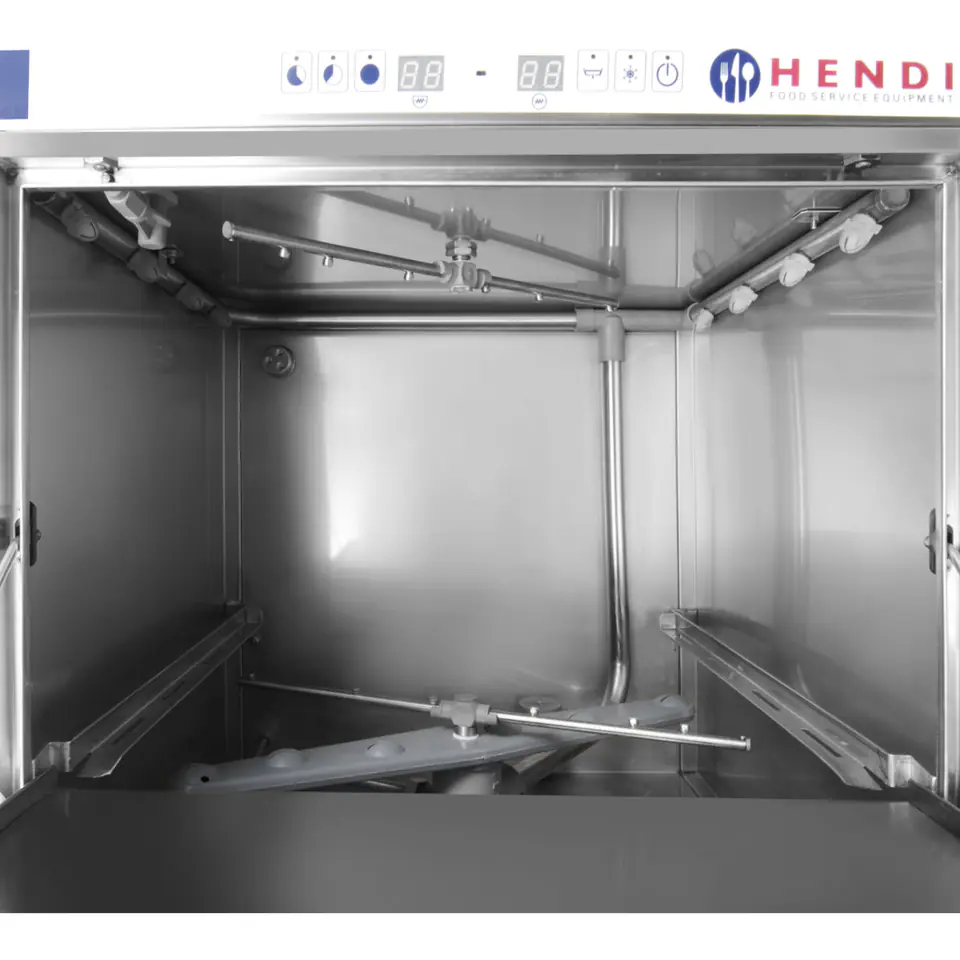

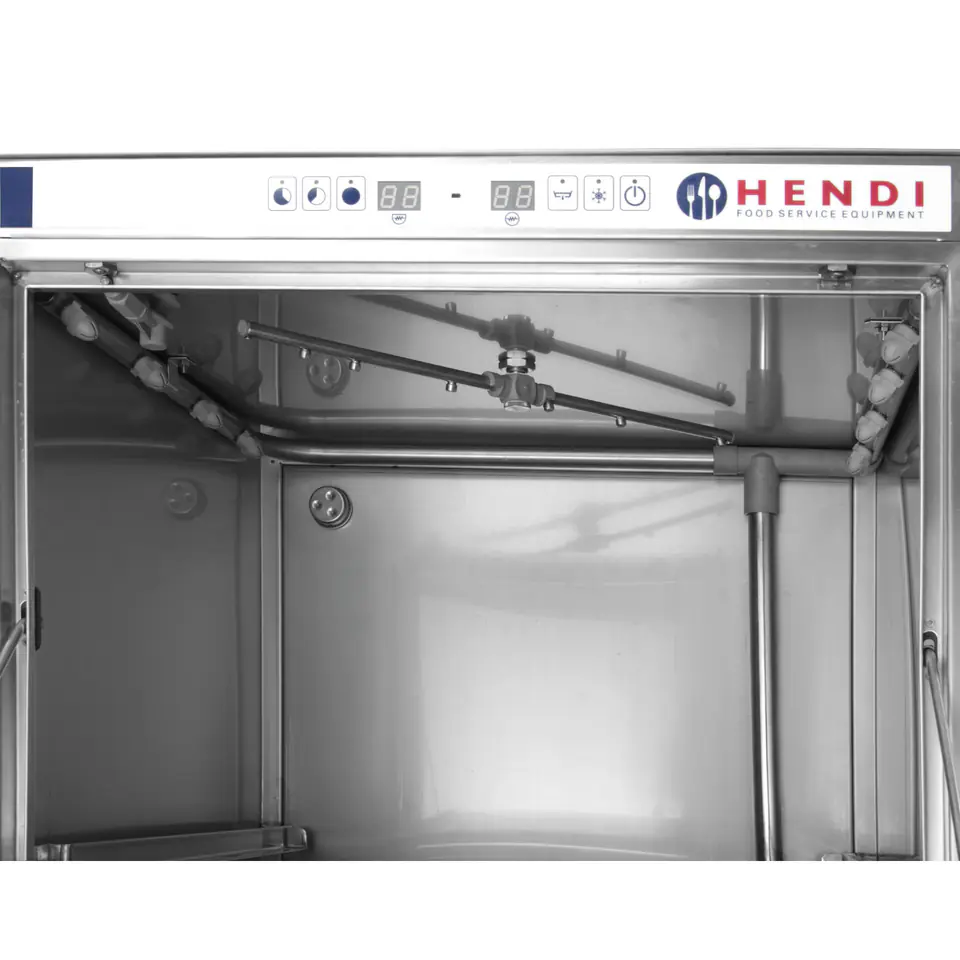

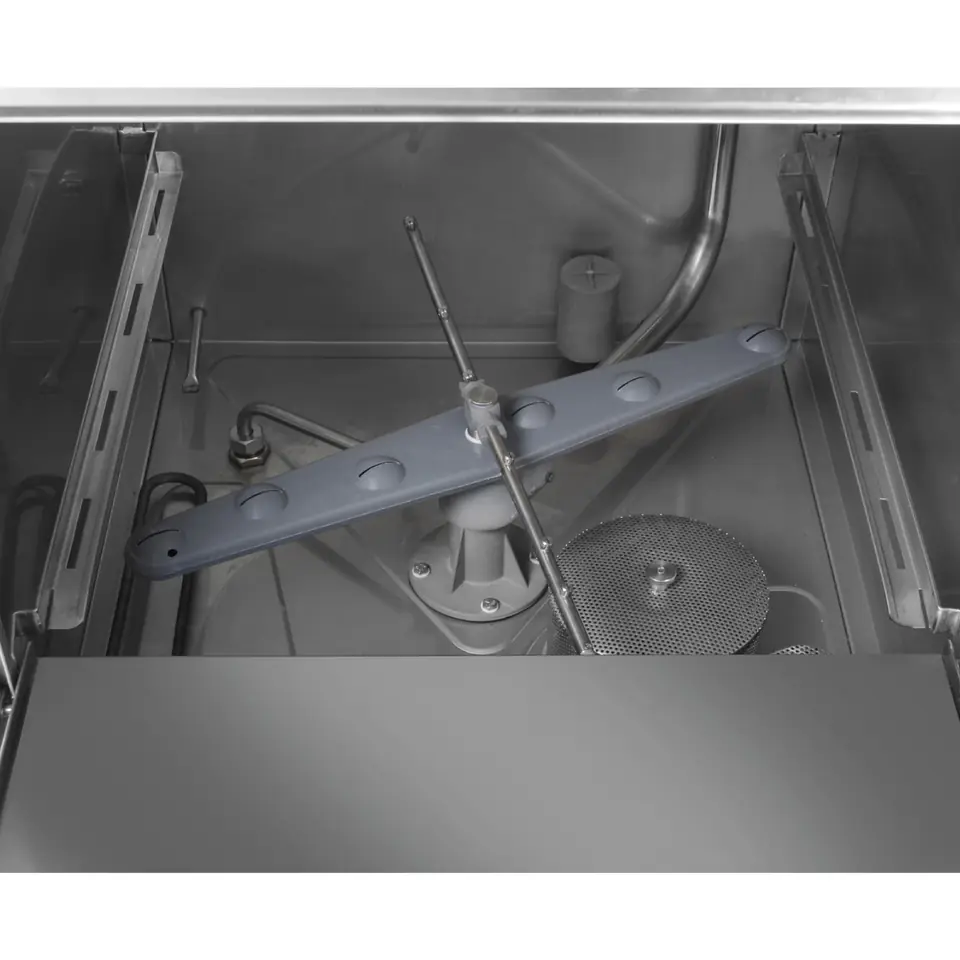

- - separate washing and rinsing arms at the bottom and top of the device,
- - stainless steel housing AISI 304,
- - solid two-layer door with a micro-switch for opening operation with an input height of 360 mm,
- - electronic water thermometer in the boiler and in the bath,
- - vertically adjustable feet ±10 mm, ø40 mm,
- - program washing the dishwasher compartment,
- - the possibility of rinsing with cold water (especially useful when washing glass),
- - "THERMO-PROTECTOR" to prevent rinsing with cold water (start of rinsing at 85 ° .C),
- - "SOFT START" starting the pump with lower pressure and gradually raising the pressure so as not to damage the vessels,
- - 8-point self-diagnostic system,
- - ECO system - reduces electricity consumption.
- - Voltage - 400 V
- - Power - 6600 W
- - Housing material - Stainless steel AISI 304
- - Washing arm material - Stainless steel (top)
- - plastic (bottom) -
- - Rinse arm material - Stainless steel
- - Number of programs - 3
- - Length of 1 washing cycle - 60, 120, 180 s
- - Capacity - 60, 30, 20 baskets / hour
- - Water consumption (1 cycle) - 2-2.5 L
- - Washing water temperature - 60 deg.C
- - Rinsing water temperature - 85 deg.C
- - Boiler (capacity / power) - 6 L / 6 kW
- - Bath (capacity / power) - 35 L / 2.8 kW
- - Washing pump power - 0.75 hp
- - Safety thermostat for boiler - 105 deg.C
- - Safety thermostat for bath - 99 deg.C
- - Pump tightness factor - IP 44
- - Max. plate/glass height - 335 mm / 325 mm
- - Dimensions (LxWxH) - 570 x 600 (+370) x 830 mm
- - Weight - 55 kg

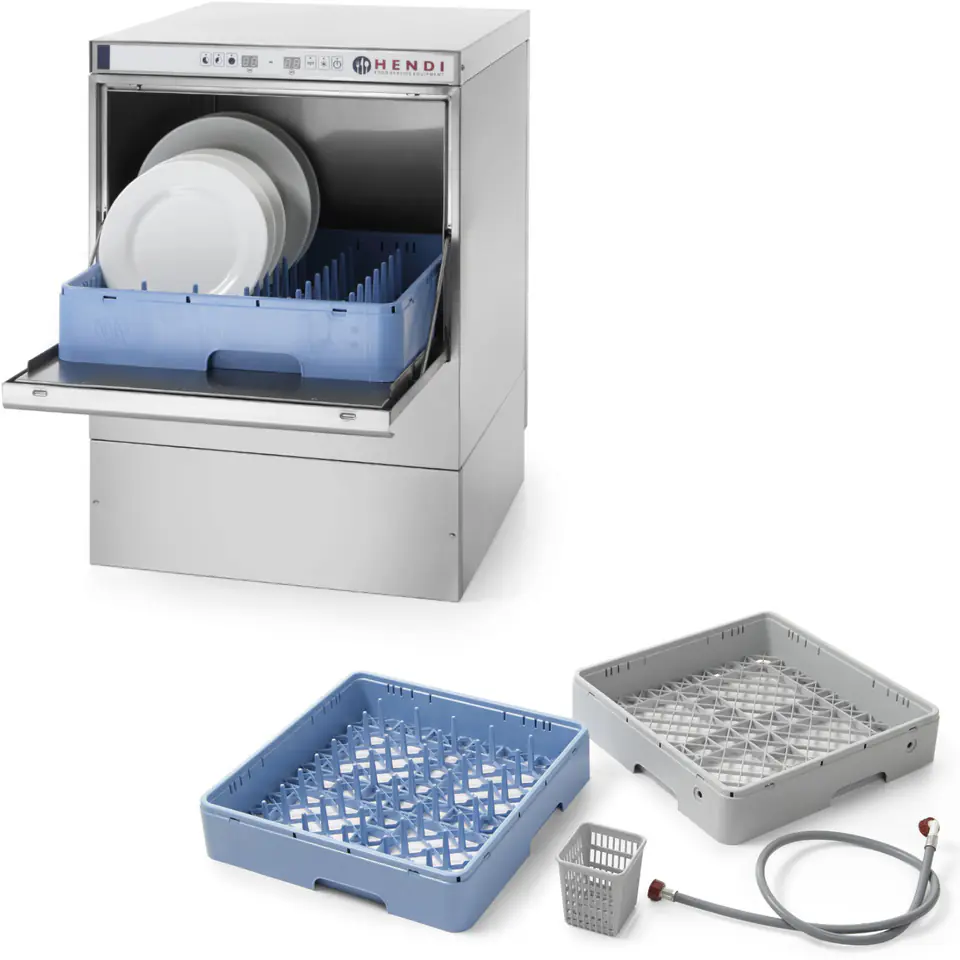

- - bar dishwasher for dishes + dispenser + pump basket 50x50cm 400V 3 PROGRAMS,

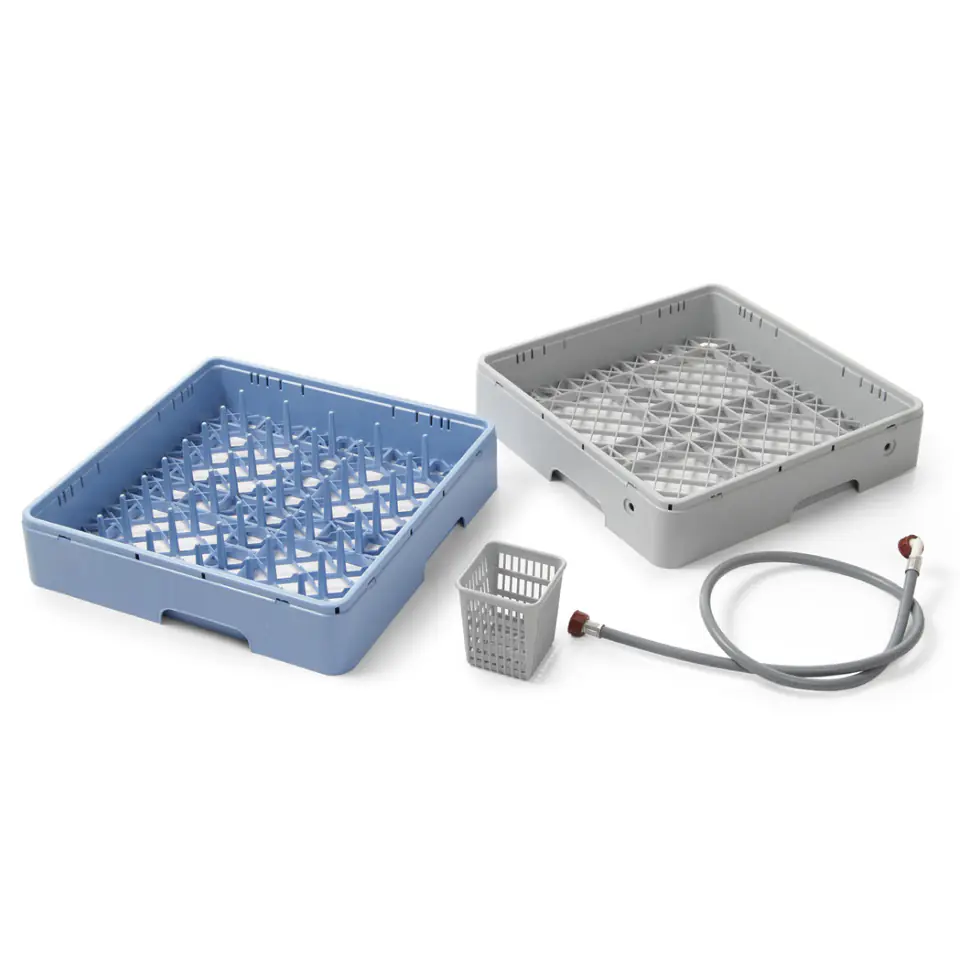

- - universal basket for glass (LxWxH): 500x500x105mm,
- - basket with pins for deep and shallow discs in the 5x8pcs arrangement, (LxWxH): 500x500x105mm,
- - cutlery basket 110x110x130mm,
- - water supply hose with a length of 1.5 m, with a connection of 3/4" internal thread,
- - drain hose,
- - electric cable without plug.
