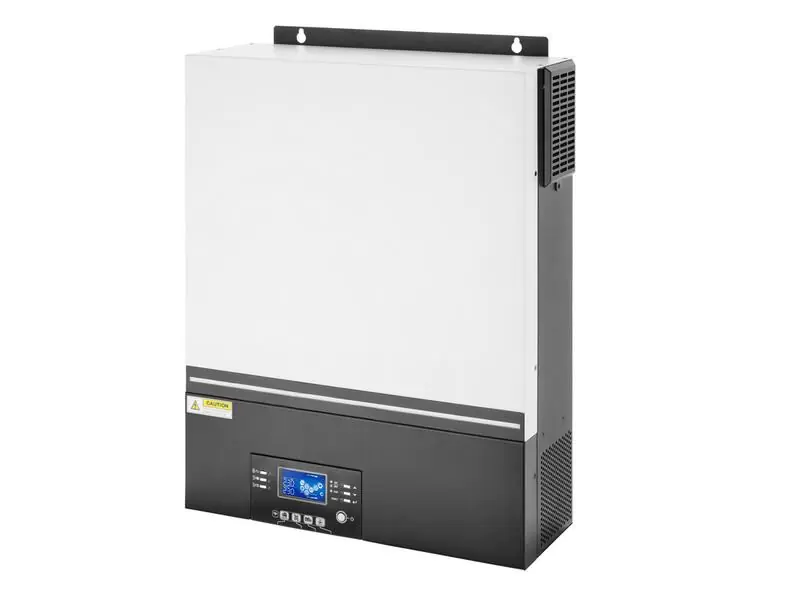

AZO Off-Grid ESB 15kW-48 Hybrid Solar Inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- AZO DIGITAL
- Product code:
- ESB 15kW-48 / 5903699340585
Share this product:
Specification
| Ac input voltage: | 90 - 280 V |
|---|---|
| Applications support: | Yes |
| Bluetooth: | Yes |
| Cables included: | AC |
| Charging voltage: | 54 V |
| Communication: | RS485, RS232 |
| Continuous power: | 7200 VA |
| Control display unit: | Yes |
| Cooling type: | Active |
| Dc battery voltage: | 48 V |
| Depth: | 150 mm |
| Dfu / user manual: | Y |
| Display included: | Yes |
| Door cooling fan: | Yes |
| Efficiency: | 93% |
| Height: | 600 mm |
| Input frequency: | 50/60 Hz |
| International protection (ip) code: | IP21 |
| Maximum charging current: | 80 A |
| Maximum charging current from solar panels (mppt): | 2x 18 A |
| Maximum pv panel circuit voltage: | 500 VDC |
| Mppt function: | Yes |
| Mppt voltage range: | 90 - 450 V |
| Nominal input voltage: | 230 V |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -10 - 50 °C |
| Output power capacity: | 15000 VA |
| Output voltage (vac): | 230 VAC |
| Power current type: | AC/AC |
| Power protection features: | Overload |
| Product colour: | White |
| Recharge indicator: | Yes |
| Recommended maximum pv power: | 8000 Wp (2x 4000 Wp) |
| Set contents: | MC4 connectors - 2 sets |
| Starting voltage: | 80 V |
| Typical switching time: | 10 - 20 ms |
| Usb port: | Yes |
| Waveform: | Sine |
| Weight: | 19.3 kg |
| Width: | 433 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
