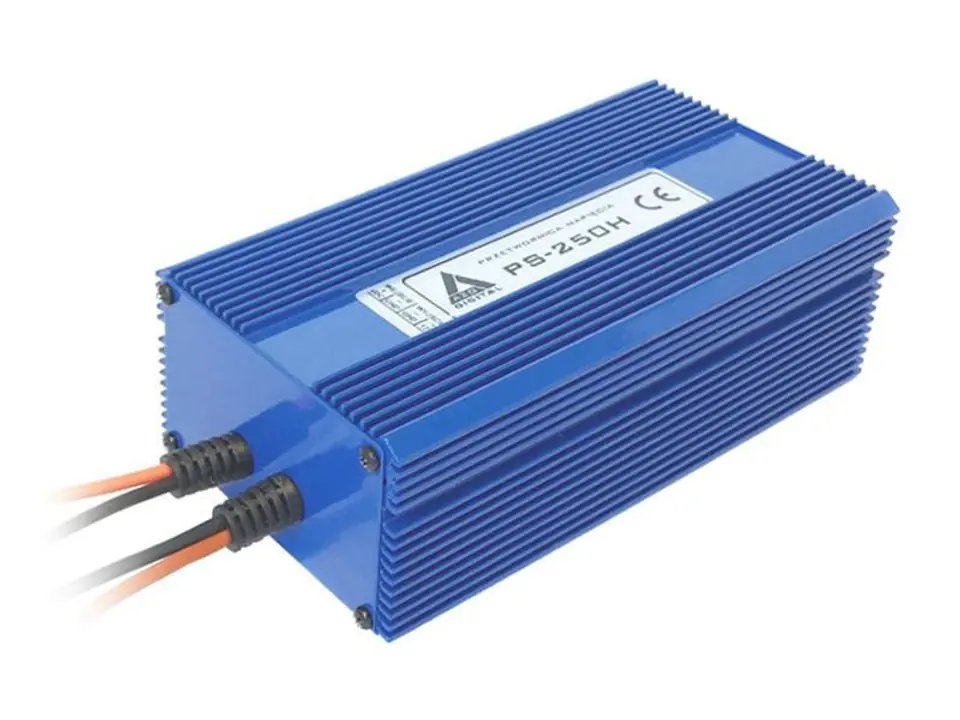

AZO Digital 30÷80 VDC / 24 VDC PS-250H-24 250W voltage converter galvanic isolation, IP67
This product is not available
- Availability:
- expected delivery
- Brand:
- AZO DIGITAL
- Product code:
- AZO00D1073 / 5905279203549
Share this product:
Specification
| Cable management: | Yes |
|---|---|
| Cooling type: | Passive |
| Dc input voltage: | 30 - 80 V |
| Dc output voltage: | 24 V |
| Depth: | 190 mm |
| Efficiency: | 87% |
| Height: | 55 mm |
| Housing material: | Aluminium |
| International protection (ip) code: | IP67 |
| Maximum power: | 220 W |
| Operating temperature (t-t): | -25 - 55 °C |
| Power current type: | DC/DC |
| Power protection features: | Overheating, Overvoltage protection, Over power |
| Product colour: | Blue |
| Specific features: | Galvanic isolation |
| Waterproof: | Yes |
| Weight: | 1.45 kg |
| Width: | 95 mm |
