Device designed to protect devices connected to the Ethernet network 10/100/1000 Mb/s Allows the protection of 4 pairs of UTP strands with charge discharge to the ground

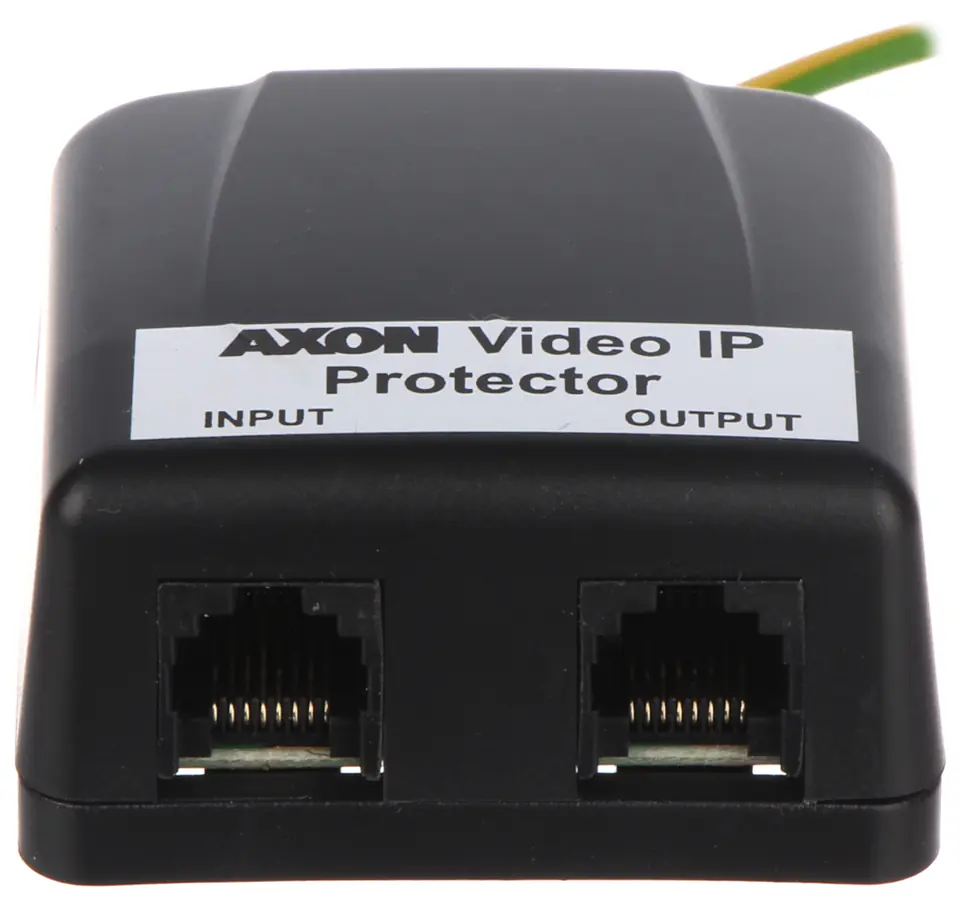

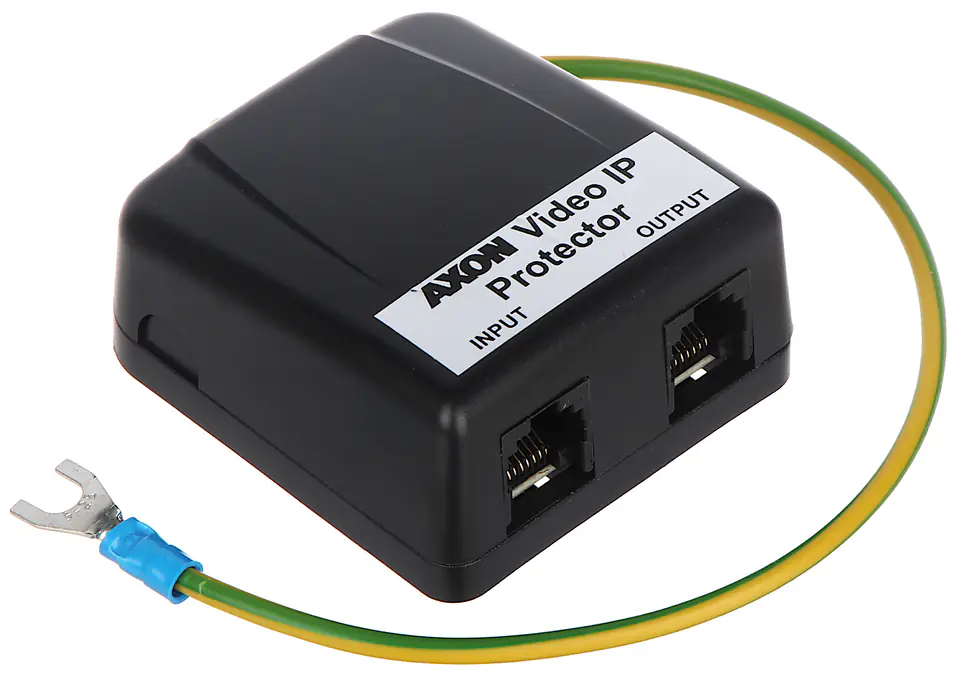

AXON-VIDEO-IP SURGE ARRESTER
This product is not available
- Availability:
- expected delivery
- Brand:
- HSK ACAR
- Product code:
- AXON-VIDEO-IP / 5904743335007
Share this product:
Specification
| Capacity:: | < 20 pF |
|---|---|
| Dimensions:: | 66 x 60 x 30 mm |
| Line-to-ground protection voltage:: | ≤ 600 V |
| Maximum discharge current (line to line):: | 135 A (8/20μs) |
| Maximum discharge current (line-ground):: | 135 A (8/20μs) |
| Maximum voltage:: | 6 volts |
| Nominal discharge current (line to line):: | 100 A (8/20μs) |
| Nominal discharge current (line-ground):: | 100 A (8/20μs) |
| Protected cable pairs:: | 1-2, 3-6, 4-5, 7-8 |
| Scales:: | 0.05 kg |
| Socket types:: | RJ45 (8P8C) |
| Surge protection level (line-to-line):: | ≤ 40 V |
| Voltage:: | 5 volts |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
