AXON-MULTINET-8 is a multi-channel device designed for surge protection of devices connected to the 10/100/1000 Mbps Ethernet network, such as: network adapters, hubs, switches, routers, etc. This device consists of 8 independent channels (I/O), within which 4 pairs of wires in UTP twisted pair with charge discharge to the ground are secured.

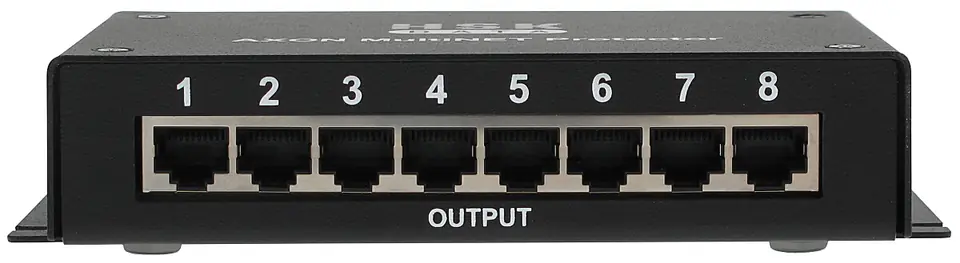

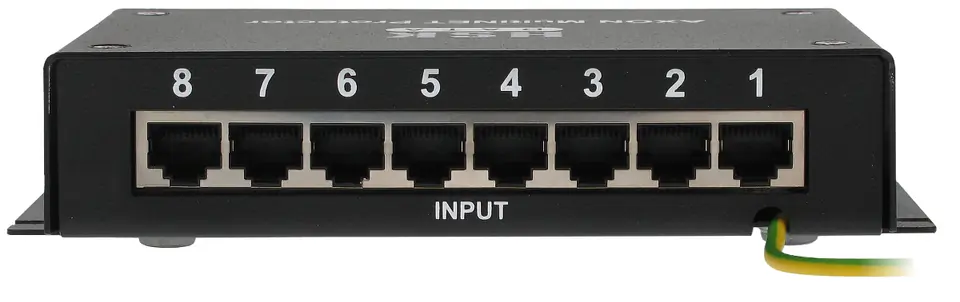

AXON-MULTINET-8 ETHERNET SURGE ARRESTER
This product is not available
- Availability:
- expected delivery
- Product code:
- AXON-MULTINET-8 / 5904743330309
Share this product:
Specification
| Capacity:: | ≤ 20 pF |
|---|---|
| Dimensions:: | 162 x 90 x 37 mm |
| Line-to-ground protection voltage:: | ≤ 600 V |
| Maximum discharge current (line to line):: | 135 A (8/20μs) |
| Maximum discharge current (line-ground):: | 135 A (8/20μs) |
| Maximum voltage:: | 25 volts |
| Nominal discharge current (line to line):: | 100 A (8/20μs) |
| Nominal discharge current (line-ground):: | 100 A (8/20μs) |
| Protected cable pairs:: | 1-2, 3-6, 4-5, 7-8 |
| Scales:: | 0.44 kg |
| Socket type:: | 8 x RJ-45 (8-pin, 4 pairs) |
| Surge protection level (line-to-line):: | ≤ 40 V |
| Voltage:: | 20 volts |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
