| Case:: | Plastic DIN rail mounting, TS-35 |
|---|---|
| Dimensions:: | 86 x 58 x 35 mm |
| Line-to-ground protection voltage [c2]:: | ≤ 1000 V - 1.2/50 μs |
| Maximum voltage:: | 150 volts |
| Nominal discharge current (line-ground) [c2]:: | 2 kA - 8/20 μs |
| Protected cable pairs:: | 1, 2, 3, 4, 5, 6, 7, 8 |
| Scales:: | 0.06 kg |
| Socket type:: | RJ45 (8P8C) |
| Voltage:: | 120 volts |
| Warranty:: | 2 years |

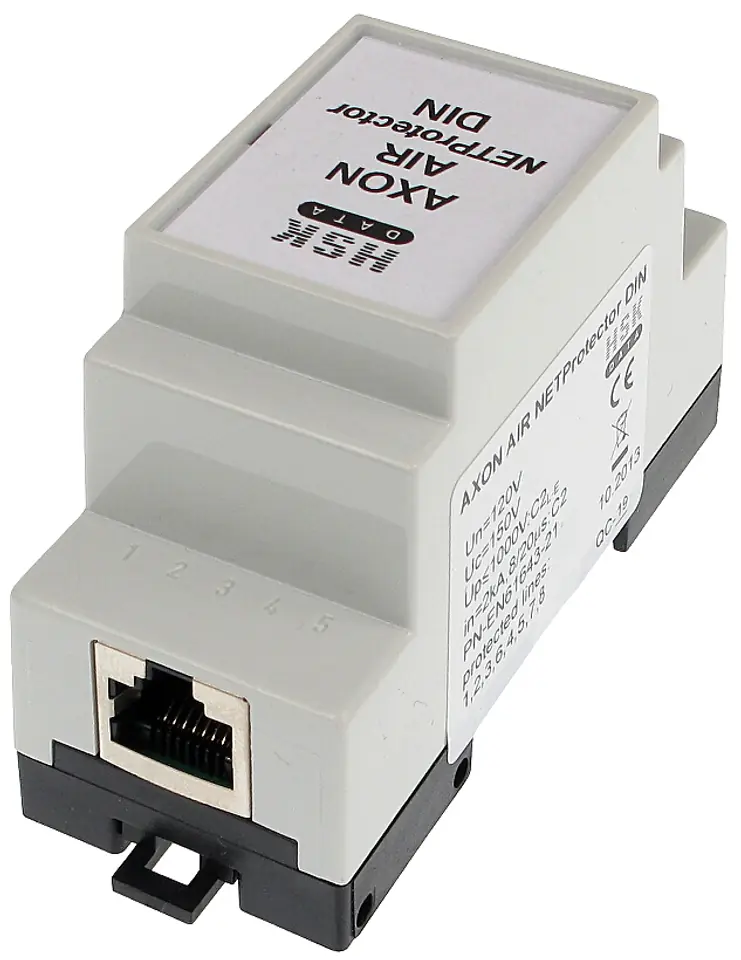

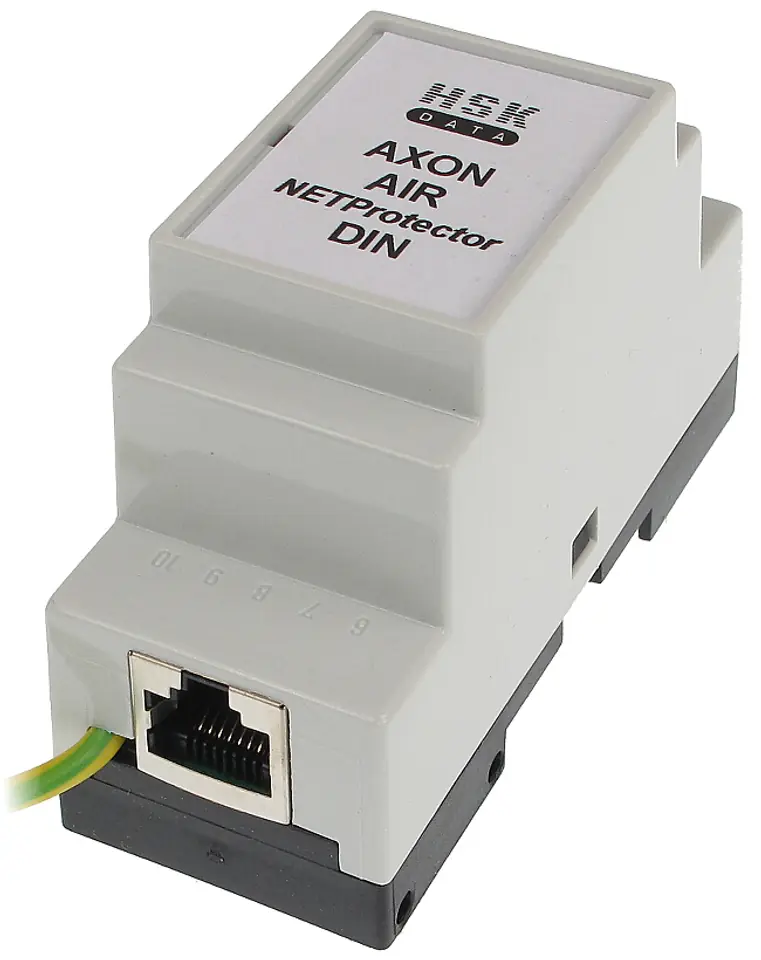

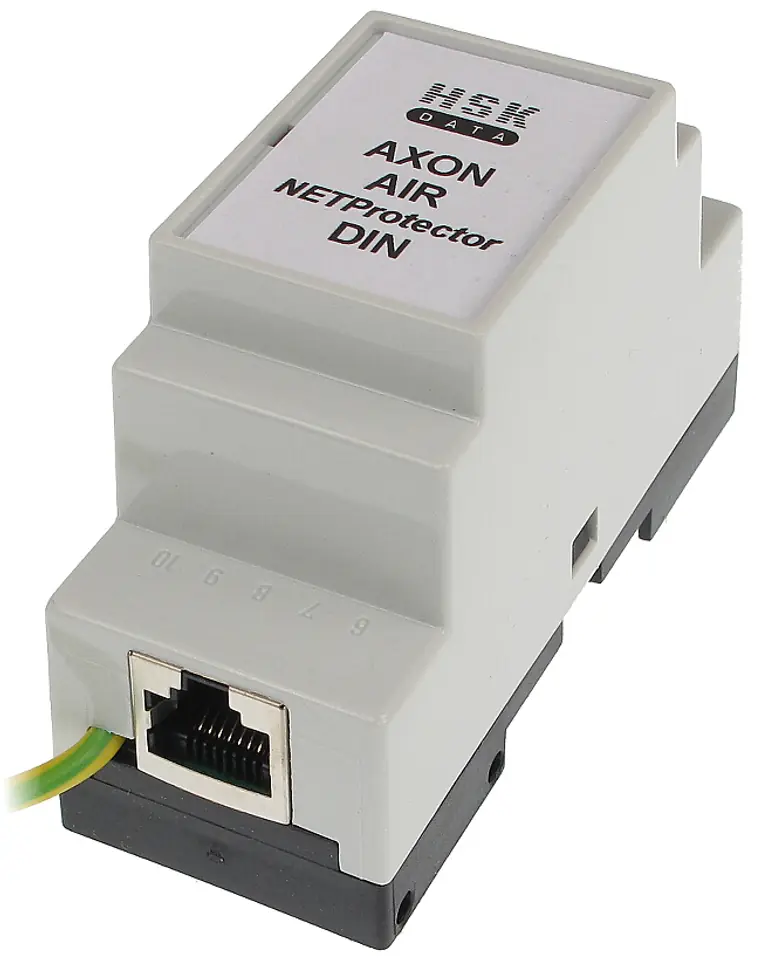

A device designed to protect devices connected to the 10/100/1000 Mbps Ethernet network, connected to each other by a twisted pair cable running over an overhead lineProtects each wire in a four-pair cable and discharges the electrical charge to the groundThe device is the first degree of protection for overhead connectionsThe condition for proper operation of AXON-AIR/DIN is to connect it to a working smooth ground or PE protective wire

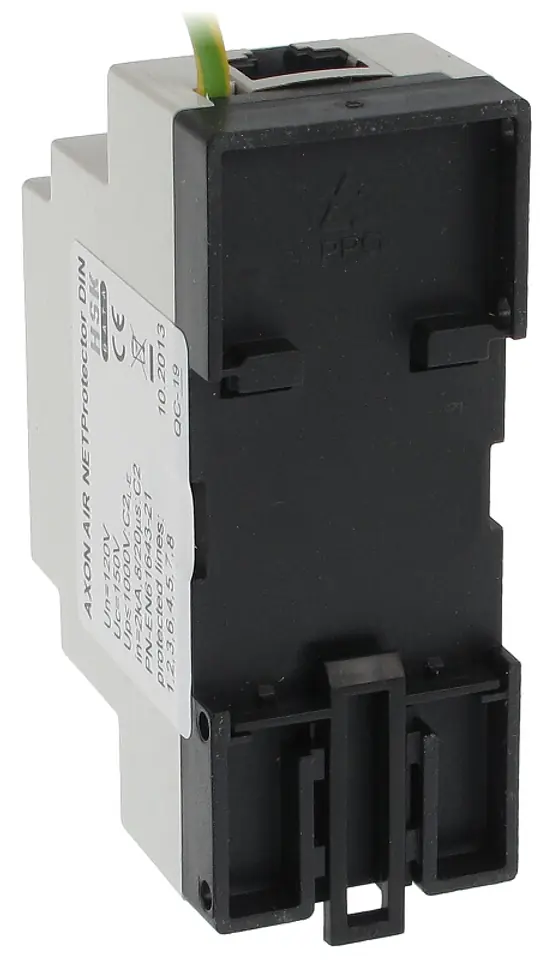

AXON-AIR/DIN is designed for mounting on a 35 mm DIN rail
