The DS-PM1-I1602-WE wireless expander offers connection of wired detectors, e.g. PIR, to the AX PRO alarm system

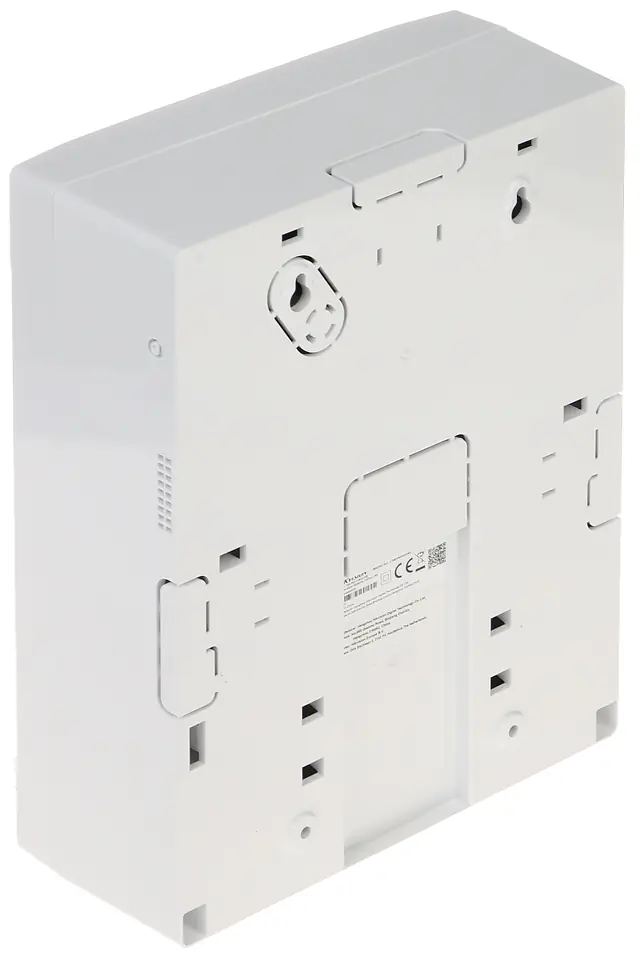

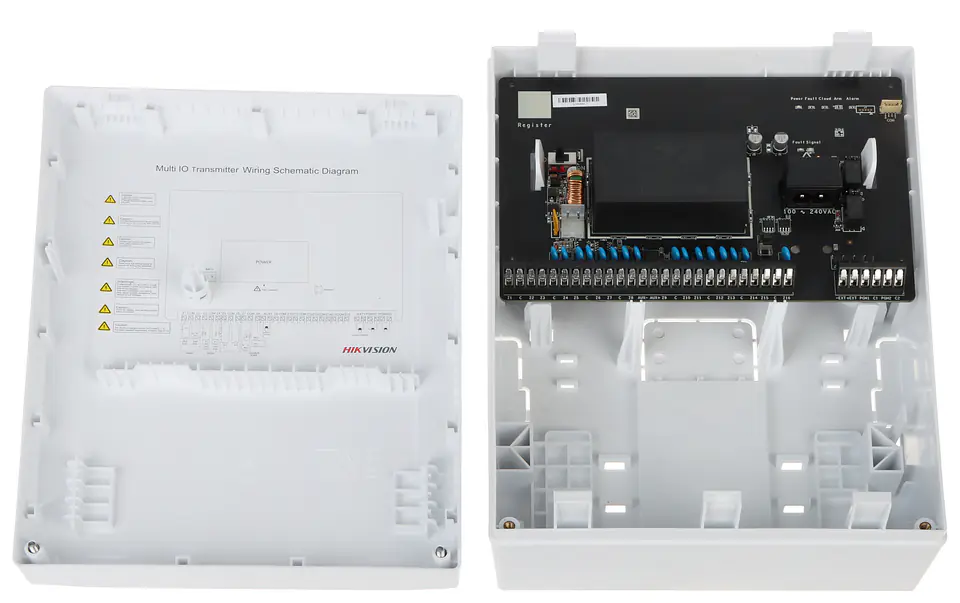

AX PRO DS-PM1-I1602-WE HIKVISION WIRELESS WIRED I/O EXPANDER
€285.26
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DS-PM1-I1602-WE / 6931847131166
Share this product:
Specification
| Alarm inputs:: | 16 |
|---|---|
| Alarm outputs:: | 2 |
| Battery space:: | 12 V / 7 Ah : 151 x 65 x 94 mm |
| Dimensions:: | 261 x 199 x 86 mm |
| Emergency power supply:: | Battery : 7 Ah (not included) |
| Manufacturer / brand:: | Hikvision |
| Operating temperature:: | -10 °C ... 40 °C |
| Permissible relative humidity:: | 10 % ... 90 % |
| Power output:: | 2 x 12 V / 1 A (total) |
| Power:: | 100 V ... 240 V AC / 30 W (max) |
| Sap code:: | 302401916 |
| Scales:: | 1.12 kg |
| Selected features:: | LED signaling Tamper protection (detection of detachment from the ground and opening of the housing) |
| Serial port:: | 1 |
| Use:: | Wireless alarm systems HIKVISION AX PRO |
| Warranty:: | 2 years |
| Wireless:: | 868 MHz - Two-way communication Range : 1100 m (in open area) |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
