TECHNICAL DATA
filter size 110x90x9 mm
field of view dimension 92x42 mm
optical class according to EN379 1/2/1/2
class he.mu according to EN175 F
number of arc sensors 2
Rate. blackouts DIN 4 / 9-13
response time 1/25000 s
brightening time 0.2 - 0.8 s infinitely adjustable
infinitely adjustable sensitivity
UV/IR protection DIN 16
operating temperature -10oC - +55oC
possibility of grinding YES
solar cell power supply
on/off switch
welding current TIG 15A
helmet polyamide
total weight 445g
USABLE FEATURES:

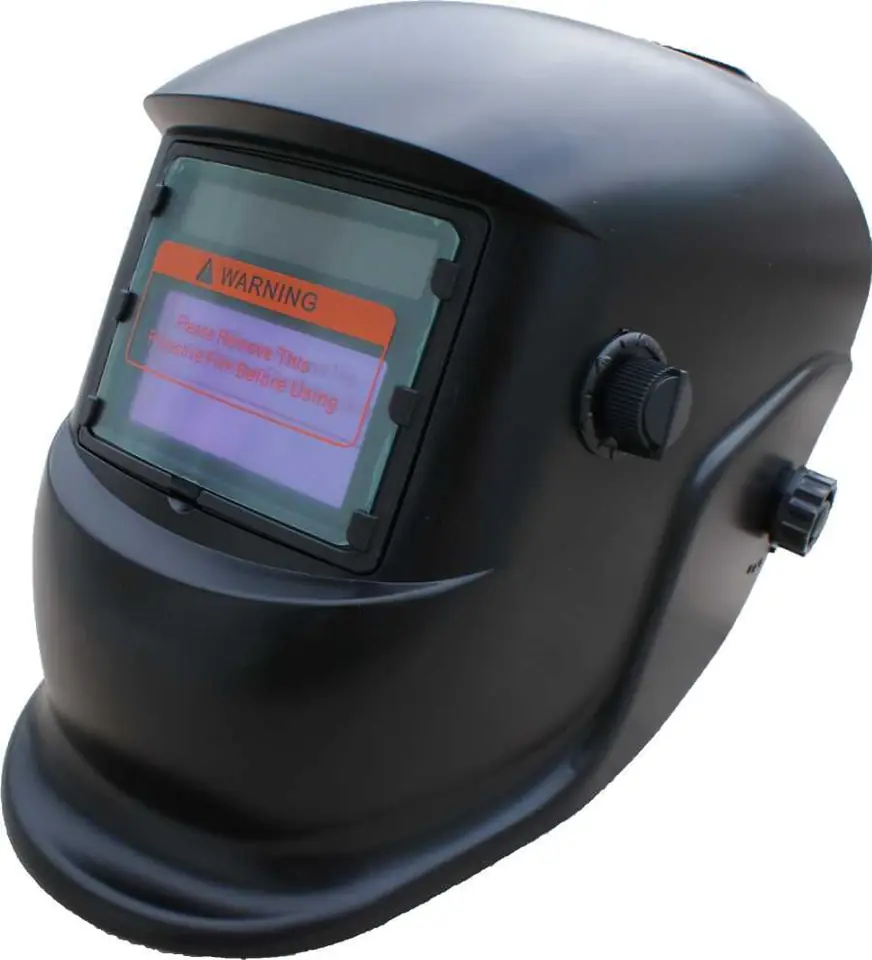

The model 4305 helmet is designed for welding methods: MMA, MIG / MAG, TIG, micro-plasma welding, plasma cutting, welding and gas cutting.
The visor can also be used to protect the face of the welder's head during grinding.
The model 4305 helmet meets the safety requirements of Article 10 of the European Directive 89/686/EEC and is CE marked.
The helmet meets the requirements of harmonized European standards EN175, EN166, EN169 AND EN379.
