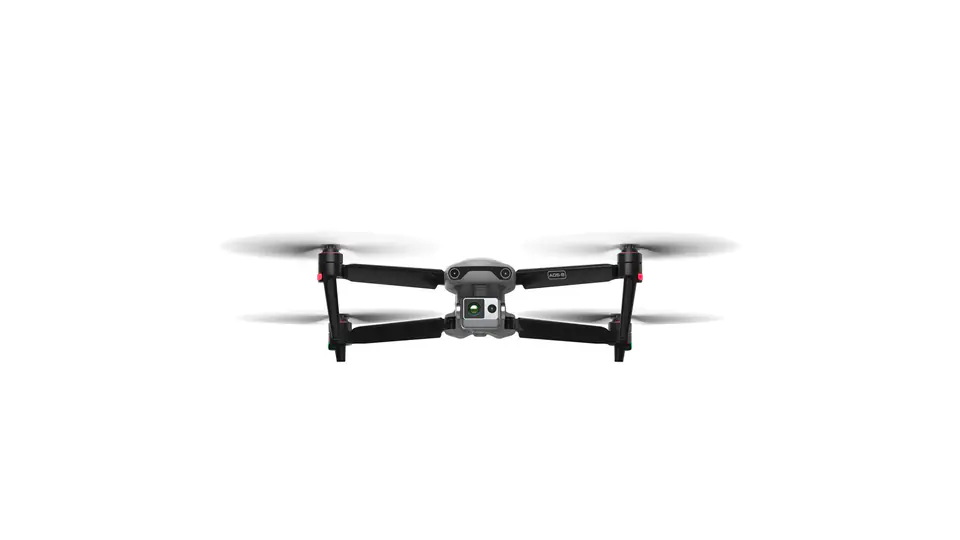

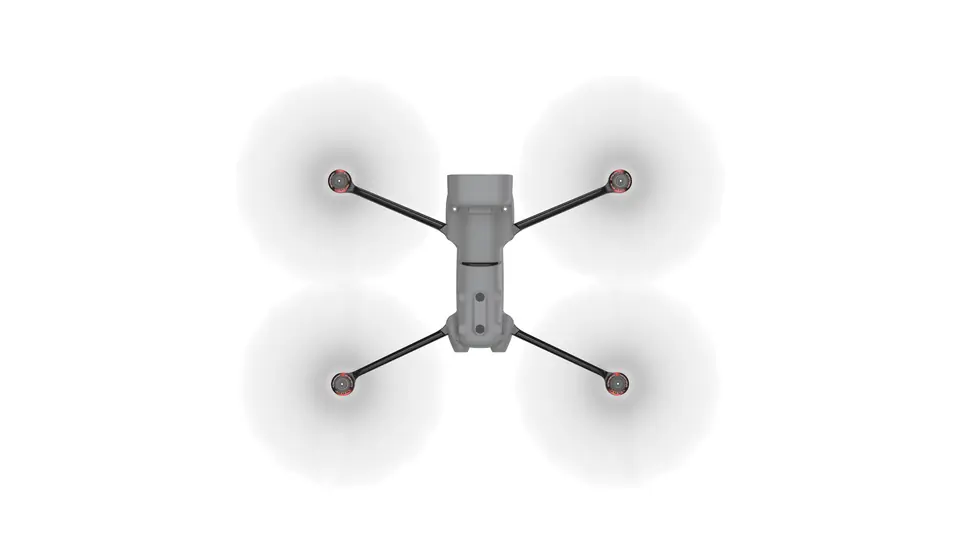

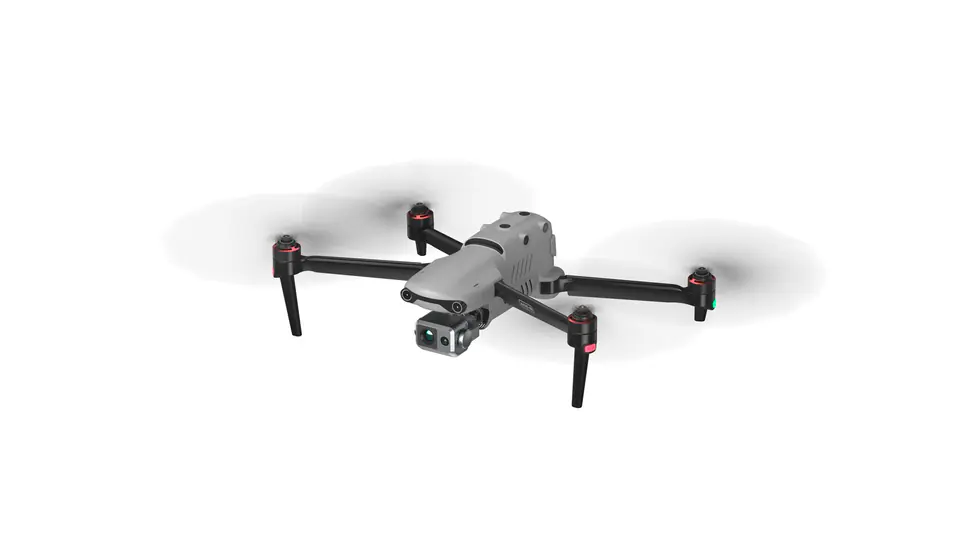

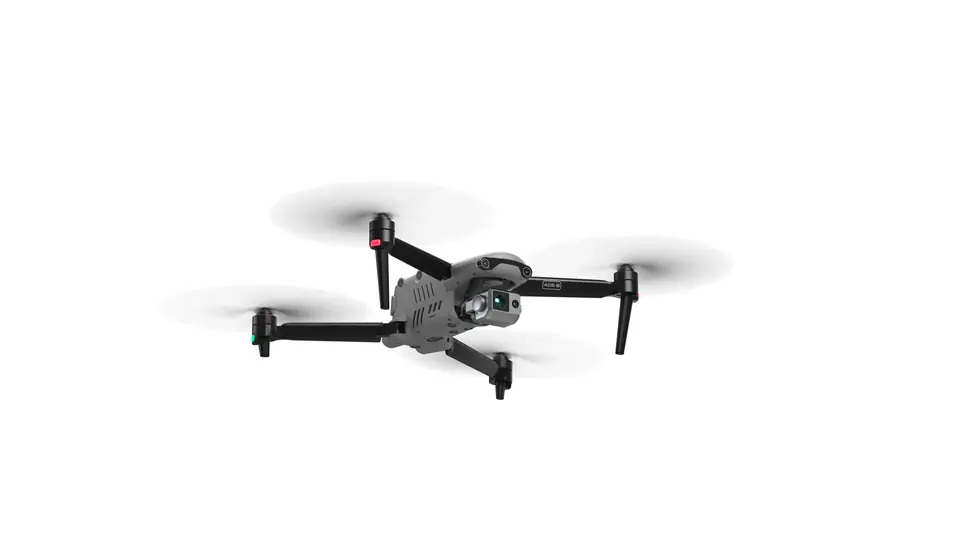

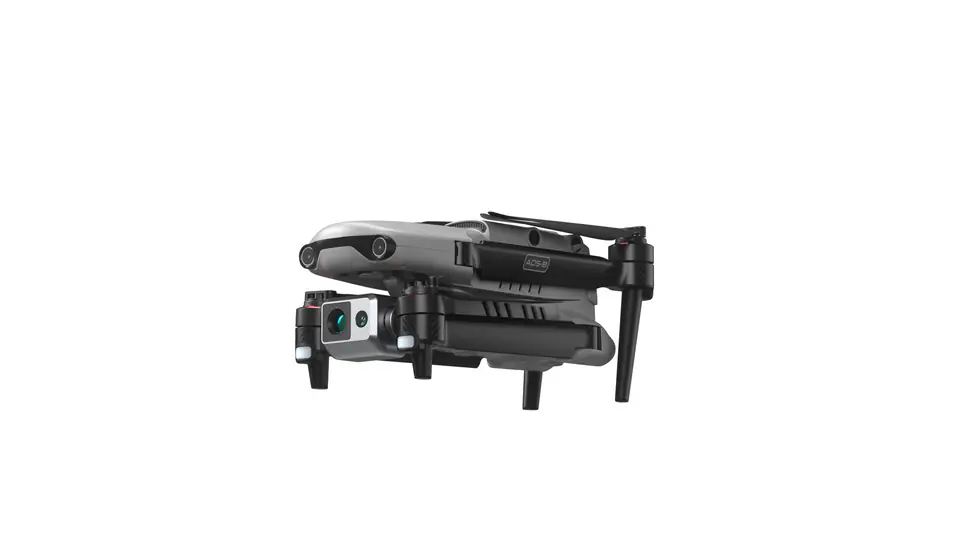

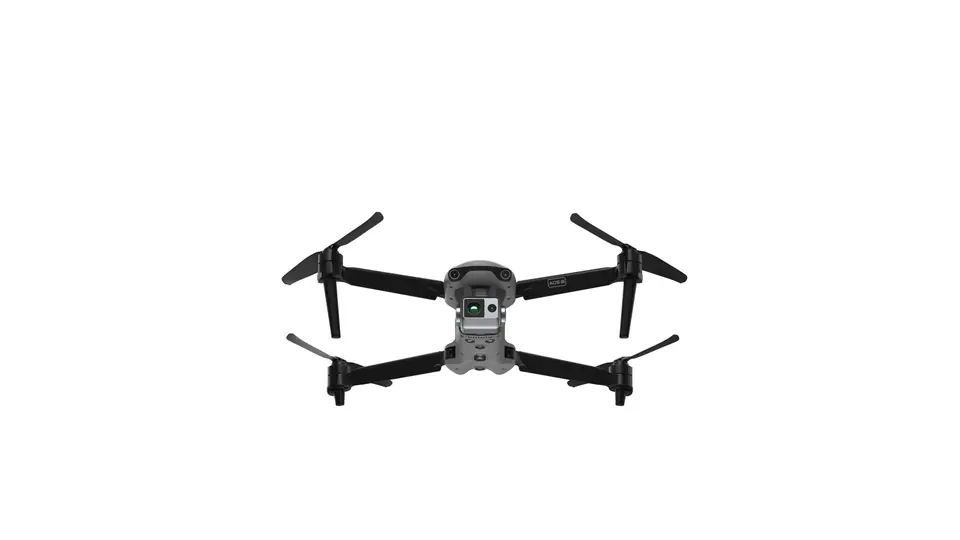

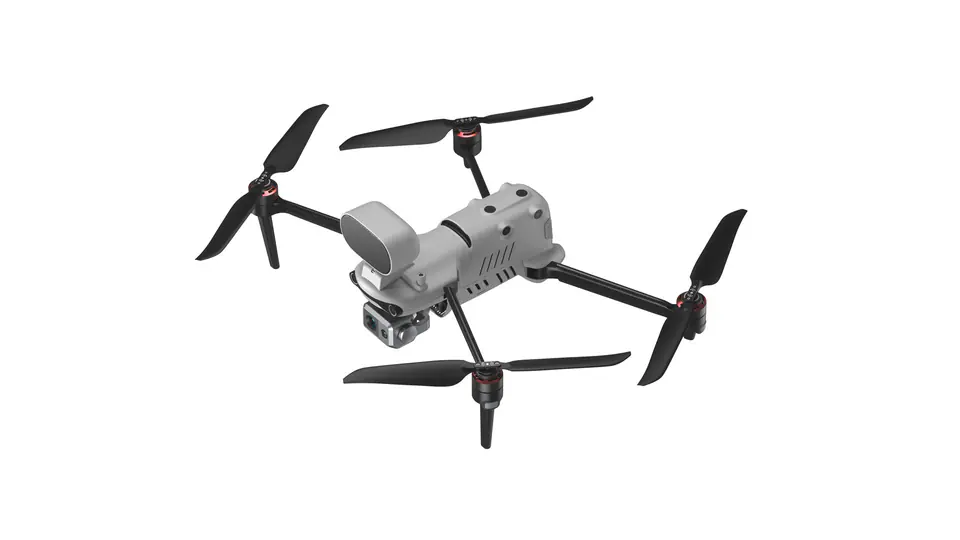

Autel EVO II Dual 640T Enterprise Rugged Bundle Drone V3 Grey
This product is not available
- Availability:
- expected delivery
- Brand:
- AUTEL
- Product code:
- 102001949 / 6924991124467
Share this product:
Specification
| Ac adapter frequency: | 50/60 Hz |
|---|---|
| Ac adapter input voltage: | 100 - 240 V |
| Ac adapter output current: | 1.5 A |
| Ac adapter power: | 66 W |
| Accurate temperature measurement distance: | 2 - 20 m |
| Adjustable rotation range of the gimbal: | Tilt: -90° to +30° , Pan: -90° to +90° |
| Angle of field of view of the thermal imaging camera (fov): | H33°V26° |
| Antennas quantity: | 2 |
| Aperture: | F1.9 |
| Applications supported: | Autel Sky |
| Auto landing function: | Yes |
| Auto return function: | Y |
| Auto takeoff function: | Yes |
| Battery capacity: | 82 Wh, 7100 mAh |
| Battery charger included: | Yes |
| Battery life (transmitter): | 4.5 h |
| Battery technology: | Lithium Polymer (LiPo) |
| Battery voltage: | 11.55 V |
| Baud rate: | 120 Mbps |
| Beidou: | Yes |
| Bluetooth: | Yes |
| Bluetooth transmitter power: | 11 dBm |
| Bluetooth version: | 5.0 |
| Built-in display: | Yes |
| Built-in memory capacity: | 128 GB |
| Built-in wifi: | Yes |
| Cables included: | RC charging cable |
| Camera pixel size: | 12 µm |
| Camera resolution: | 8192 x 6144 pixels |
| Camera shutter speed: | 8 -1/8000 s |
| Car charger: | Y |
| Carrying case: | Yes |
| Charging temperature: | 5 - 45 °C |
| Charging time: | 90 min |
| Charging time (transmitter): | 120 min |
| Compatible memory cards: | Not supported |
| Controller charger: | Yes |
| Display diagonal: | 20.1 cm (7.9") |
| Display resolution: | 2048 x 1536 pixels |
| Easy to use: | Yes |
| Field of view (fov) angle: | 85° |
| Fixed focal length: | 23 mm |
| Fixed focal length of second camera: | 13 mm |
| Flight modes: | Follow Me mode |
| Frequency band: | 902-928, MHz, 2.400-2.4835 GHz, 5.725-5.850 GHz, 5.650-5.755 GHz |
| Galileo: | Yes |
| Gimbal protector: | Y |
| Glonass: | Yes |
| Gps (satellite): | Yes |
| Hd type: | Ultra HD |
| Hdmi ports quantity: | 1 |
| High dynamic range (hdr) supported: | Yes |
| Hovering time (max): | 38 min |
| Image formats supported: | DNG, JPG |
| Image transmission - transmitter power (eirp): | FCC: ≤33dBm, CE: ≤20dBm -2.4G, ≤14dBm - 5.8G, SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G |
| Input voltage: | 13.2 V |
| Interface type: | HDMI/USB |
| International protection (ip) code: | IP43 |
| Ios compatibility: | Yes |
| Iso sensitivity (photos): | 100 - 6400 |
| Iso sensitivity (video): | 100 - 44000 |
| Lens focal range: | 500 mm to infinity |
| Live view: | Yes |
| Manual: | Yes |
| Maximum angular velocity: | 120°/s |
| Maximum ascent speed: | 8 m/s |
| Maximum brightness: | 2000 nits |
| Maximum charging power: | 93 W |
| Maximum descent speed: | 4 m/s |
| Maximum flight time: | 42 min |
| Maximum frame rate: | 60 fps |
| Maximum memory card size: | 256 GB |
| Maximum operating distance: | 15000 m |
| Maximum speed: | 20 m/s |
| Maximum take-off height: | 7000 m |
| Maximum tilt angle: | 33° |
| Maximum video resolution: | 3840 x 2160 pixels |
| Maximum wind resistance (take-off and landing): | 12 m/s |
| Mechanical range of the gimbal: | Tilt: -135° to +45° , Pan: -100° to +100° |
| Megapixel (approx.): | 50 MP |
| Memory card included: | 32 GB |
| Memory card slot(s): | Yes |
| Moving control functions: | Upward, Turn right, Backward, Forward, Downward, Turn left |
| Navic: | Yes |
| Number of axis: | 3 |
| Number of cameras: | 2 |
| Number of propeller blades: | 2 |
| Number of rotors: | 4 rotors |
| Number of spare batteries: | 2 |
| Number of usb type a ports: | 1 |
| Obstacle sensing system: | Y |
| Operated via android devices: | Yes |
| Operating frequency (rf): | 902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz |
| Operating temperature (t-t): | -10 - 40 °C |
| Optical zoom: | 16x |
| Power supply cable: | Yes |
| Processor cores: | 8 |
| Processor family: | Qualcomm |
| Product colour: | Grey |
| Product dimensions when closed (wxdxh): | 245 x 130 x 111 mm |
| Product dimensions when open (wxdxh): | 506 x 620 x 111 mm |
| Protective case: | Yes |
| Quasi-zenith satellite system (qzss): | Yes |
| Removable battery: | No |
| Return home function: | Y |
| Rtk module: | Optional |
| Sensor: | 1/2.8" CMOS |
| Sensor resolution (thermal module): | 640 x 512 px |
| Sensor system type: | Multidirectional |

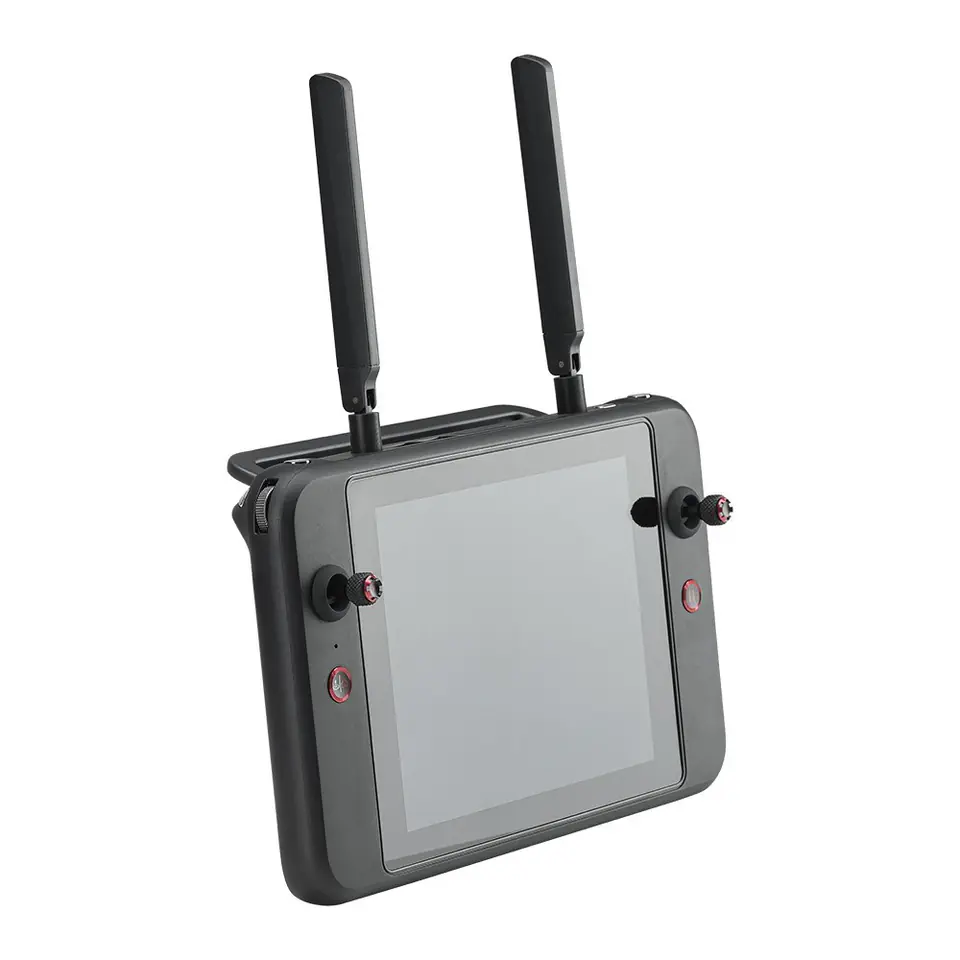

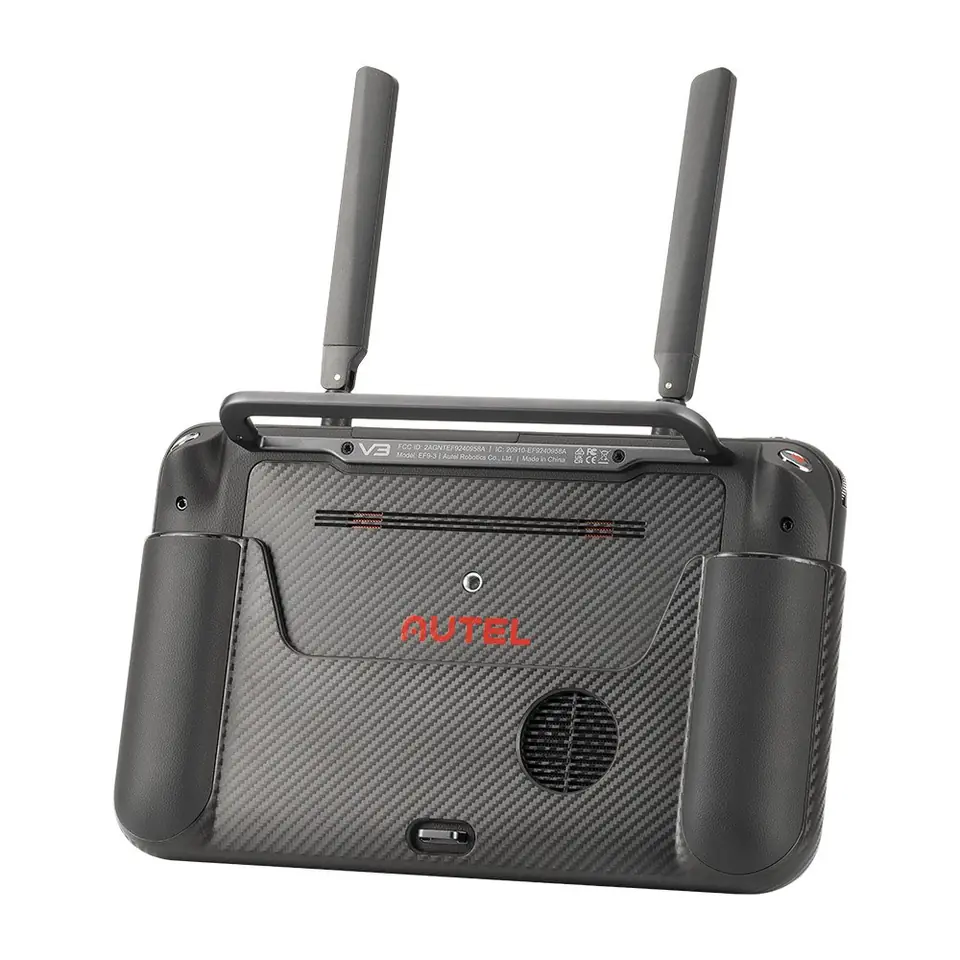

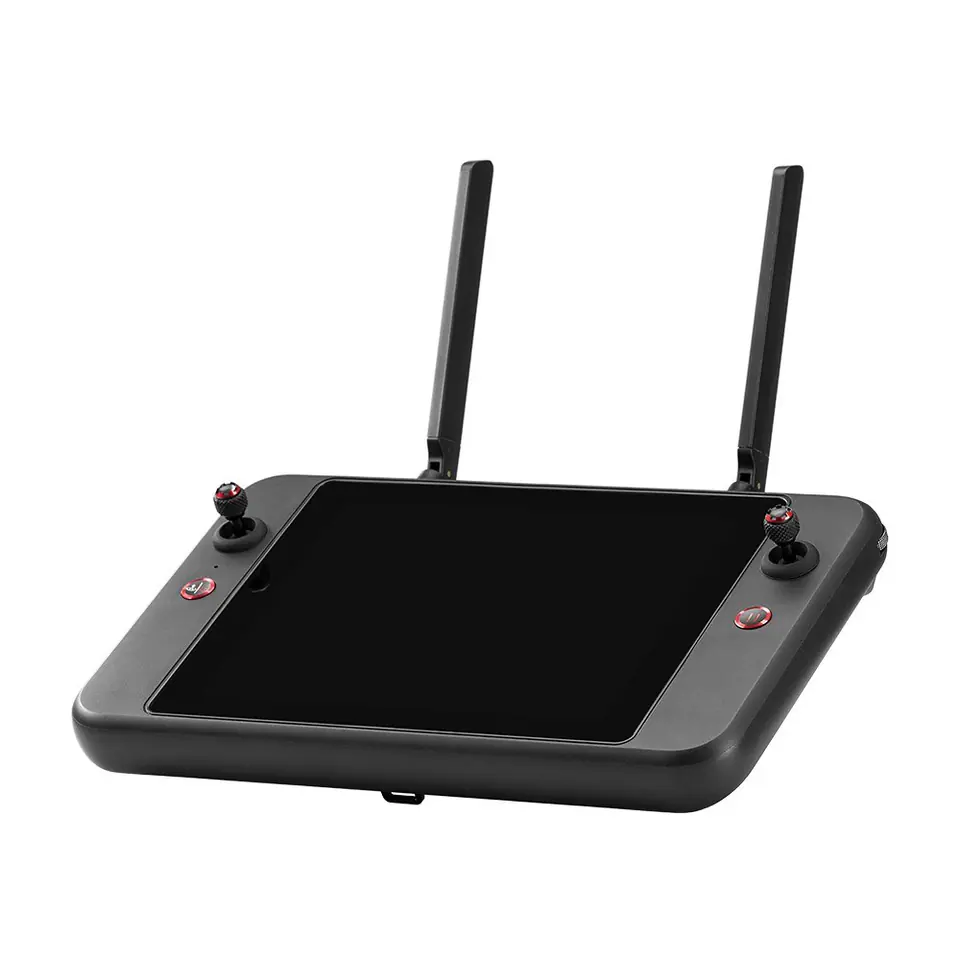

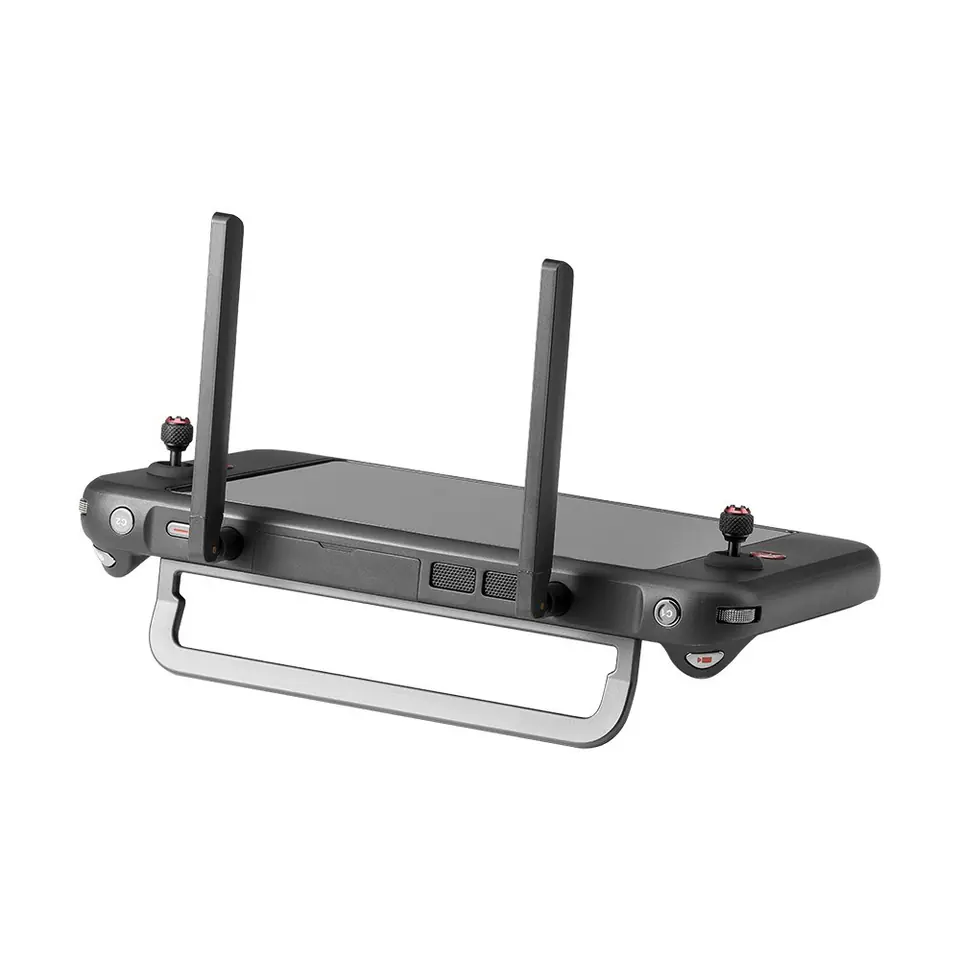

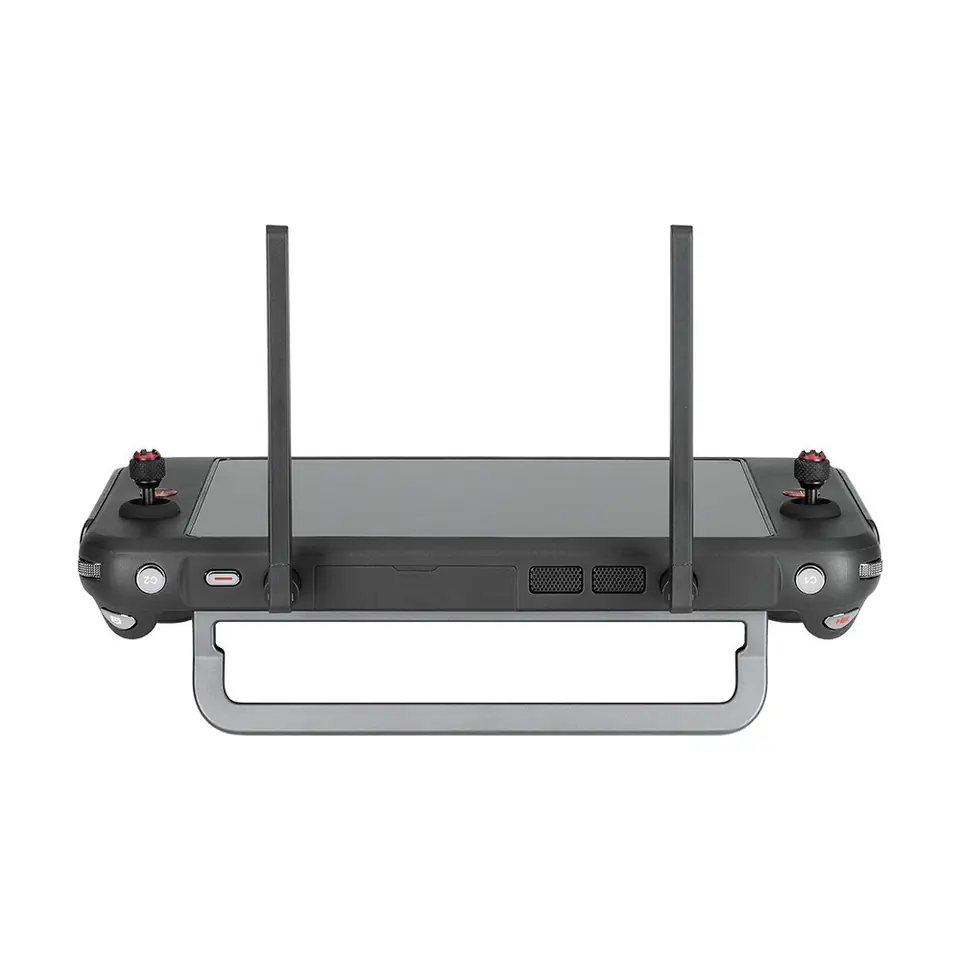

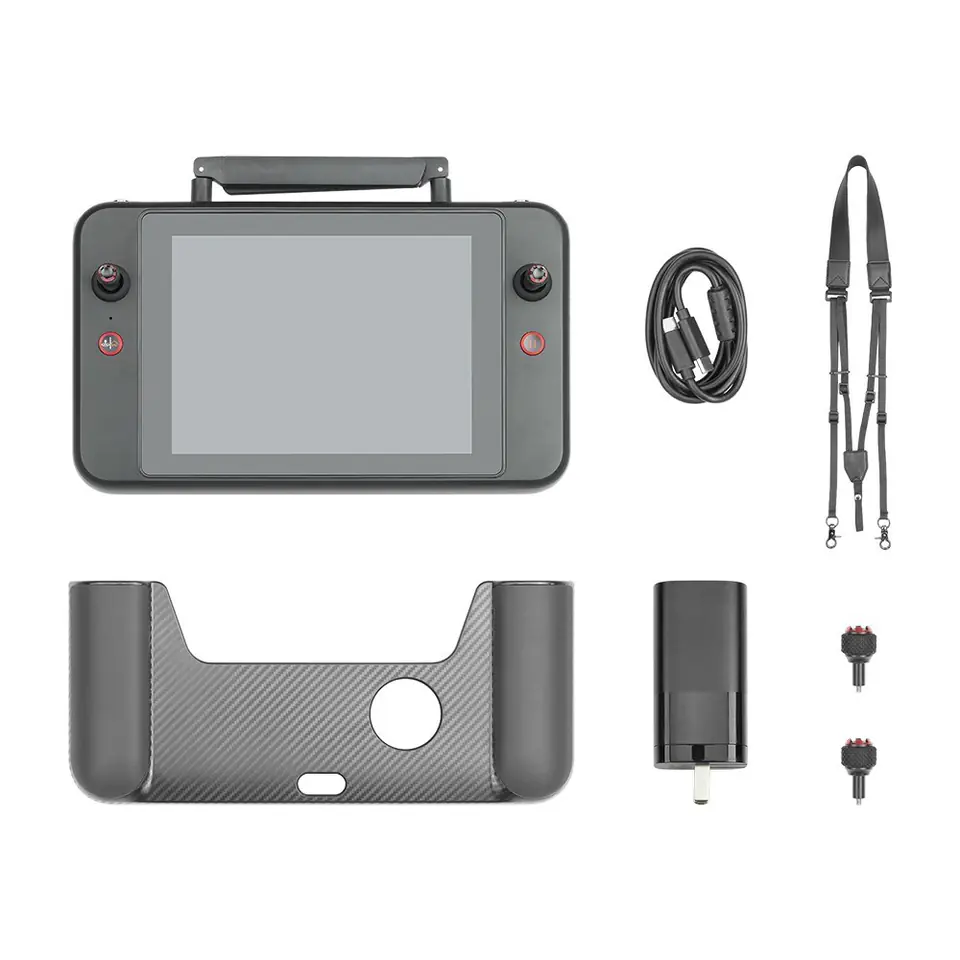

| Set contents: | Spare control stick (pair) , Extended port cover, RC lanyard, Autel V3 controller |
| Spare propeller(s) included: | 2 pairs |
| Speakerphone: | Yes |
| Spotlight: | Yes |
| Strobe: | Yes |
| Supported video modes: | 4K |
| Temperature range (thermal imaging camera): | High gain mode: -20° to +150°, Low gain mode: 0° to +550° |
| Thermal imaging camera: | Y |
| Time-lapse recording: | Yes |
| Touchscreen: | Yes |
| Transmission range: | 8 km (CE), 15 km (FCC) |
| Transmission system: | Autel SkyLink |
| Transmitter battery capacity: | 5800 mAh |
| Transmitter dimensions: | 303 x 190 x 87 mm |
| Transmitter weight: | 1150 g |
| Type: | Drone |
| Usb type-c ports quantity: | 1 |
| Video formats supported: | MOV, MP4 |
| Video streaming: | Yes |
| Wavelength range: | 8 - 14 μm |
| Weight: | 1.11 kg |
