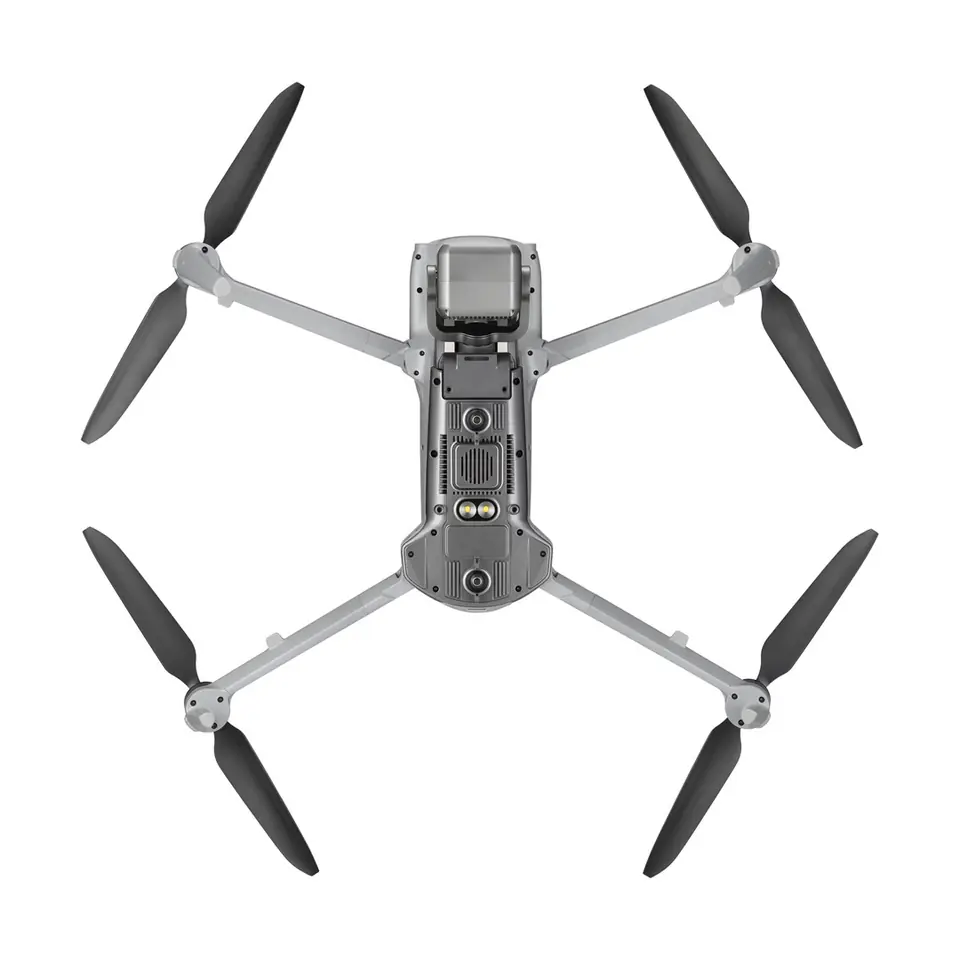

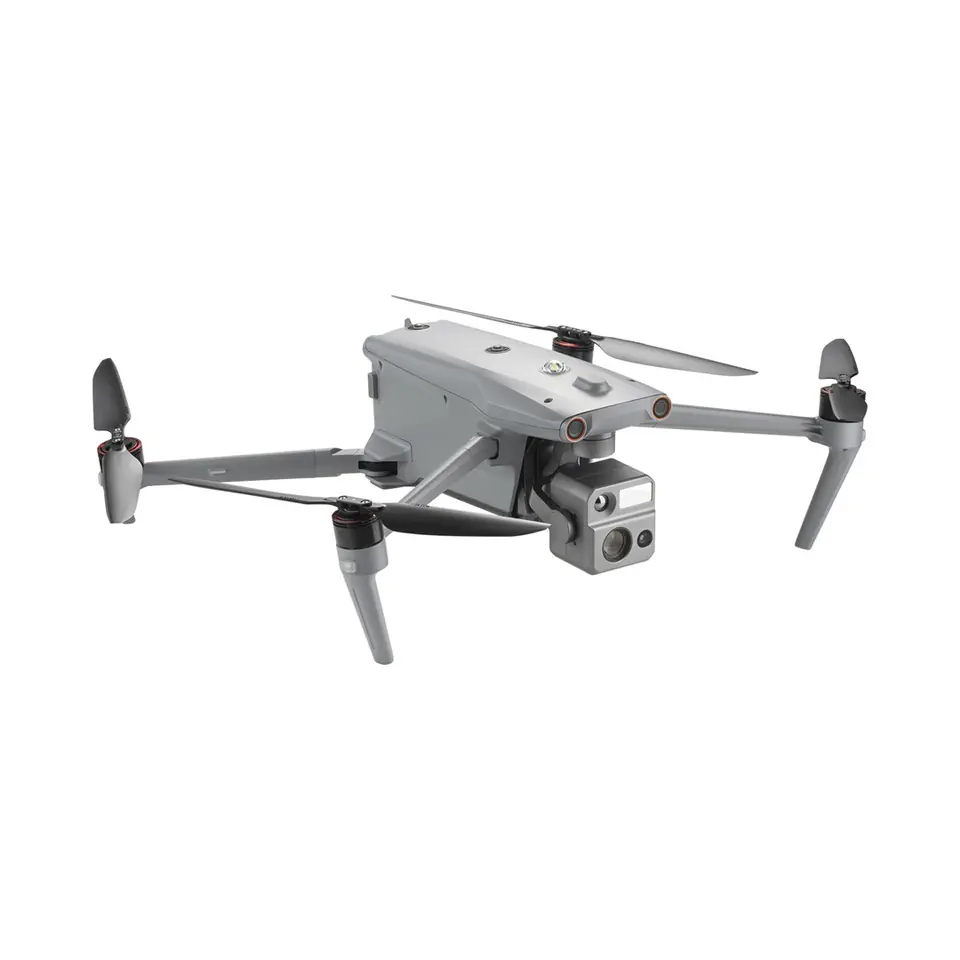

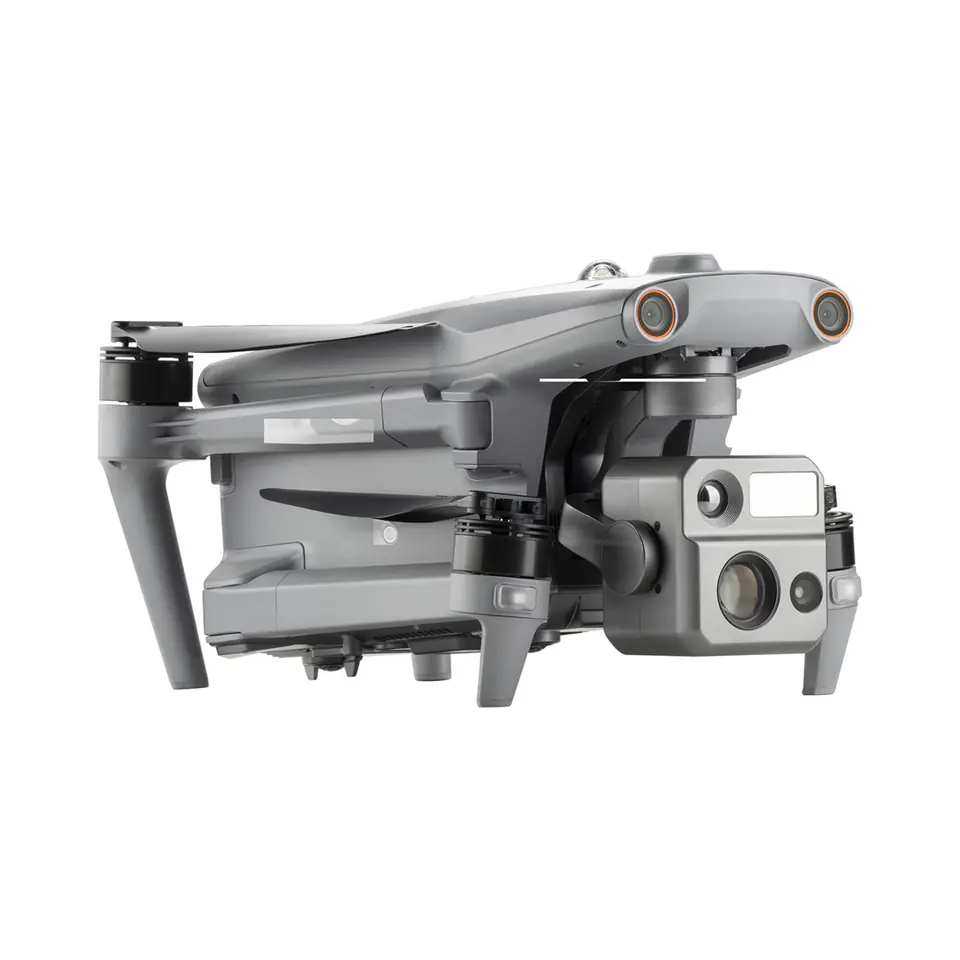

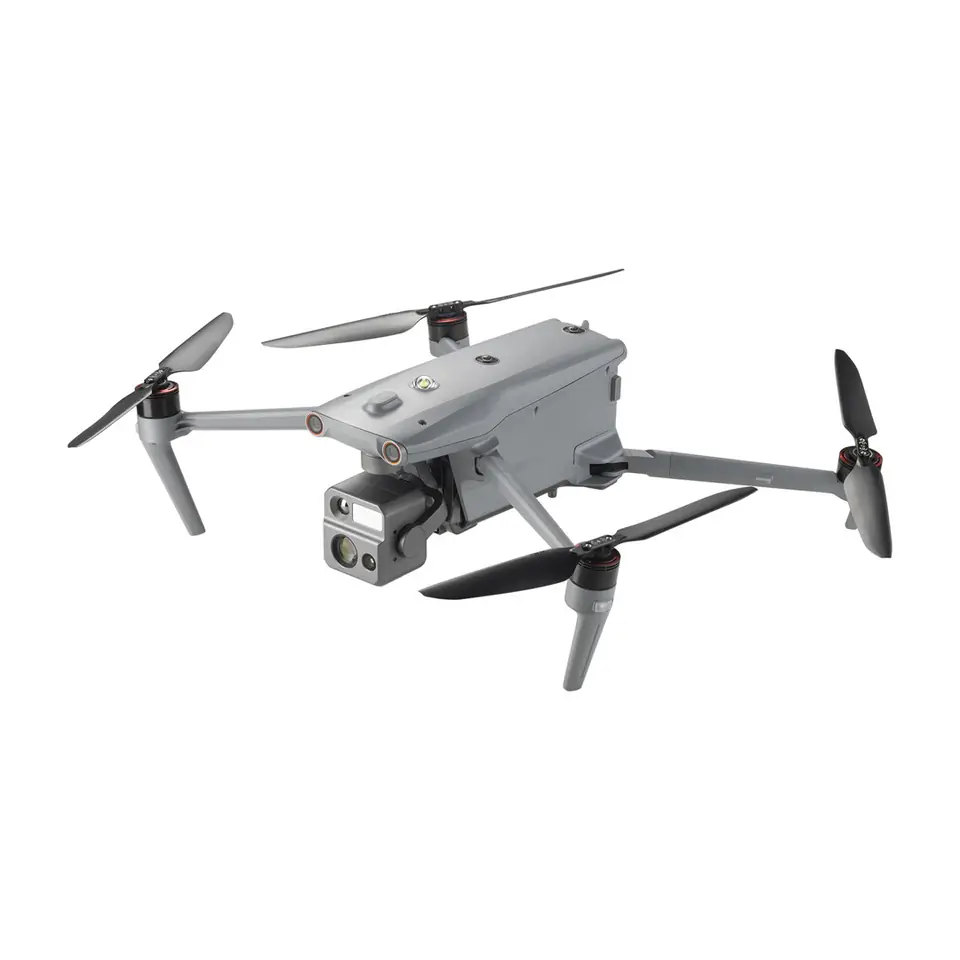

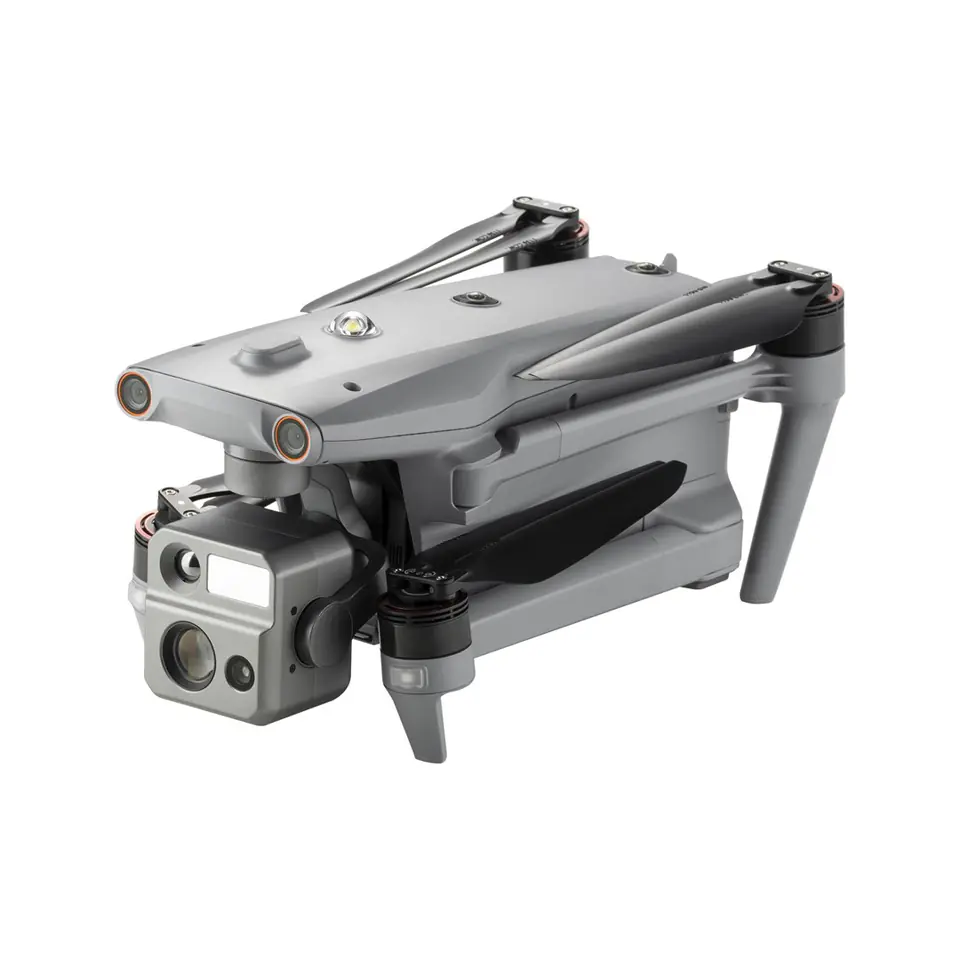

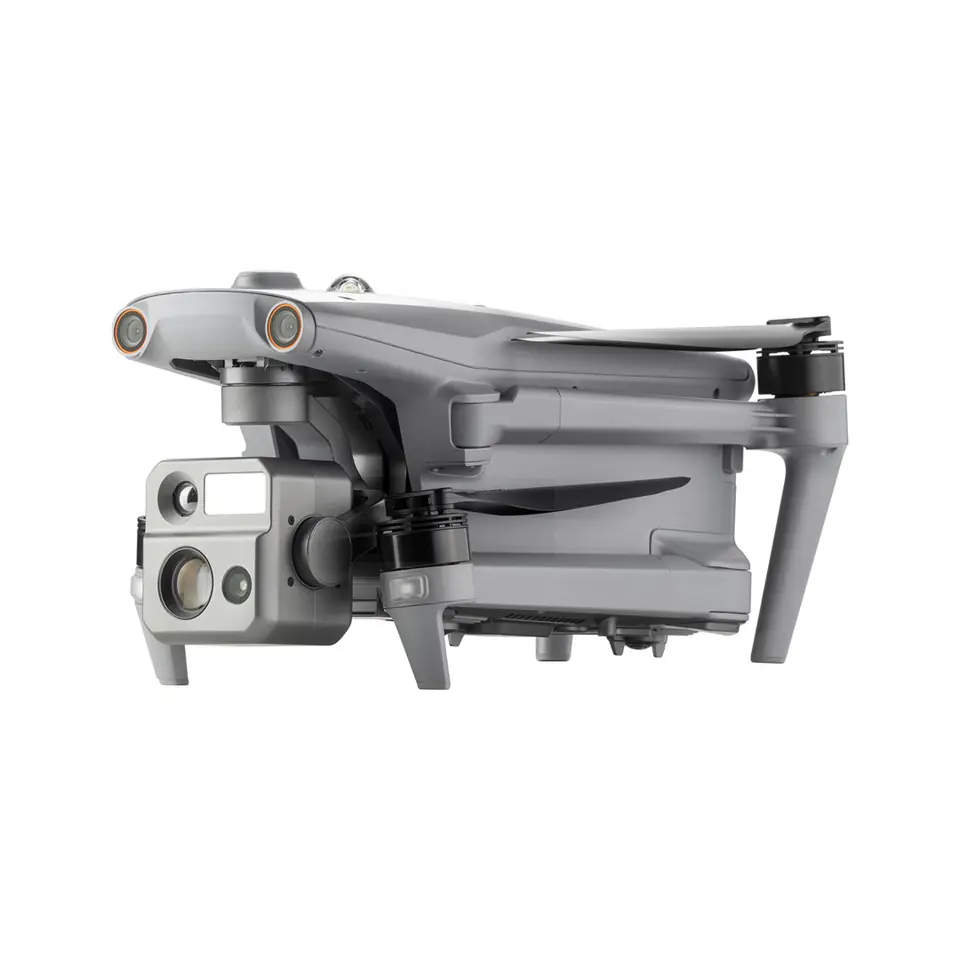

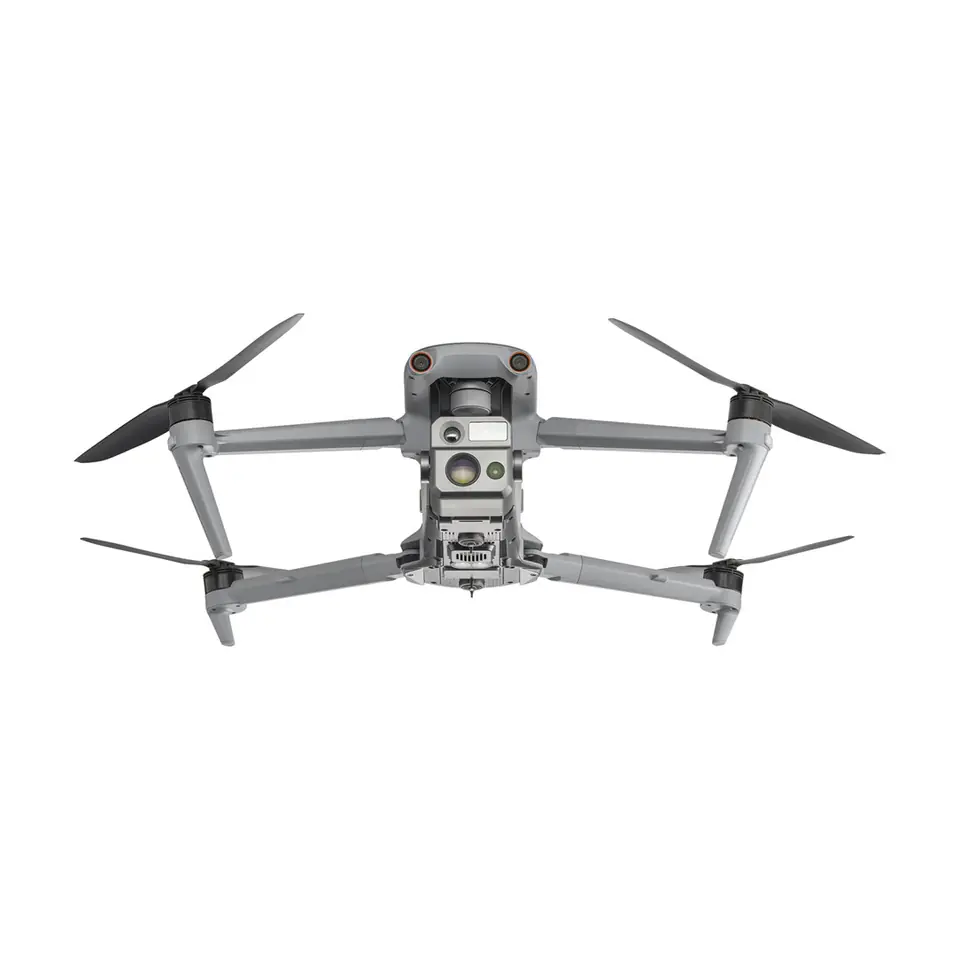

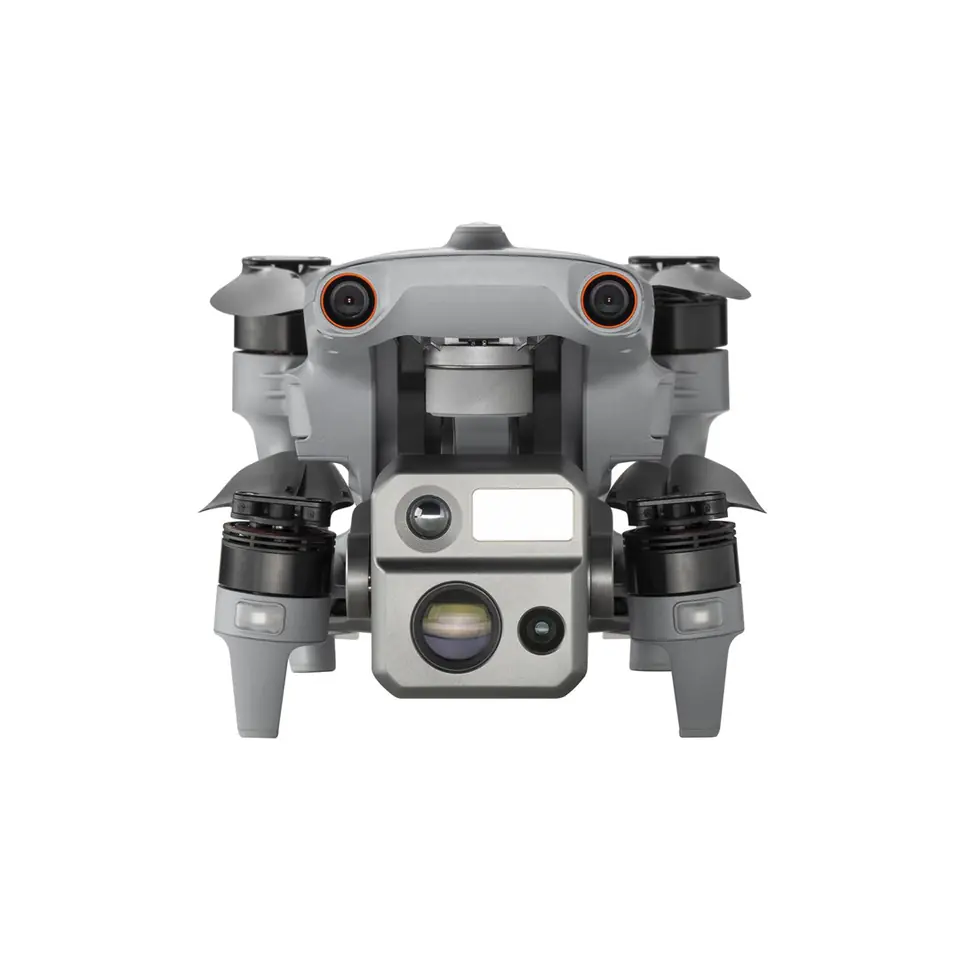

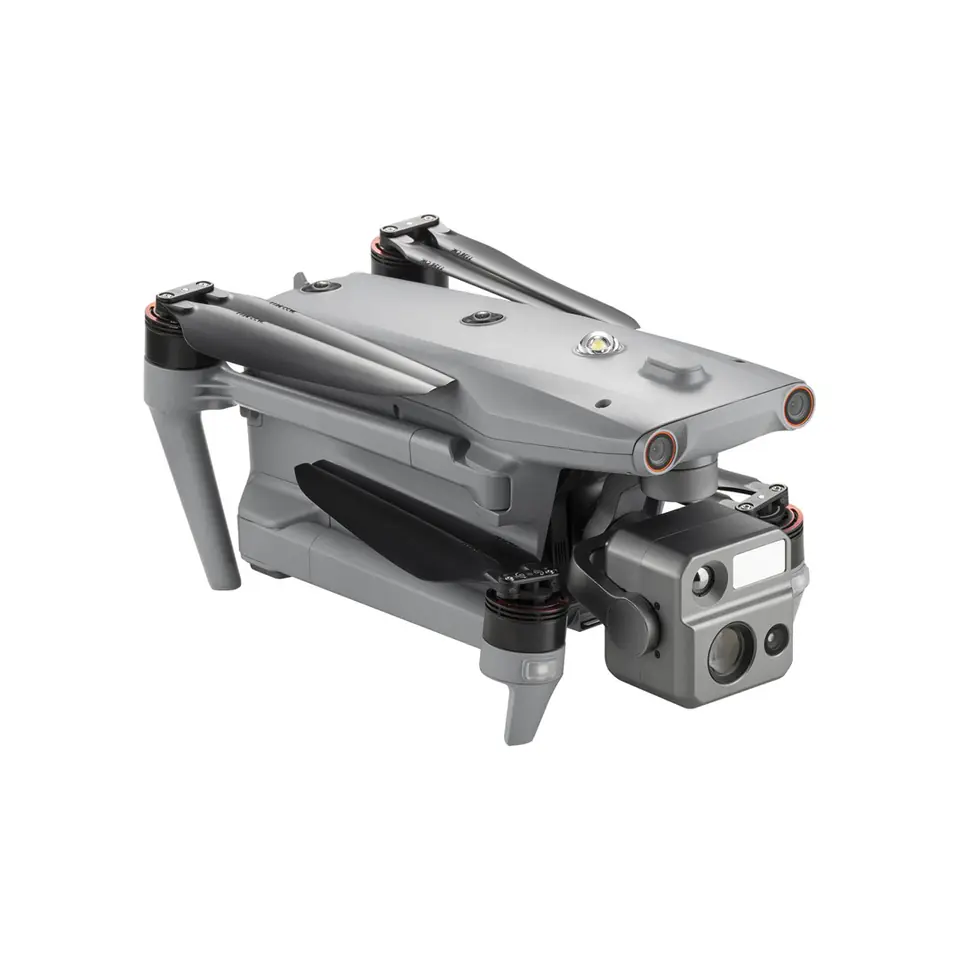

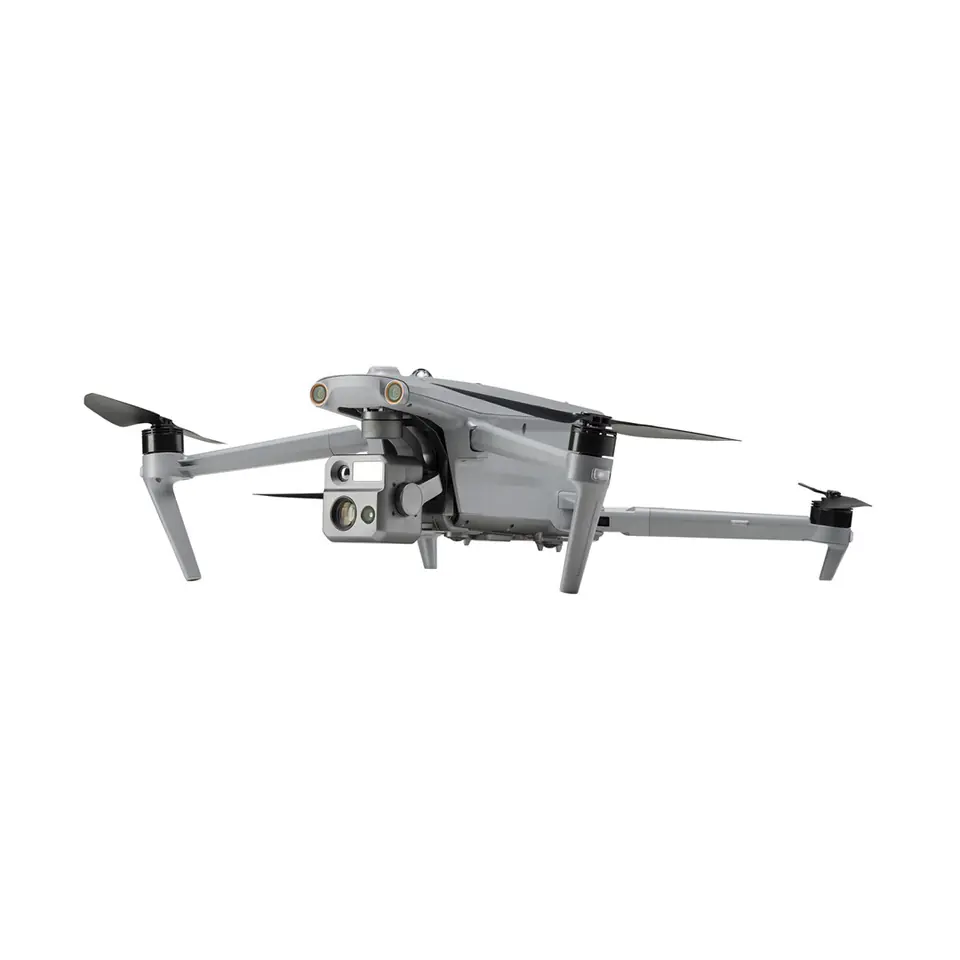

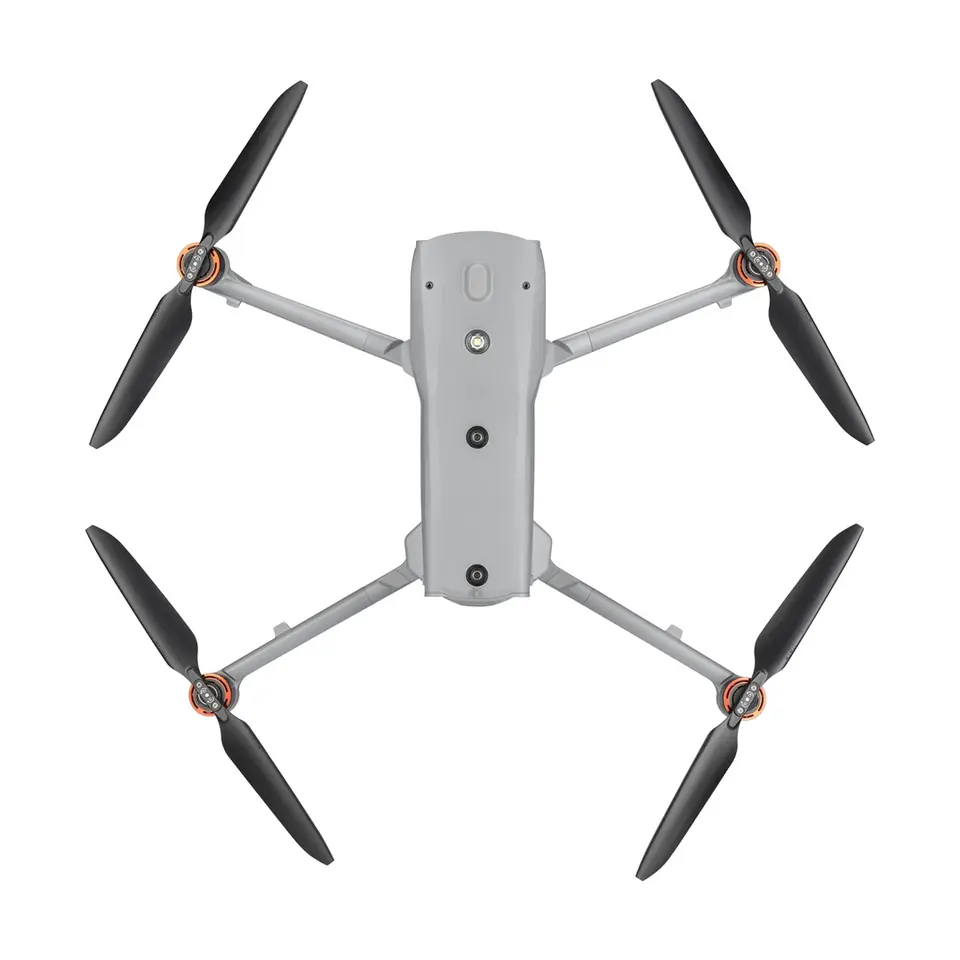

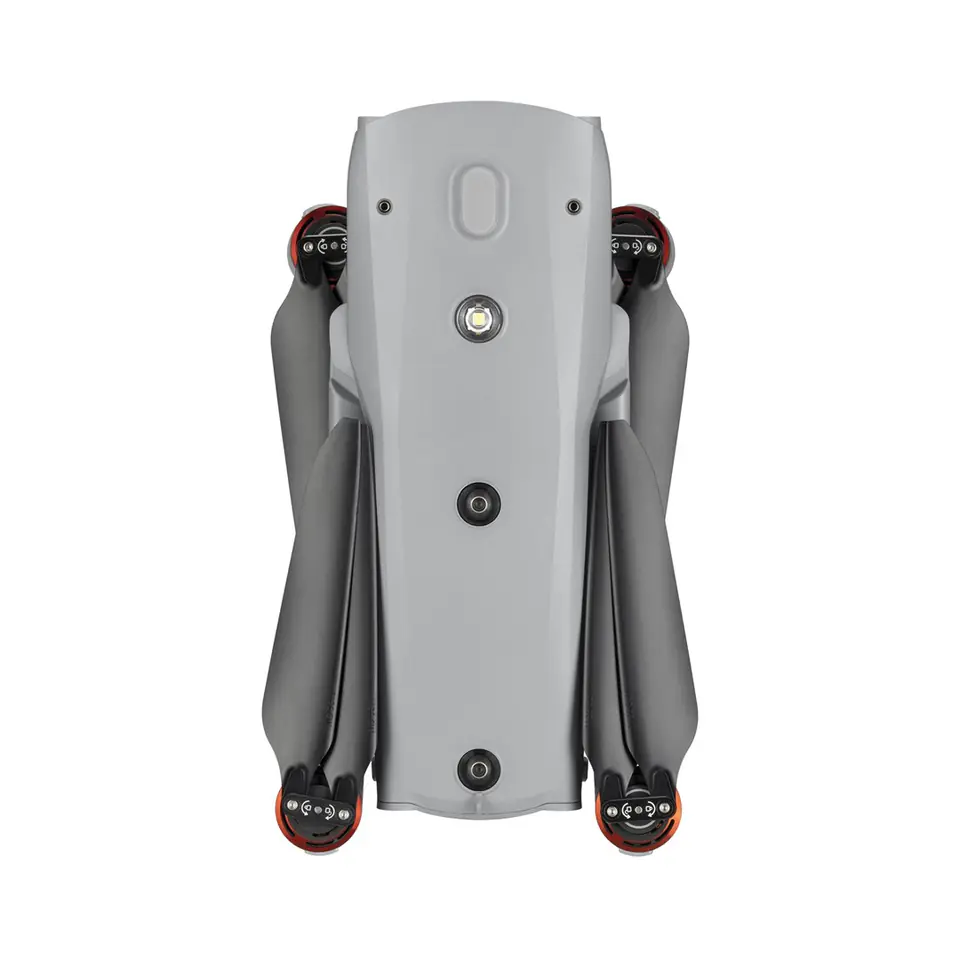

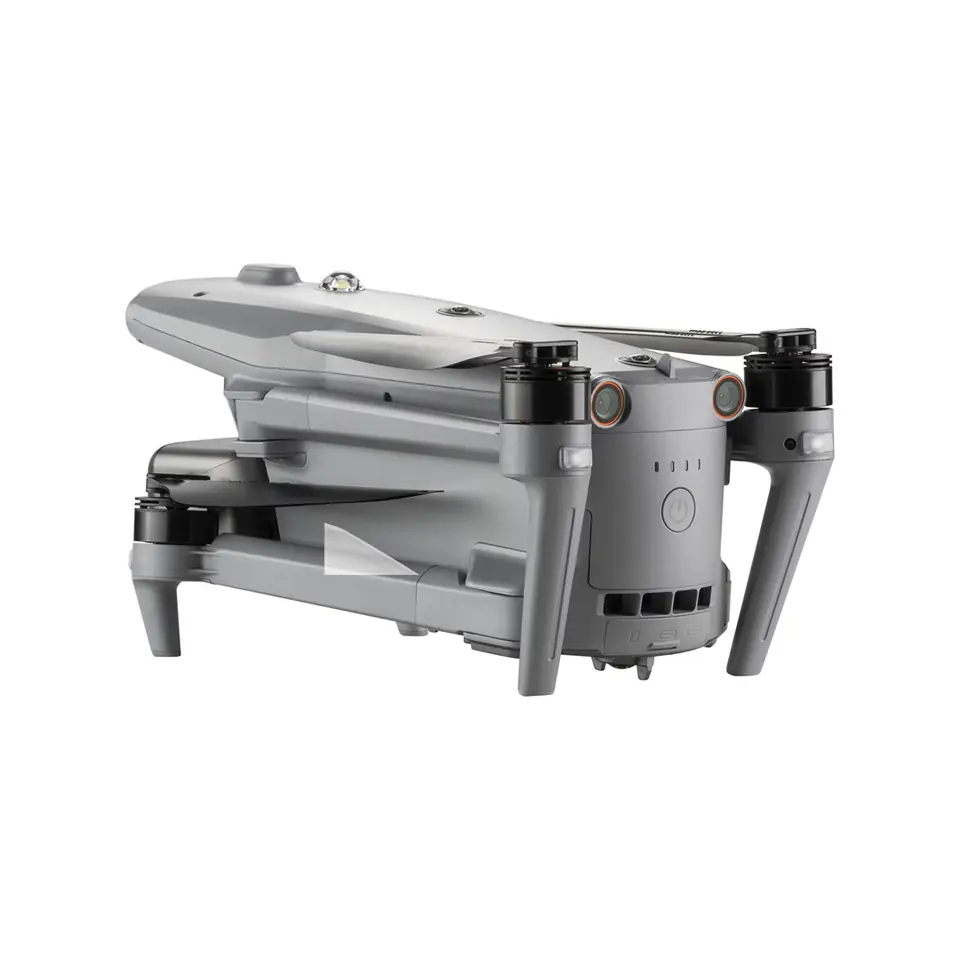

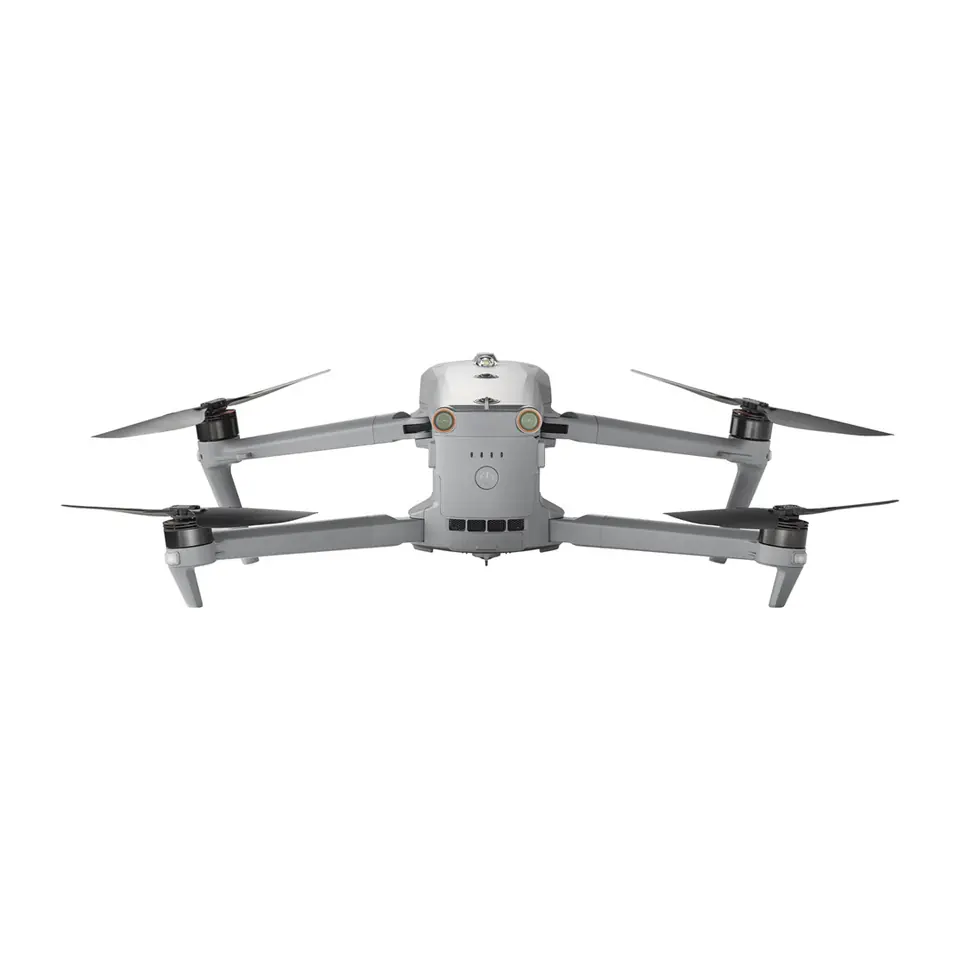

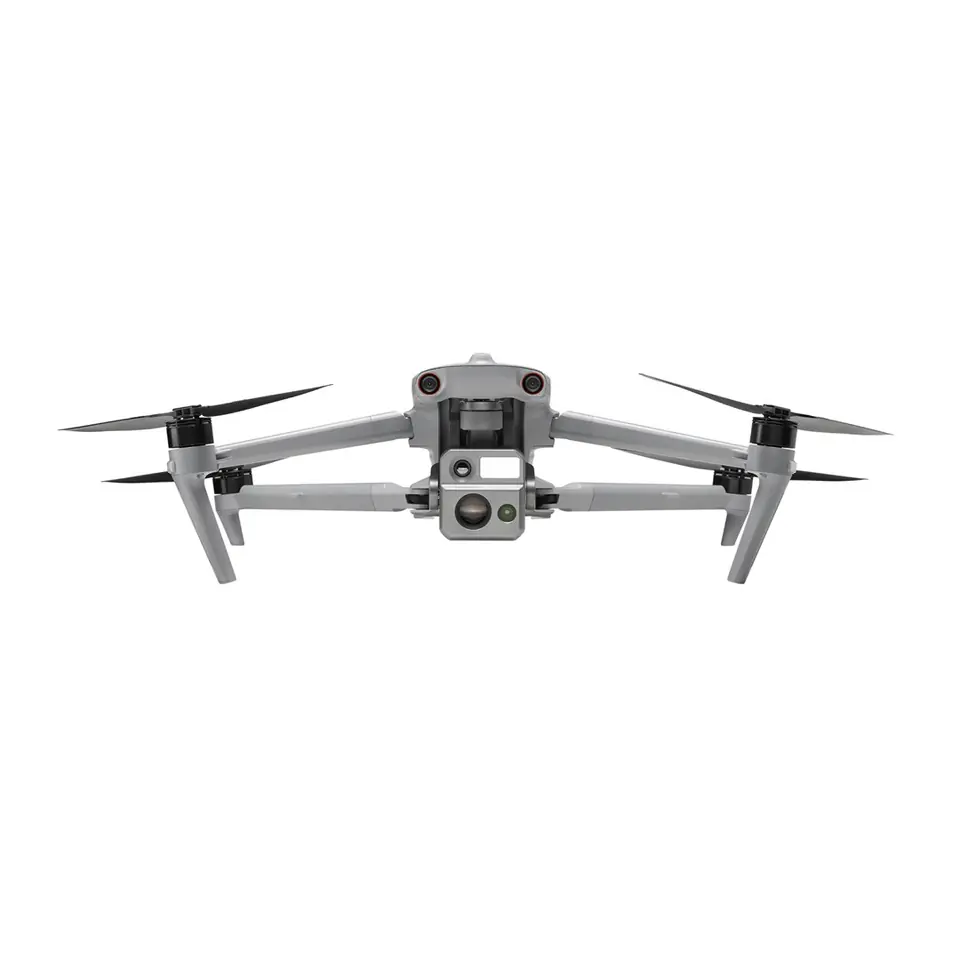

Autel Drone EVO MAX 4N Standard Bundle
This product is not available
- Availability:
- expected delivery
- Brand:
- AUTEL
- Product code:
- 6924991124184
Share this product:
Specification
| Adjustable rotation range of the gimbal: | Tilt: -90° to +30° |
|---|---|
| Angle of field of view of the thermal imaging camera (fov): | 61° |
| Antennas quantity: | 2 |
| Aperture: | F1.9 |
| Applications supported: | Autel Sky |
| Auto landing function: | Yes |
| Auto return function: | Y |
| Auto takeoff function: | Yes |
| Battery capacity: | 120 Wh, 8070 mAh |
| Battery charger included: | Yes |
| Battery life (transmitter): | 4.5 h |
| Battery technology: | Lithium-Ion (Li-Ion) |
| Battery voltage: | 14.88 V |
| Baud rate: | 120 Mbps |
| Beidou: | Yes |
| Bluetooth: | Yes |
| Bluetooth transmitter power: | 11 dBm |
| Bluetooth version: | 5.0 |
| Brand specific technologies: | Mesh network technology - A-Mesh 1.0 |
| Built-in display: | Yes |
| Built-in memory capacity: | 128 GB |
| Built-in wifi: | Yes |
| Cables included: | Data cable, RC charging cable |
| Camera pixel size: | 12 µm |
| Camera resolution: | 8192 x 6144 pixels |
| Camera shutter speed: | 8 -1/8000 s |
| Camera with night vision: | Y |
| Carrying case: | Yes |
| Charging temperature: | 5 - 45 °C |
| Charging time (transmitter): | 120 min |
| Compatible memory cards: | Not supported |
| Controller charger: | Yes |
| Display diagonal: | 20.1 cm (7.9") |
| Display resolution: | 2048 x 1536 pixels |
| Easy to use: | Yes |
| Field of view (fov) angle: | 85° |
| Fixed focal length: | 23 mm |
| Fixed focal length of second camera: | 9.1 mm |
| Flight modes: | Follow Me mode |
| Focal length of camera with night vision mode: | 35 mm (41.4 mm equivalent) |
| Frequency band: | 2.4 GHz/5.2 GHz/5.8 GHz/900 MHz |
| Galileo: | Yes |
| Gimbal protector: | Y |
| Glonass: | Yes |
| Gps (satellite): | Yes |
| Hd type: | Ultra HD |
| Hdmi ports quantity: | 1 |
| High dynamic range (hdr) supported: | Yes |
| Hovering time (max): | 38 min |
| Image formats supported: | DNG, JPG |
| Image transmission - transmitter power (eirp): | SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G, CE: ≤20dBm -2.4G, ≤14dBm - 5.8G, FCC: ≤33dBm |
| Interface type: | HDMI/USB |
| International protection (ip) code: | IP43 |
| Ios compatibility: | Yes |
| Iso sensitivity (photos): | 100 - 6400 |
| Iso sensitivity (video): | 100 - 64000 |
| Laser distance measurer: | 1200 m |
| Live view: | Yes |
| Manual: | Yes |
| Maximum angular velocity: | 1 AC power socket (support for 2 plug types) Tilt: 300°/s, Tilt: 120°/s |
| Maximum ascent speed: | 8 m/s |
| Maximum brightness: | 2000 nits |
| Maximum descent speed: | 6 m/s |
| Maximum flight time: | 42 min |
| Maximum frame rate: | 60 fps |
| Maximum number of targets detected: | 32 |
| Maximum range: | 20000 m |
| Maximum speed: | 23 m/s |
| Maximum still image resolution of camera with night vision (night vision): | 1920 x 1200 px |
| Maximum take-off height: | 7000 m |
| Maximum tilt angle: | 35° |
| Maximum video resolution: | 3840 x 2160 pixels |
| Maximum video resolution of camera with night vision (night vision): | 1920 x 1200 px |
| Maximum wind resistance (take-off and landing): | 12 m/s |
| Mechanical range of the gimbal: | Rotation: -45° to 45°, Pan: -135° - 45°, Tilt: -45° to 45° |
| Megapixel (approx.): | 50 MP |
| Memory card included: | 64 GB |
| Millimetre-wave radar sensor system: | Yes |
| Moving control functions: | Downward, Backward, Forward, Turn left, Upward, Turn right |
| Navic: | Yes |
| Number of axis: | 3 |
| Number of batteries: | 1 |
| Number of cameras: | 3 |
| Number of megapixels of the camera with night vision mode: | 2,3 MP |
| Number of propeller blades: | 2 |
| Number of rotors: | 4 rotors |
| Number of usb type a ports: | 1 |
| Obstacle sensing system: | Y |
| Operated via android devices: | Y |
| Operating frequency (rf): | 902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz |
| Operating temperature (t-t): | -10 - 40 °C |
| Optical sensor system: | Yes |
| Power supply cable: | Yes |
| Processor cores: | 8 |
| Processor family: | Qualcomm |
| Product colour: | Metallic |
| Product dimensions when closed (wxdxh): | 340 x 407 x 148 mm |
| Product dimensions when open (wxdxh): | 257 x 136 x 133 mm |
| Quasi-zenith satellite system (qzss): | Yes |
| Removable battery: | No |
| Return home function: | Y |
| Rtk module: | Optional |
| Screwdriver included: | Yes |
| Sensor: | CMOS 1/1.28" |
| Sensor resolution (thermal module): | 640 x 512 px |
| Sensor system type: | Multidirectional |

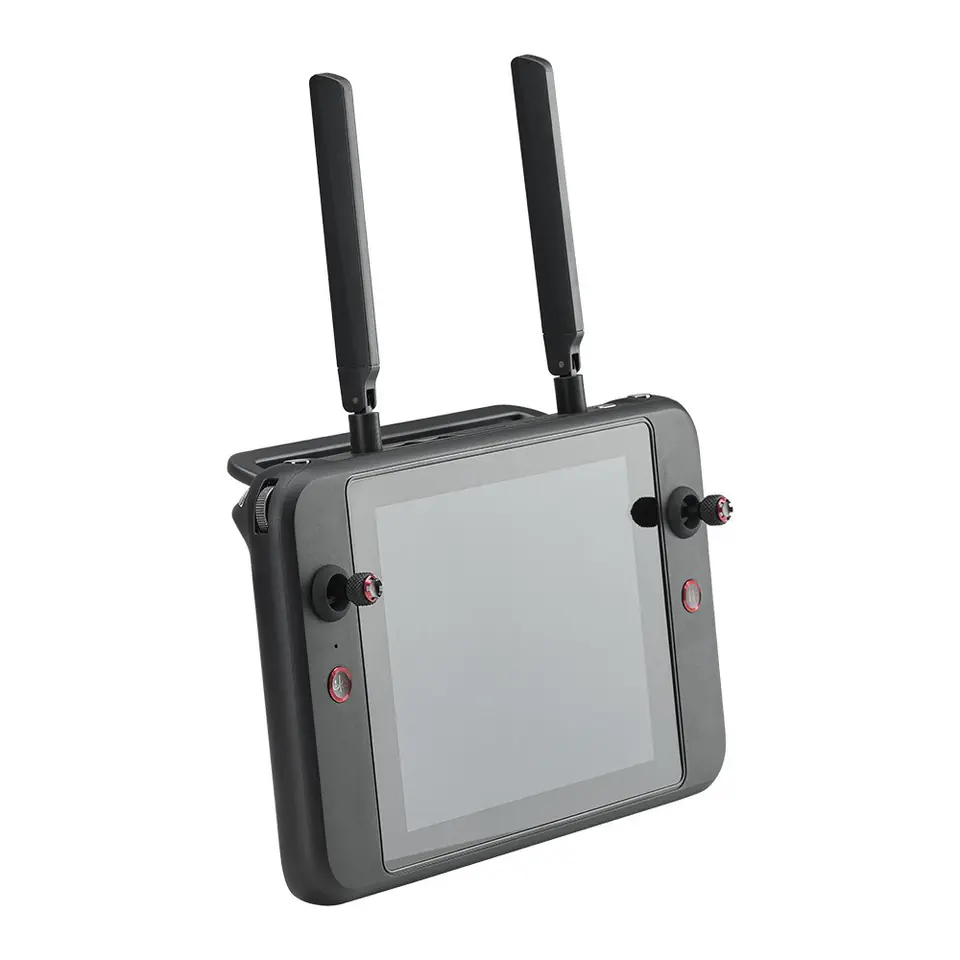

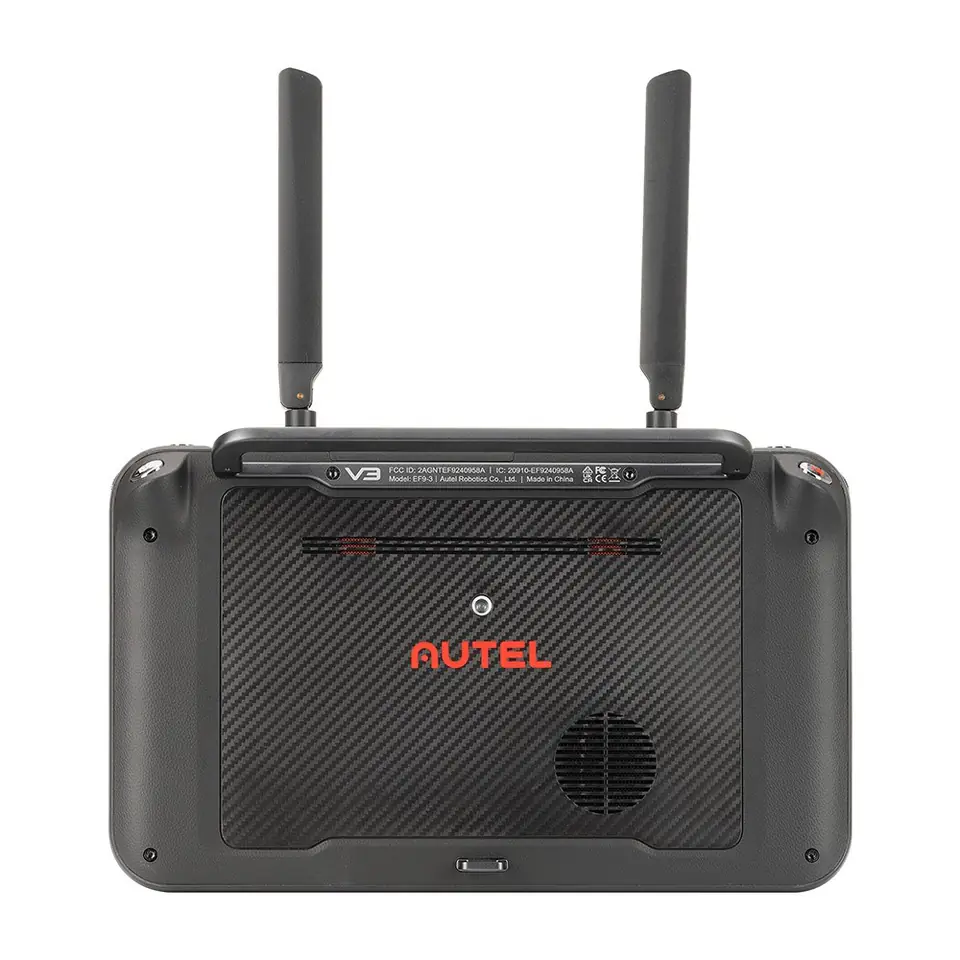

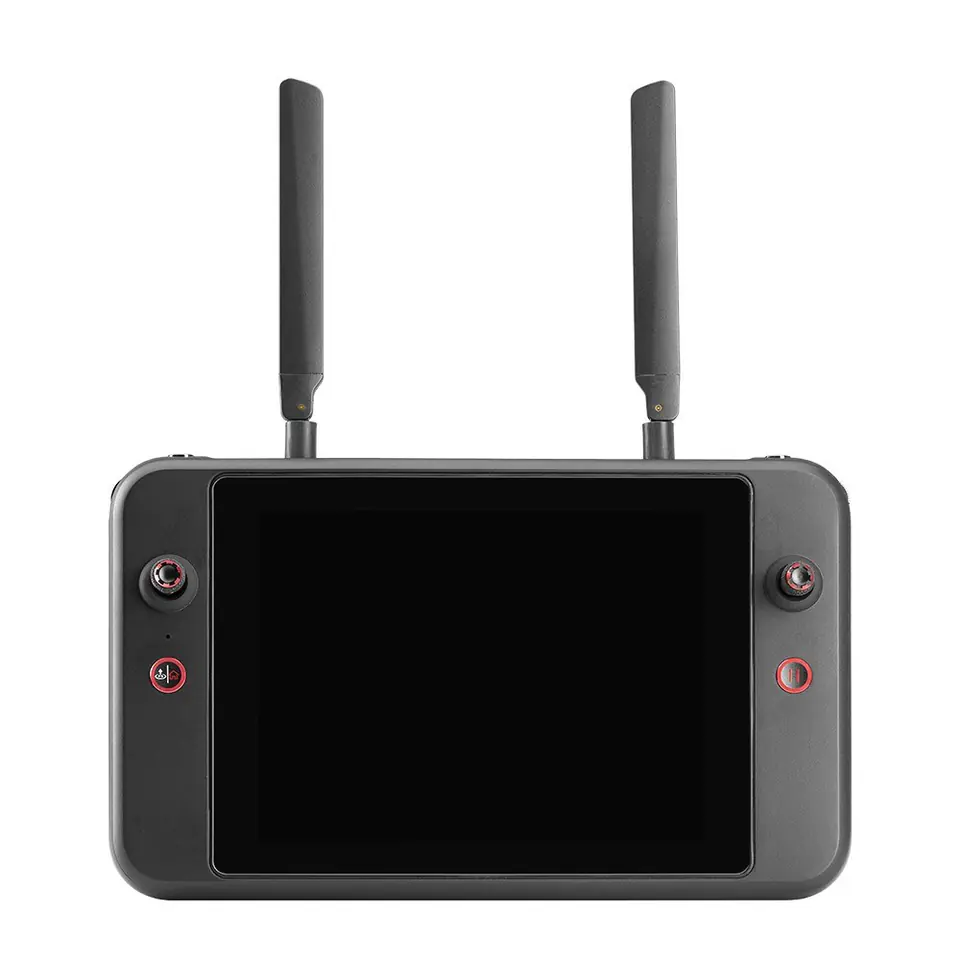

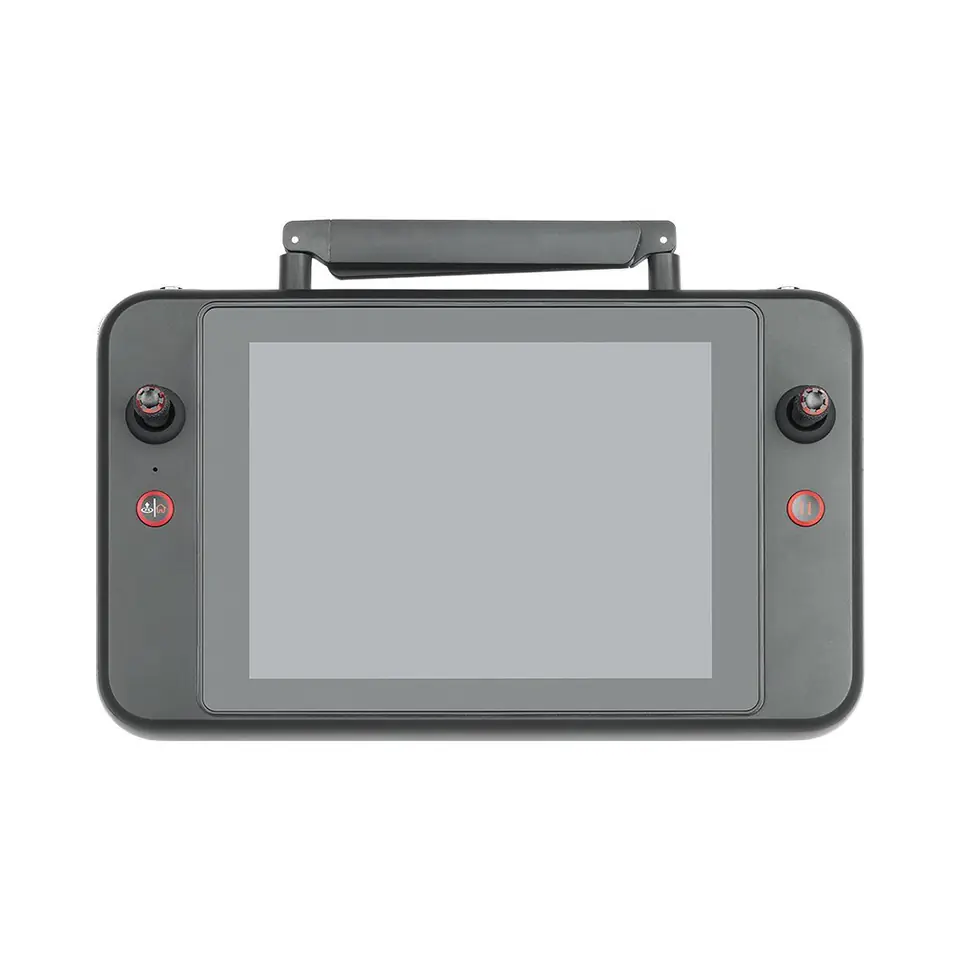

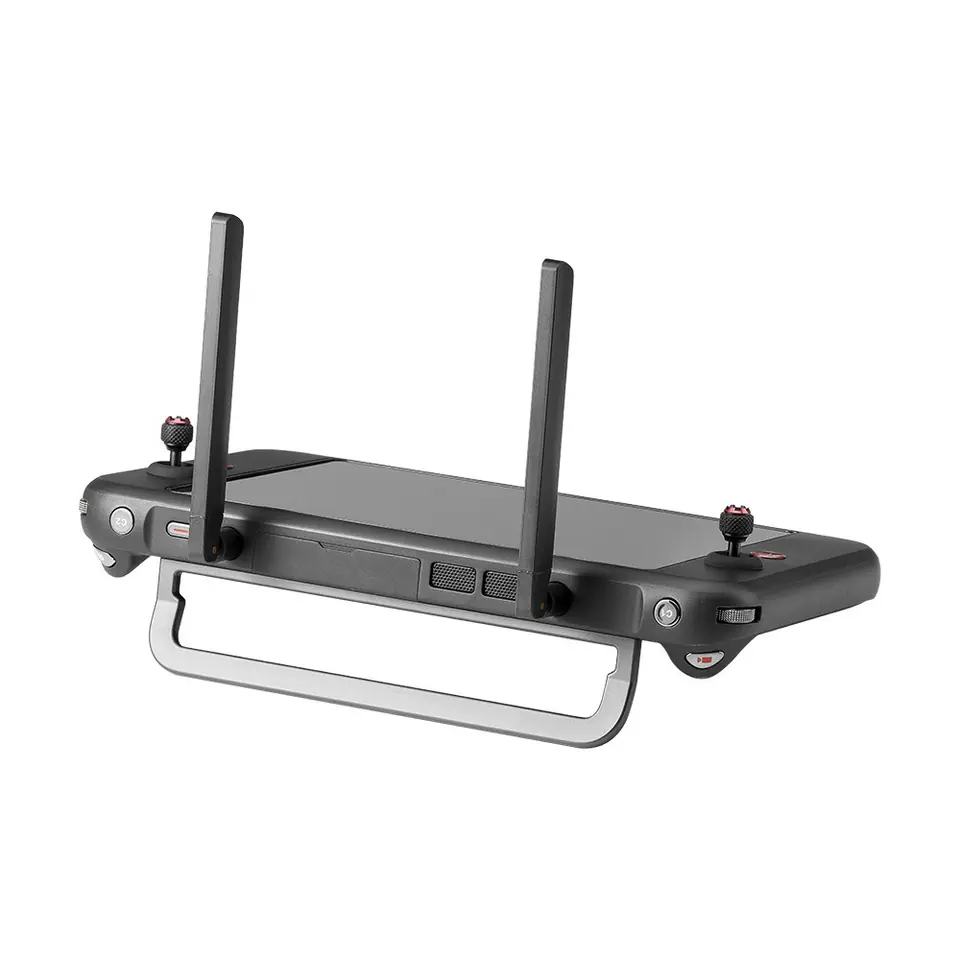

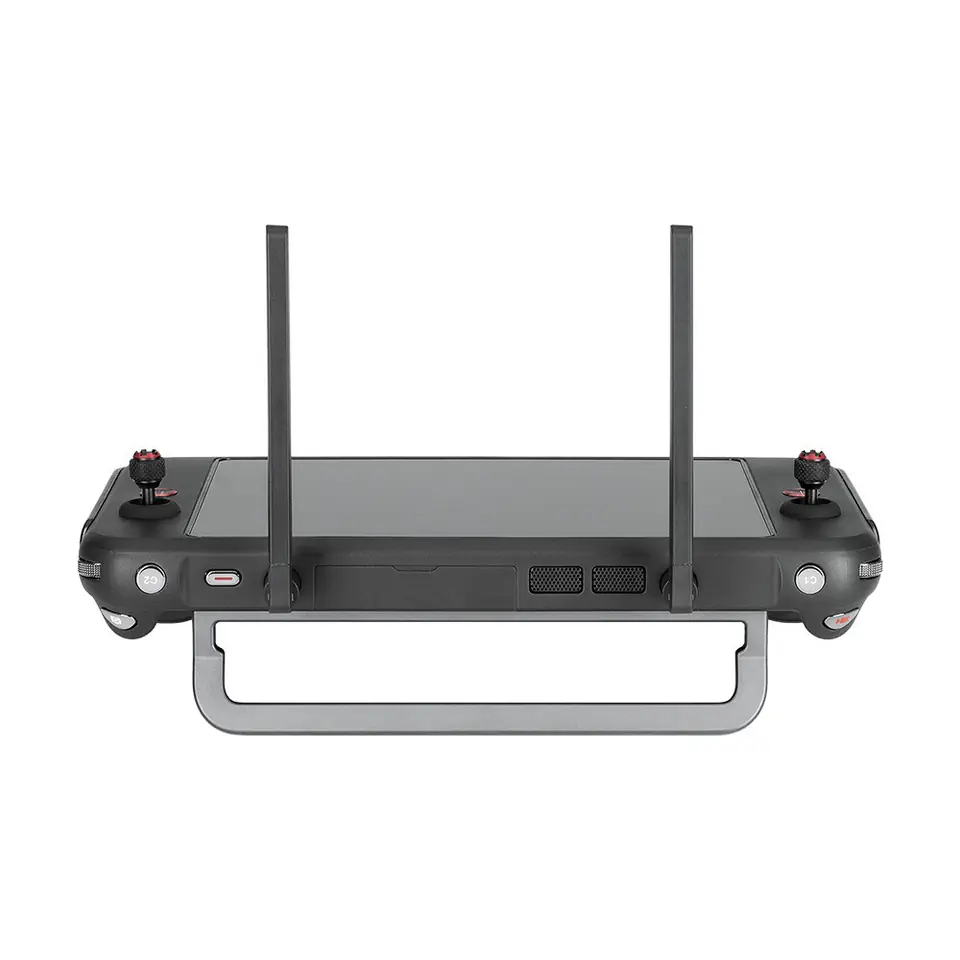

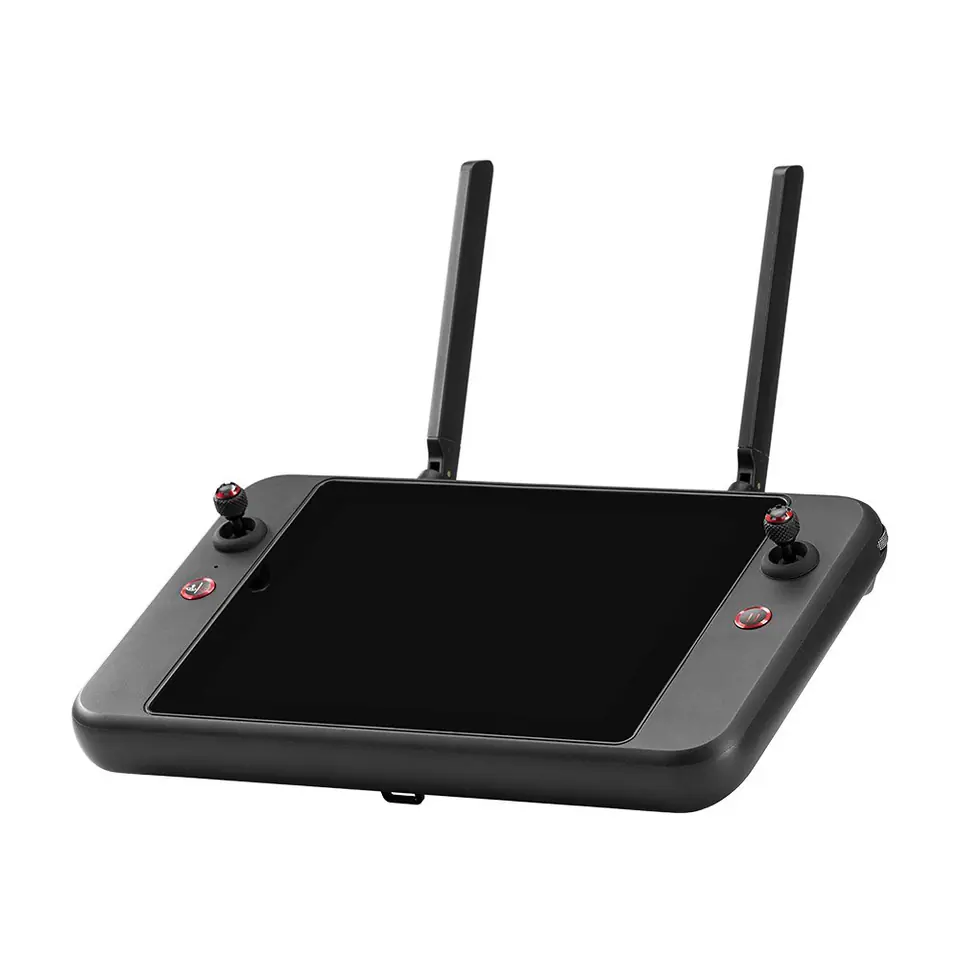

| Set contents: | RC lanyard, Extended port cover, Autel V3 controller , Spare control stick (pair) |
| Spare propeller(s) included: | 1 pairs |
| Supported video modes: | 4K |
| Temperature range (thermal imaging camera): | High gain mode: -20° to +150°, Low gain mode: 0° to +550° |
| Thermal camera aperture: | F/1.0 |
| Thermal imaging camera: | Y |
| Time-lapse recording: | Yes |
| Touchscreen: | Yes |
| Transmission range: | 8 km (CE), 15 km (FCC) |
| Transmission system: | Autel SkyLink |
| Transmitter battery capacity: | 5800 mAh |
| Transmitter dimensions: | 303 x 190 x 87 mm |
| Transmitter weight: | 1150 g |
| Type: | Drone |
| Usb type-c ports quantity: | 1 |
| Video formats supported: | MP4, MOV |
| Video streaming: | Yes |
| Weight: | 1.6 kg |
| Wi-fi: | Yes |
| Wi-fi direct: | Yes |
| Zoom camera (telephoto): | Yes |
