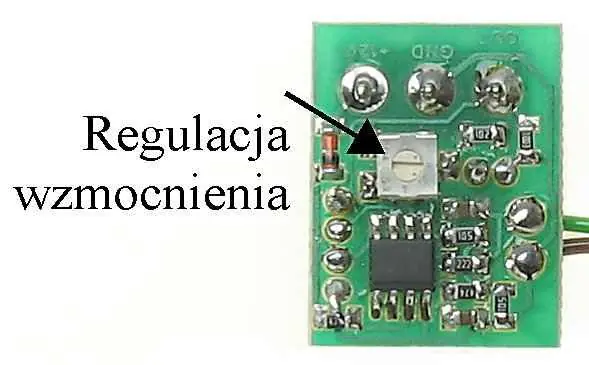

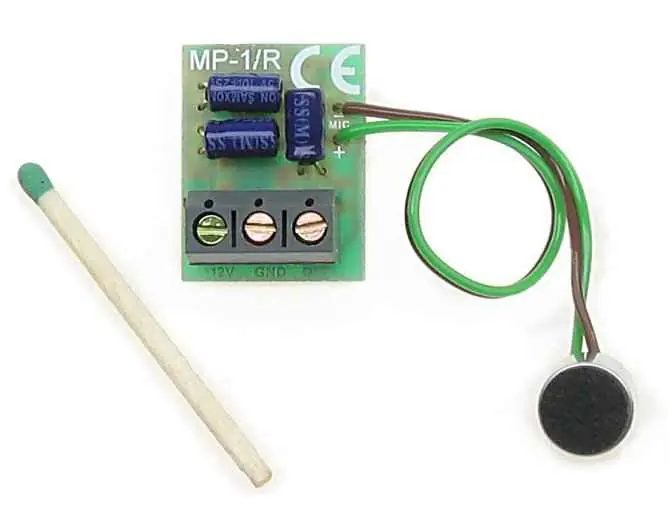

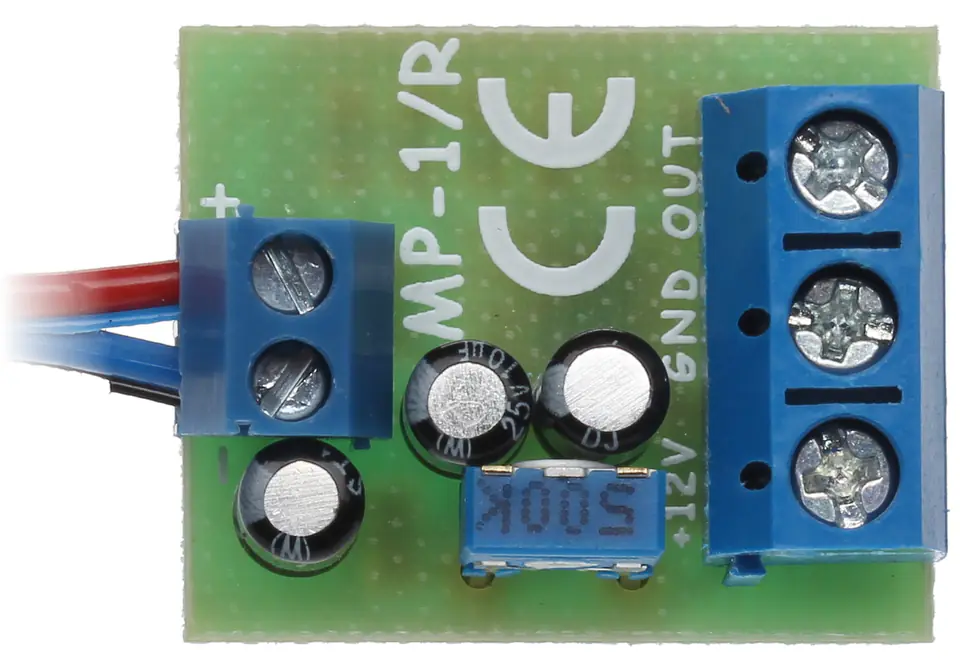

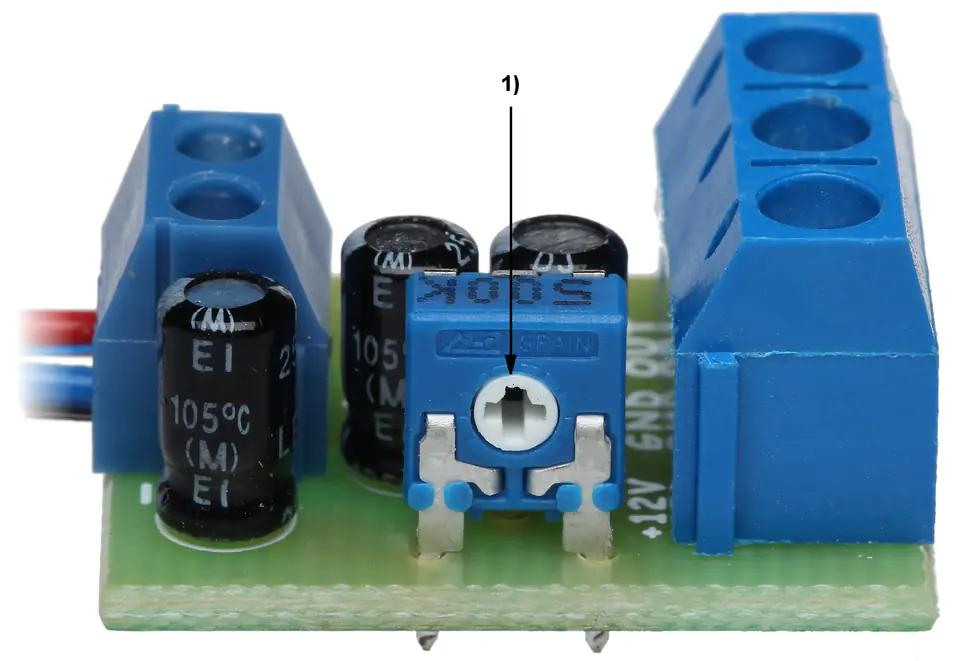

The use of audio in CCTV monitoring increases the effectiveness of the entire systemMP-1 / R is designed to listen to sounds from the environment and is adapted to work with recordersThe module was made in SMD technology and requires independent installation, e.g. in the camera holderThe device has a microphone on the cable, and a mounting potentiometer used to adjust the gainThis adjustment is useful due to the different levels of input voltages (different sensitivity) of the systems sound recorders
AUDIO MODULE ADJUSTABLE MP-1/R
€6.37
Shipping from warehouse: D4
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- MP-1/R / 5902887016318
Share this product:
Specification
| Current consumption: | 5 mA |
|---|---|

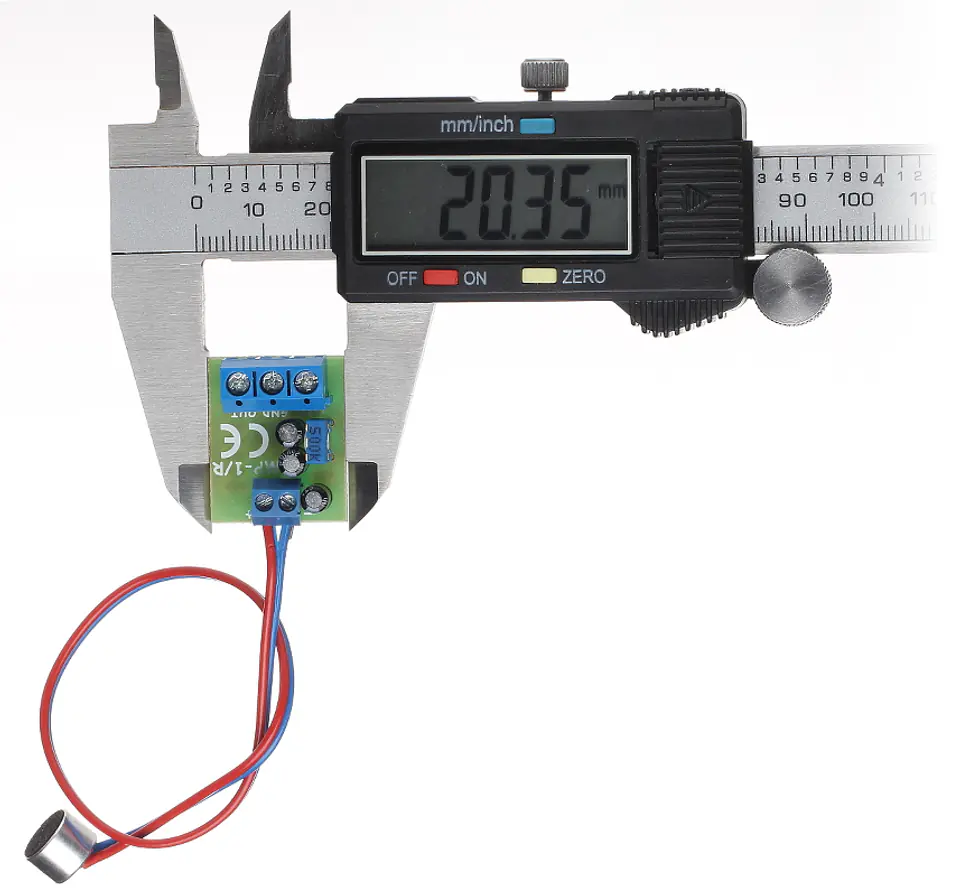

| Dimensions: | 20 x 25 x 15 mm |
| Frequency: | 20 Hz ... 18 kHz |
| Gain adjustment: | 1x ... 500x |
| Microphone: | on the cable ( 20 cm ) |
| Output impedance: | 600 Ω - Coaxial cable |
| Power: | 4 volts ... 15 V DC12 V DC (typical) |
| Producer / brand: | DELTA |
| S/n ratio (s/n): | ≥ 60 dB |
| Scales: | 0.007 kg |
| Warranty: | 3 years |
| Work surface: | 5 ... 150 m² |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
