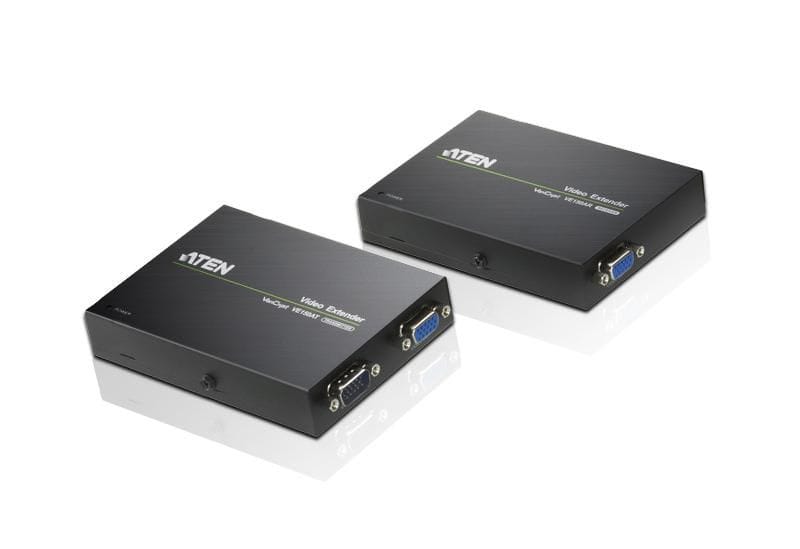

ATEN VGA Over Cat5e/6 Video Extender 150meter
This product is not available
- Availability:
- expected delivery
- Brand:
- ATEN
- Product code:
- VE-150 / 4710423778894
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Cable types supported: | Cat5 |
| Cables included: | VGA |
| Connectivity technology: | Wired |
| Hdbaset port: | Yes |
| Impedance: | 75 Ω |
| Manual: | Yes |
| Master (outer) case gross weight: | 5.92 kg |
| Master (outer) case height: | 194 mm |
| Master (outer) case length: | 336 mm |
| Master (outer) case net weight: | 4.85 kg |
| Master (outer) case width: | 300 mm |
| Material: | Metal |
| Maximum resolution: | 1920 x 1200 pixels |
| Maximum transfer distance: | 150 m |
| Mounting kit: | Yes |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 283 mm |
| Package height: | 173 mm |
| Package weight: | 1.11 kg |
| Package width: | 62 mm |
| Plug and play: | Yes |
| Power consumption (receiver) (max): | 1.2 W |
| Power consumption (transmitter) (max): | 1 W |
| Product colour: | Black |
| Products per master (outer) case: | 5 pc(s) |
| Quantity per pack: | 2 pc(s) |
| Rack mounting: | Yes |
| Receiver dimensions (wxdxh): | 127.7 x 90.4 x 22.6 mm |
| Receiver weight: | 240 g |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported graphics resolutions: | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Transmitter dimensions (wxdxh): | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight: | 240 g |
| Type: | AV transmitter & receiver |
| Vga (d-sub) input ports: | 1 |
| Video in: | 1 x HDB-15 |
| Video out: | 1 x HDB-15 |
| Weight: | 970 g |
