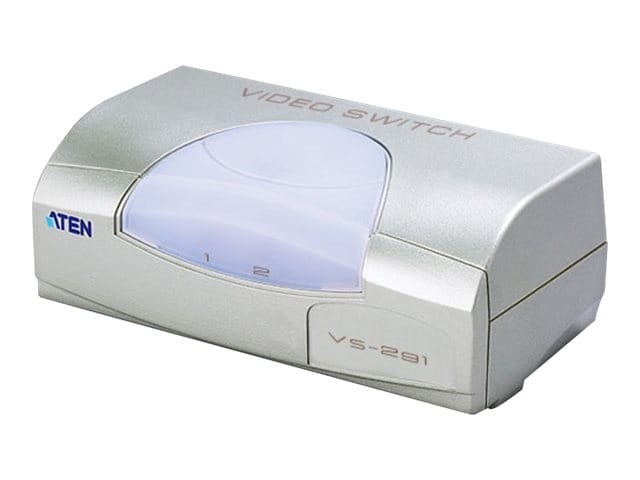

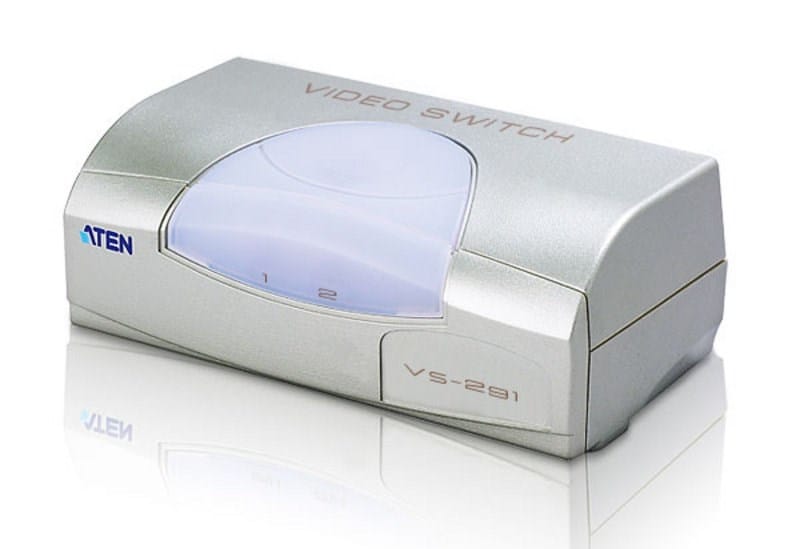

ATEN 2-Port VGA Video Switch
PLN 171.15
Shipping from warehouse: A3
Estimated shipping: Mon, Dec 15 - Wed, Dec 17
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ATEN
- Product code:
- VS-291 / 4710423771628
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Bandwidth: | 150 MHz |
| Dc-in jack: | Yes |
| Depth: | 120 mm |
| Harmonized system (hs) code: | 85176990 |
| Height: | 44 mm |
| Input impedance: | 75 Ω |
| Led indicators: | Yes |
| Master (outer) case gross weight: | 7.9 kg |
| Master (outer) case height: | 338 mm |
| Master (outer) case length: | 490 mm |
| Master (outer) case net weight: | 4.4 kg |
| Master (outer) case width: | 315 mm |
| Material: | Plastic, Metal |
| Maximum operating distance: | 10 m |
| Maximum refresh rate: | 60 Hz |
| Maximum resolution: | 1920 x 1440 pixels |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Output impedance: | 75 Ω |
| Package depth: | 239 mm |
| Package height: | 160 mm |
| Package weight: | 360 g |
| Package width: | 59 mm |
| Power consumption (typical): | 0.82 W |
| Product colour: | Silver |
| Products per master (outer) case: | 20 pc(s) |
| Quantity per pack: | 1 pc(s) |
| Storage relative humidity (h-h): | 0 - 80% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported graphics resolutions: | 1024 x 768 (XGA), 1600 x 1200 (UXGA), 640 x 480 (VGA), 1920 x 1440, 800 x 600 (SVGA) |
| Vga (d-sub) input ports: | 2 |
| Vga (d-sub) output ports: | 1 |
| Vga (d-sub) ports quantity: | 3 |
| Video port type: | VGA |
| Weight: | 220 g |
| Width: | 65.2 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
