Biurkowy moduł sterujący KVM PS/2-USB CS82U
Zapewnia dostęp do dwóch komputerów z jednej konsoli KVM (Keyboard, Video, Mouse klawiatura i mysz PS/2 lub USB, monitor VGA). Ponadto model CS82U jest wyposażony w nową technologię Video DynaSync firmy ATEN, która eliminuje problem braku wyświetlacza podczas rozruchu oraz optymalizuje rozdzielczość.
Przygotowanie do pracy jest łatwe i trwa tylko chwilę wystarczy podłączyć przewody do odpowiednich portów. Nie trzeba konfigurować oprogramowania, przestrzegać specjalnych procedur instalacji. Nie ma problemów z kompatybilnością. Ponieważ CS82U bezpośrednio przechwytuje dane z klawiatury, obsługuje różne platformy systemowe.

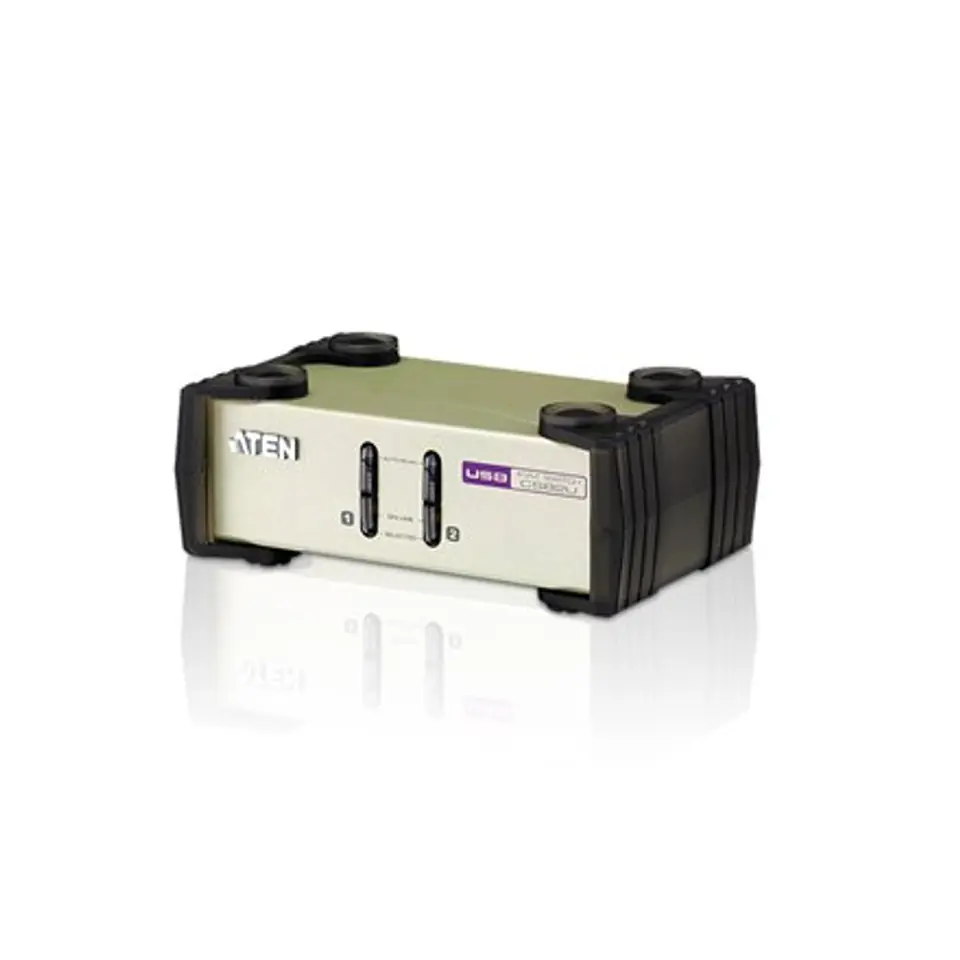

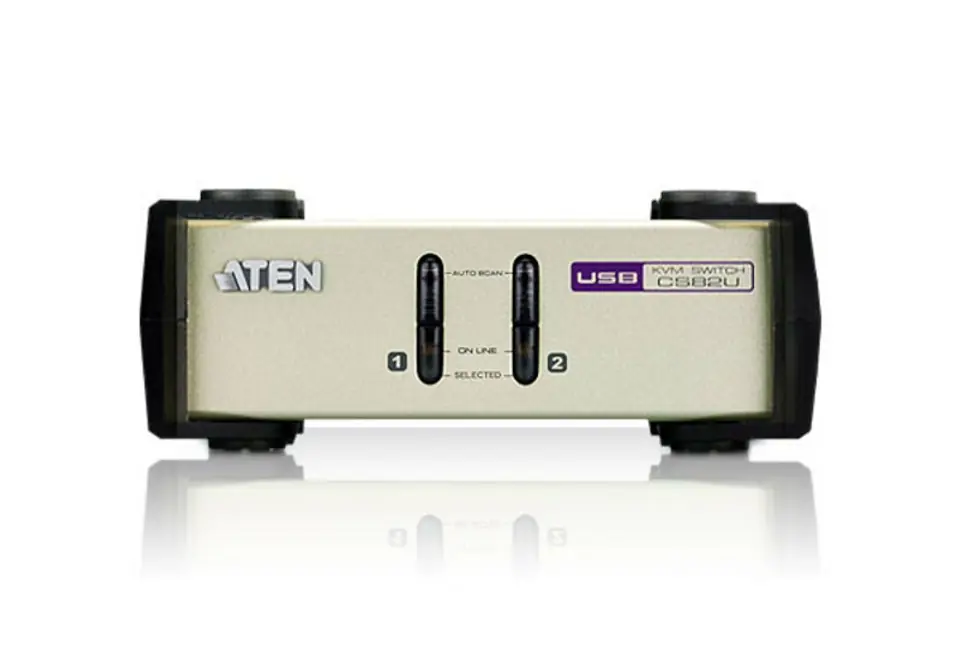

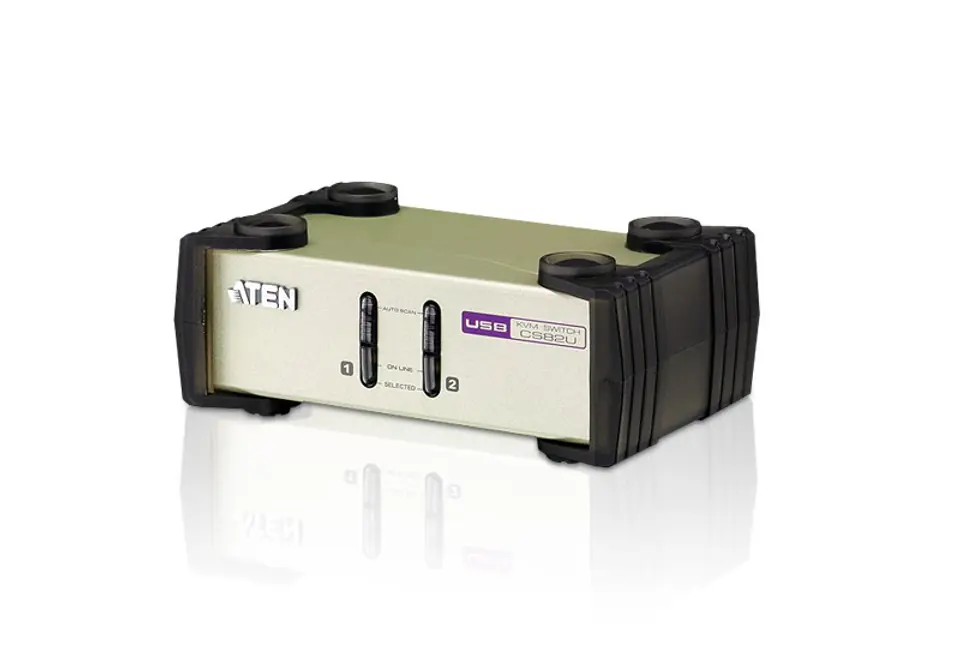

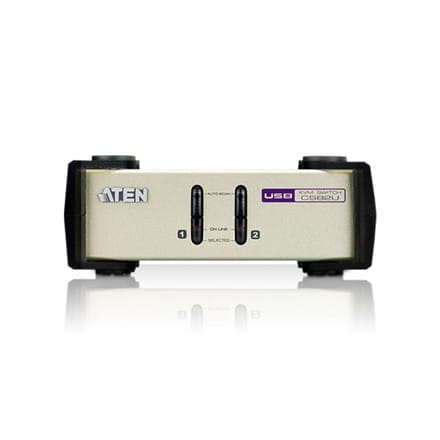

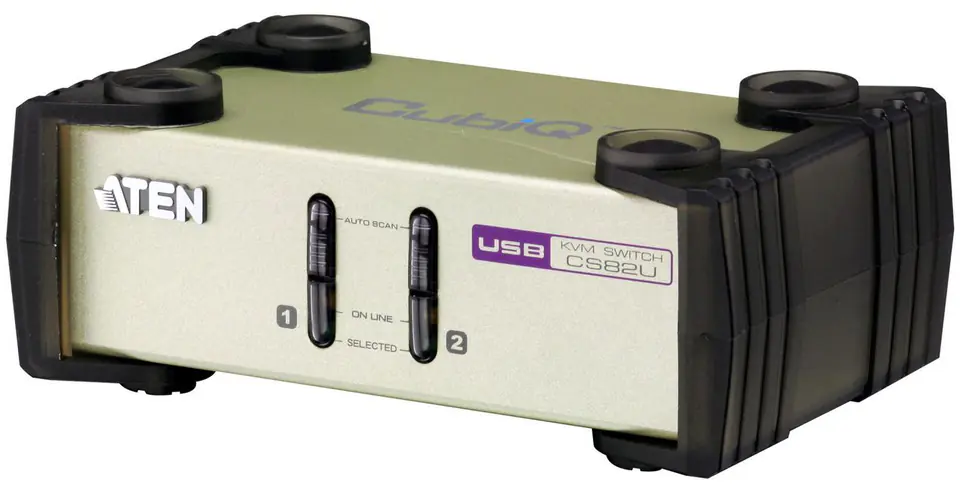

ATEN 2-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
€104.48
Shipping from warehouse: E12
Estimated shipping: Mon, Oct 27 - Tue, Oct 28
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- ATEN
- Product code:
- CS82U-AT / 4710423777002
Share this product:
Specification
| Built-in display: | No |
|---|---|

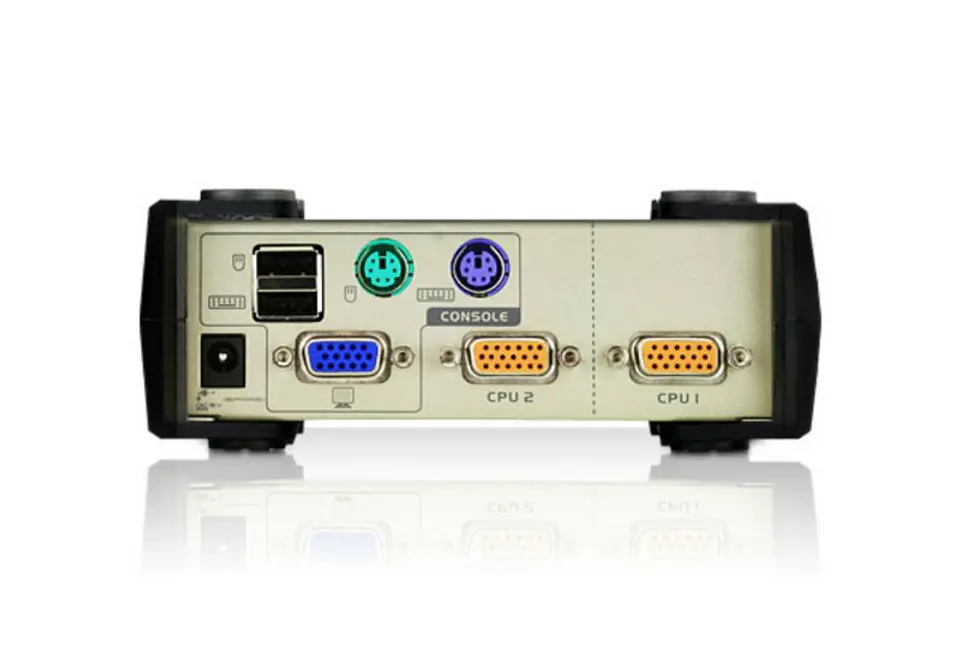

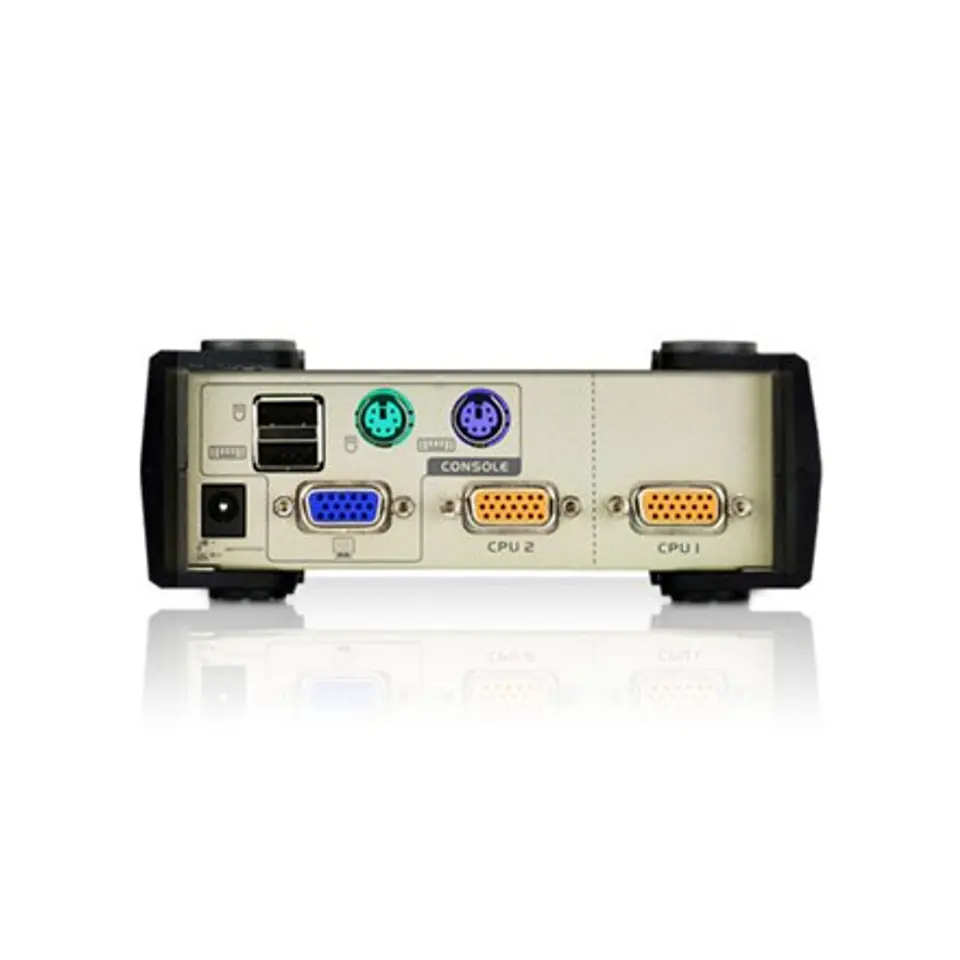

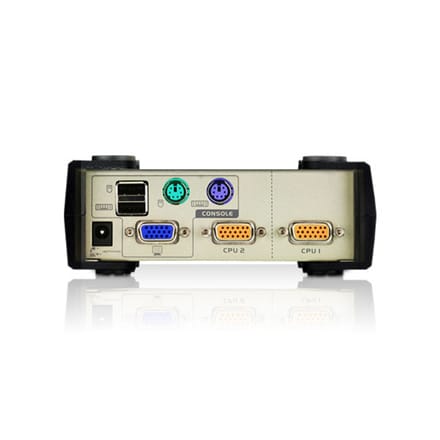

| Console ports: | VGA (D-Sub), USB A |
| Console usb ports quantity: | 2 |
| Dc input voltage: | 5 V |
| Dc-in jack: | Yes |
| Ddc2b support: | Yes |
| Depth: | 140 mm |
| Harmonized system (hs) code: | 85176200 |
| Hd type: | QXGA |
| Height: | 55.5 mm |
| Hot keys: | Yes |
| Housing material: | Metal |
| Input voltage: | 5 V |
| Keyboard port type: | USB |
| Led indicators: | Yes |
| Manual: | Yes |
| Master (outer) case gross weight: | 10.4 kg |
| Master (outer) case height: | 196 mm |
| Master (outer) case length: | 497 mm |
| Master (outer) case net weight: | 8.69 kg |
| Master (outer) case width: | 328 mm |
| Maximum resolution: | 2048 x 1536 pixels |
| Mouse port type: | USB |
| Number of computers controlled: | 2 |
| Operating relative humidity (h-h): | 0 - 80% |
| Operating temperature (t-t): | 0 - 50 °C |
| Package depth: | 239 mm |
| Package height: | 175 mm |
| Package weight: | 981 g |
| Package width: | 59 mm |
| Power consumption (typical): | 0.72 W |
| Power source: | DC |
| Product colour: | Light grey |
| Products per master (outer) case: | 10 pc(s) |
| Push button: | Yes |
| Quick installation guide: | Yes |
| Rack mounting: | No |
| Scan interval: | 5, 10, 3, 20 |
| Storage relative humidity (h-h): | 0 - 80% |
| Storage temperature (t-t): | -20 - 60 °C |
| Vga (d-sub) ports quantity: | 2 |
| Video bandwidth: | 60 Hz |
| Video port type: | VGA |
| Weight: | 869 g |
| Width: | 88 mm |
