ASUS TUF Gaming B650-Plus WiFi takes all the essential elements of the latest AMD Ryzen AM5 socket desktop processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds expectations, delivering solid and stable performance for marathon gaming sessions. TUF Gaming motherboards also undergo rigorous durability testing to ensure they can withstand conditions where others may fail. Aesthetically, this model combines durable off-black elements and geometric elements that reflect the reliability and stability that define the TUF Gaming series

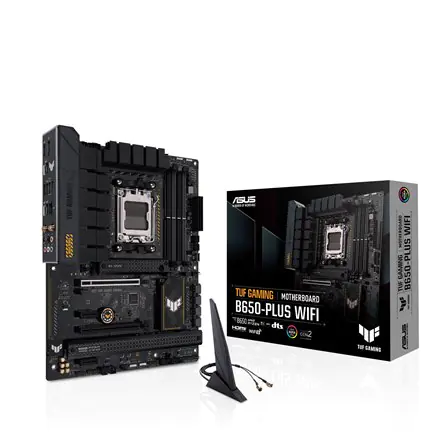

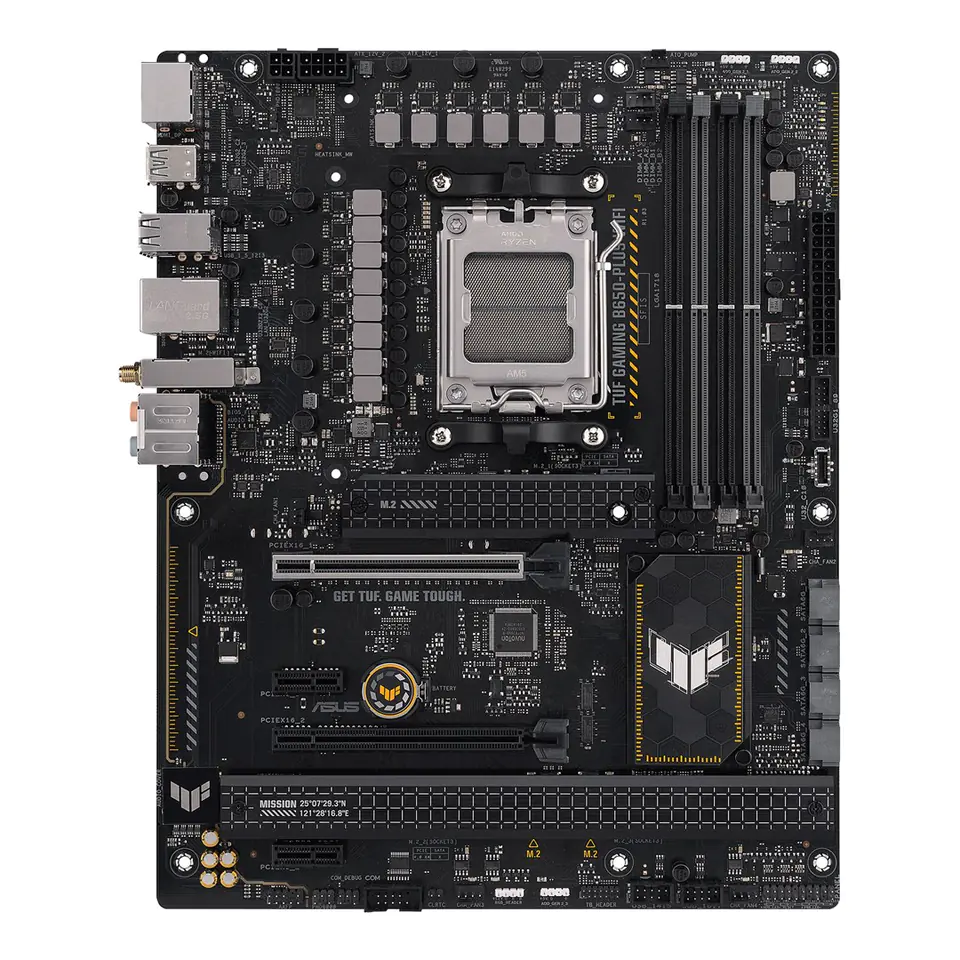

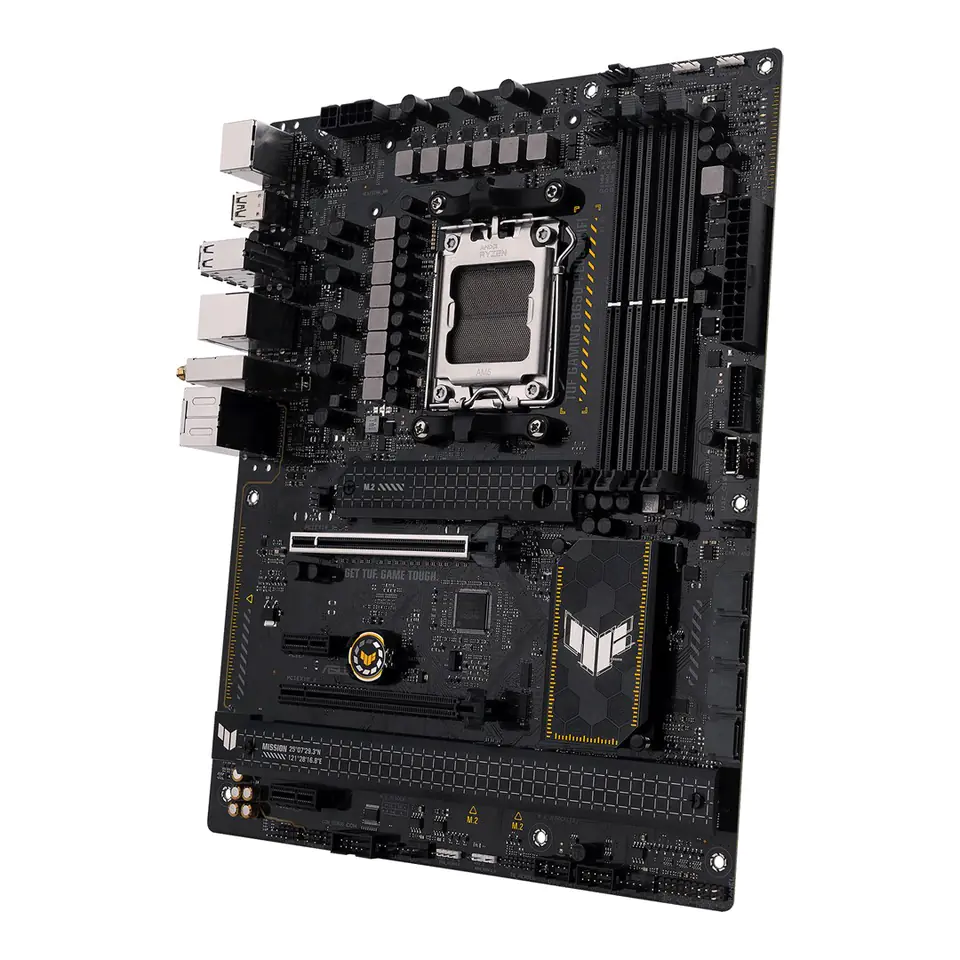

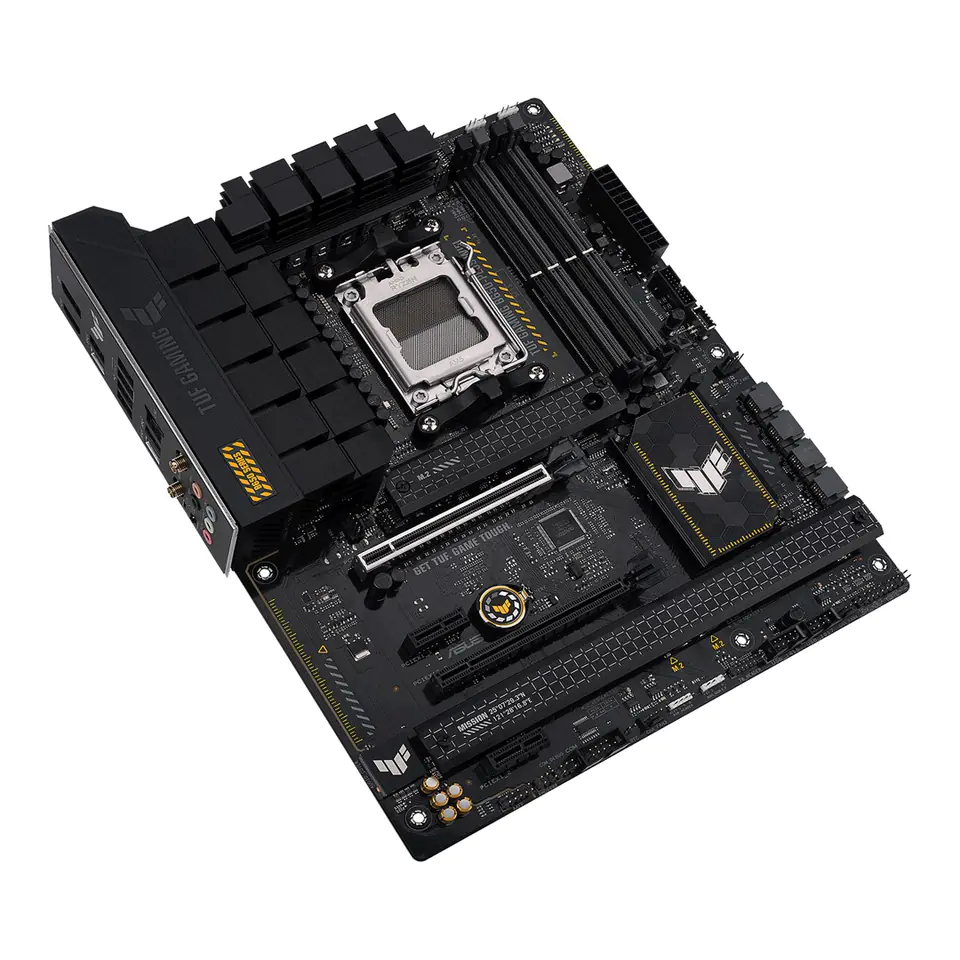

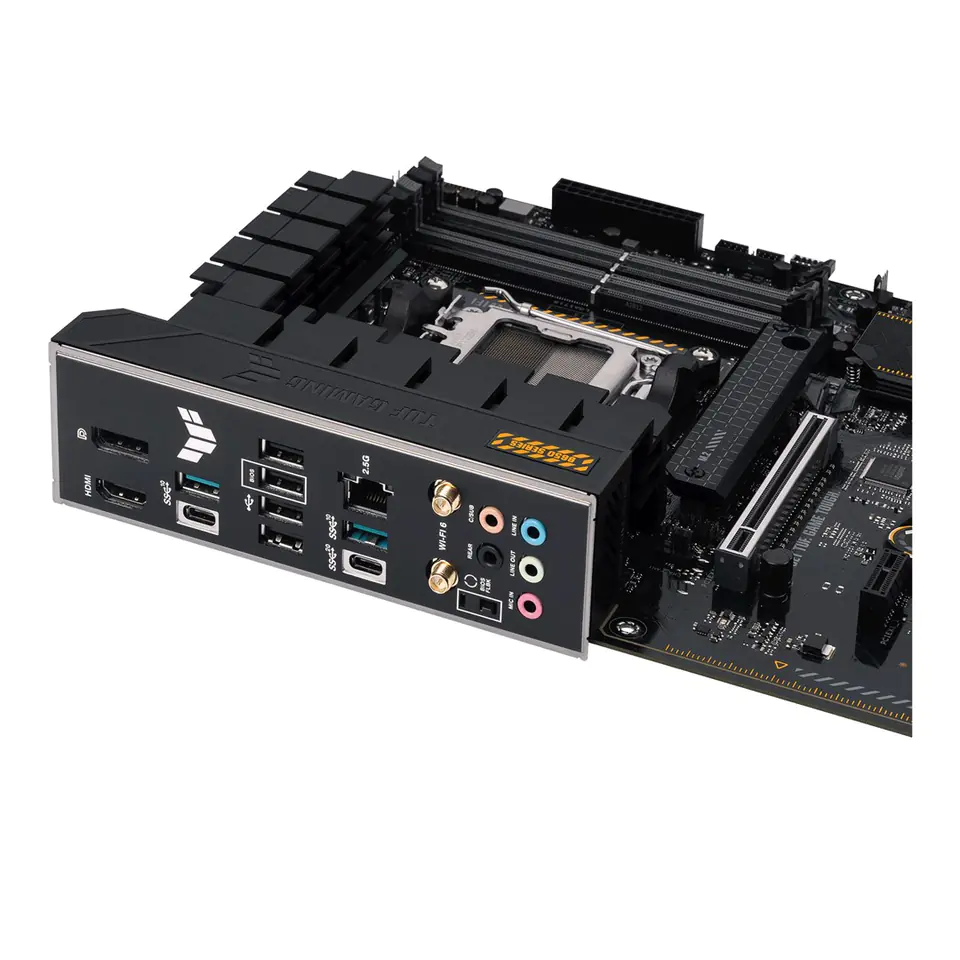

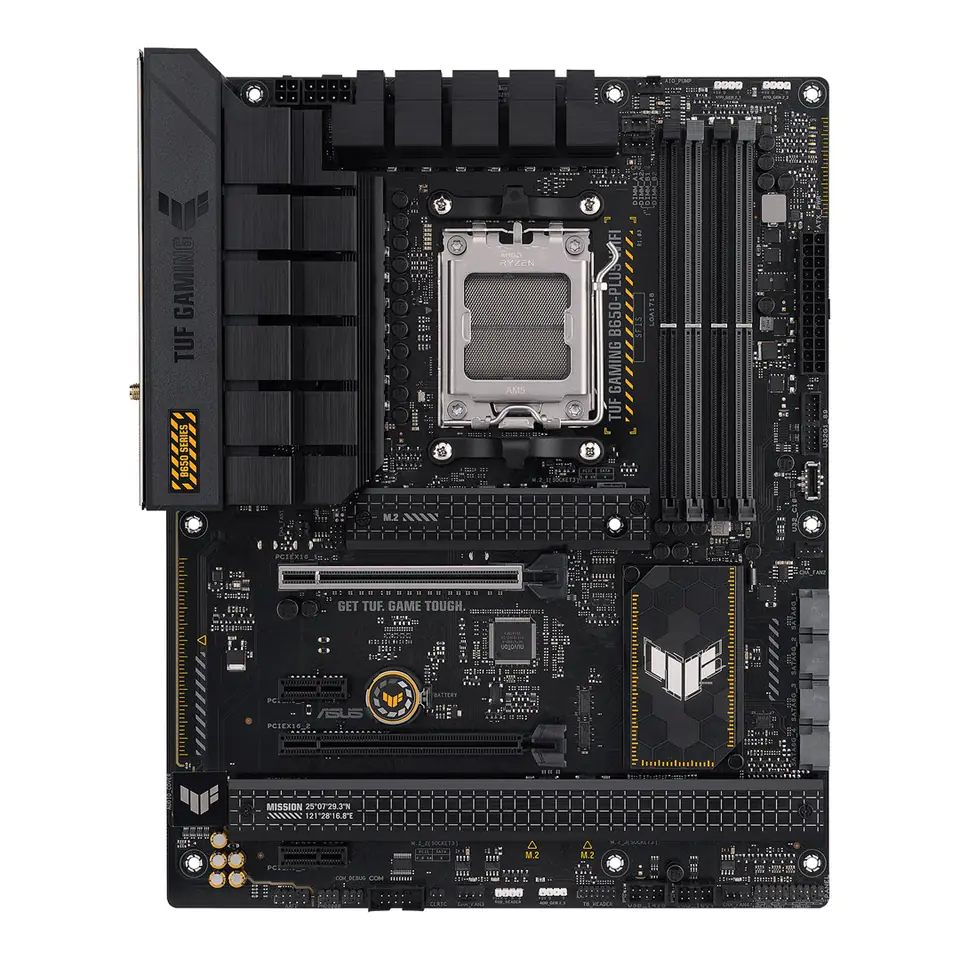

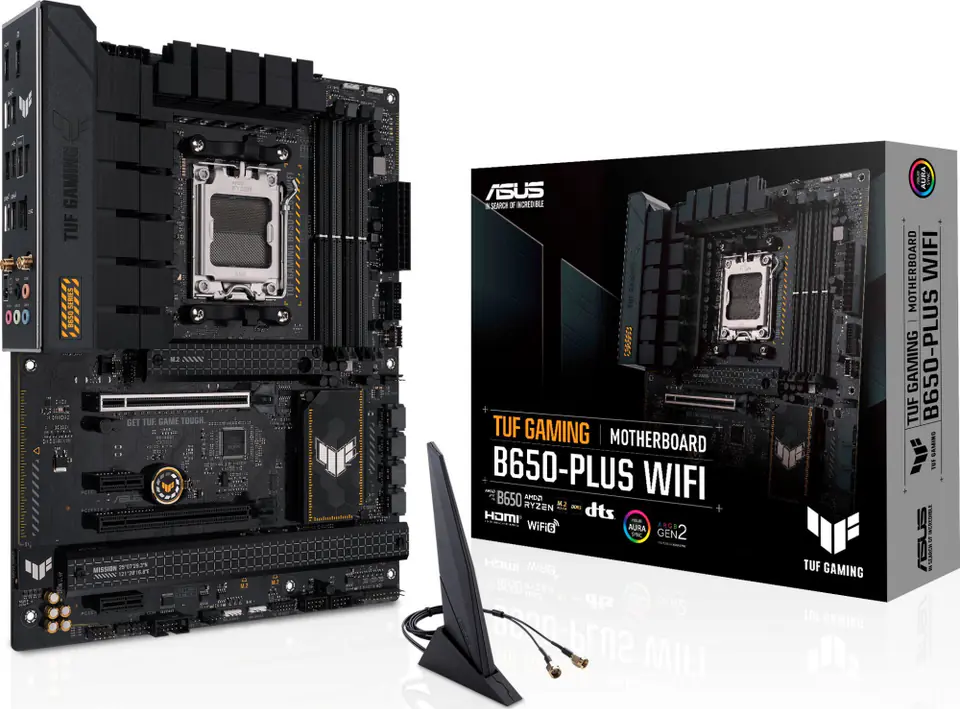

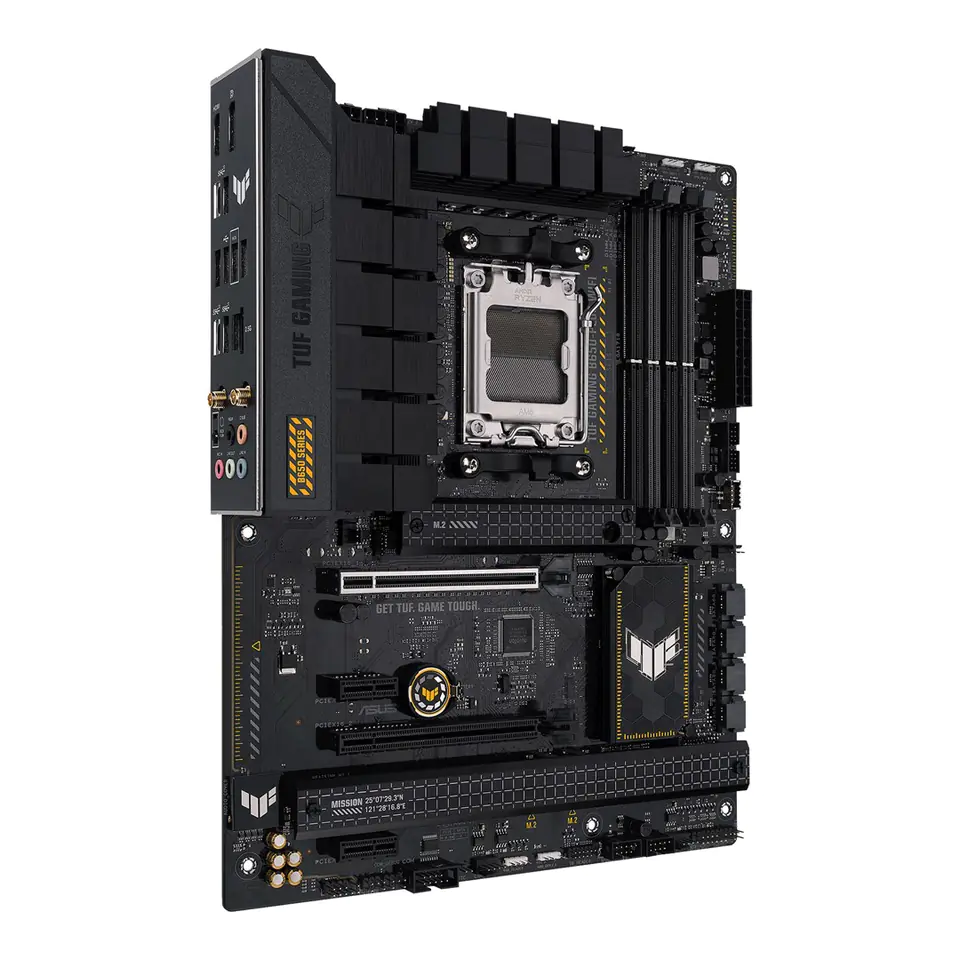

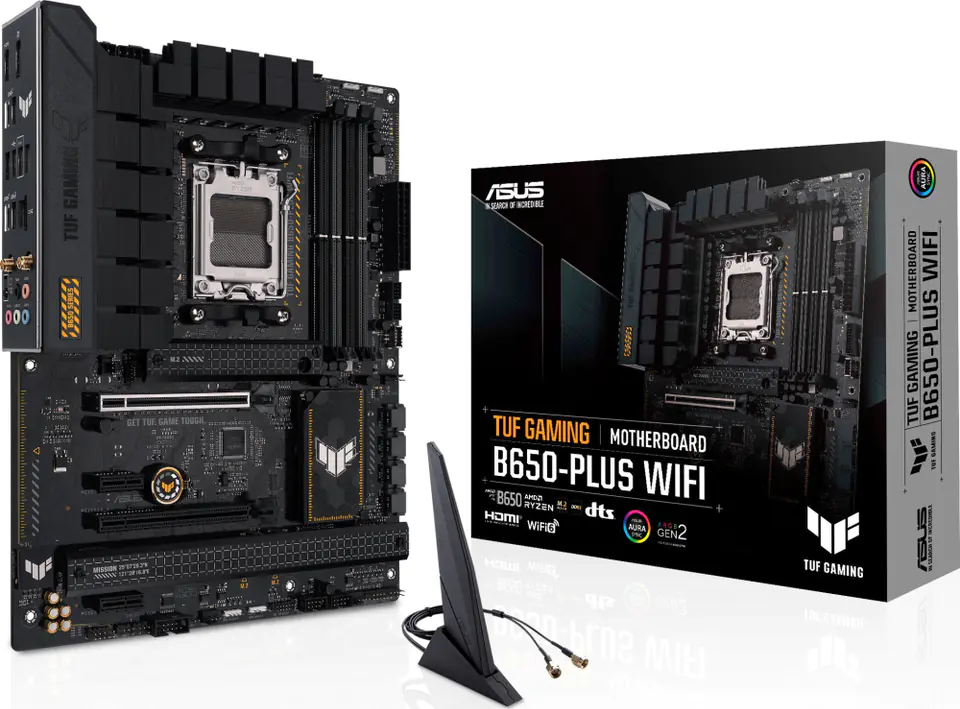

ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX
€217.21
Shipping from warehouse: A3
Estimated shipping: Mon, Apr 28 - Wed, Apr 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1BZ0-M0EAY0 / 4711081912651
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayports quantity: | 1 |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 1 |
| Height: | 50 mm |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 4 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 7 |
| On-board graphics card: | No |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package weight: | 1.36 kg |
| Package width: | 338 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 2 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Black |
| Raid levels: | 10, 1, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out port: | No |
| Supported memory clock speeds: | 6000 MHz, 6800, 7600 MHz, 7000, 6600, 6400, 5000, 6200, 5600, 7200, 5200, 5800, 5400, 4800 MHz |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Weight: | 1.2 kg |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Width: | 305 mm |
