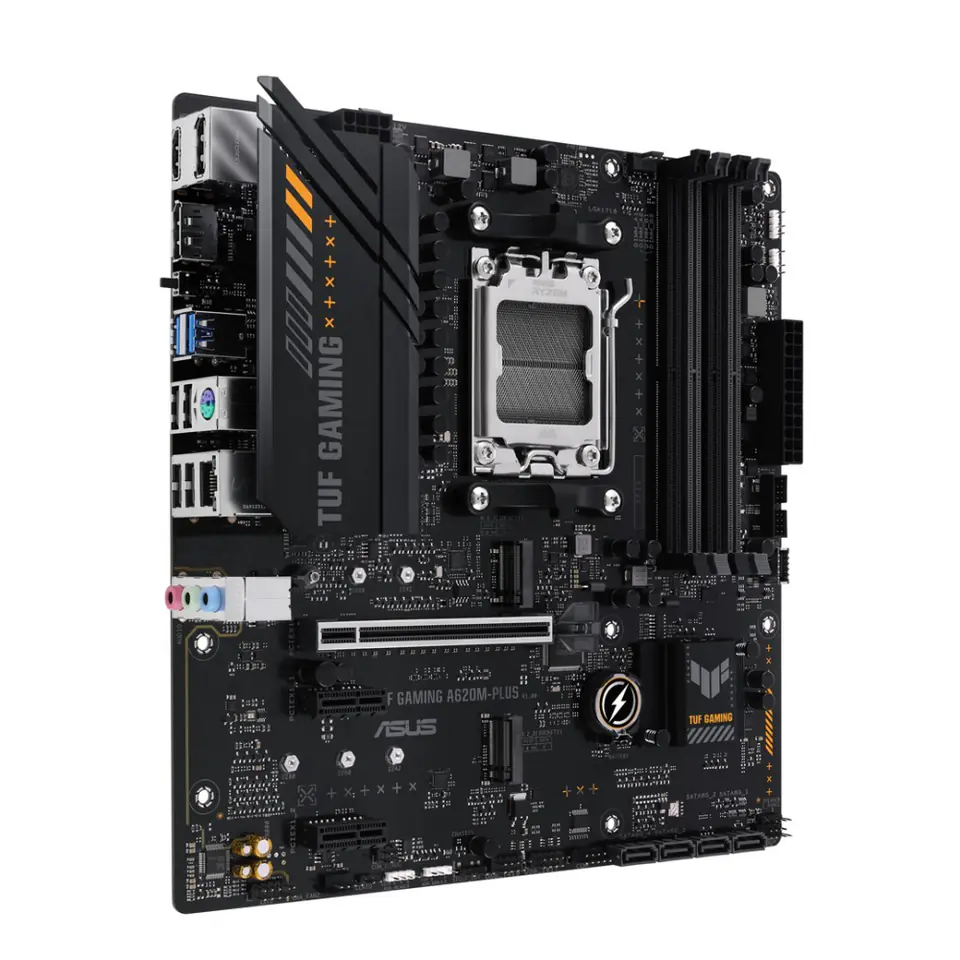

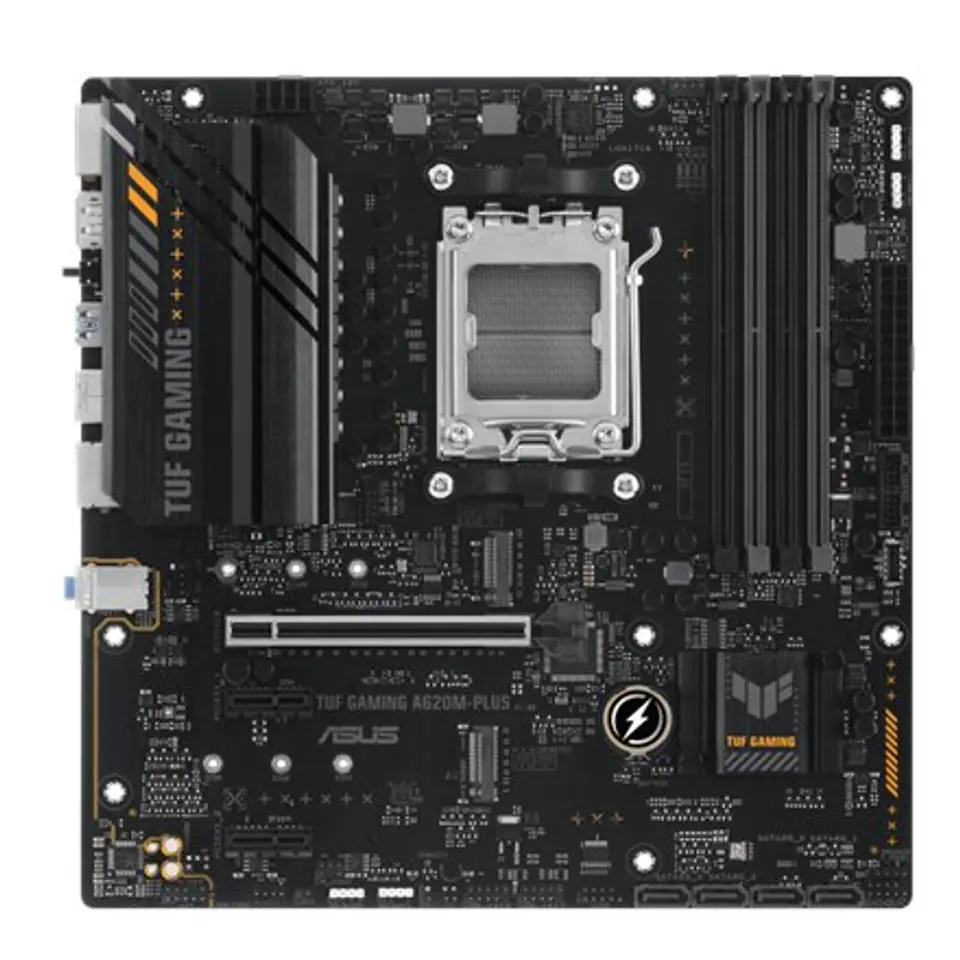

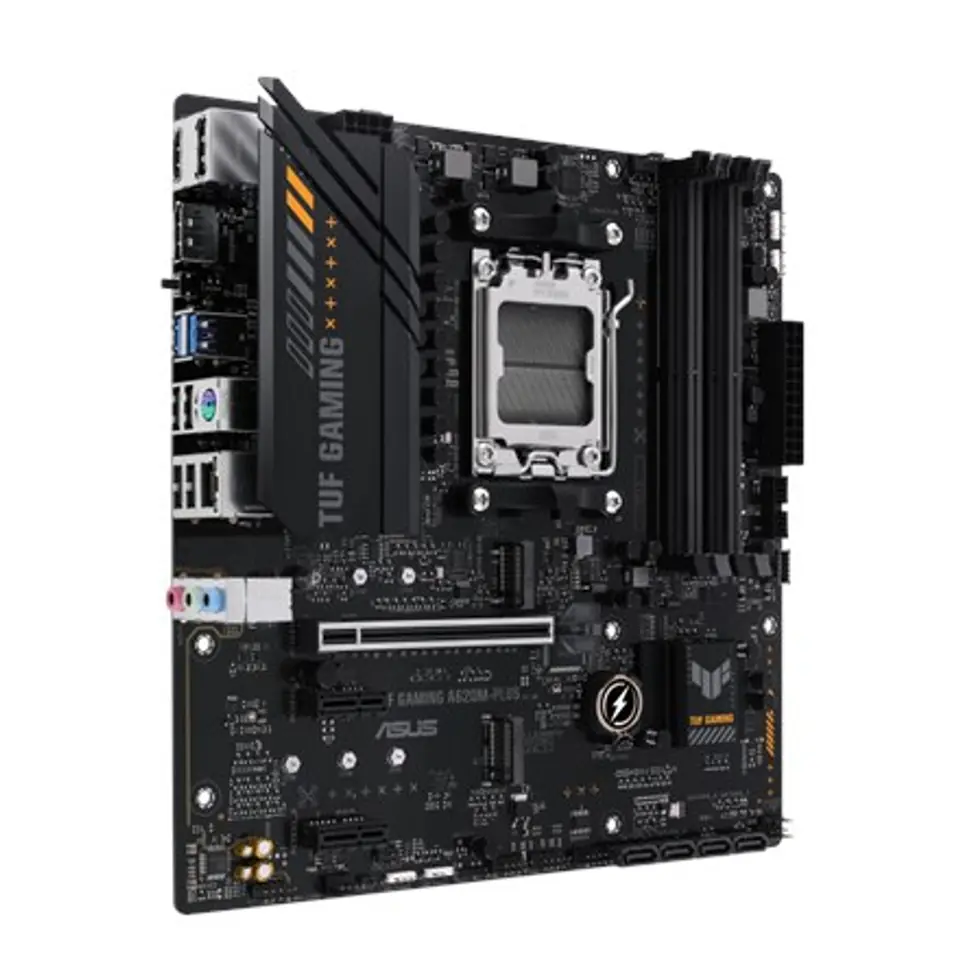

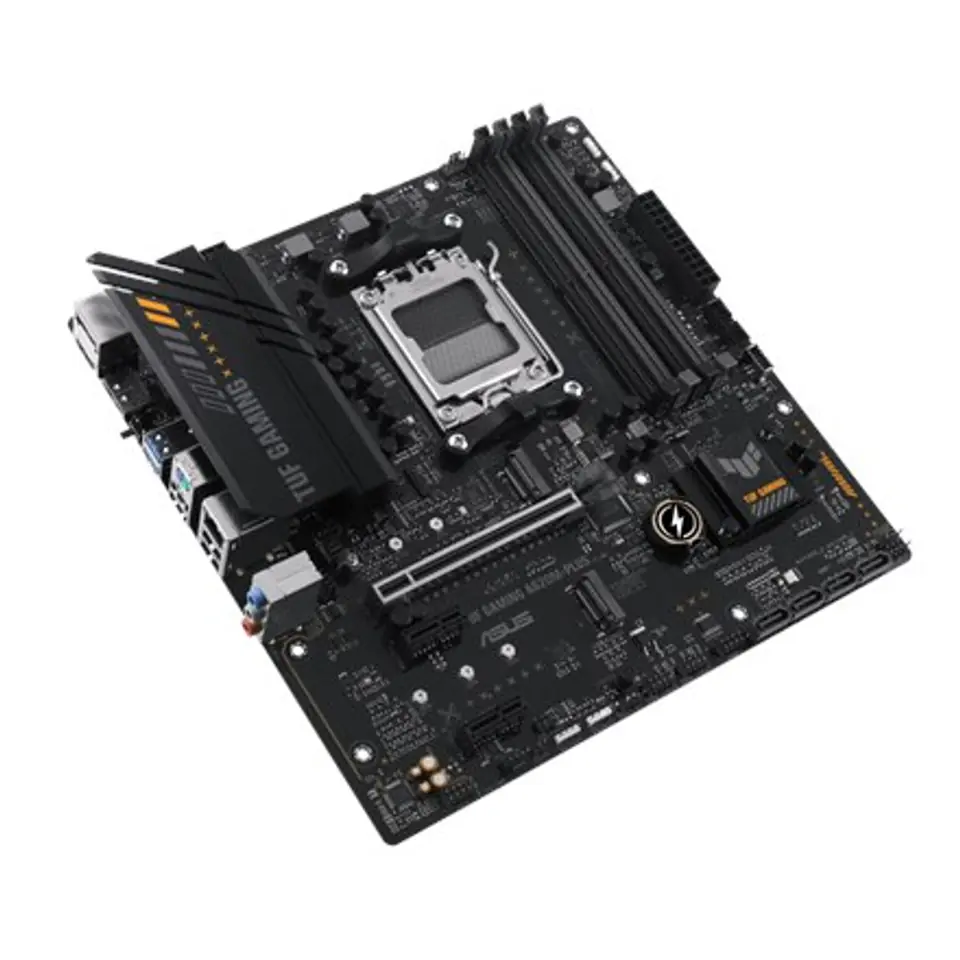

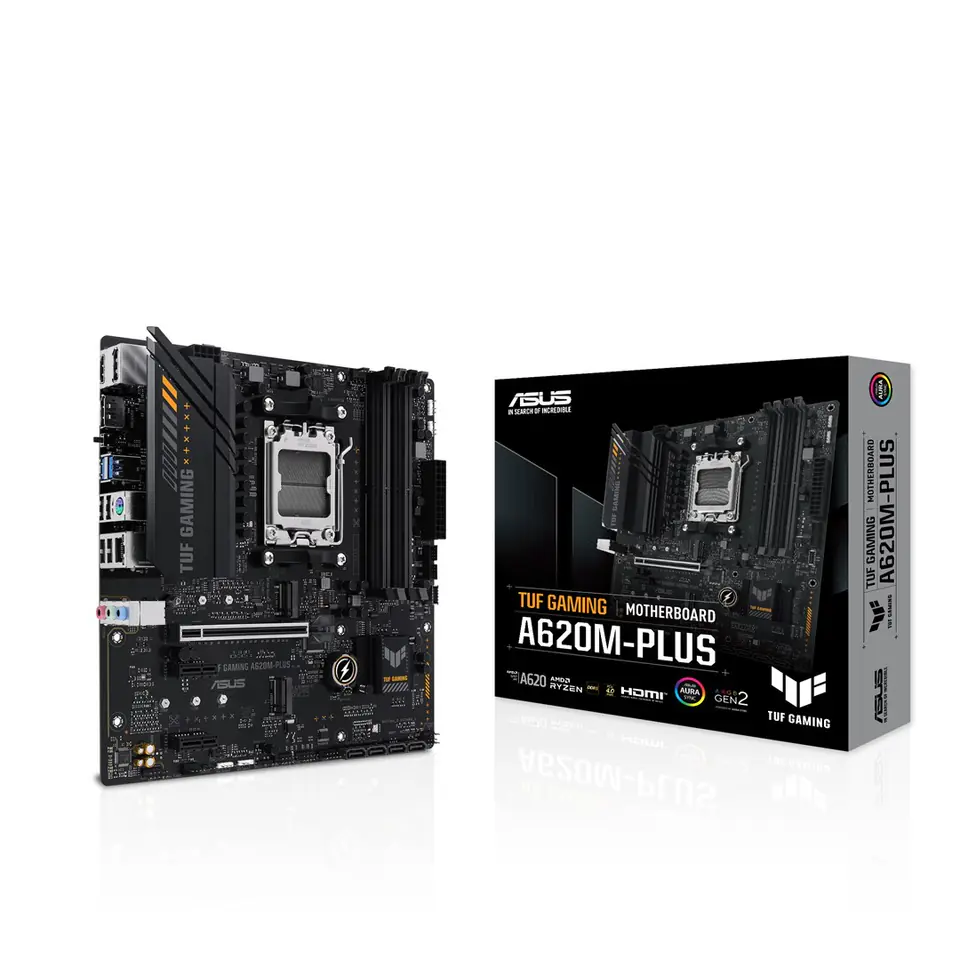

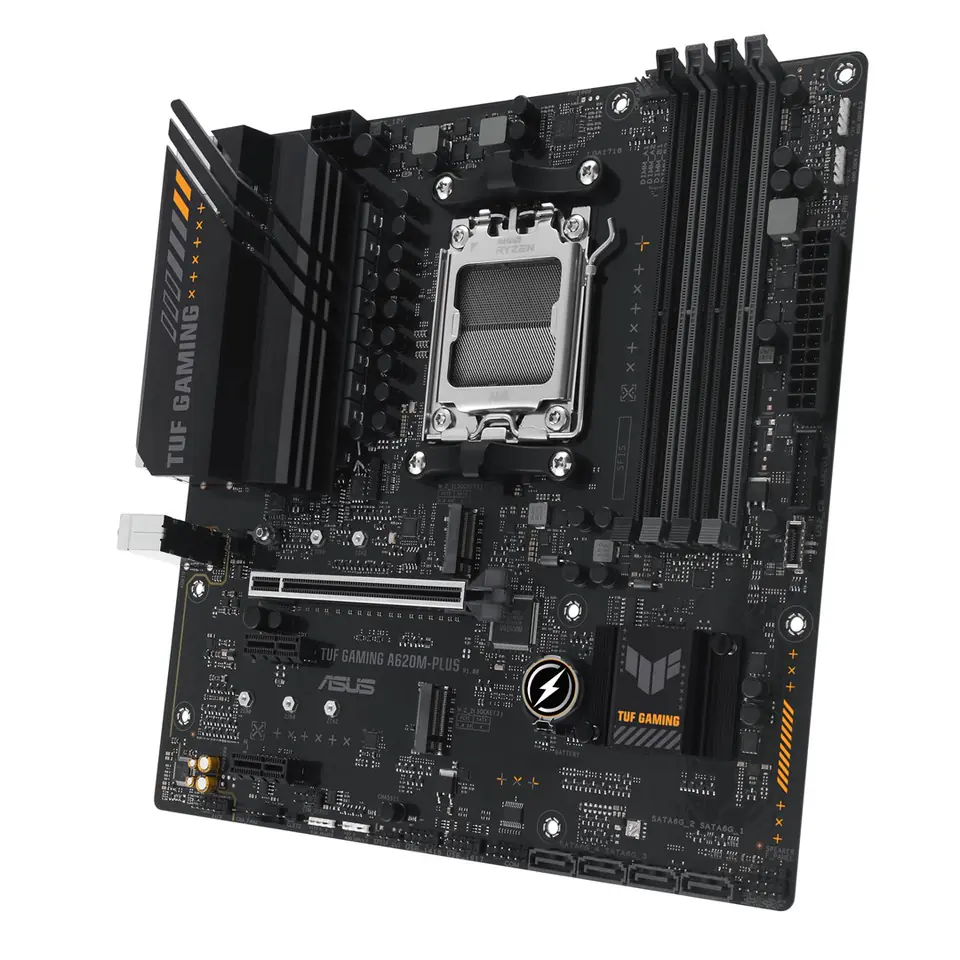

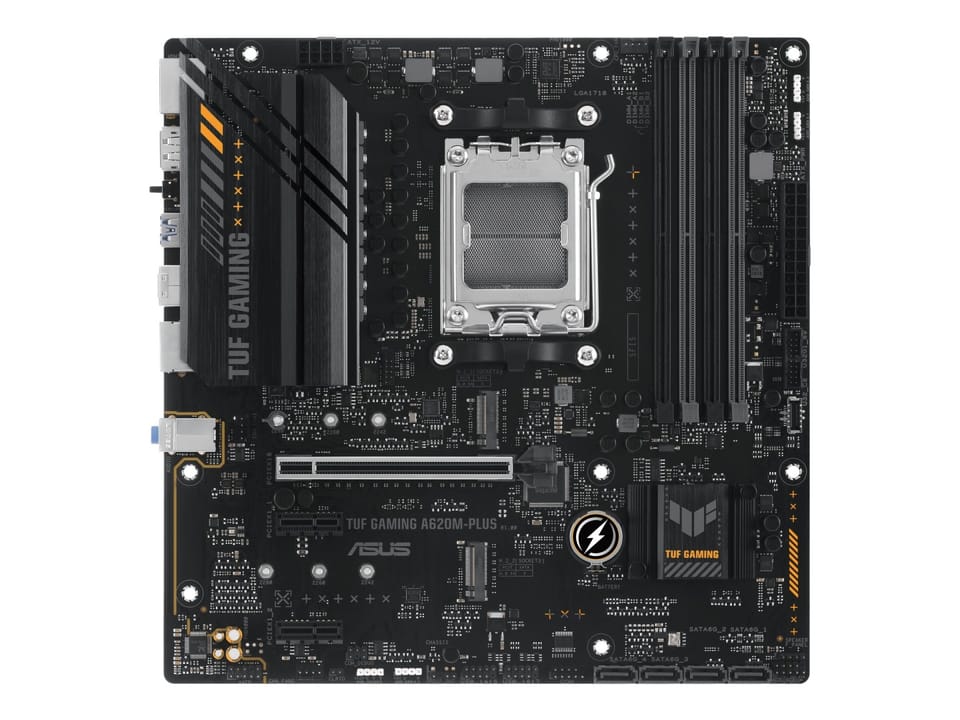

ASUS TUF GAMING A620M-PLUS AMD A620 Socket AM5 micro ATX
€145.78
Shipping from warehouse: A3
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1EZ0-M0EAY0 / 4711387164303
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Back-to-bios button: | Yes |
| Bios type: | UEFI AMI |

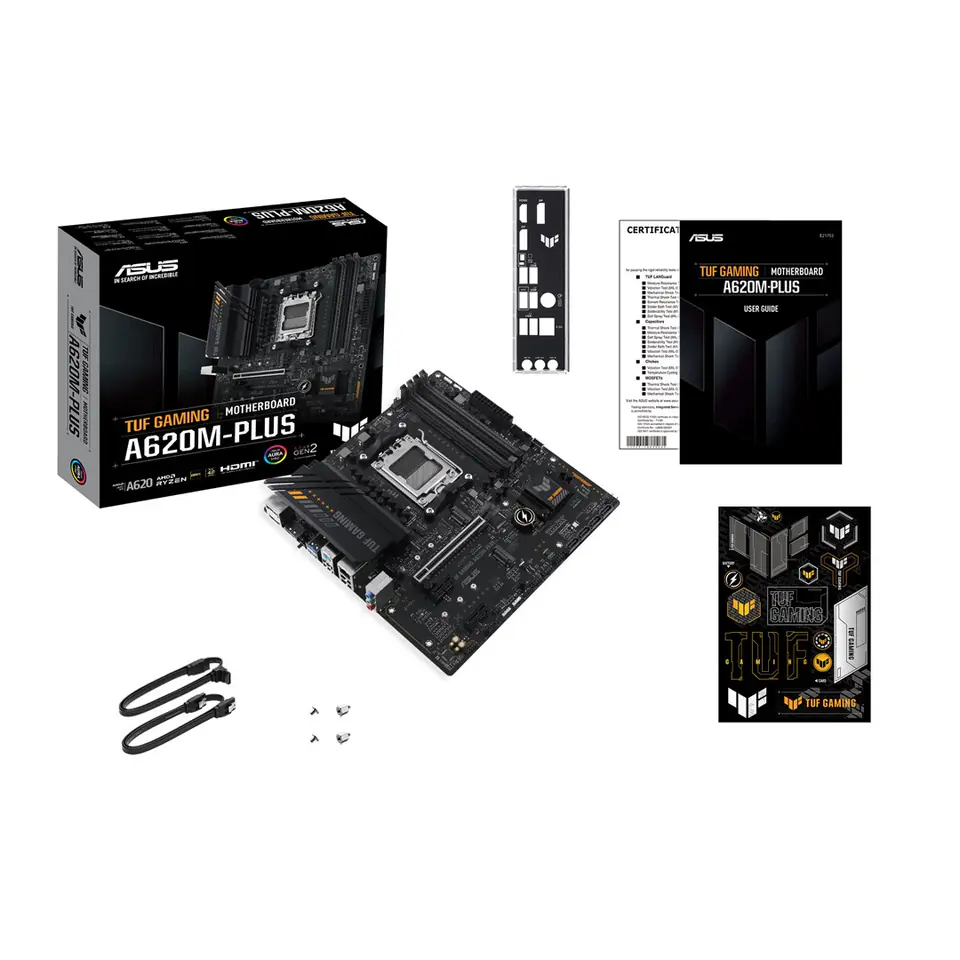

| Cables included: | SATA |
| Compatible processor series: | AMD Ryzen™ 5, AMD Ryzen 9 7th Gen, AMD Ryzen™ 7, AMD Ryzen™ 3 |
| Cooling type: | Passive |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 2 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD A620 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 275 mm |
| Package height: | 67.5 mm |
| Package weight: | 850 g |
| Package width: | 275 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 10, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 6400 MHz |
| Supported memory clock speeds: | 5200, 6000, 5000, 6400, 6200, 5800, 5400, 4800, 5600 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| User guide: | Yes |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |
