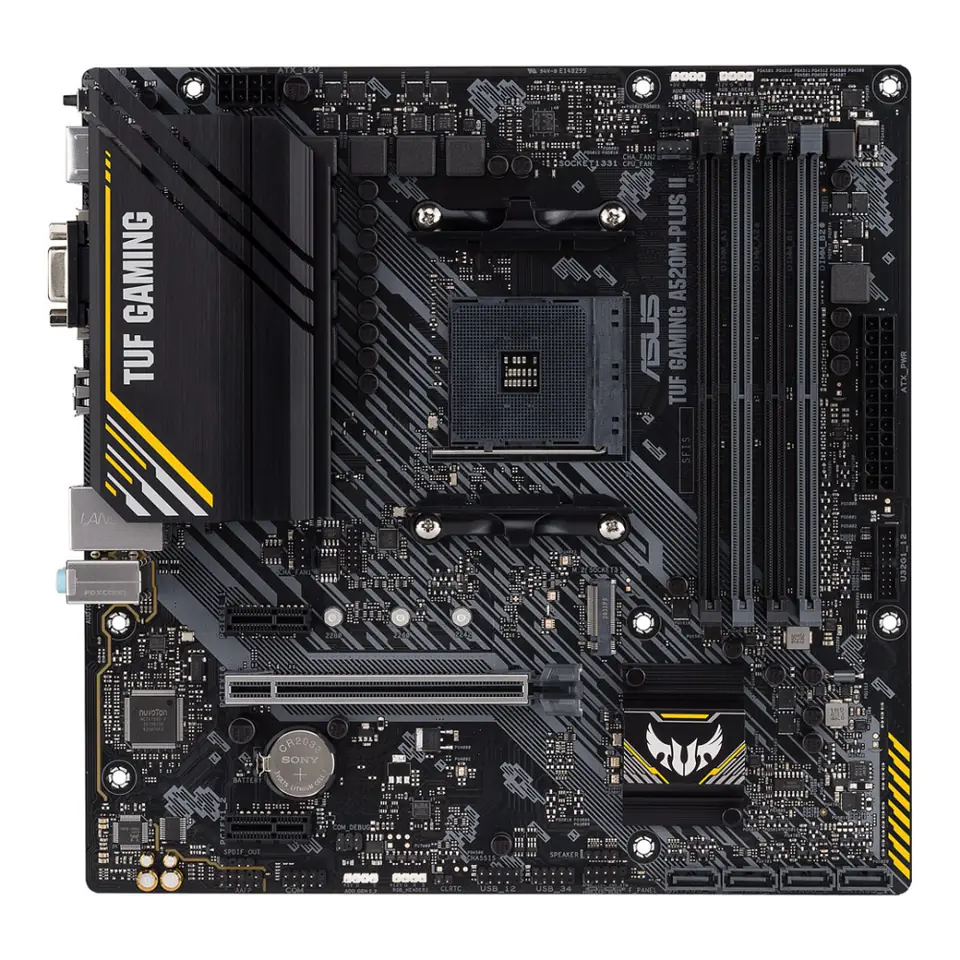

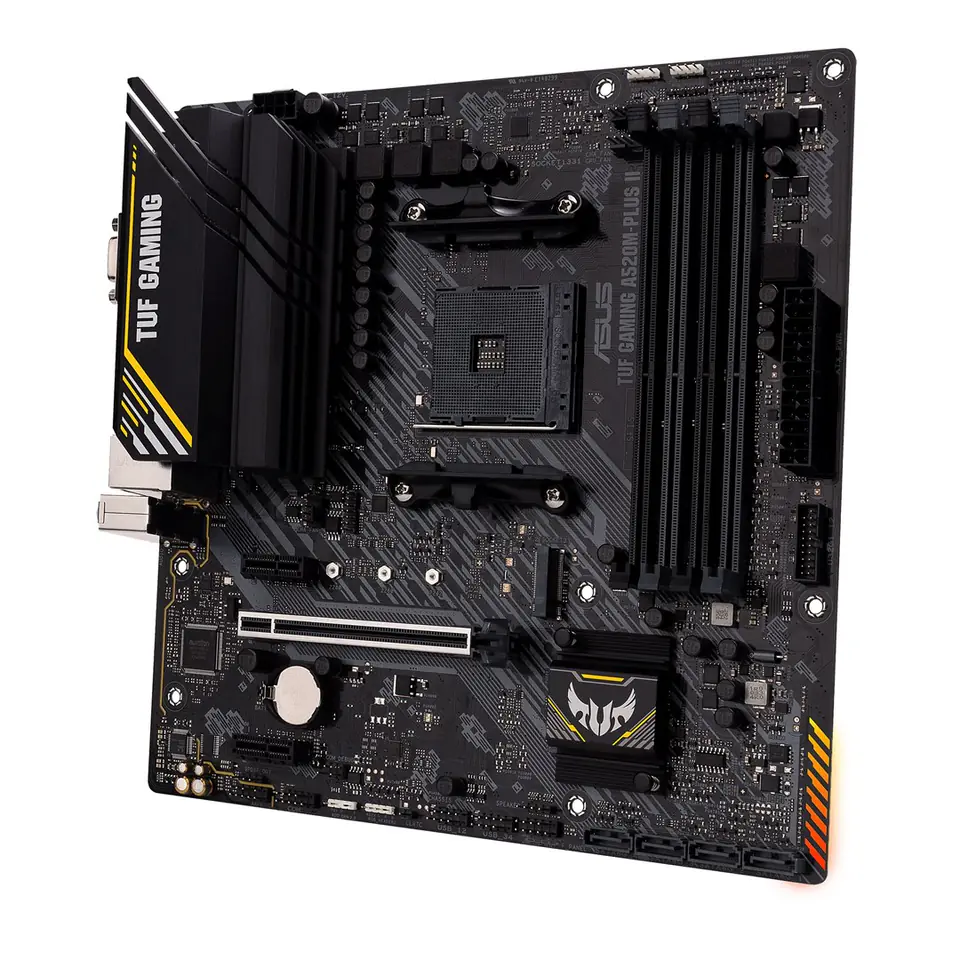

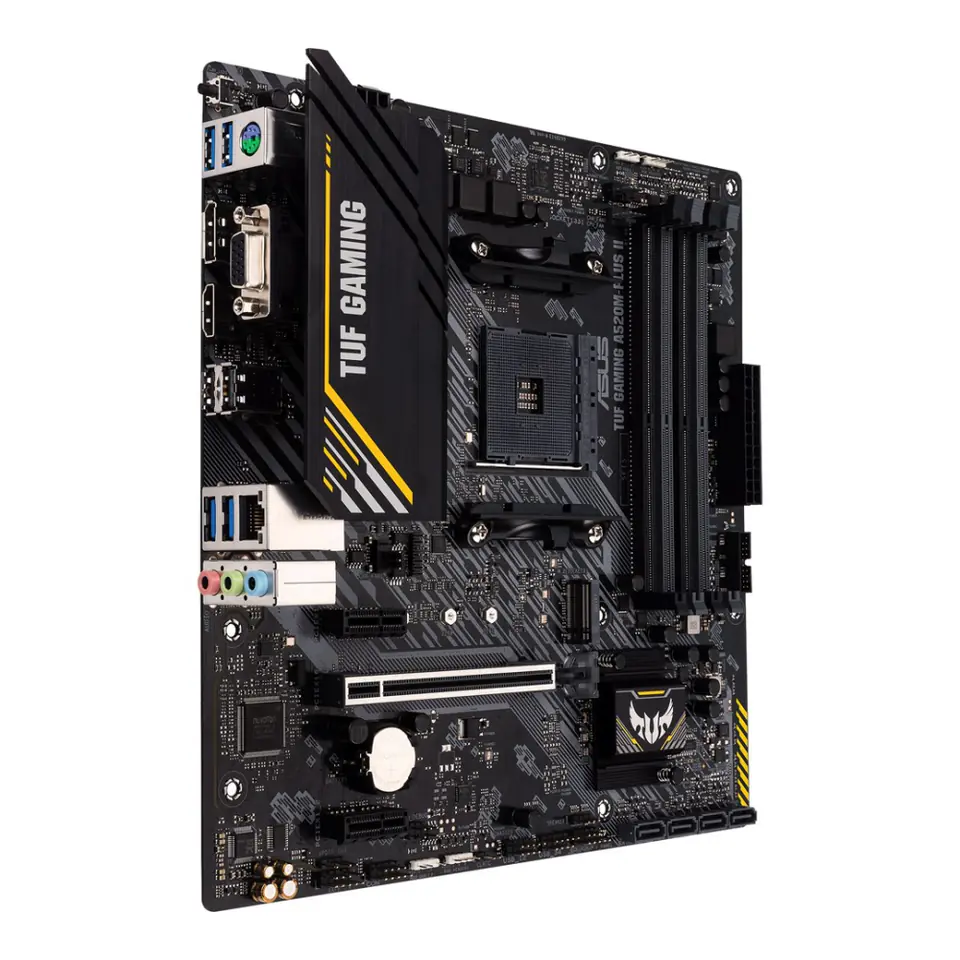

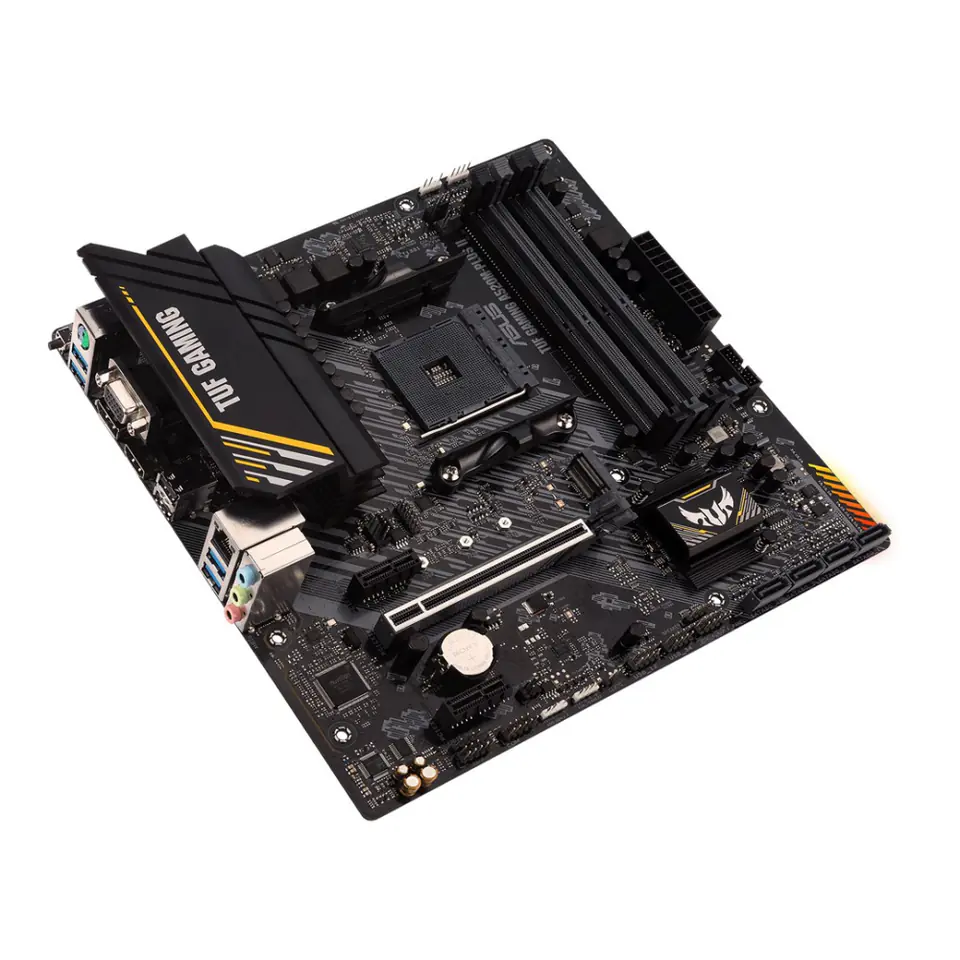

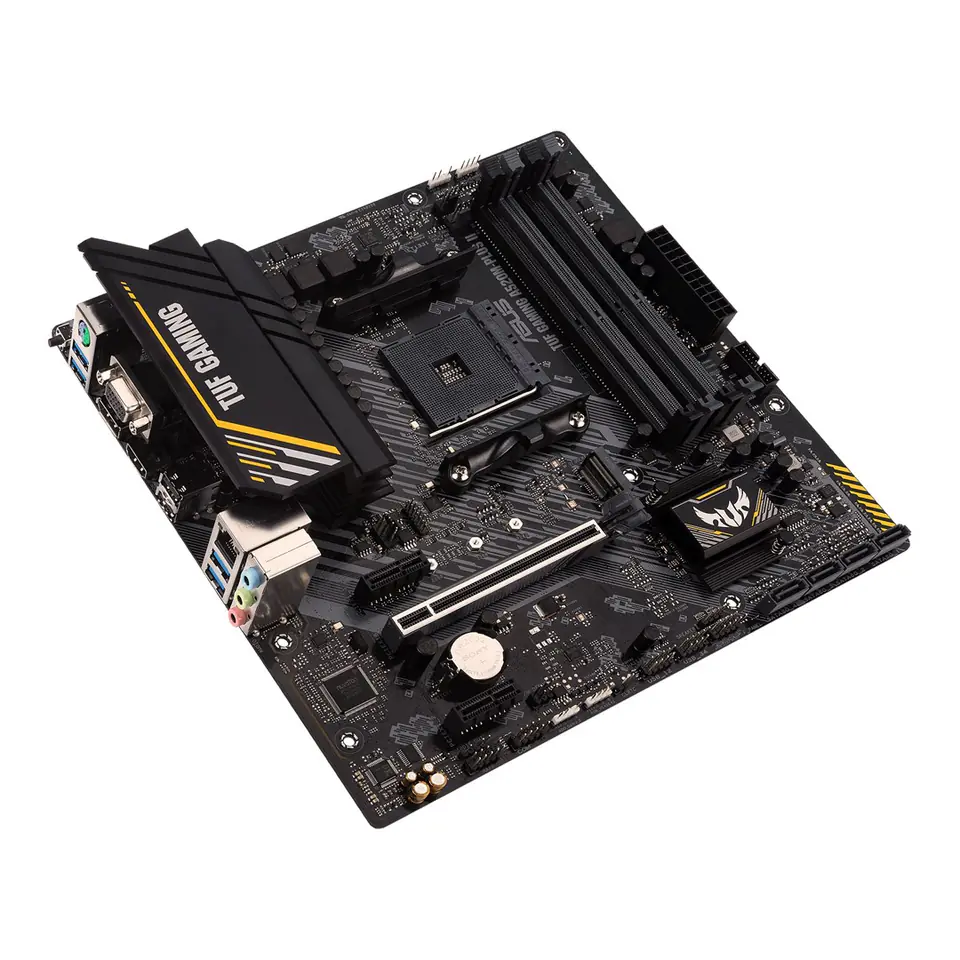

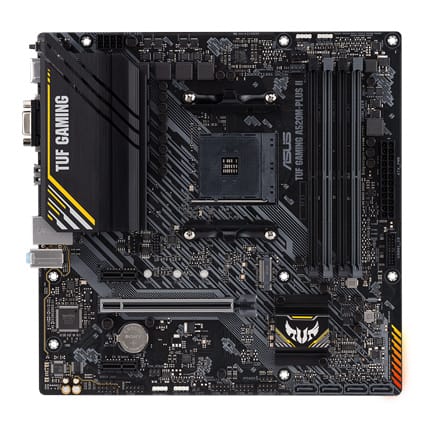

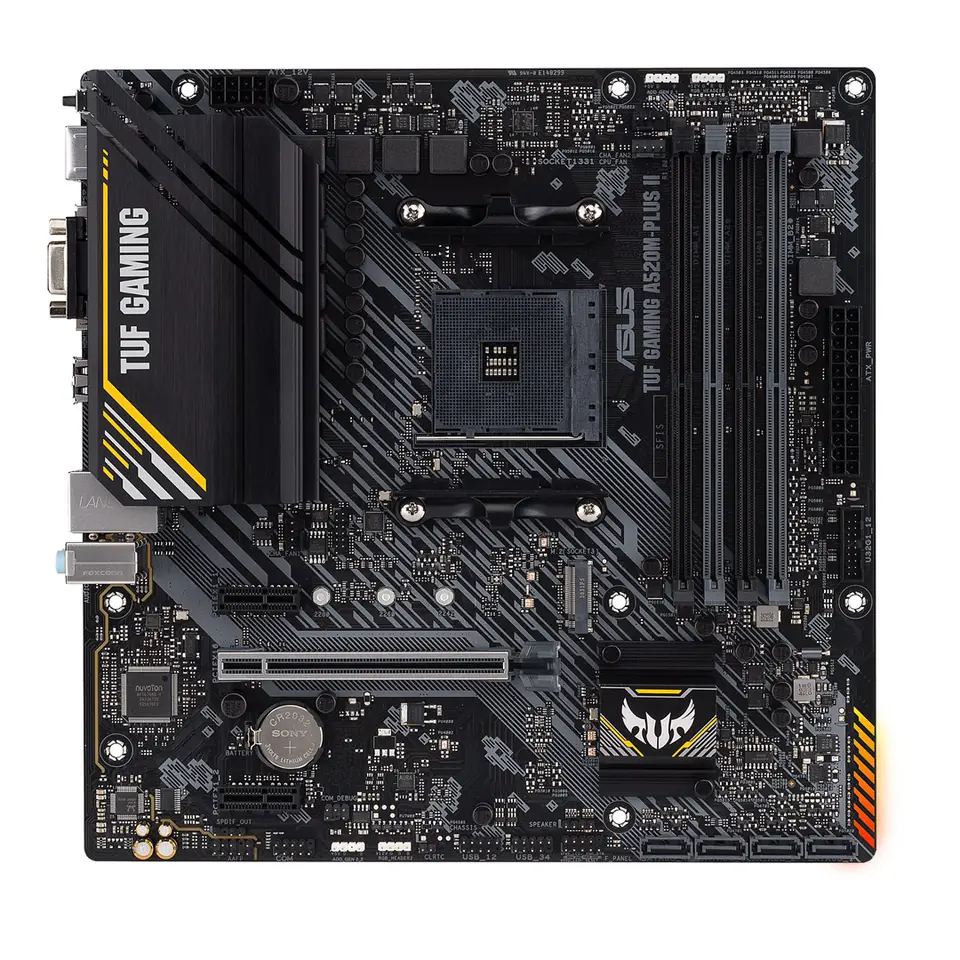

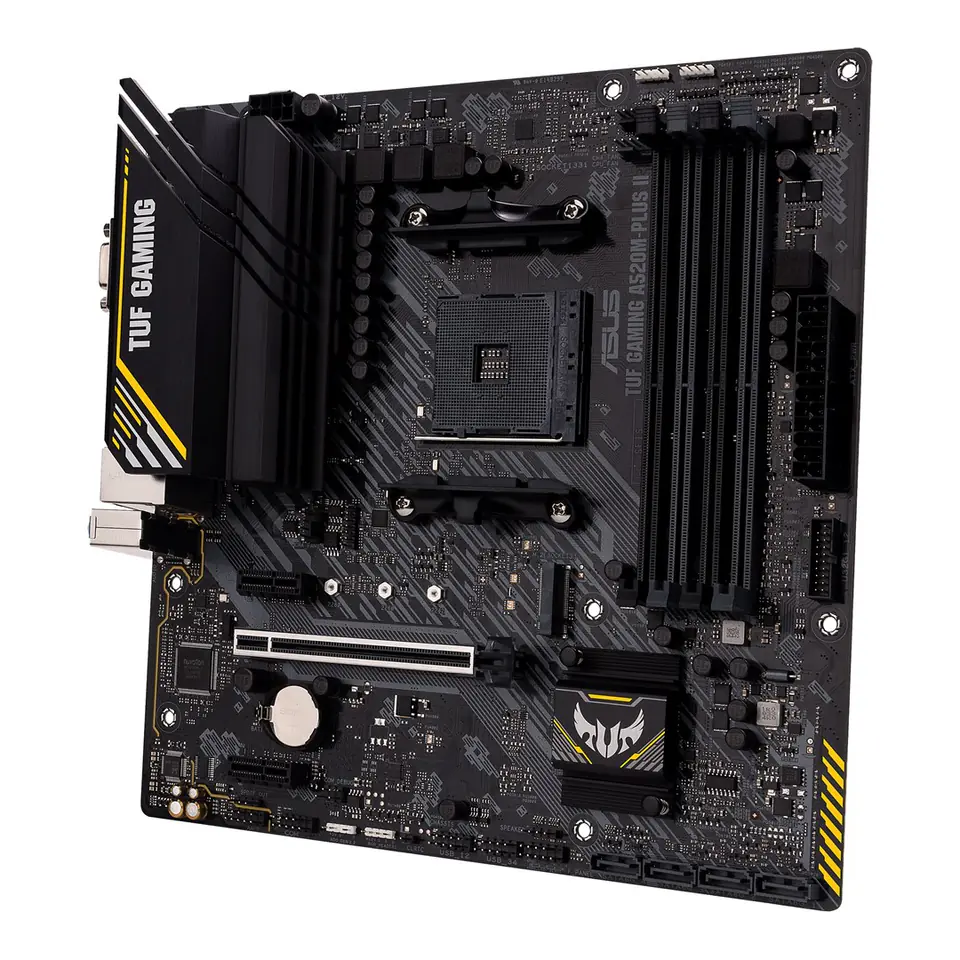

ASUS TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX
€105.62
Shipping from warehouse: A3
Estimated shipping: Fri, May 10 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90MB17G0-M0EAY0 / 4711081154457
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC887 / Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios memory size: | 128 Mbit |
| Bios type: | UEFI AMI |

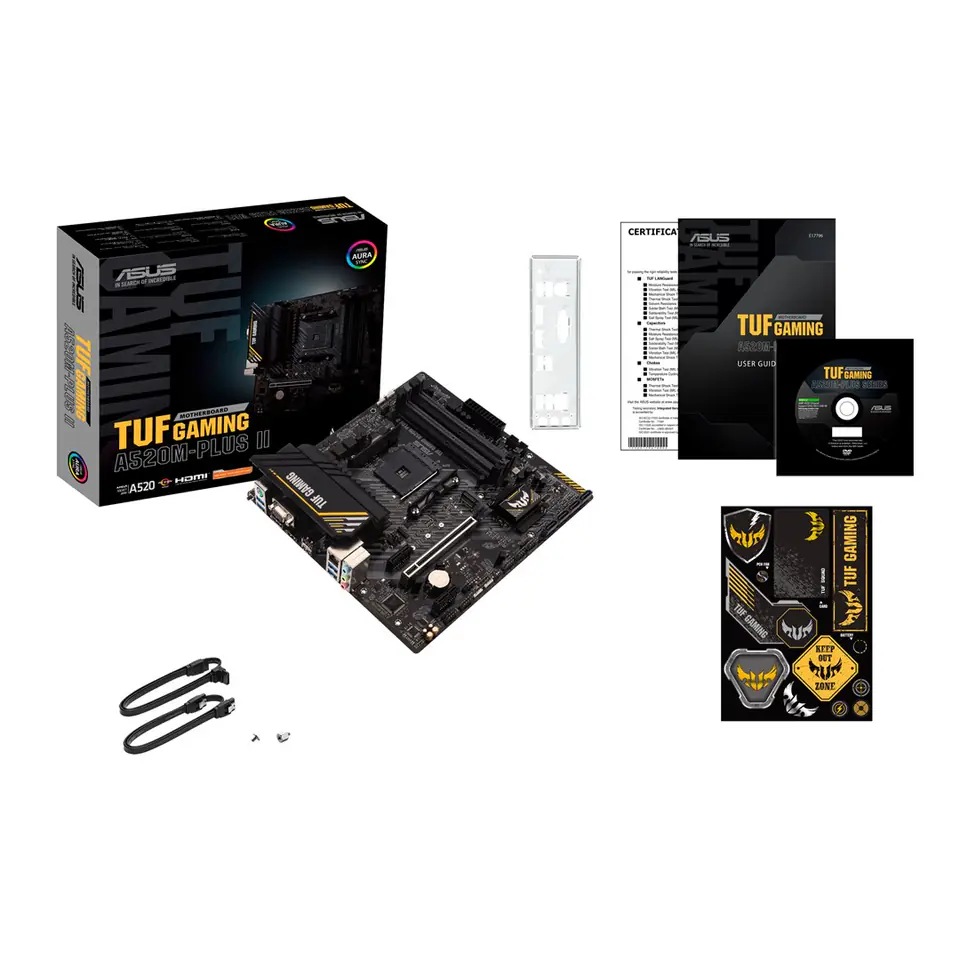

| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 5th Gen |
| Component for: | PC |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ecc: | Y |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 3 |
| Height: | 67 mm |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 3840 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD A520 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 10, 0, 1 |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 3733, 4400, 3000, 3866, 3600, 2133, 4133, 4000, 4800, 3333, 4466, 3200, 2666, 4266, 4600, 2400, 2800, 3466 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb connector type: | USB Type-A |
| Vga (d-sub) ports quantity: | 1 |
| Wake-on-lan ready: | Yes |
| Weight: | 900 g |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64 |
