| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC4080 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cables included: | SATA |
| Chassis intrusion connector: | Yes |
| Clear cmos button: | Yes |
| Compatible processor series: | AMD Ryzen™ 7 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayports quantity: | 1 |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 3 |
| Lan controller: | Intel I225-V |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 4 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| On-board graphics card: | No |
| Package depth: | 265 mm |
| Package height: | 71 mm |
| Package weight: | 9 kg |
| Package width: | 280 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Pci express x16 (gen 5.x) slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Silver, Black |
| Raid levels: | 0, 10, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 5200, 4800 MHz, 5800, 5000, 5400, 6000 MHz, 5600, 6400, 6200 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 4 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6E (802.11ax) |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 11 x64 |

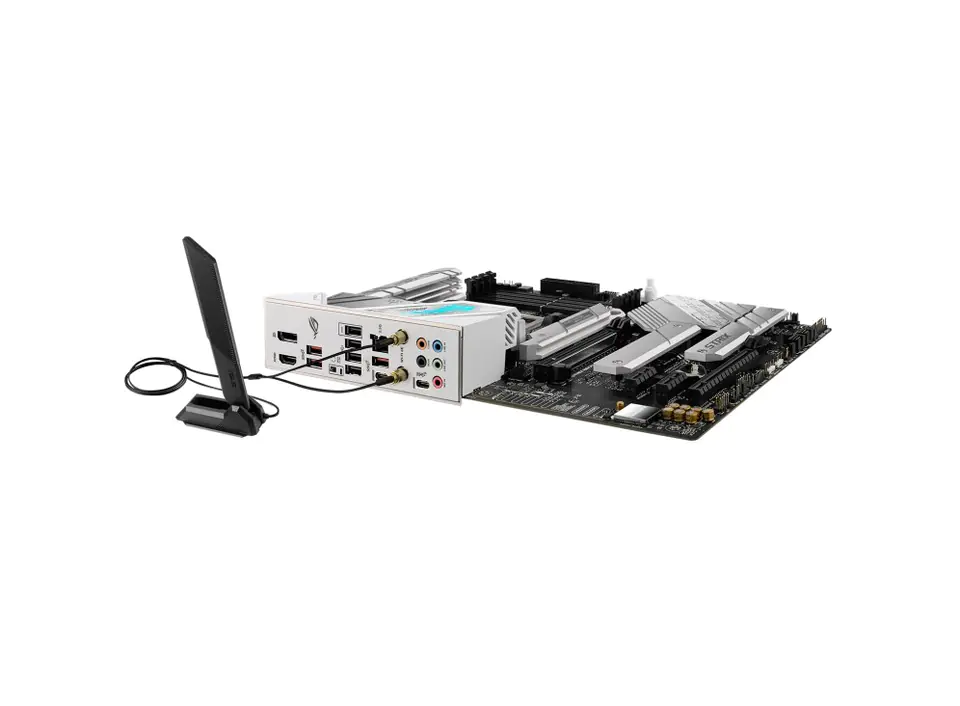

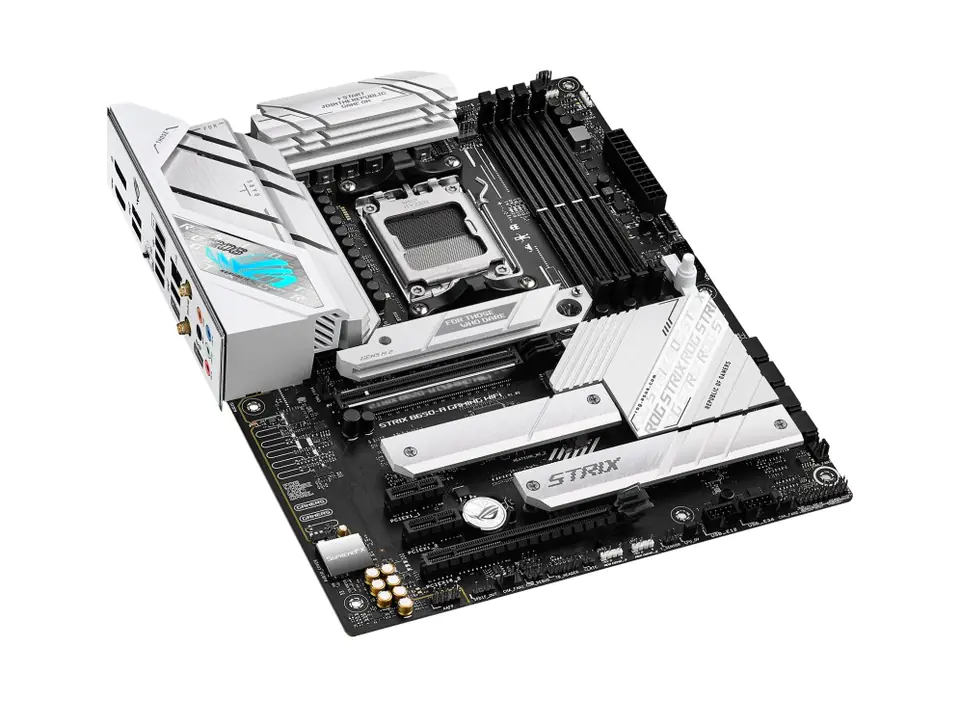

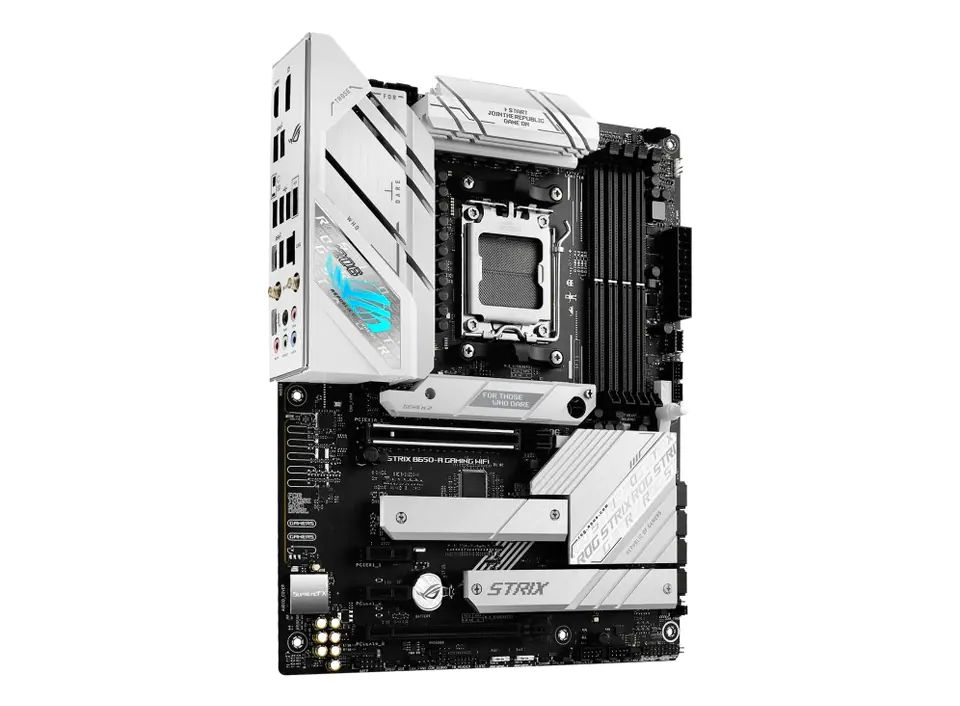

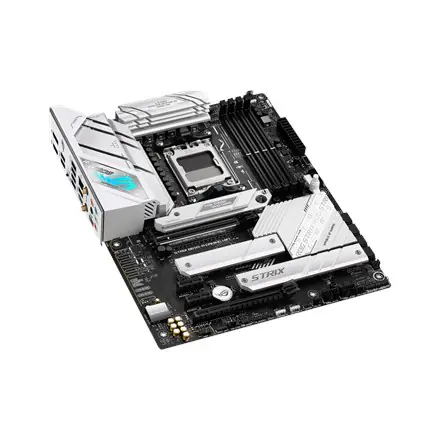

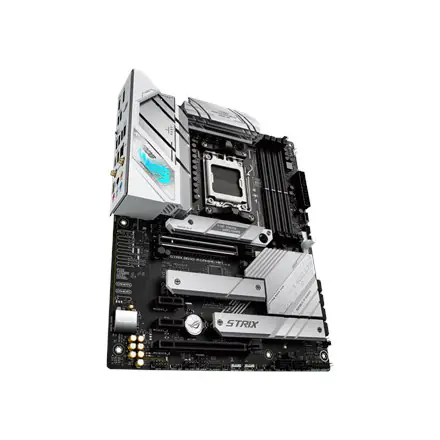

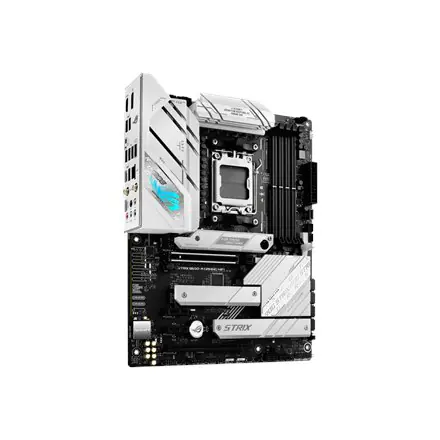

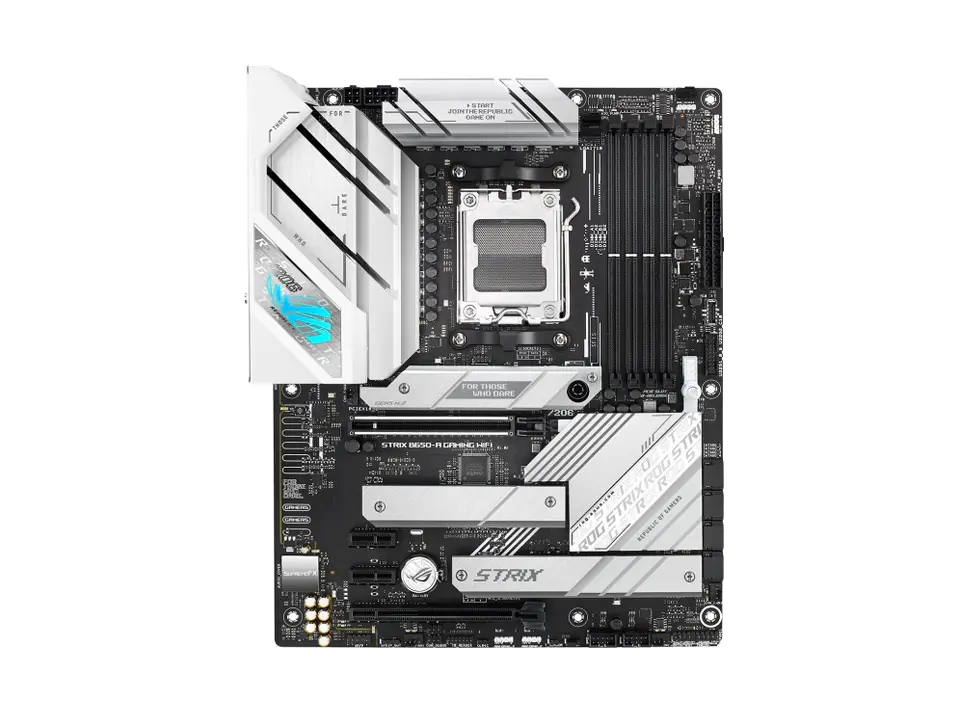

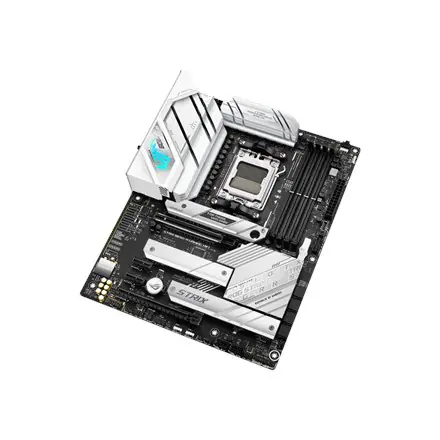

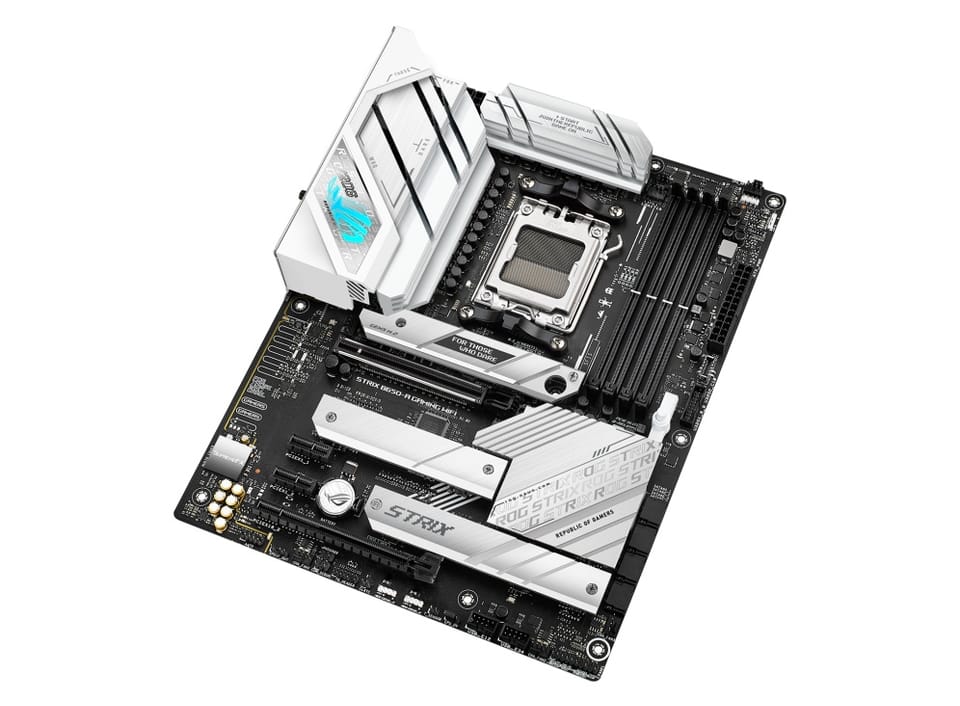

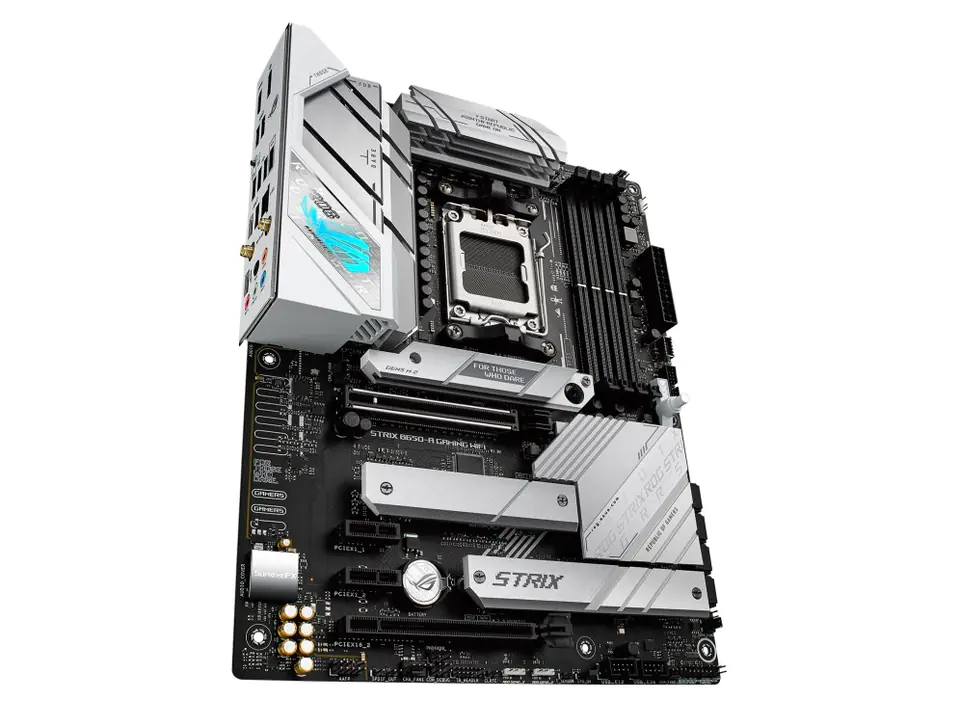

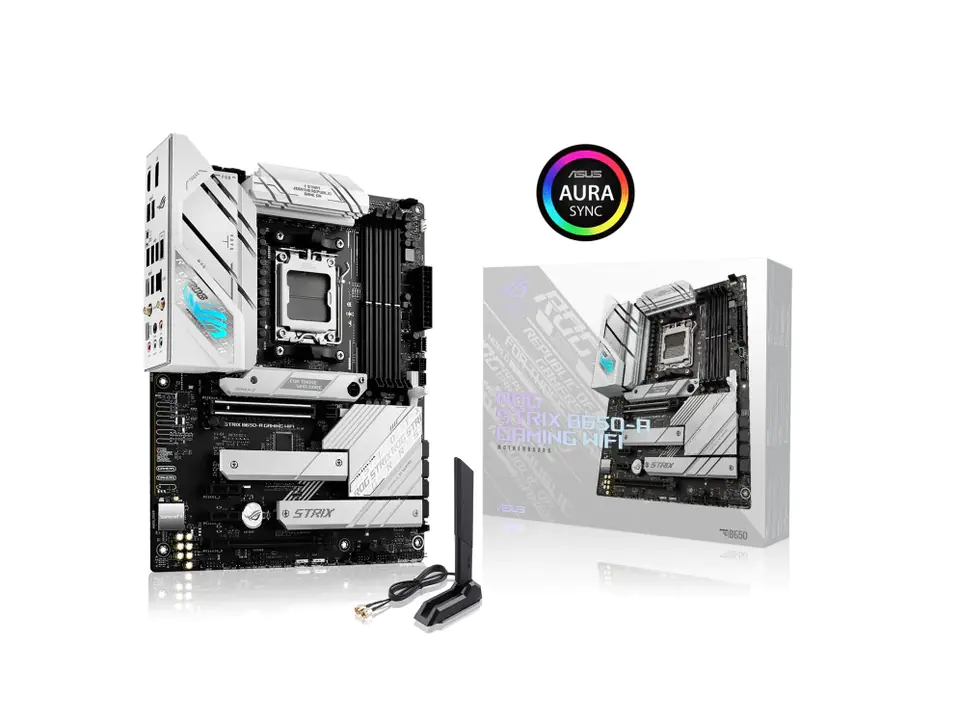

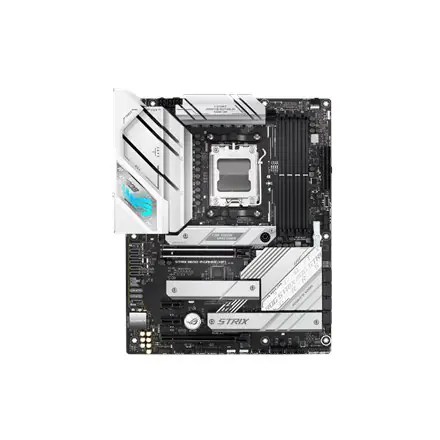

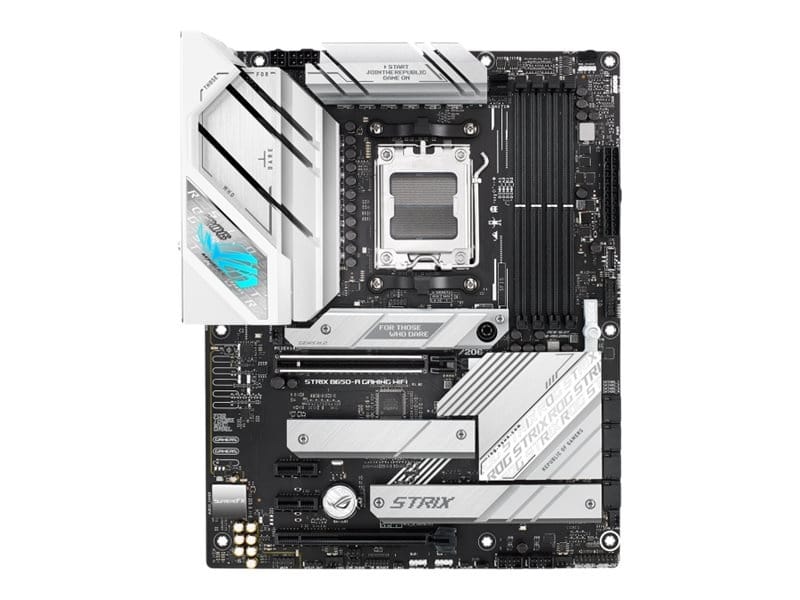

ROG Strix B650-A Gaming WiFi Motherboard
ROG Strix B650-A Gaming WiFi packs high-performance and thermal resistance into a fresh-looking chassis. A solid power supply designed to support AMDs latest Ryzen 7000-series processors is cooled by thick metal heatsinks that stand out against the black PCB. A PCIe 5.0 M.2 slot, support for fast DDR5 memory, and the latest Wi-Fi 6E complete the futuristic feature set.
