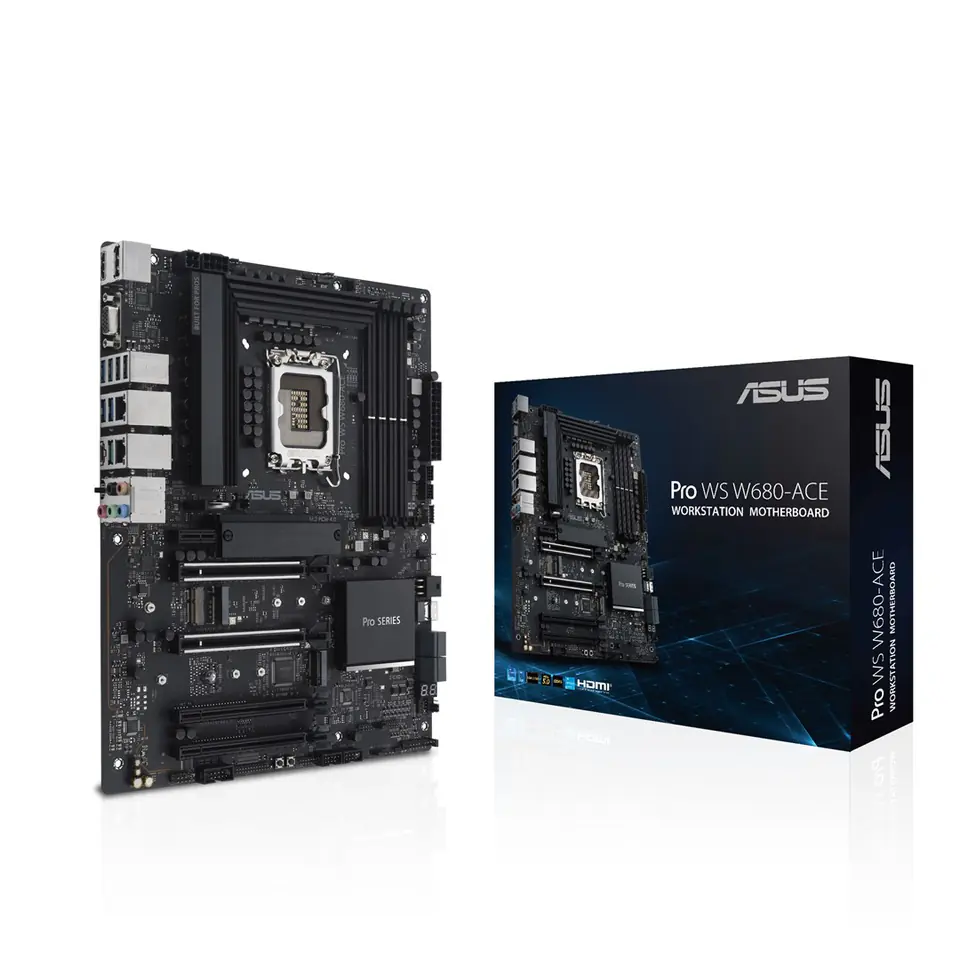

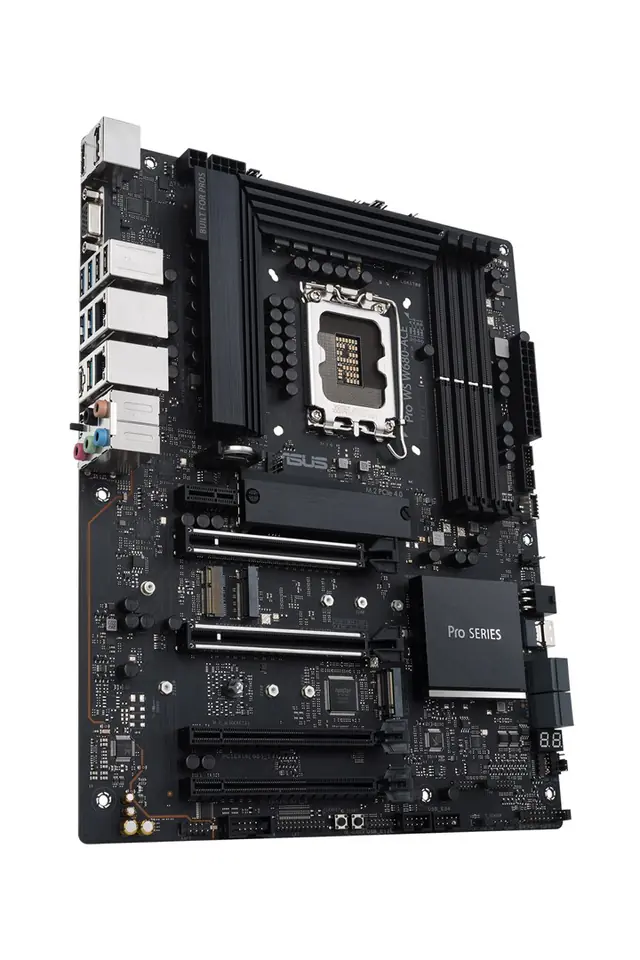

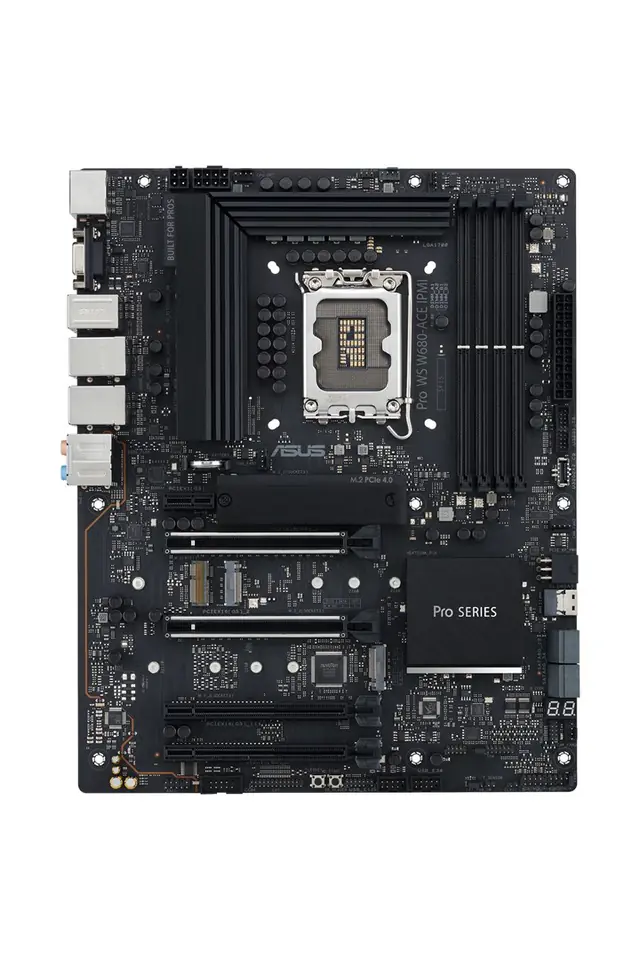

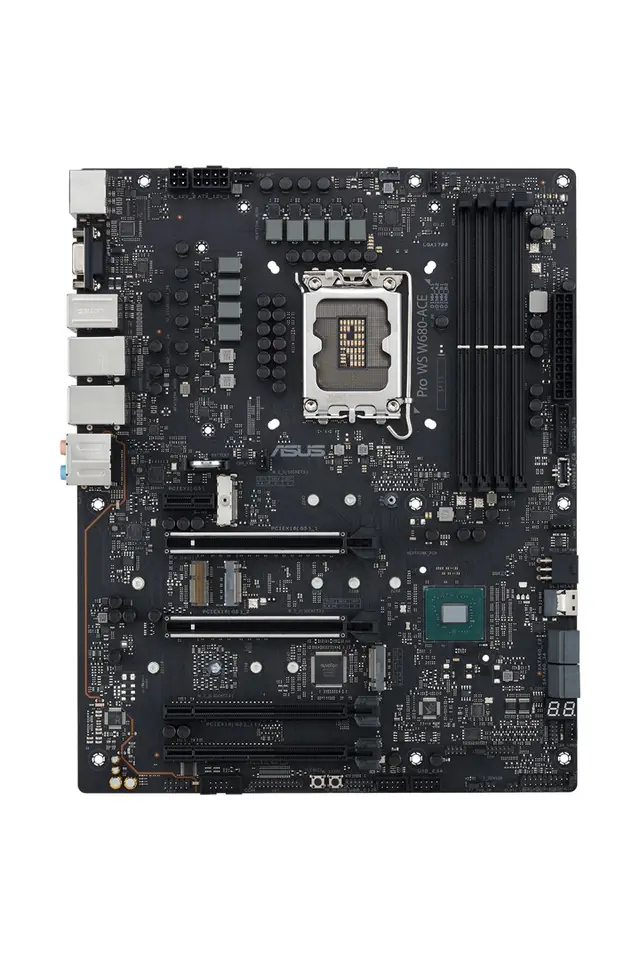

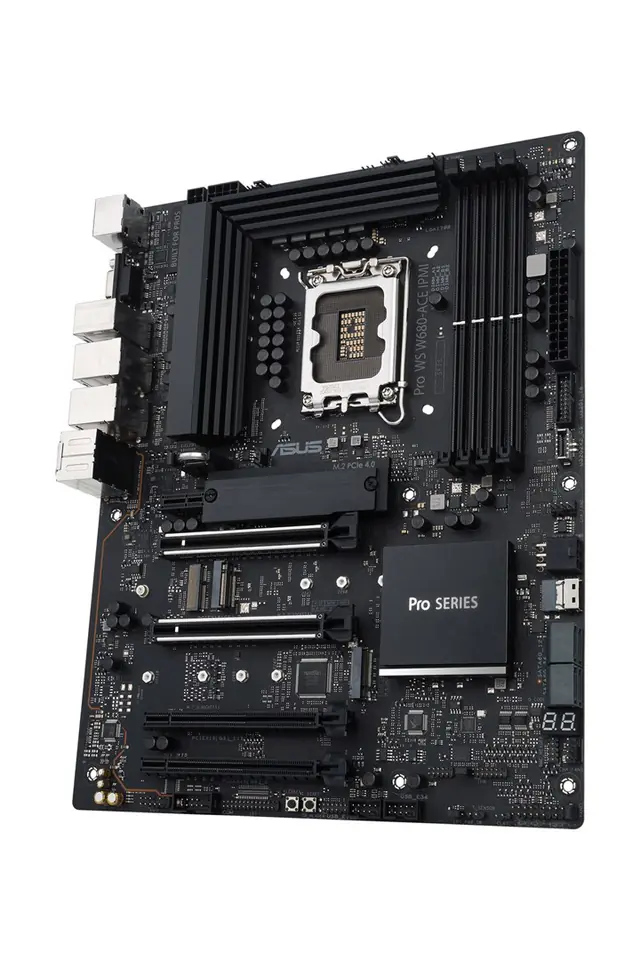

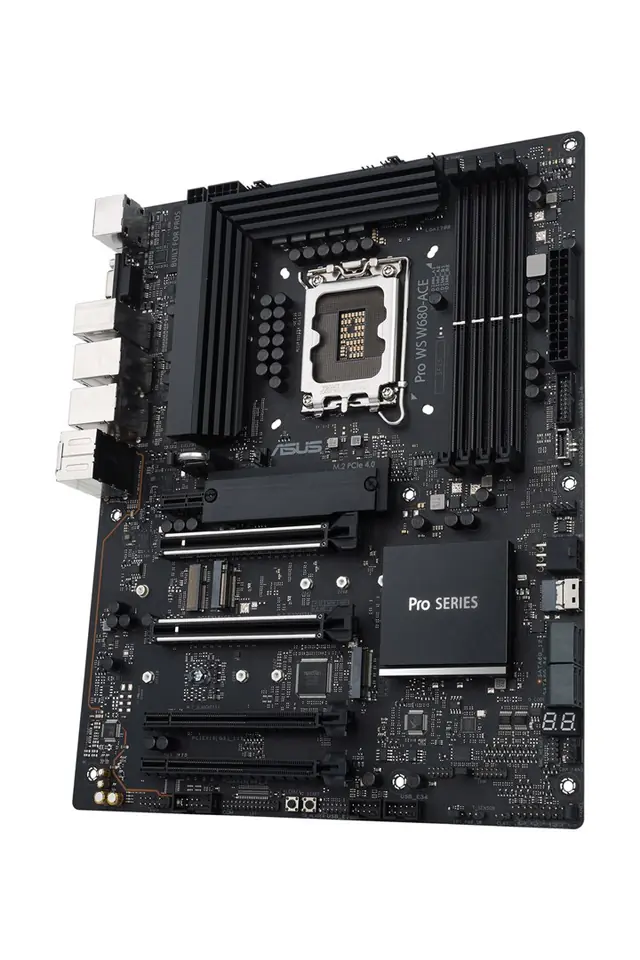

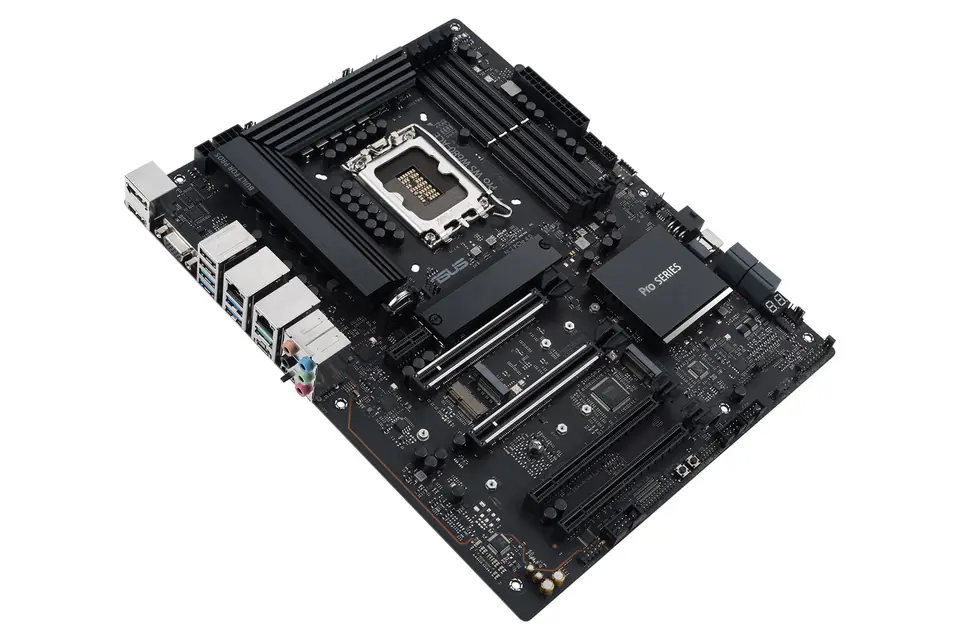

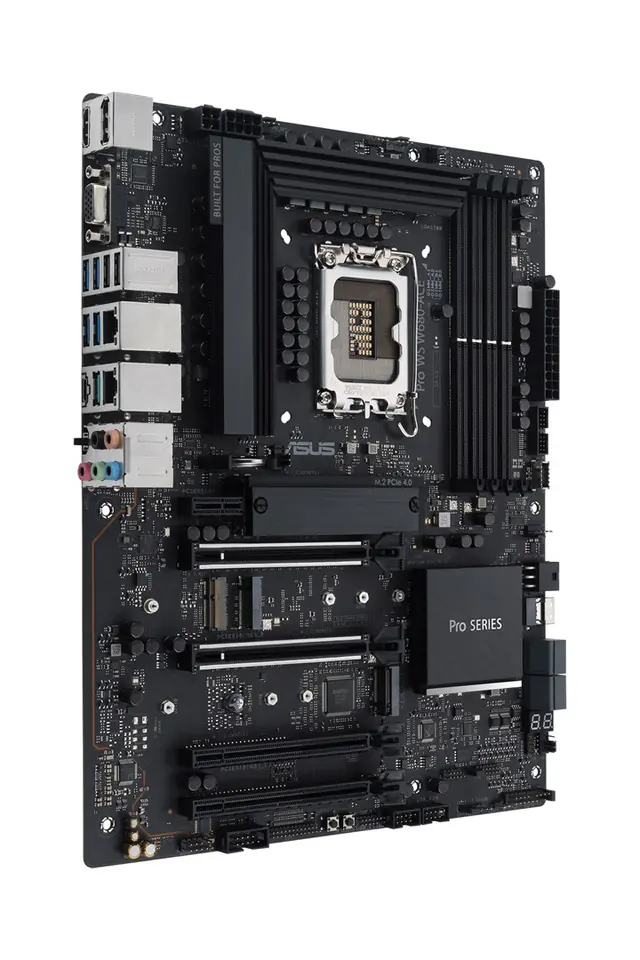

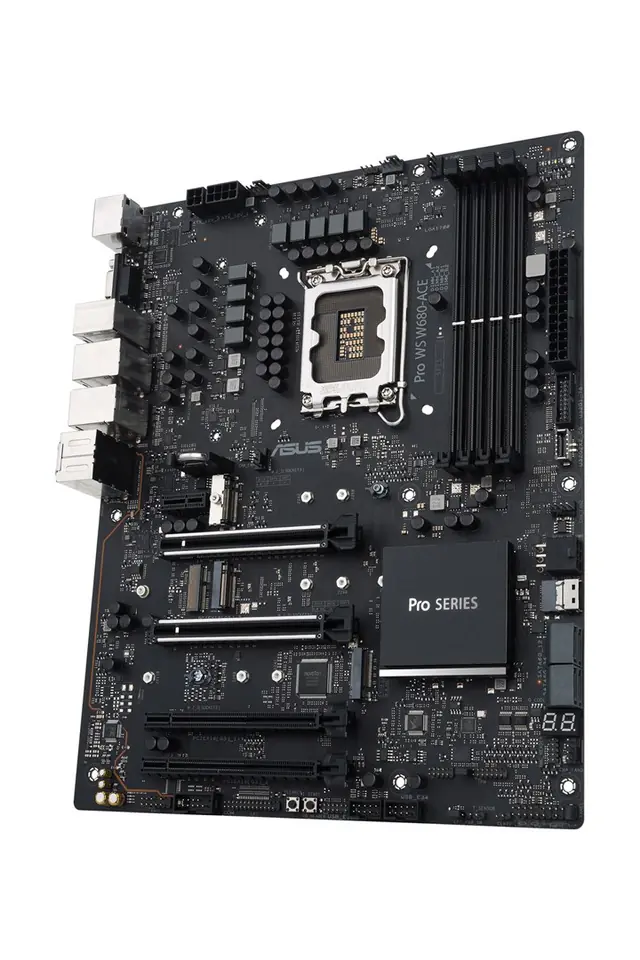

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX
€548.01
Shipping from warehouse: A3
Estimated shipping: Thu, Jul 31 - Mon, Aug 4
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1DZ0-M0EAY0 / 4711387006177
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Back-to-bios button: | Yes |
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI AMI |

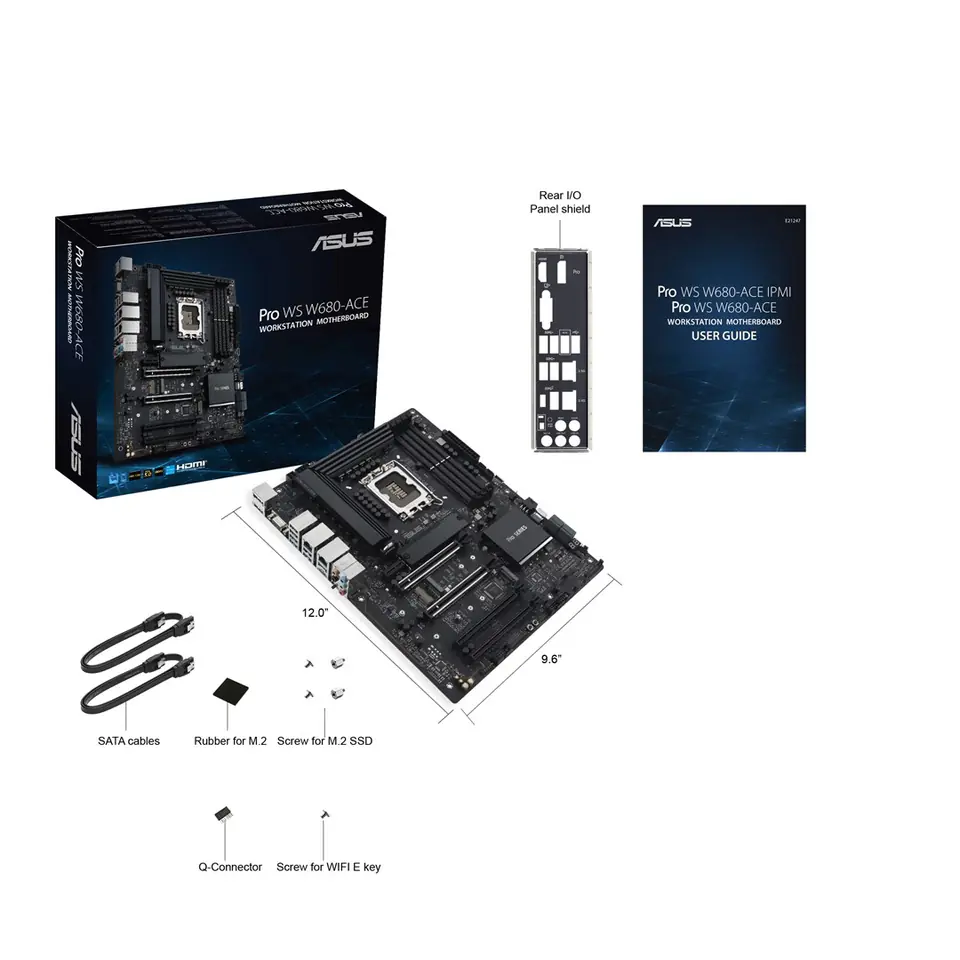

| Cables included: | SATA |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Component for: | PC |
| Cooling type: | Passive |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |

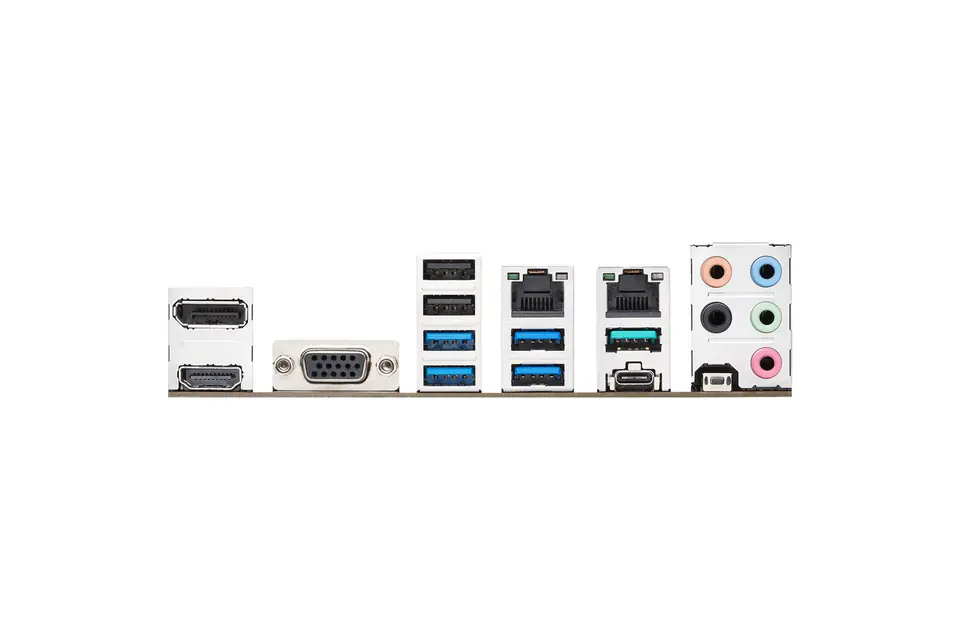

| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc: | Yes |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Height: | 50 mm |
| Integrated sas ports: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel W680 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 3 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 8 |
| Number of m.2 (e) slots: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 11 |
| Package depth: | 266 mm |
| Package height: | 76 mm |
| Package weight: | 1.18 kg |
| Package width: | 331 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 3.x) slots: | 2 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 0, 10, 1, 5 |
| Raid support: | Yes |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, NVMe, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| User guide: | Yes |
| Vga (d-sub) ports quantity: | 1 |
| Weight: | 997 g |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 11, Windows 10 x64 |
