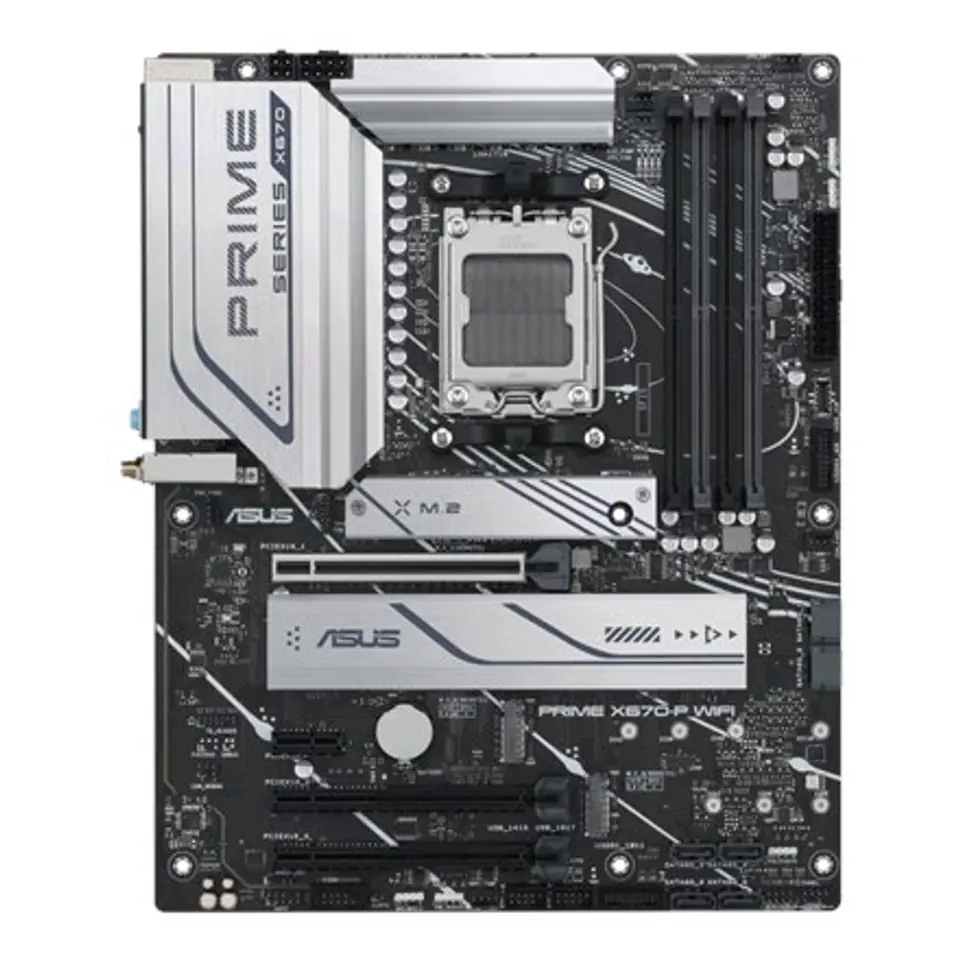

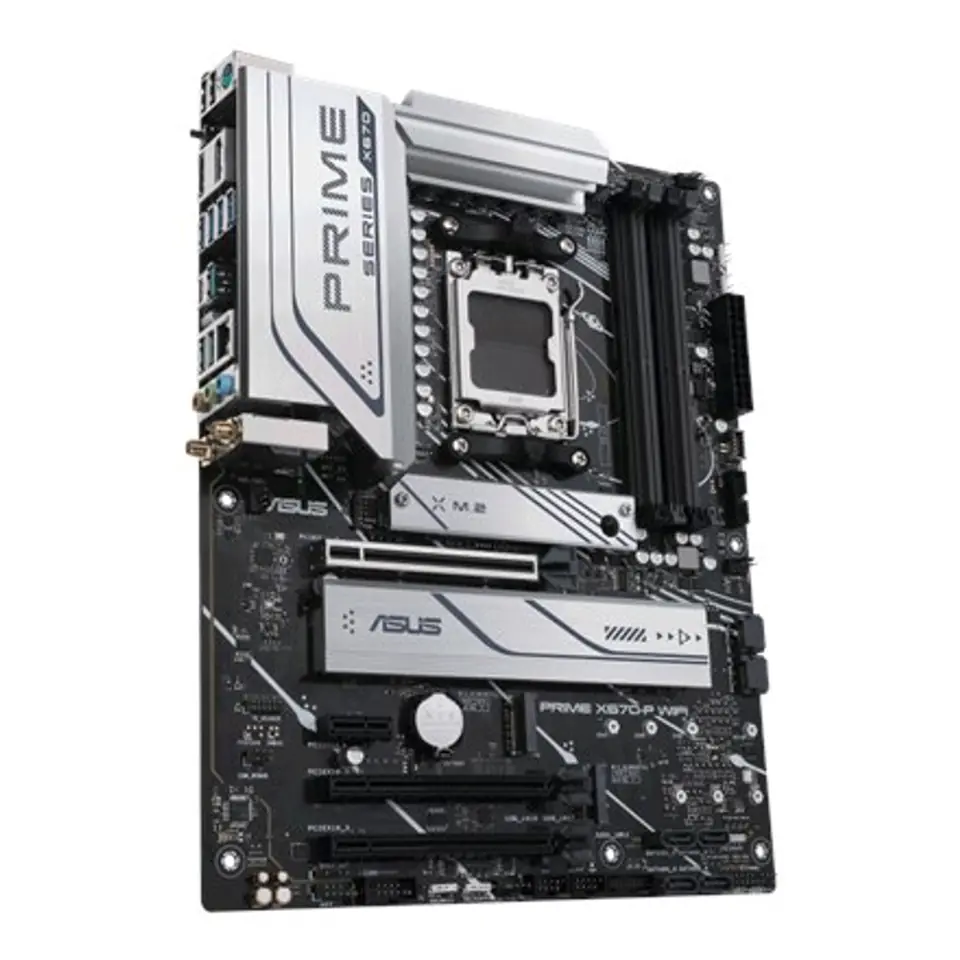

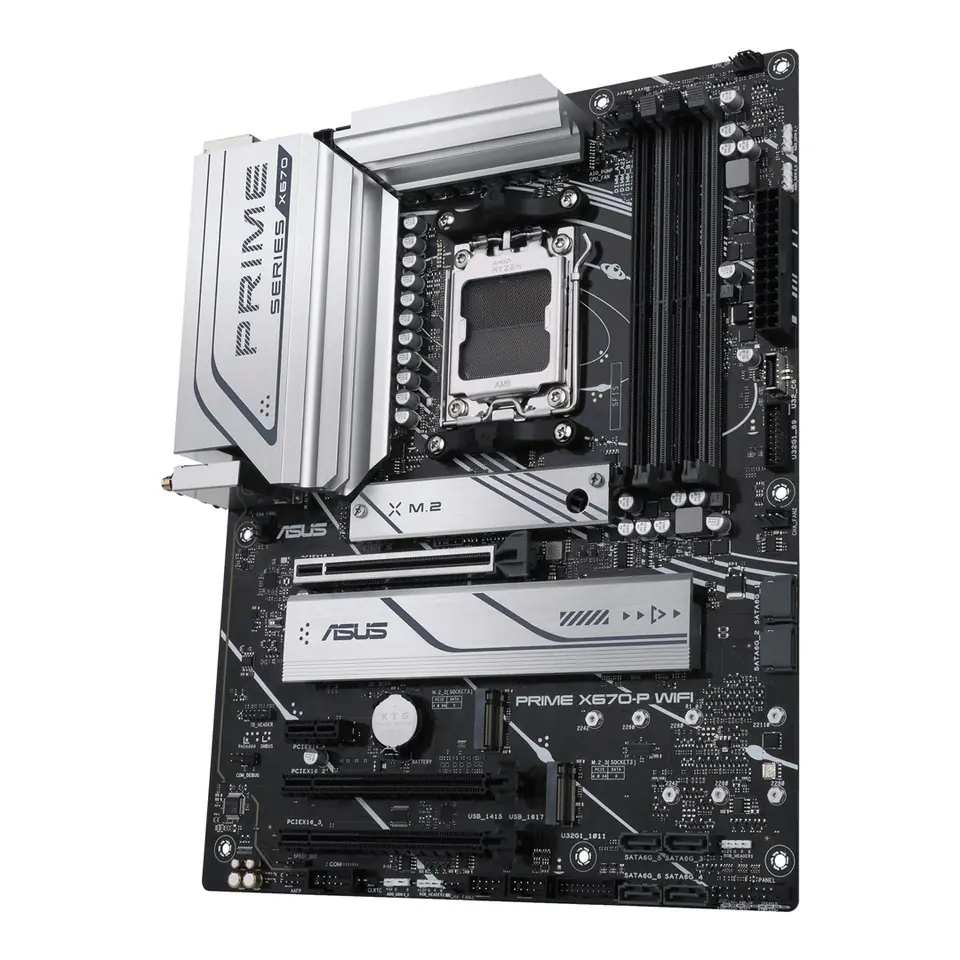

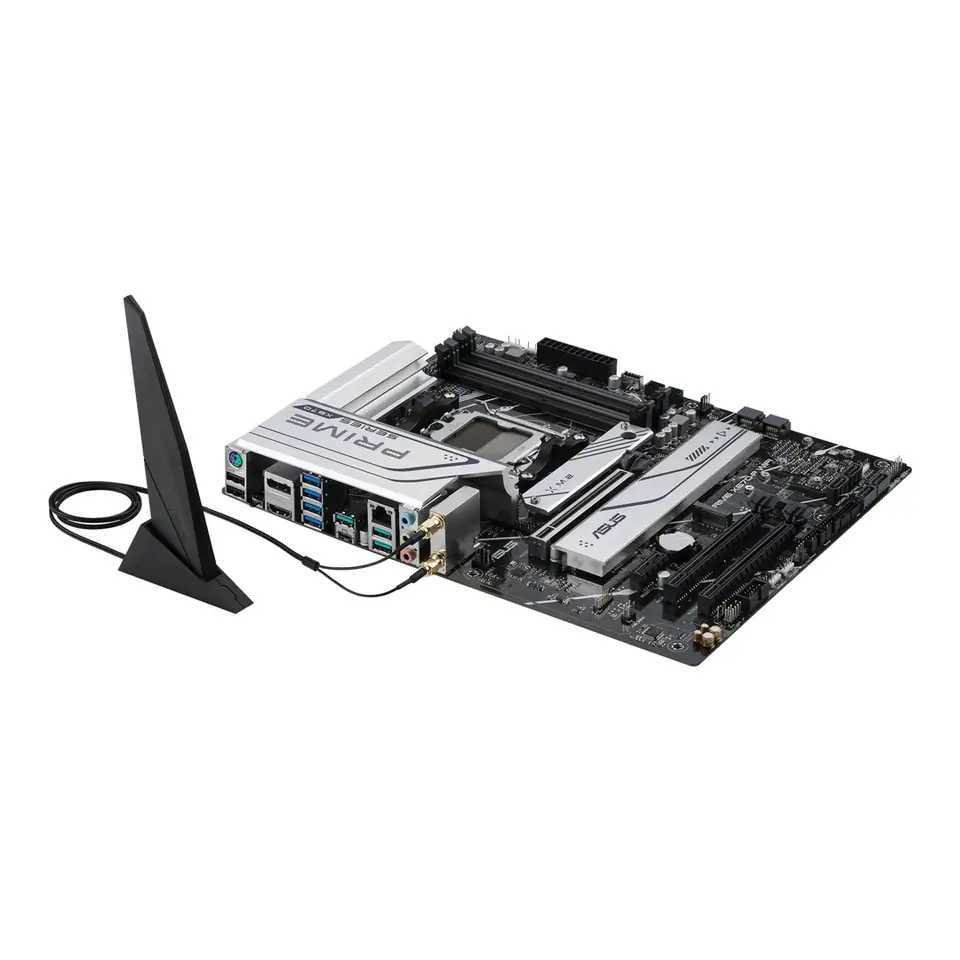

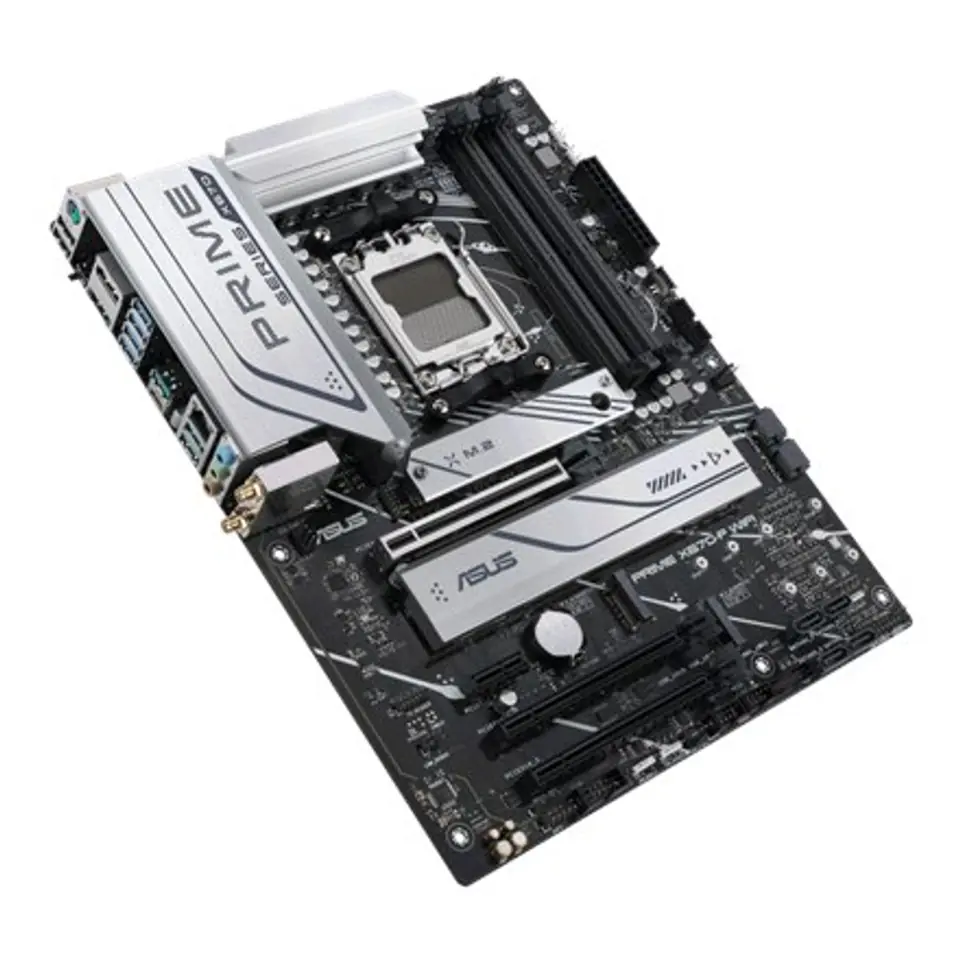

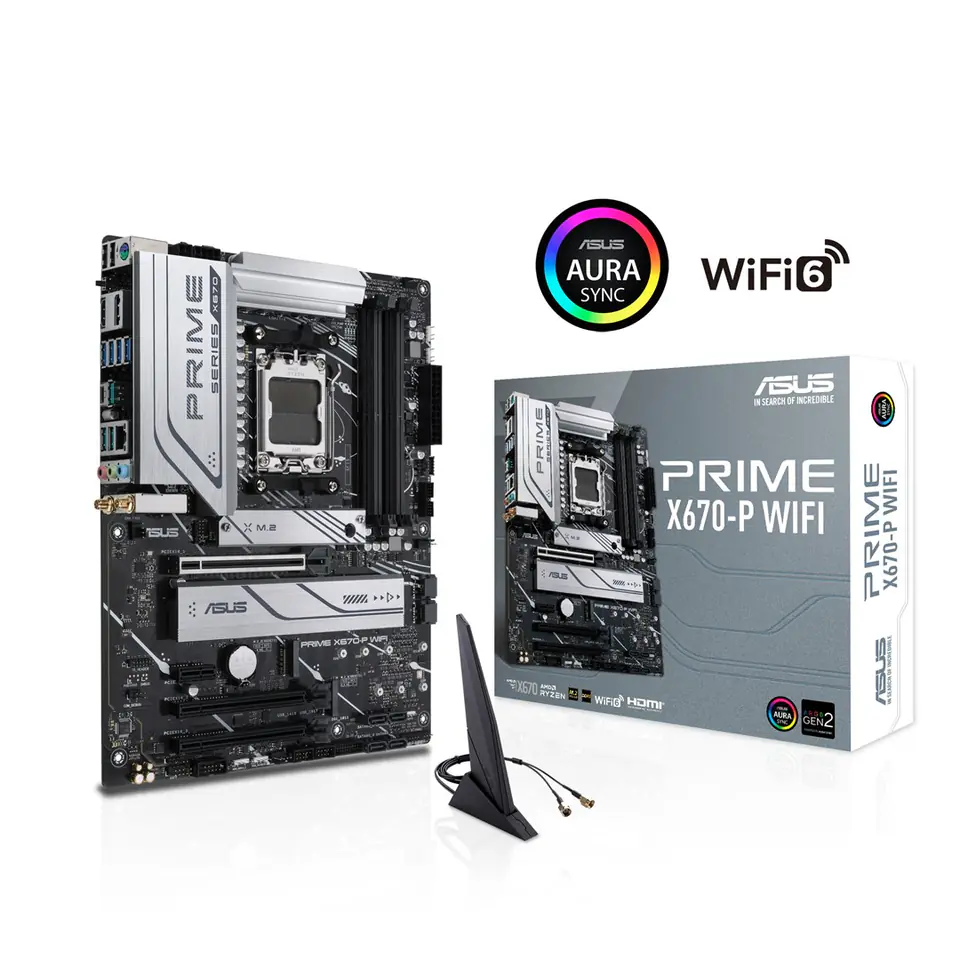

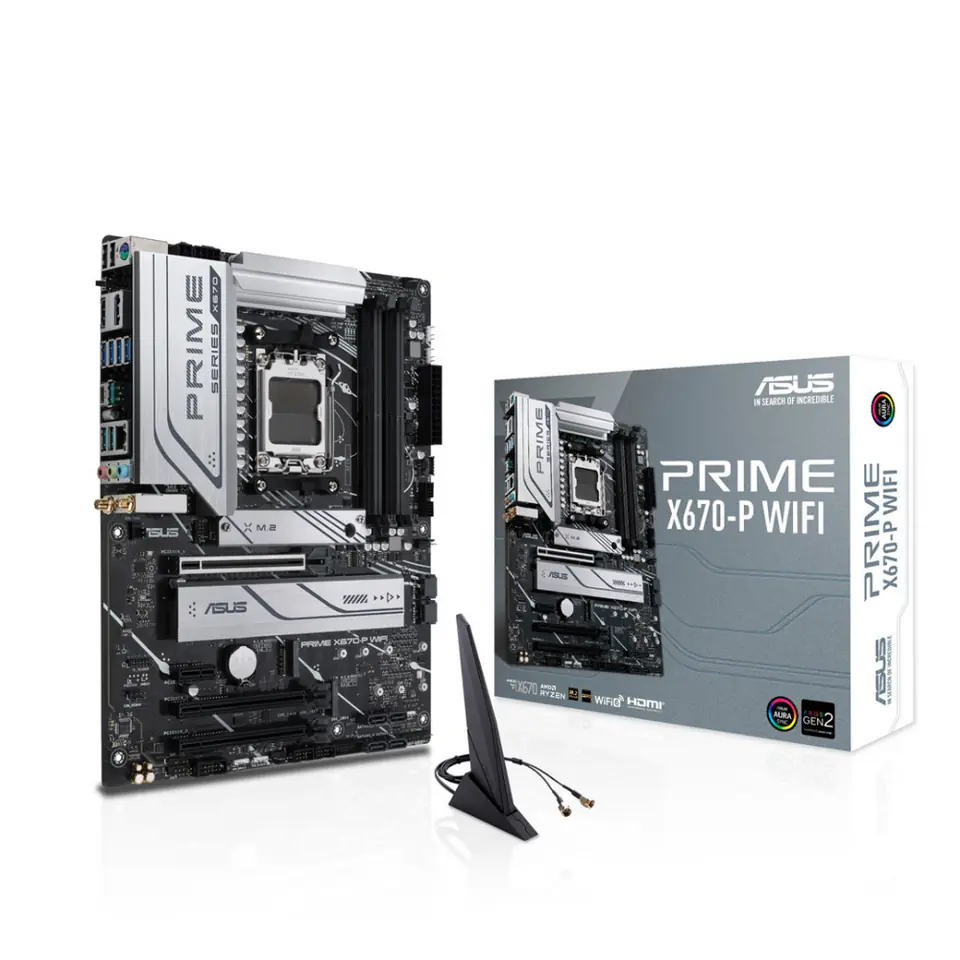

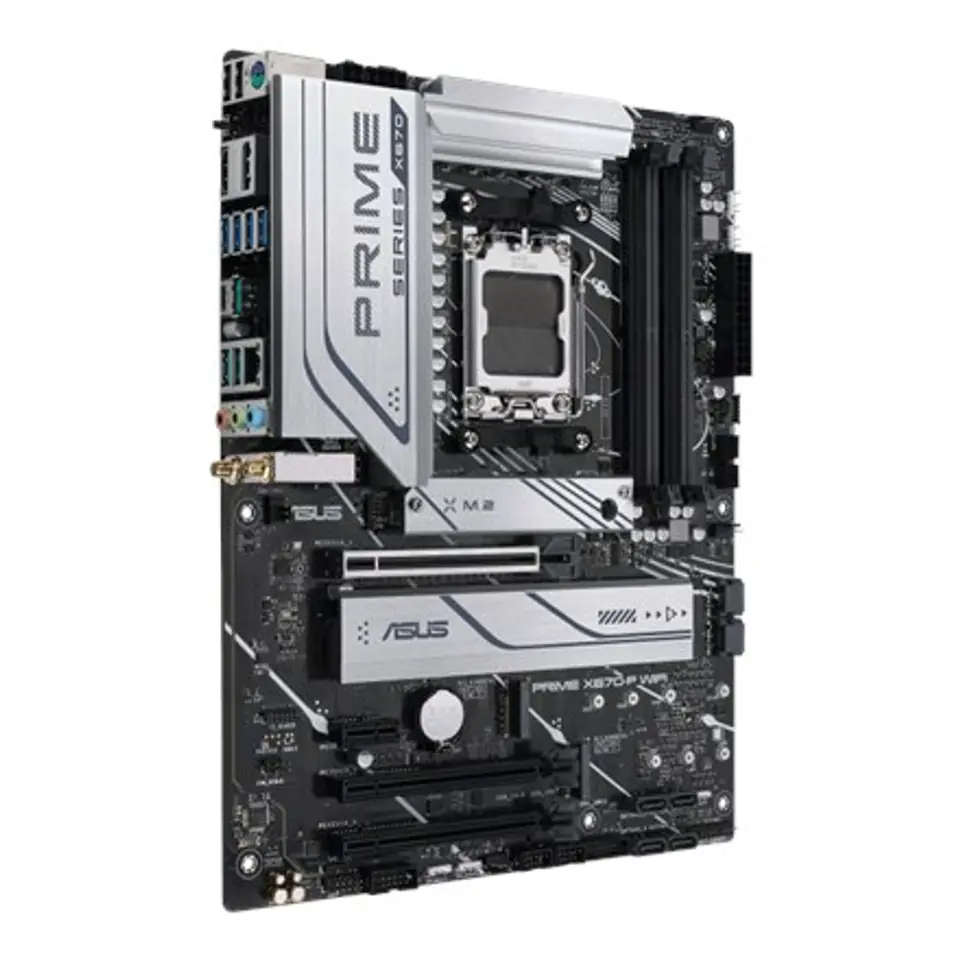

ASUS PRIME X670-P WIFI AMD X670 Socket AM5 ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB1BV0-M0EAY0 / 4711081884583
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayports quantity: | 1 |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 3840 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD X670 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 3 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| Number of storage drives supported: | 9 |
| Package depth: | 68 mm |
| Package height: | 273 mm |
| Package weight: | 1.9 kg |
| Package width: | 338 mm |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 4.x) slots: | 3 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 10, 1 |
| Raid support: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 5200, 5100 MHz, 6000 MHz, 5600, 4800 MHz, 5800, 5400, 6400, 6200 |
| Supported memory types: | DDR5-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 1 |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 3 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Weight: | 1.22 kg |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
