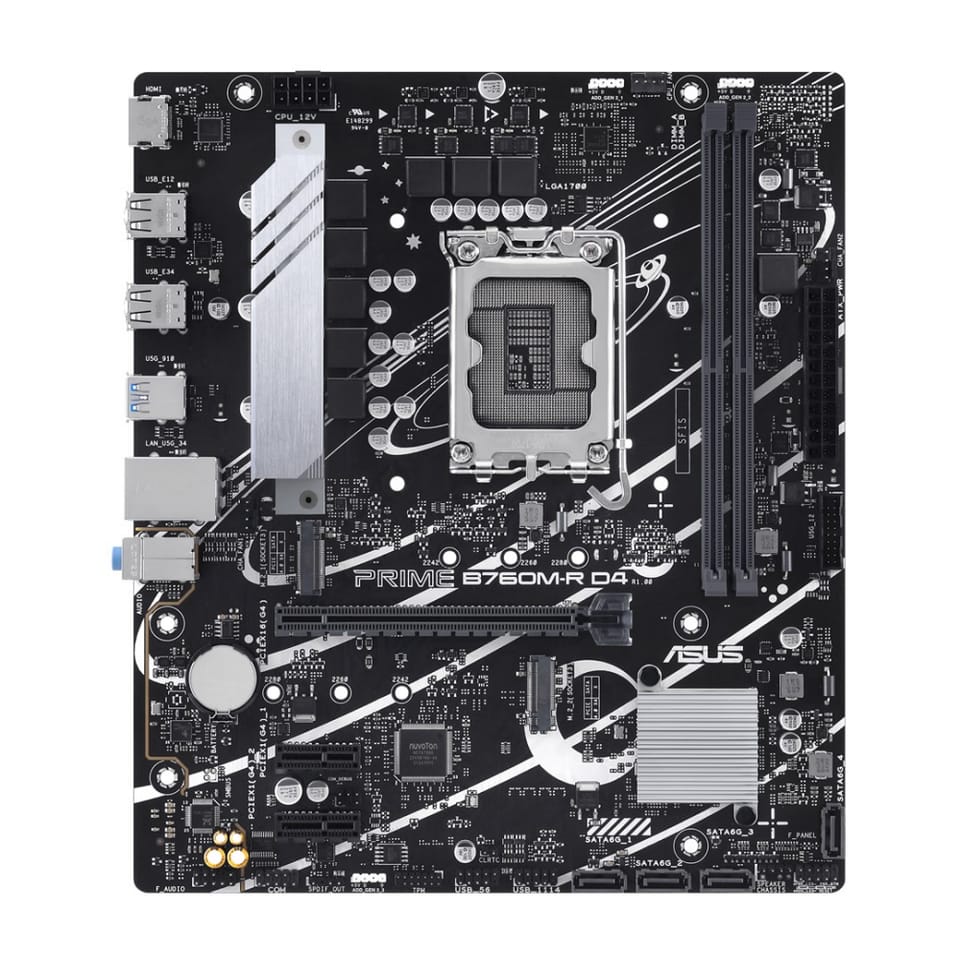

ASUS PRIME B760M-R D4 Intel B760 LGA 1700 micro ATX
€129.57
Shipping from warehouse: M7
Estimated shipping: Wed, Apr 30 - Mon, May 5
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90MB1HA0-M0EAY0 / 4711387423769
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | Intel Core i7 12th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 13th Gen, Intel Core i9 14th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen |
| Cooling type: | Passive |
| Cpu fan connector: | Yes |
| Depth: | 211 mm |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 263 mm |
| Package height: | 51.5 mm |
| Package weight: | 903 g |
| Package width: | 270 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 4.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Black |
| Raid levels: | 5, 1, 10, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 3200 MHz, 2933, 3600, 2133, 3333, 2666, 4266, 3466, 4600, 3000, 5333, 4000, 4800 MHz, 2400, 2800, 5066, 3733, 4400 MHz, 5000, 3400 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
