- Intel B760 (LGA 1700) motherboard mATX, PCIe 4.0, dual M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, dual HDMI, SATA 6Gb/s, USB 3.2 Gen 2 rear, USB 3.2 Gen 1 front C, Aura Sync
- Intel Socket LGA 1700: Ready for 13th and 12th Gen Intel processors

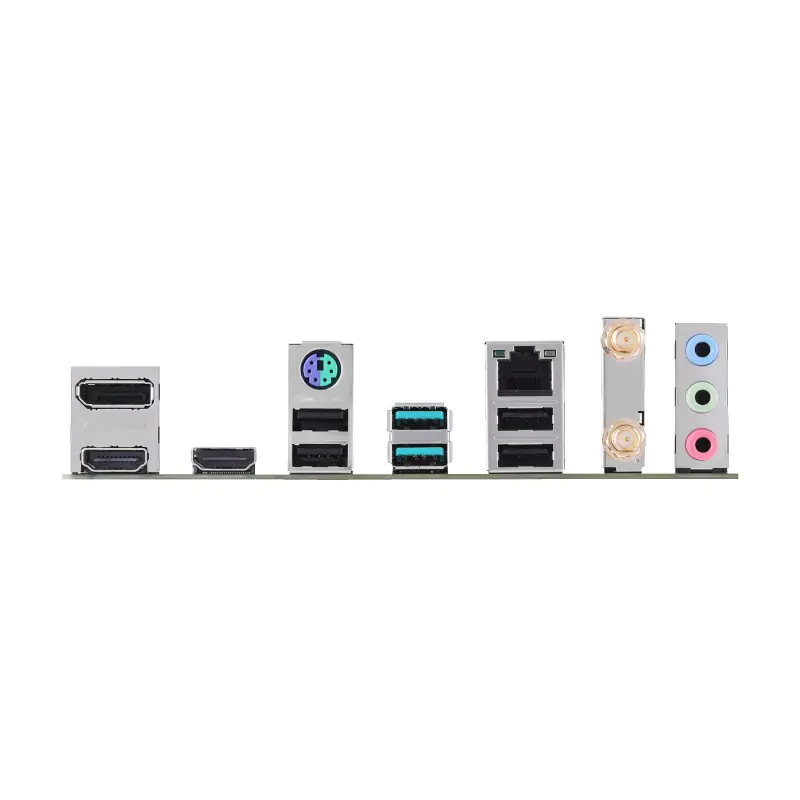

- Ultrafast connectivity: PCIe 4.0, dual M.2, Realtek 2.5Gb Ethernet, Wi-Fi 6, USB 3.2 Gen 2 rear, USB 3.2 Gen 1 Type-C front
- Comprehensive cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Careful trace and via routing and base layer optimization to preserve signal integrity for better memory overclocking
- Aura Sync RGB Lighting: Built-in addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily syncs with Aura Sync-enabled hardware

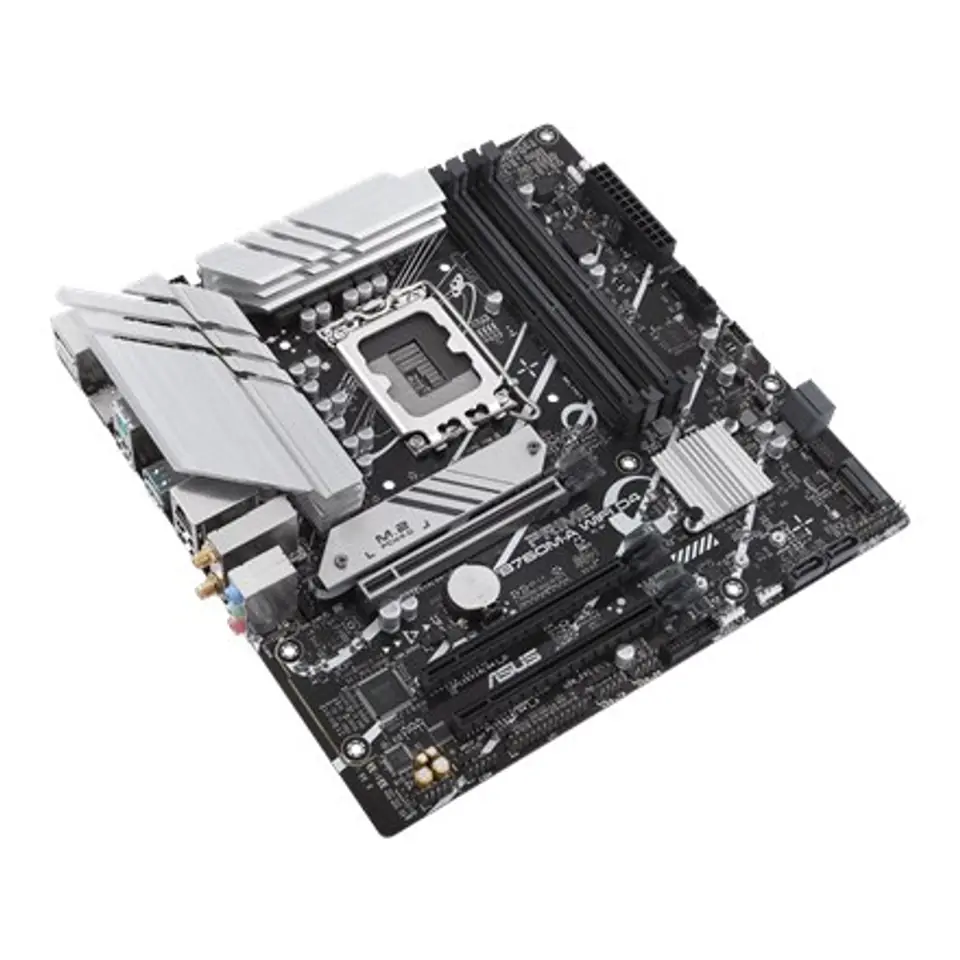

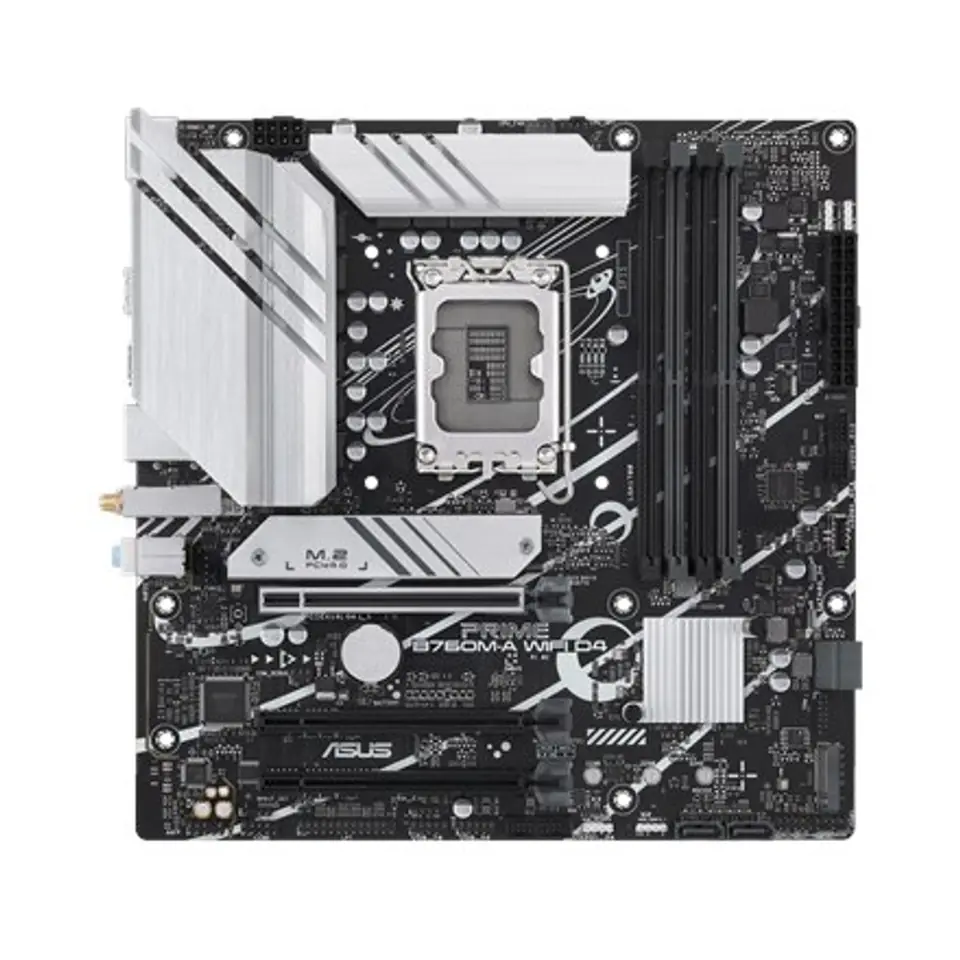

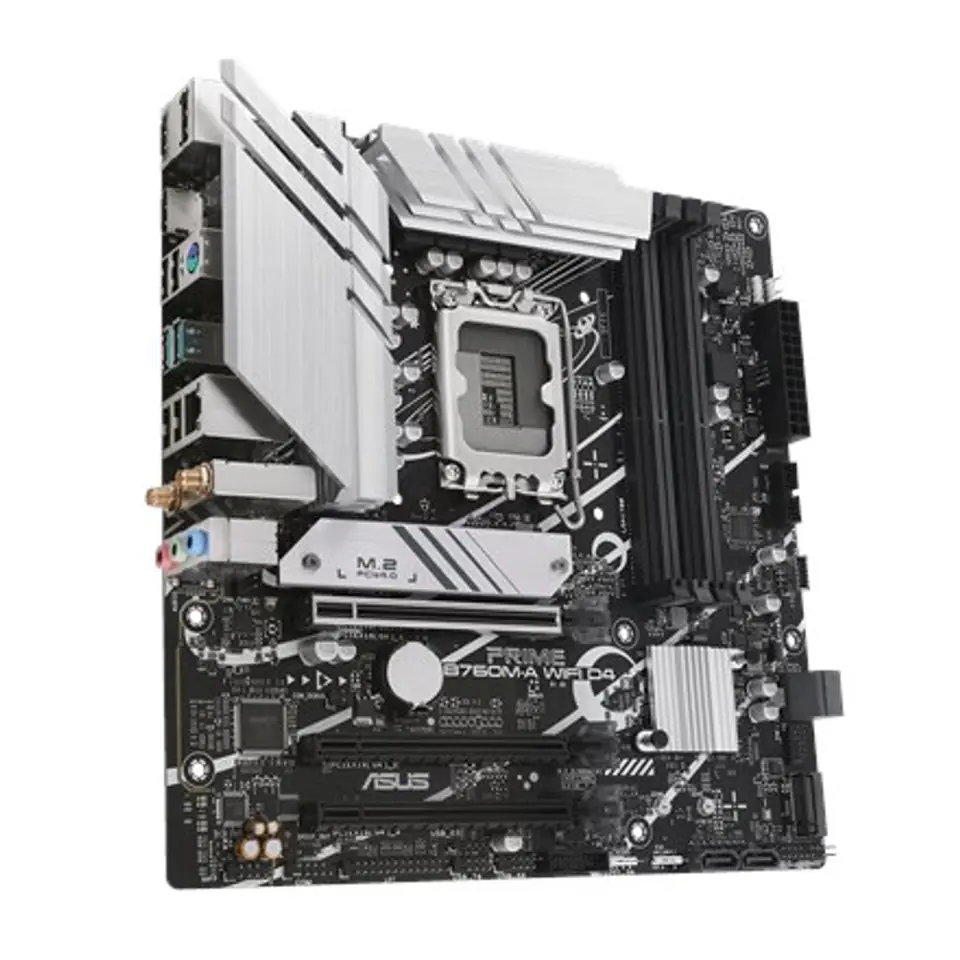

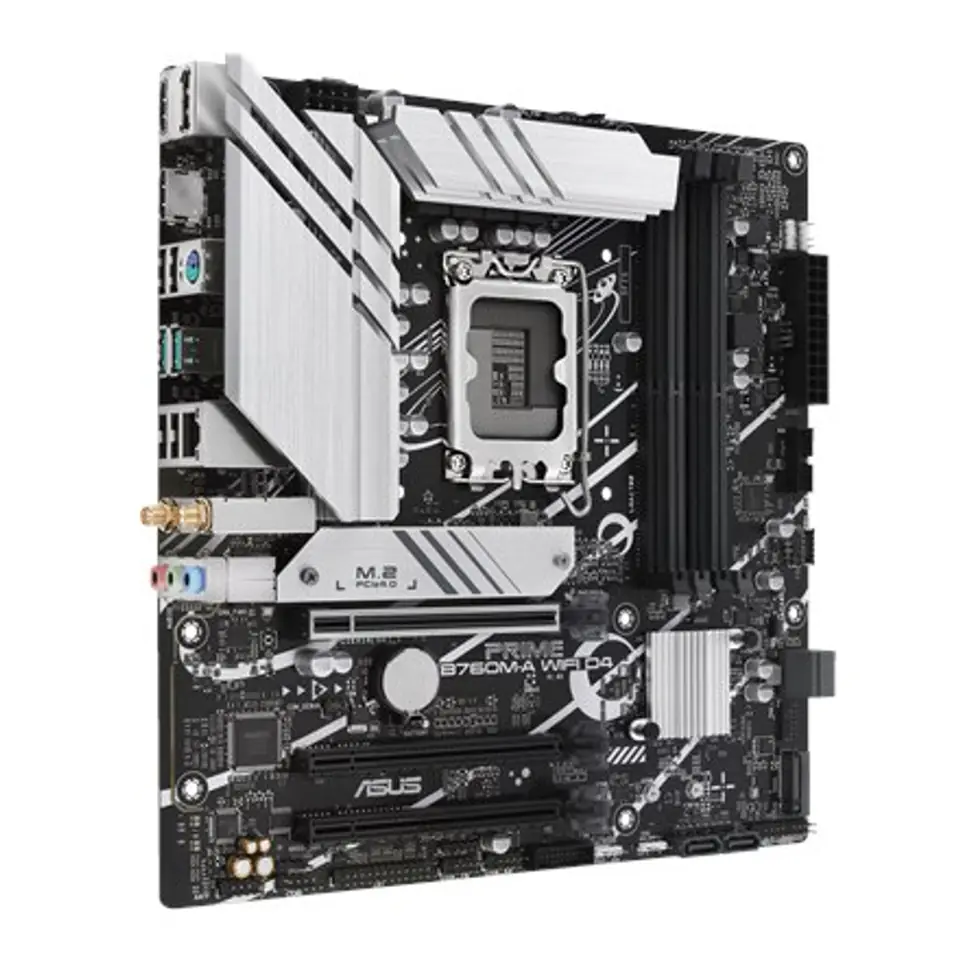

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
€138.66
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1CX0-M0EAY0 / 4711081982661
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |

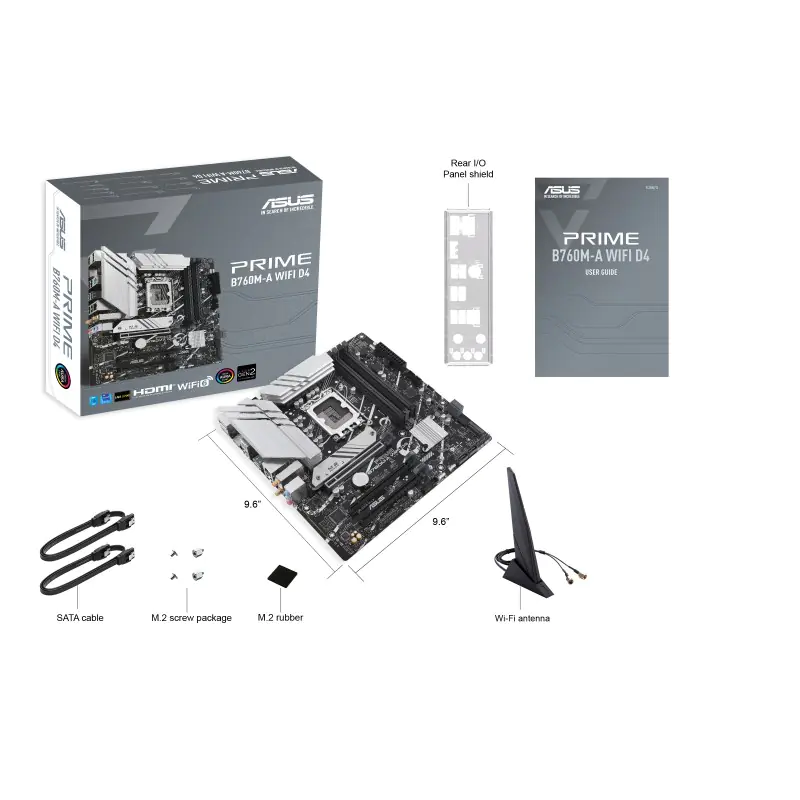

| Cables included: | SATA |
| Clear cmos button: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 2 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 3 |
| Line-in: | Yes |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 275 mm |
| Package height: | 67.5 mm |
| Package weight: | 1.4 kg |
| Package width: | 275 mm |
| Parallel processing technology support: | Not supported |
| Pci express x16 (gen 4.x) slots: | 3 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 10, 5, 1, 0 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 3333, 3400, 3200 MHz, 2666, 4266, 3466, 2133, 3000, 5333, 4600, 4000, 4800, 3733, 4400 MHz, 5000, 2400, 2800, 5066, 2933, 3600 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 3 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 11, Windows 10 x64 |
