Intel B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet, Intel Wi-Fi 6, DP, 2 x HDMI, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 -C, aura sync

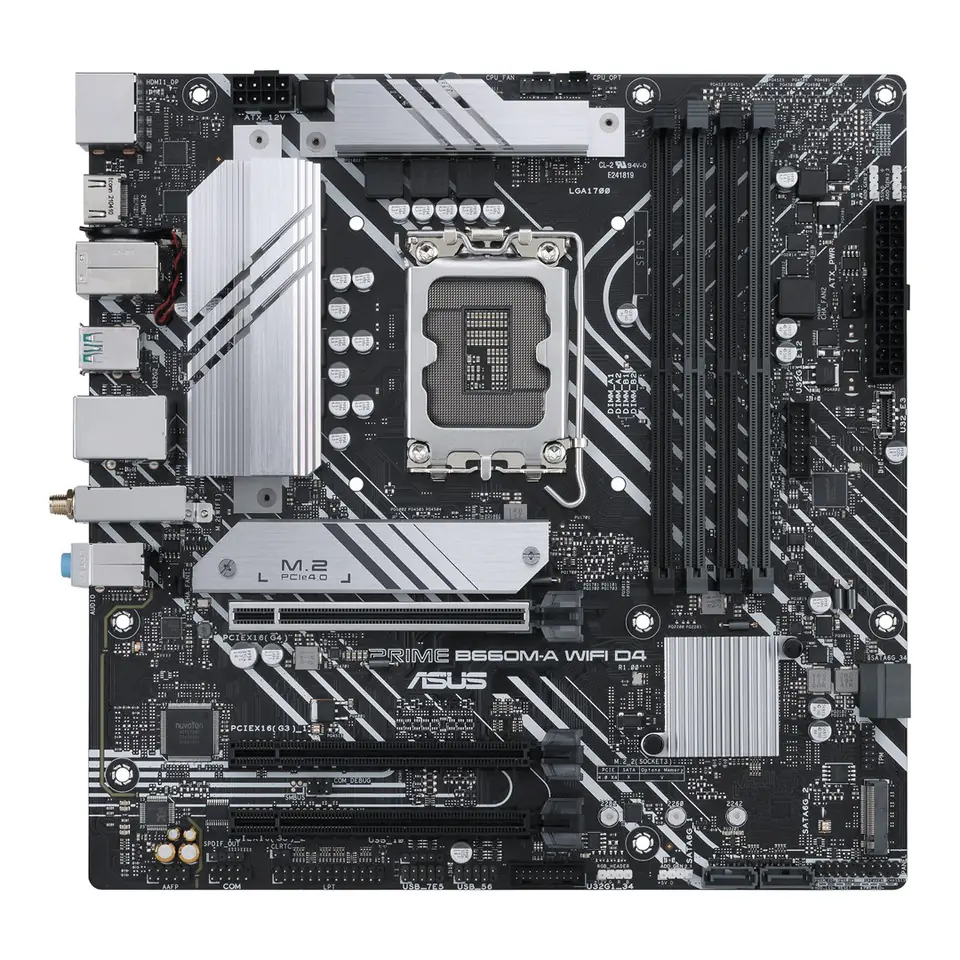

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
€136.07
Shipping from warehouse: A3
Estimated shipping: Wed, Oct 29 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90MB1AE0-M1EAY0 / 4711081518105
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cables included: | SATA |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Drivers included: | Yes |
| Ecc сompatibility: | Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 2 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Height: | 60 mm |
| Maximum internal memory: | 128 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B660 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of com connectors: | 1 |
| Number of displays supported: | 3 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Pci express x16 (gen 3.x) slots: | 2 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 0, 5, 10 |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 3333, 3200 MHz, 2666, 3000, 5333, 3400, 3733, 4400 MHz, 5000, 4000, 4800 MHz, 2933, 3600, 3466, 4600, 2400, 2800, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6 (802.11ax) |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 3 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Weight: | 819 g |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
