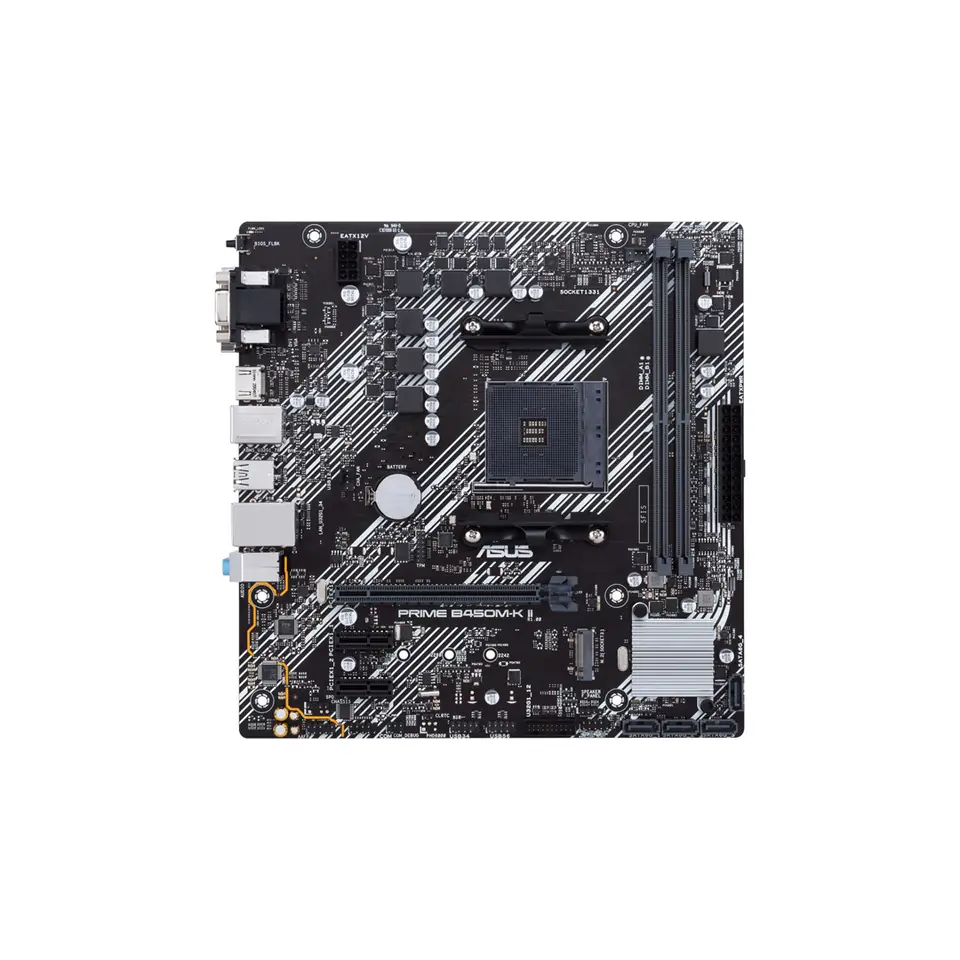

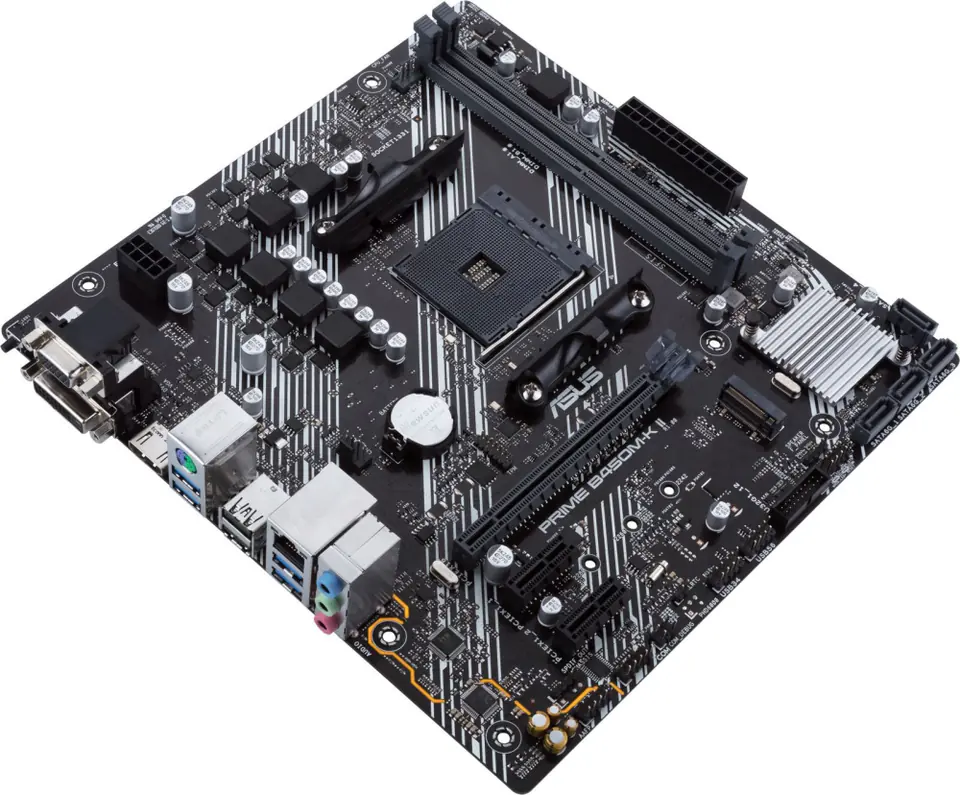

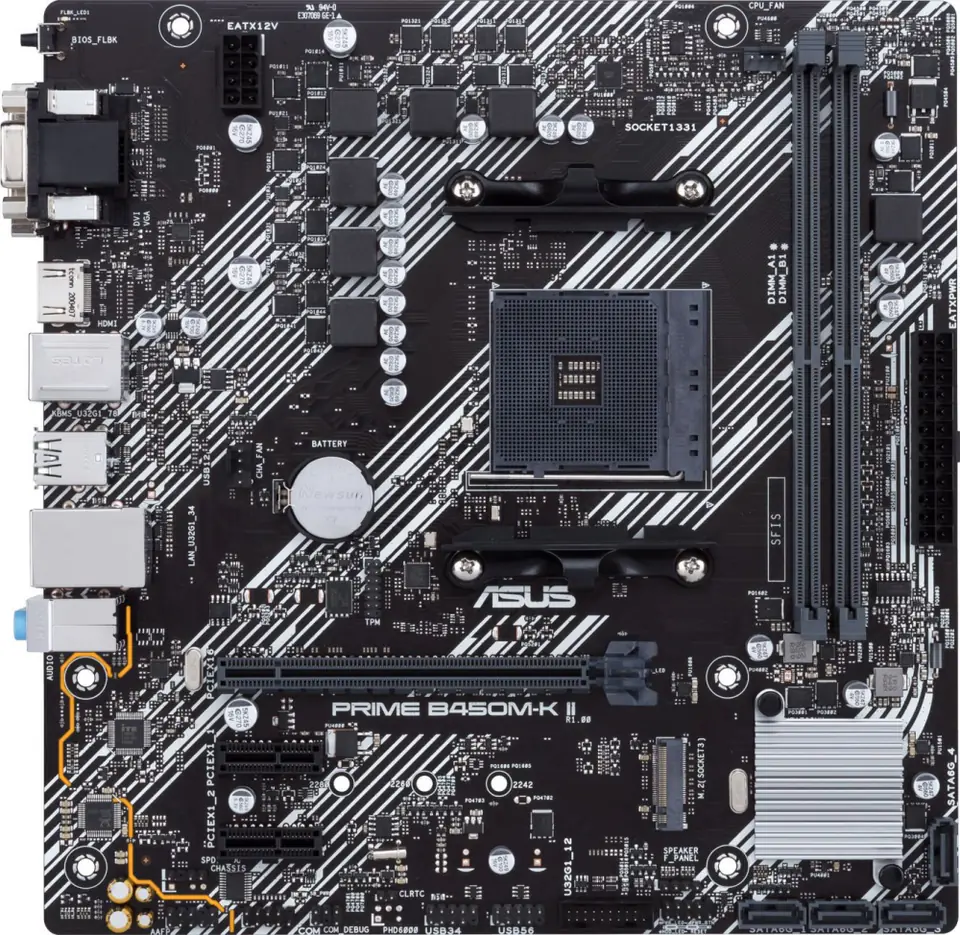

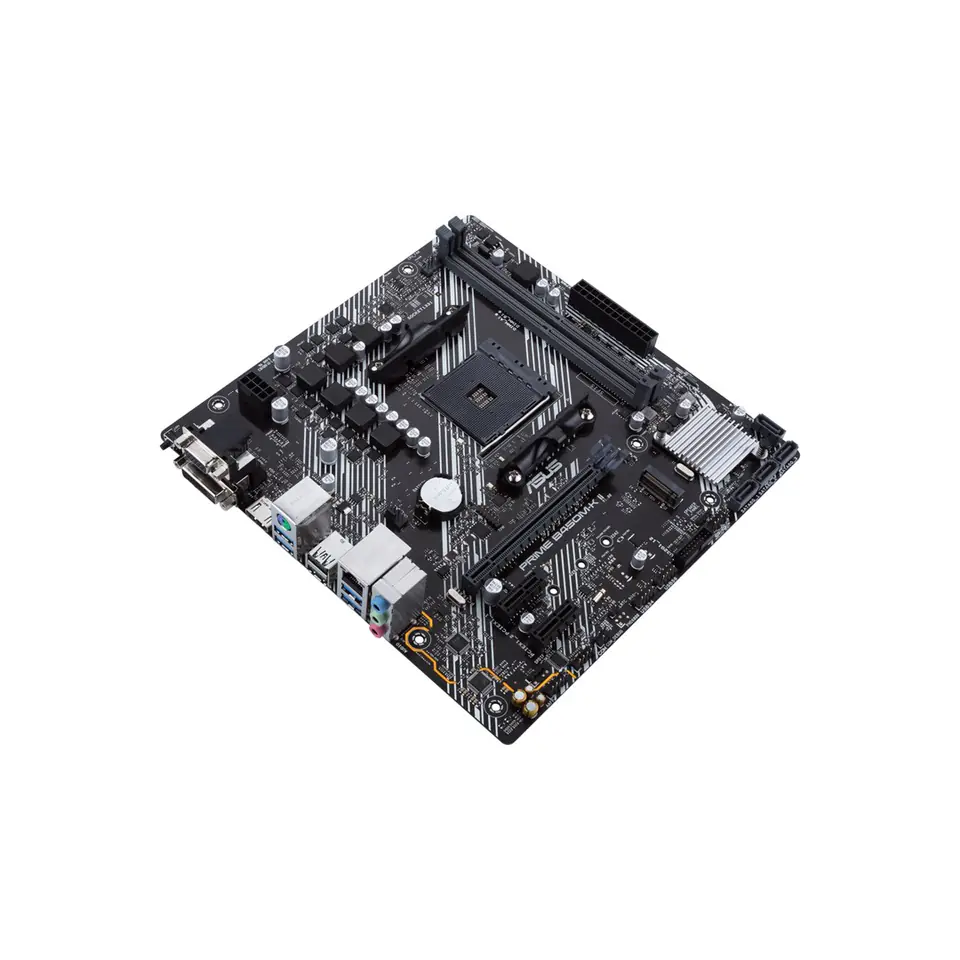

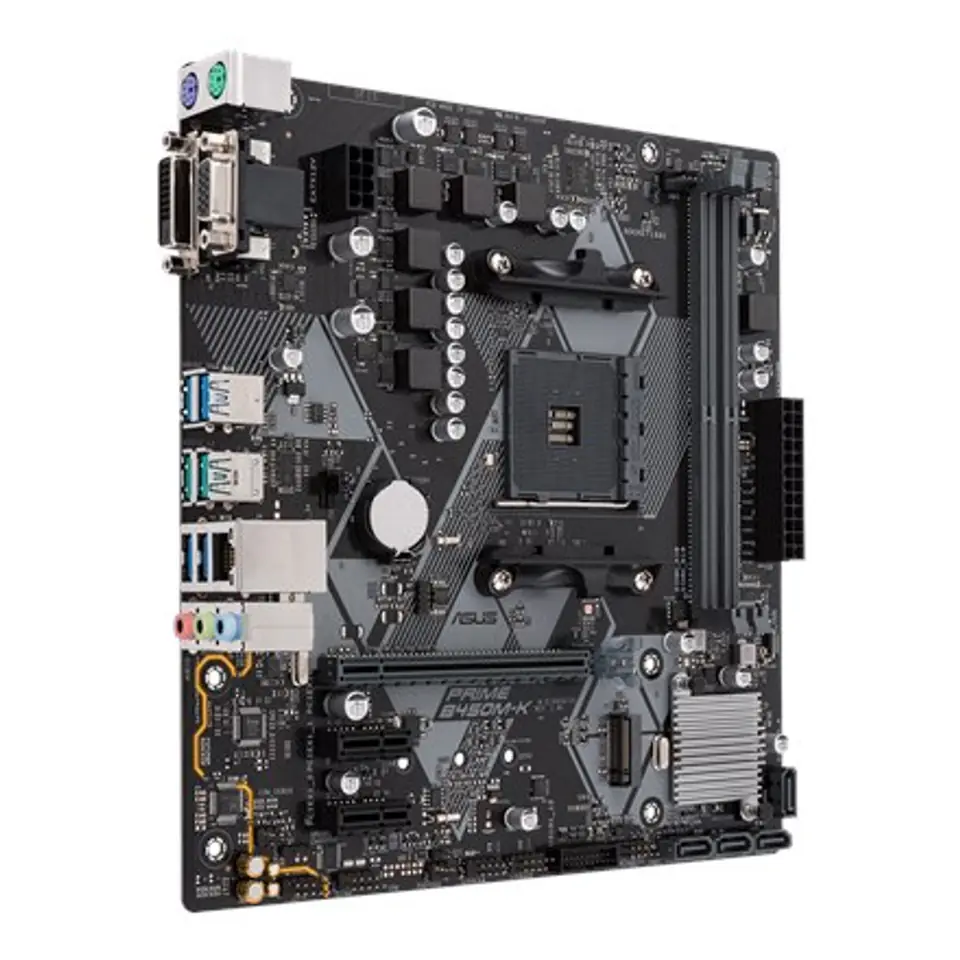

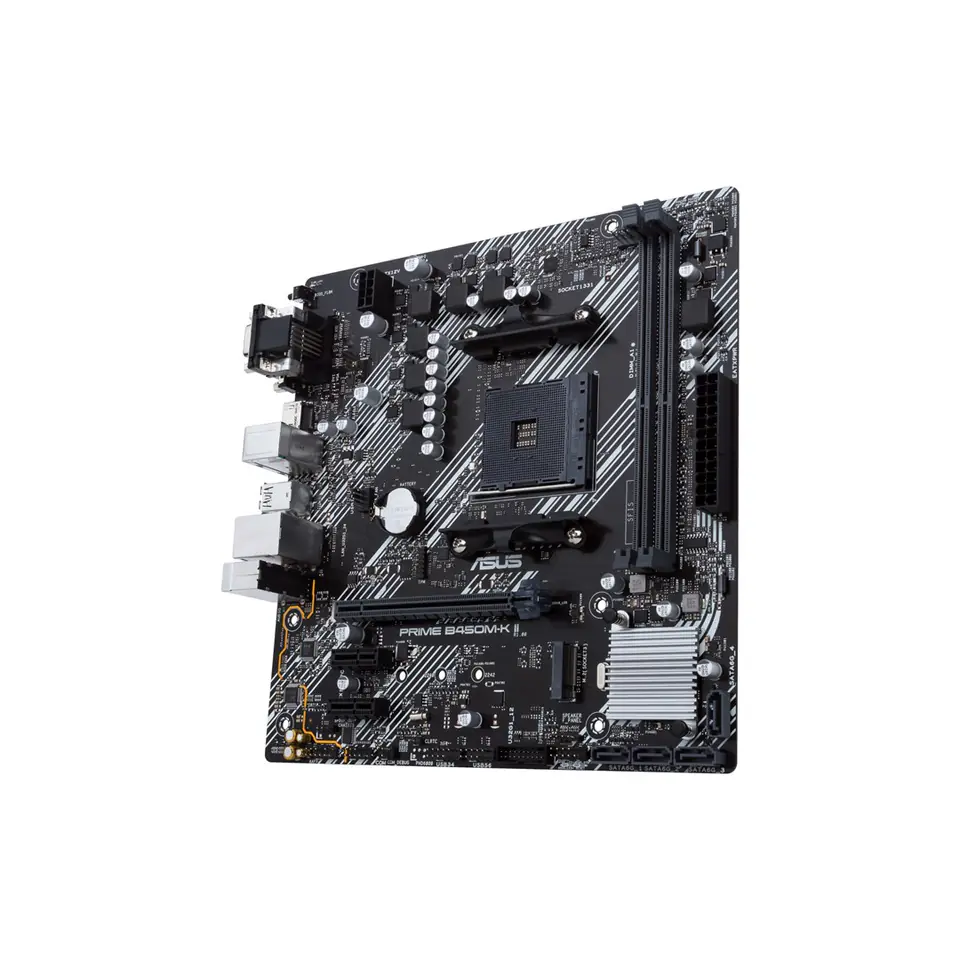

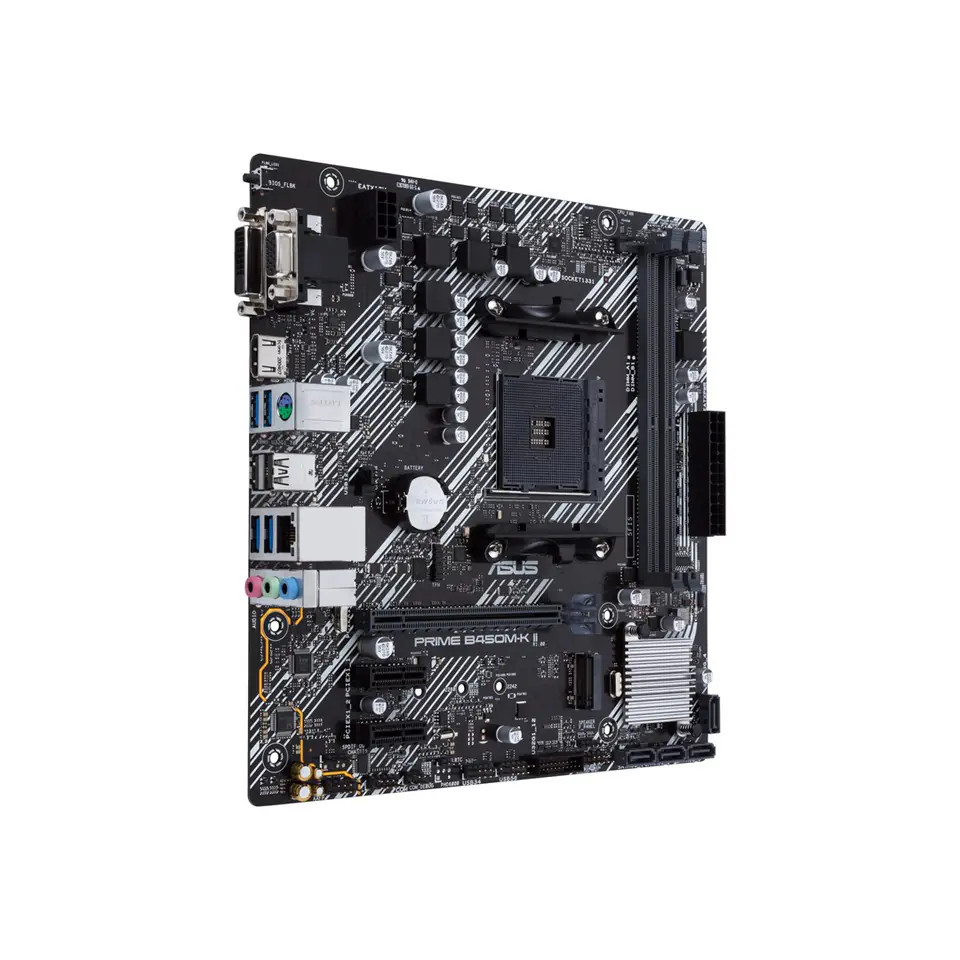

ASUS Prime B450M-K II AMD B450 Socket AM4 micro ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB1600-M0EAY0 / 4718017932387
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC887-VD2 |
| Audio connector: | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |

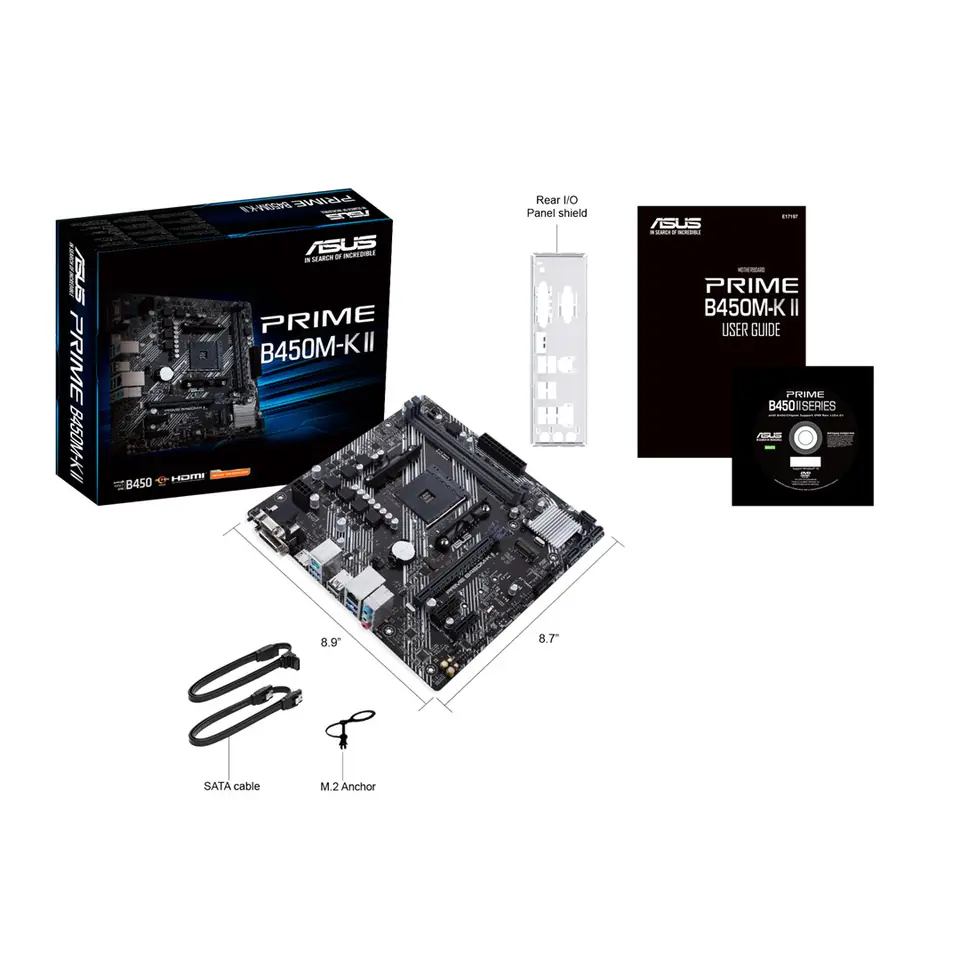

| Cables included: | SATA |
| Compatible processor series: | AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, AMD Ryzen™ Threadripper™: The Second Generation, 2nd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, AMD Ryzen™ 7, AMD Ryzen™ 3 |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Dvi-d ports quantity: | 1 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Headphone outputs: | 1 |
| Maximum internal memory: | 64 GB |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B450 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 2 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pci express x1 (gen 2.x) slots: | 2 |
| Pci express x16 (gen 3.x) slots: | 2 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 2 |
| Raid levels: | 1, 10, 0 |
| S/pdif out connector: | Yes |
| Supported memory clock speeds: | 3200, 2666, 2133, 2400, 2800, 3000, 2933 |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, Serial ATA III |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 3 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 7 x64 |
