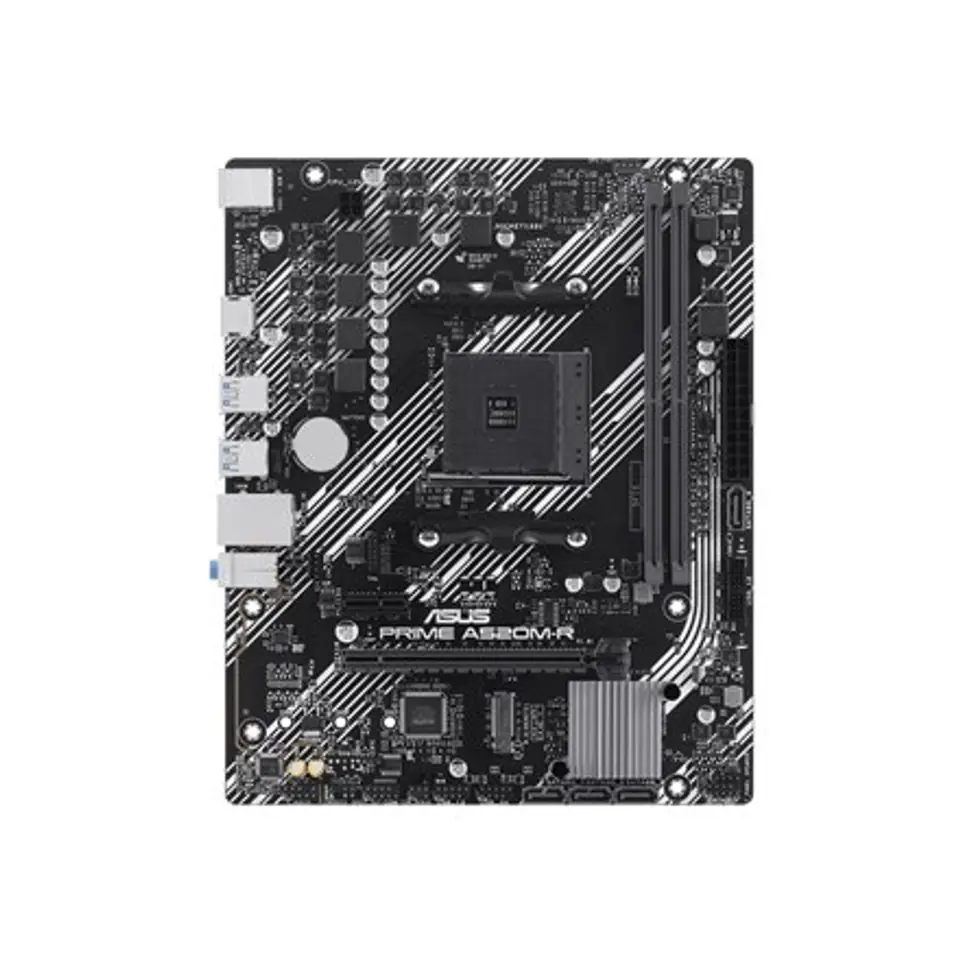

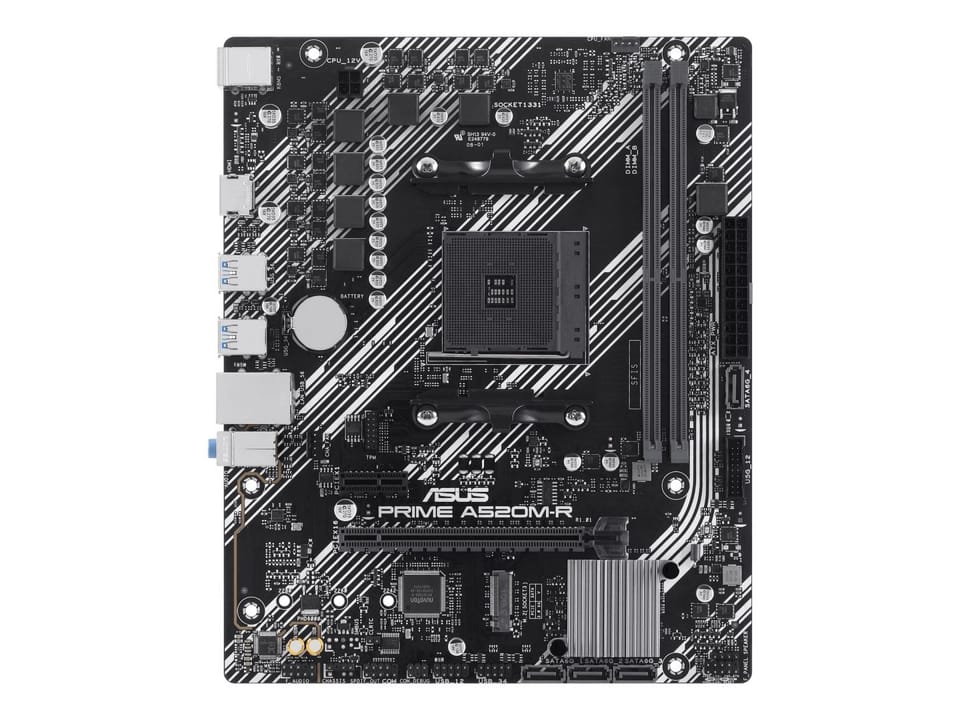

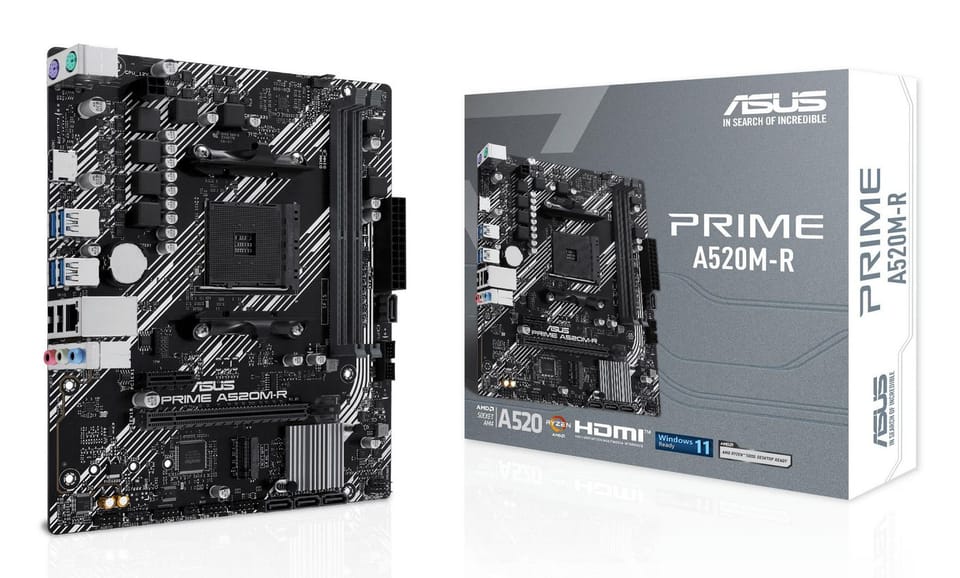

ASUS PRIME A520M-R AMD A520 Socket AM4 micro ATX
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- 90MB1H60-M0EAY0 / 4711387466414
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Compatible processor series: | AMD Ryzen™ 5, AMD Ryzen 9 5th Gen, AMD Ryzen™ 3, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Cooling type: | Passive |
| Cpu fan connector: | Yes |
| Depth: | 193 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Maximum internal memory: | 64 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD A520 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 1 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Package depth: | 263 mm |
| Package height: | 51.5 mm |
| Package weight: | 880 g |
| Package width: | 270 mm |
| Parallel processing technology support: | Not supported |
| Pci express x1 (gen 3.x) slots: | 1 |
| Pci express x16 (gen 3.x) slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Product colour: | Black |
| Ps/2 ports quantity: | 2 |
| Raid levels: | 10, 1, 0 |
| Raid support: | Yes |
| Supported memory clock speed (max): | 5100 MHz |
| Supported memory clock speeds: | 2133, 4200, 3000, 5100 MHz, 3400, 3866, 2400, 2800, 3733, 4400, 4666, 4866, 4333, 4600, 4133 MHz, 4000, 3200 MHz, 2666, 4266, 3333, 4466, 3466, 2933 MHz, 3600 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Wi-fi: | No |
| Width: | 236 mm |
| Windows operating systems supported: | Windows 10, Windows 11 |
