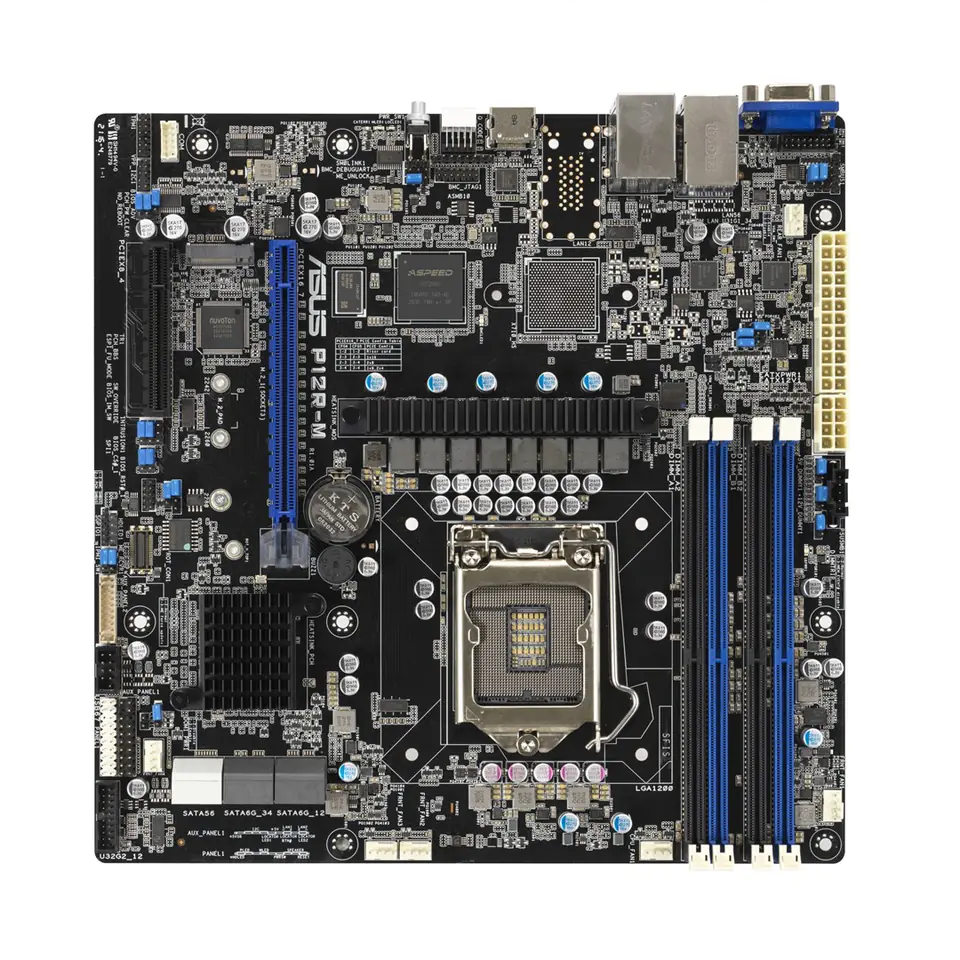

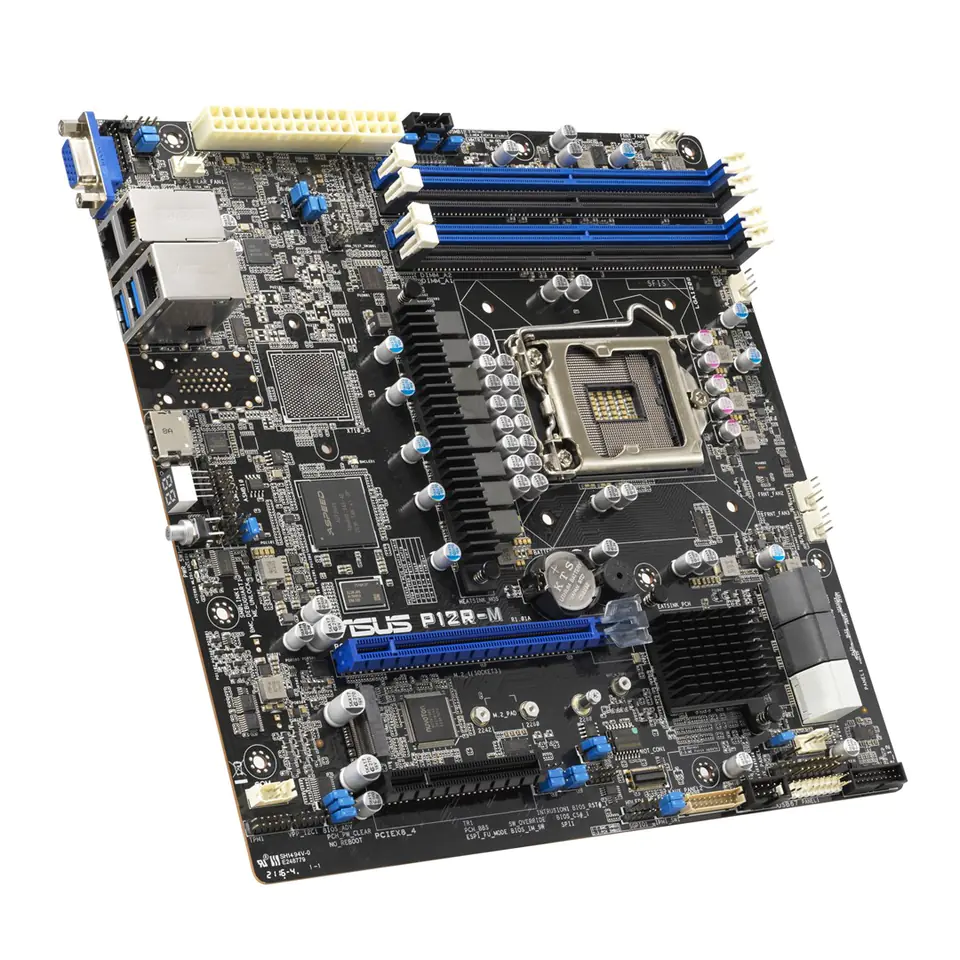

ASUS P12R-M Intel C252 LGA 1200 (Socket H5) micro ATX
PLN 1,532.51
Shipping from warehouse: A3
Estimated shipping: Mon, Oct 27 - Thu, Oct 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 90SB09X0-M1UAY0 / 4711081684749
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Compatible processor series: | Intel Xeon E, Intel® Pentium® |
| Component for: | Server |
| Depth: | 244 mm |
| Eps power connector (8-pin): | Yes |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 2 |
| Graphics card: | AST2600 |
| Graphics card family: | ASPEED |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Lan controller: | Intel® I210-AT |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel C252 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 6 |
| On-board graphics card memory: | 64 MB |
| Operating temperature (t-t): | 10 - 50 °C |
| Package weight: | 1.3 kg |
| Pci express x16 (gen 4.x) slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Serial port headers: | 1 |
| Storage relative humidity (h-h): | 20 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported memory clock speeds: | 3200 MHz, 2666, 2933 |
| Supported memory module capacities: | 32GB, 16GB, 4GB, 8GB |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 244 mm |
