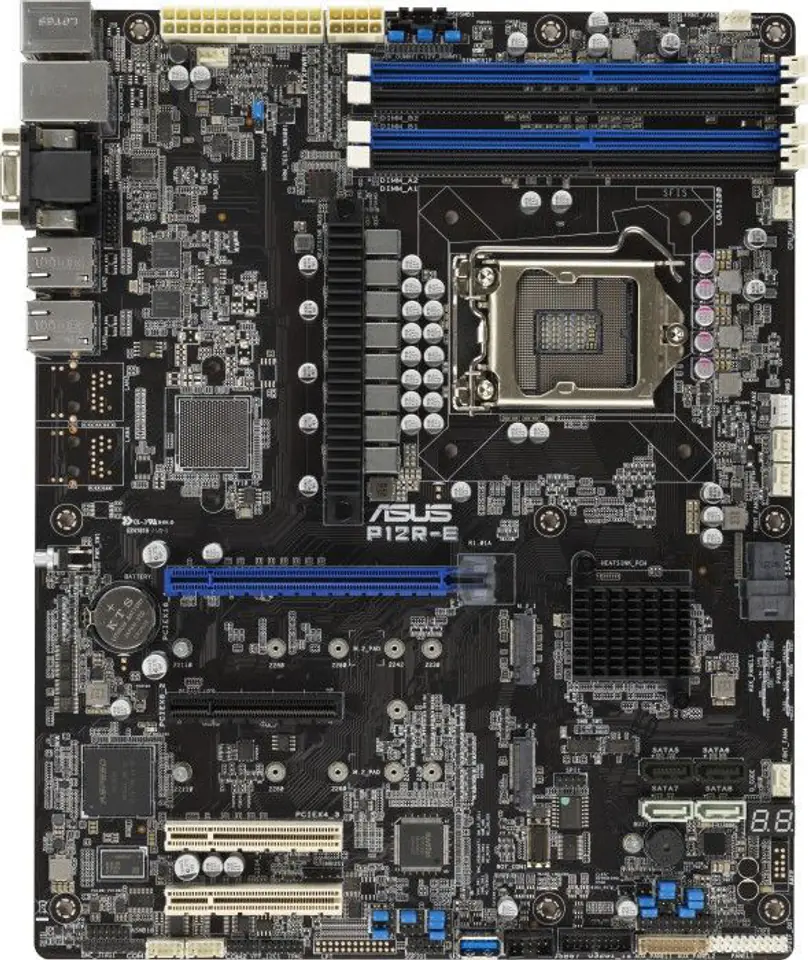

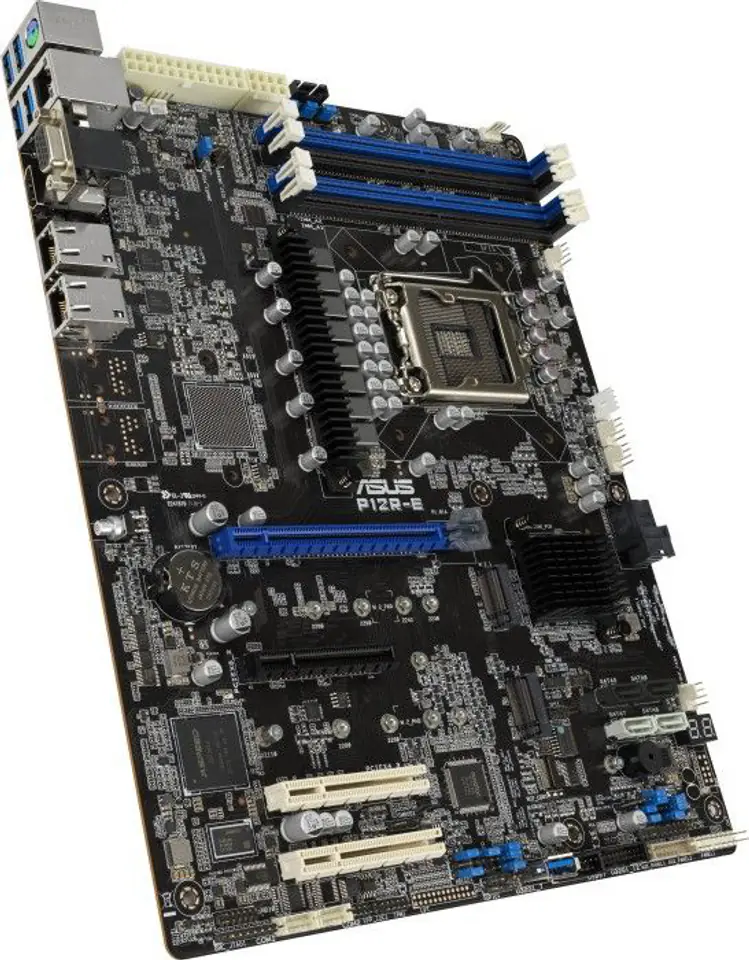

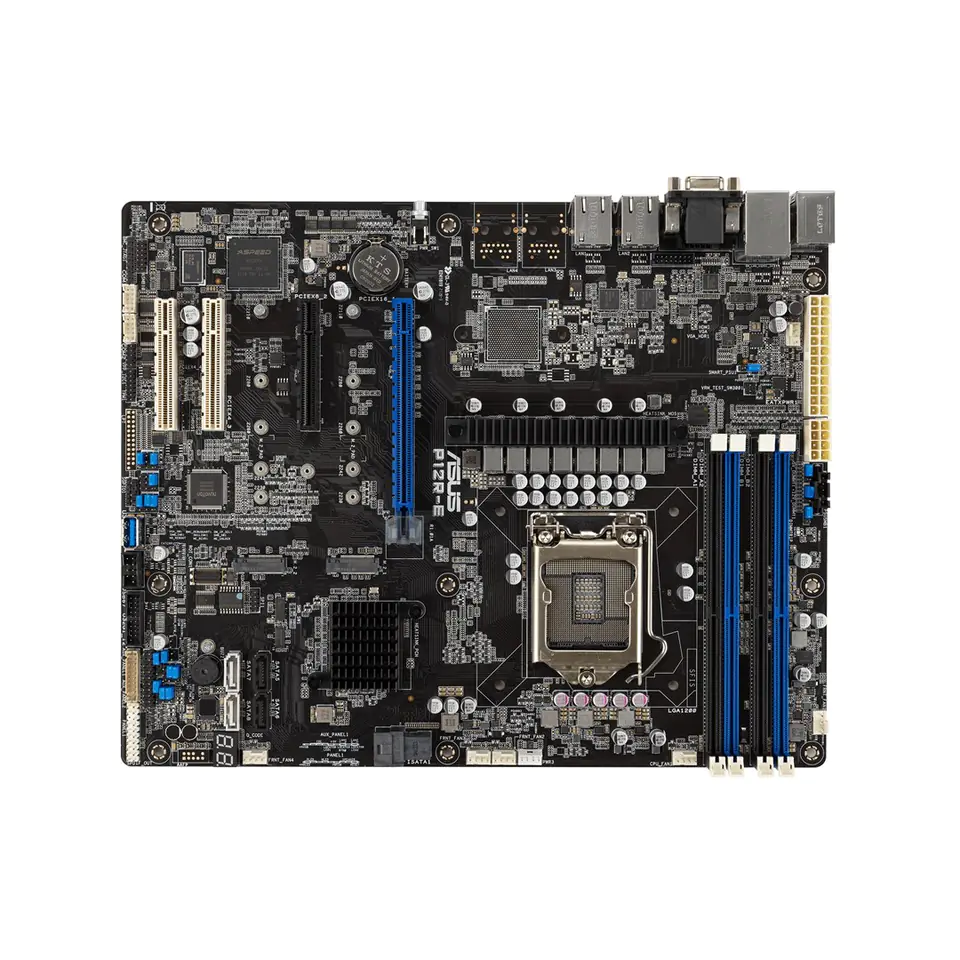

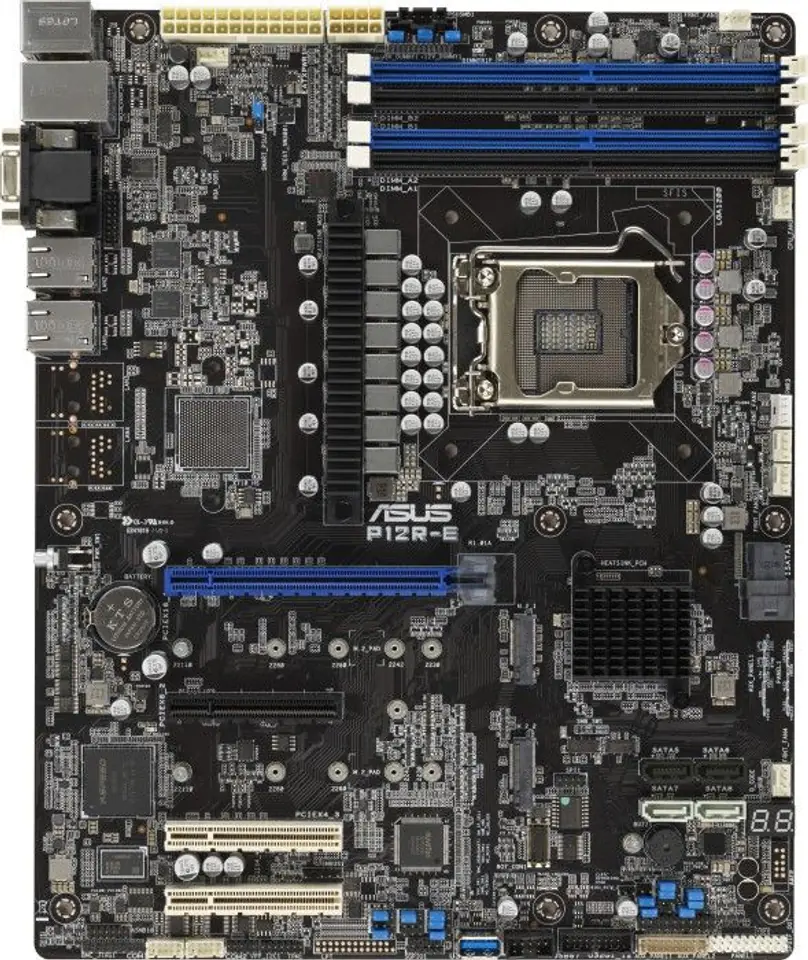

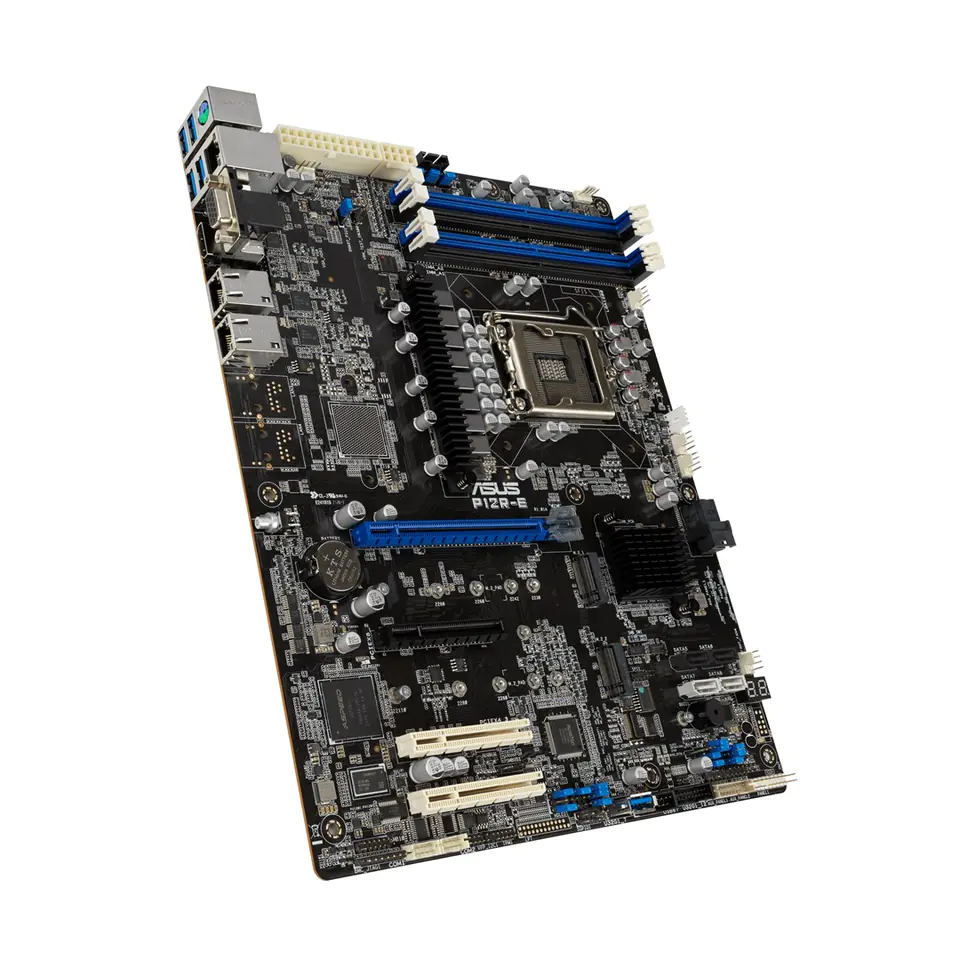

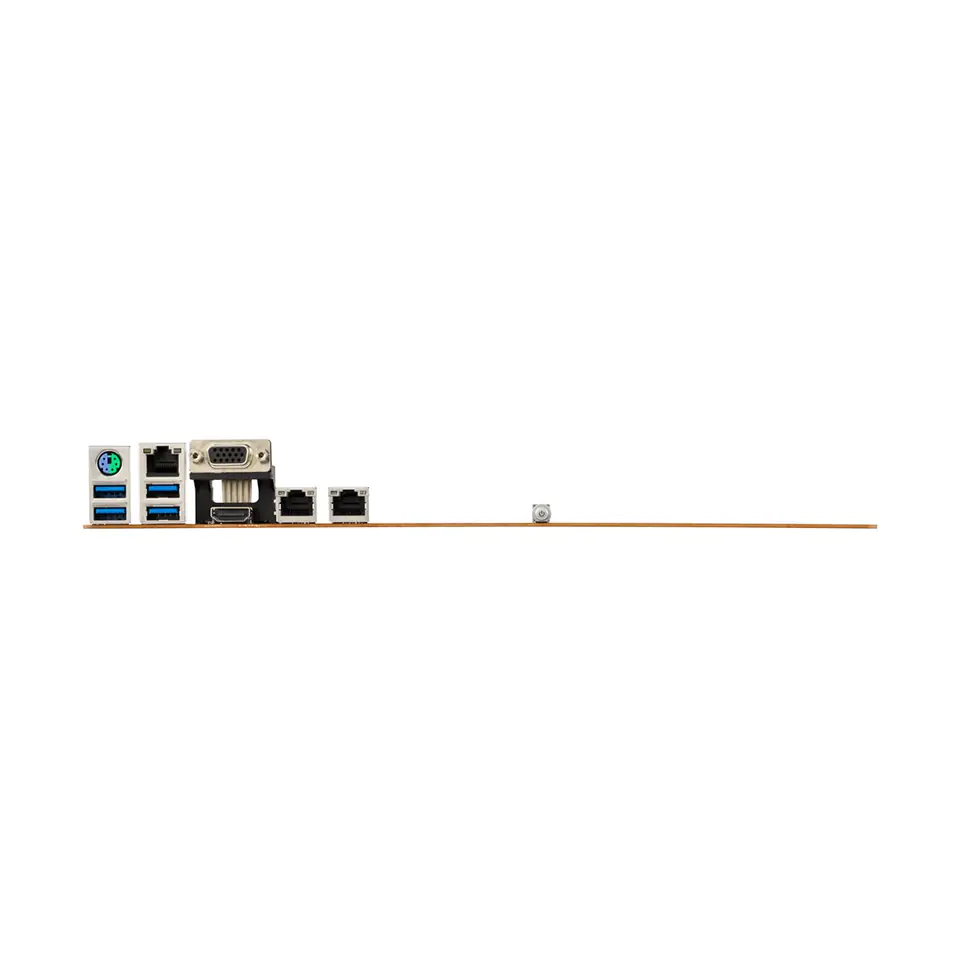

ASUS 90SB0A90-M0UAY0 motherboard LGA 1200 ATX
€425.12
Shipping from warehouse: A3
Estimated shipping: Mon, May 20 - Tue, May 21
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- 90SB0A90-M0UAY0 / 4711081420217
Share this product:
Specification
| Compatible processor series: | Intel® Xeon® |
|---|---|
| Component for: | Server |
| Depth: | 244 mm |
| Harmonized system (hs) code: | 84733020 |
| Hdmi ports quantity: | 1 |
| Maximum internal memory: | 128 GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Number of chassis fan connectors: | 6 |
| Number of com connectors: | 1 |
| Number of hdds supported: | 8 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 8 |
| Number of storage drives supported: | 10 |
| On-board graphics card: | Yes |
| On-board graphics card memory: | 64 MB |
| On-board graphics card model: | Aspeed AST2600 |
| Operating relative humidity (h-h): | 10 - 50% |
| Package weight: | 9.5 g |
| Pc health monitoring: | CPU, Fan |
| Pci express x16 (gen 3.x) slots: | 1 |
| Pci express x16 slots: | 1 |
| Pci express x8 slots: | 3 |
| Power fan connector: | Yes |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1200 (Socket H5) |
| Ps/2 ports quantity: | 1 |
| Raid support: | Yes |
| Storage relative humidity (h-h): | 20 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Supported memory clock speeds: | 3200 MHz, 2666 MHz, 2933 |
| Supported memory module capacities: | 8GB, 16GB, 32GB |
| Supported memory types: | DDR4-SDRAM |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 2 |
| Vga (d-sub) ports quantity: | 1 |
| Width: | 305 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
